Sida 1/8
METRA. The World’s best kits.
™
metraonline.com
© COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
REV. 1/21/2016 INST95-9310B
CAUTION: Metra recommends disconnecting the negative battery
terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your
local Dealership for more information. All accessories, switches,
climate controls panels, and especially air bag indicator lights
must be connected before reconnecting the battery or cycling
the ignition. Also, do not remove the factory radio with the key
in the on position, or the vehicle running. It would be best to
remove the key from the ignition and then wait a few seconds
before removing the factory radio.
Installation instructions for part 95-9310B
• ISO DDIN radio provision
• Painted matte black
• Relocates the factory climate control and switches
• A) Radio trim panel • B) Back up housing • C) Radio brackets • D) Climate and switch panel housing
• E) Climate bracket • F) (4) #8 x 1/2” Phillips screws • G) (2) #8 x 3/8” Phillips screws • H) (2) panel clips
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-8590 • 70-9003 (nav models 02-06) Antenna Adapter: • 40-VW10 40-EU10 (nav models 02-06)
• Panel removal tool • Phillips screwdriver • Pick tool
TOOLS REQUIRED
BMW 3-Series 1999-2005,
3-Series
(coupe, convertible) 2006, M3 2001-2006
(for factory switch panel with five separate openings)
95-9310B
A
C ED
F
G H
B
Dash Disassembly ..............................................2-4
Kit Assembly
– ISO DDIN radio provision ...................................... 5
Climate and Switch Panel Assembly .................... 6
Table of Contents
95-9310B
2

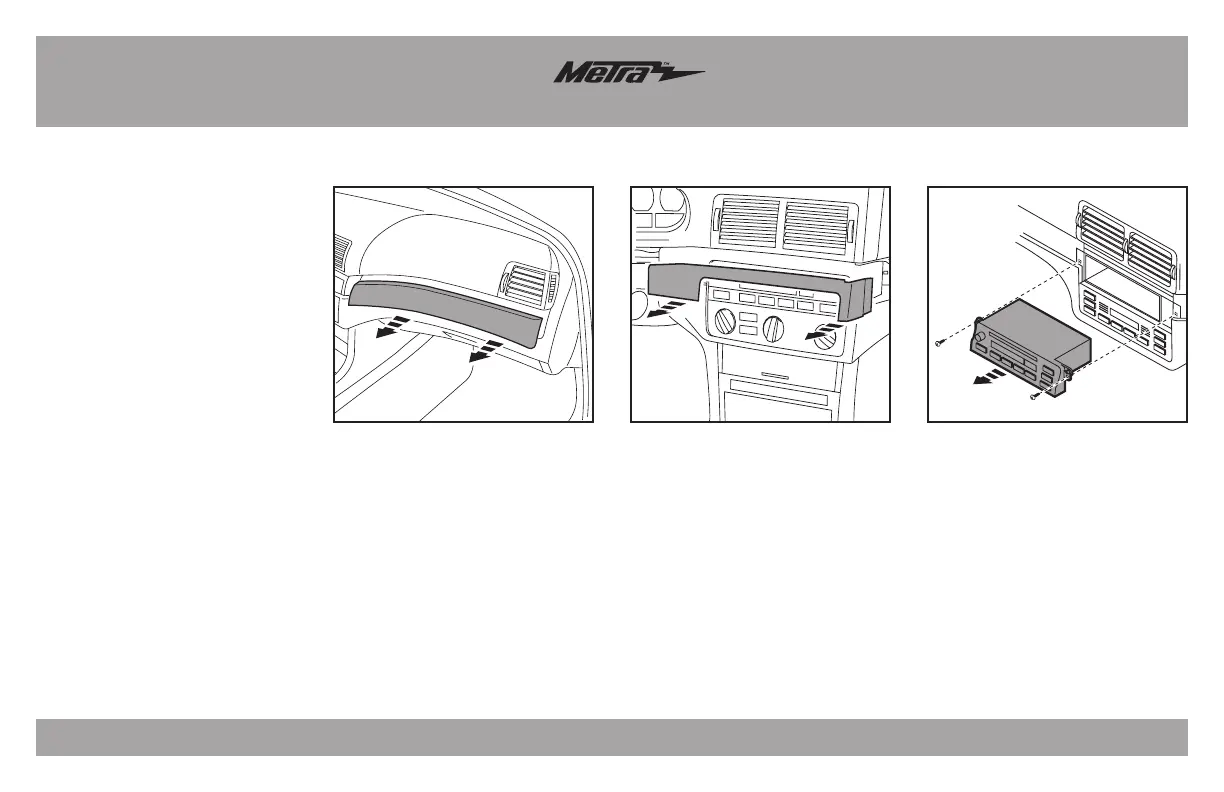

Dash Disassembly
1. Unclip and remove the trim panel
above the glove box. (Figure A)
2. Unclip and remove the trim panel
above the factory radio. (Figure B)
3. Remove (2) Phillips screws
securing the radio and then unplug
and remove the radio. (Figure C)
Continued on the next page
(Figure A) (Figure C)(Figure B)
