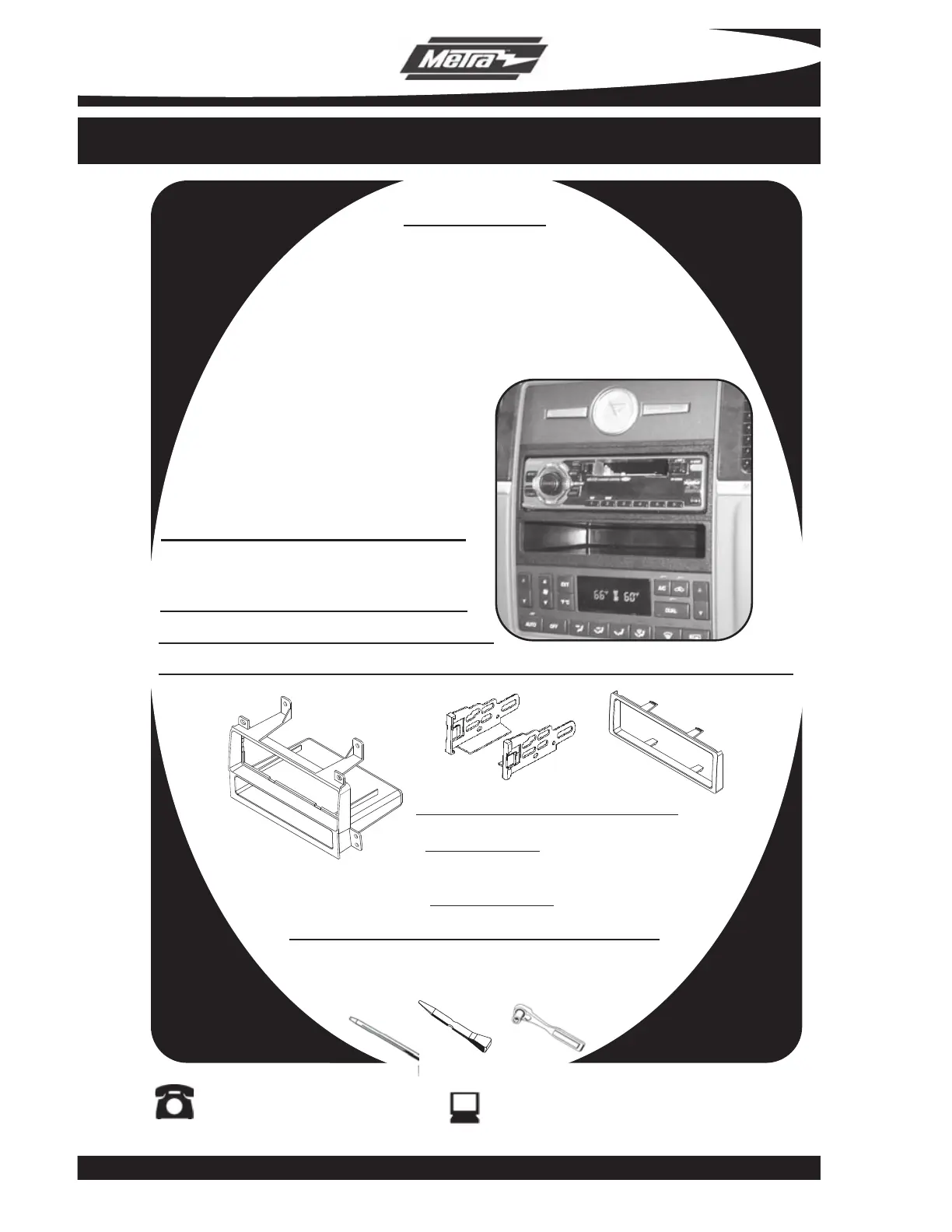

INSTALLATION INSTRUCTIONS FOR PART 99-5810

99-5810

KIT FEATURES

• DIN Head Unit Provision with Pocket

• ISO DIN Head Unit Provision with Pocket

A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate

KIT COMPONENTS

Small Flat Blade Screwdriver/ Panel Removal Tool

• Socket Wrench Set

1-800-221-0932

www.metraonline.com

TOOLS REQUIRED:

APPLICATIONS

LINCOLN Town Car

2003-2011

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

• Wiring Harness:

• 70-5520 - Ford harness 2003-up

•70-5521 - Ford amplified harness 2003-up

• Antenna Adapter: Not required

Dash Disassembly

- LINCOLN Town Car 2003-2011 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Kit Assembly

- DIN Head Unit Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

- ISO DIN Head Unit Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

TABLE OF CONTENTS

99-5810

*Note:

Refer also to the instructions included with the aftermarket radio.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

99-5810 DASH DISASSEMBLY

LINCOLN TOWN CAR 2003-2011

50 60 70

100

140

180 1

120

RN21

MPH

0.0

MILES

LINCOLN

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Remove (2) 7mm bolts facing upward

above instrument cluster/gauges.

(Figure A)

Carefully unsnap and remove dash

panel surrounding radio and instru-

ment cluster/gauges.

(Figure B)

Remove (2) 7mm bolts above clock

panel and remove panel).

(Figure C)

Remove (4) 7mm bolts securing radio.

Continue to kit assembly.
