INSTALLATION INSTRUCTIONS
99-5865CH
The World’s best kits.
®
metraonline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 11/8/24 INST99-5865CH
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket radio.
KIT FEATURES
KIT COMPONENTS

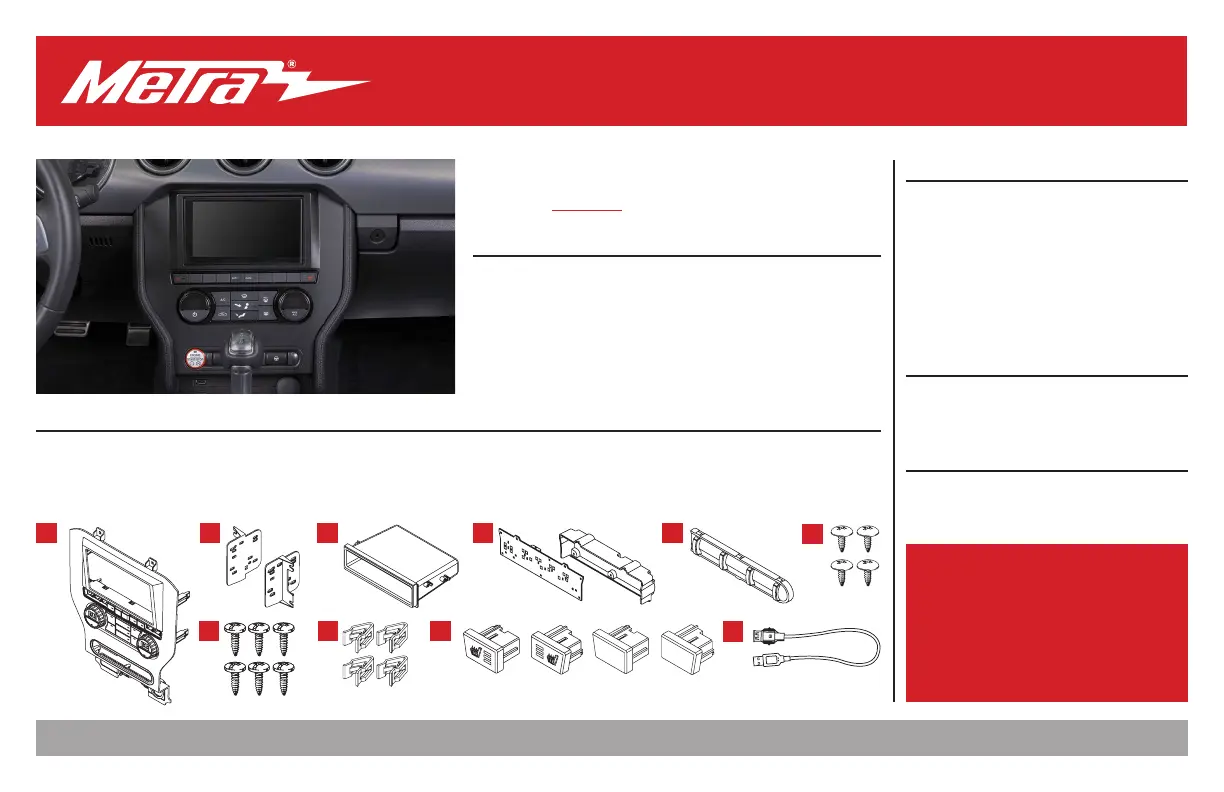

• A) Radio trim panel with tactile display • B) Radio brackets • C) Pocket • D) Engine start/stop circuit board and cover • E) Engine start/stop trim
• F) #8 x 3/8” Phillips truss-head screws (4) • G) #4 x 1/2” Phillips pan-head screws (6) • H) Panel clips (4) • I) Blank panels (2), Heated seat buttons (L & R)
• J) USB cable • Not Shown: HVAC interface and wiring harness, Antenna adapter
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Cutting tool
• Torx T-10 screwdriver
TABLE OF CONTENTS
Dash Disassembly .............................................. 2-3
Kit Preparation ...................................................4-5
Kit Assembly
–ISO DIN radio provision with pocket ..................6
–ISO DDIN radio provision ....................................6
Axxess Interface installation ...........................7-15
Final Assembly ...................................................... 11
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface &
harness included
Antenna Adapter: Included in kit
A B C
E
D
Ford Mustang
(with manual climate controls)
2015-2023
G
F
H
J
I
Visit MetraOnline.com for more detailed information about the product
and up-to-date vehicle specific applications
• Factory-style hard buttons with laser etched graphics to retain and control
most climate functions normally lost when removing factory radio
• Easy to use rotary knobs with LCD status displays for temp and fan speed
• Retains steering wheel functionality - no need to purchase and install a
separate steering wheel control interface
• Parts included for installation of Single-DIN and Double-DIN radios
• Integrated hazard button
• Painted to match the factory finish
Please visit metraonline.com or axxessinterfaces.com for more harness and interface options.
386.257.1187
|
MetraOnline.com

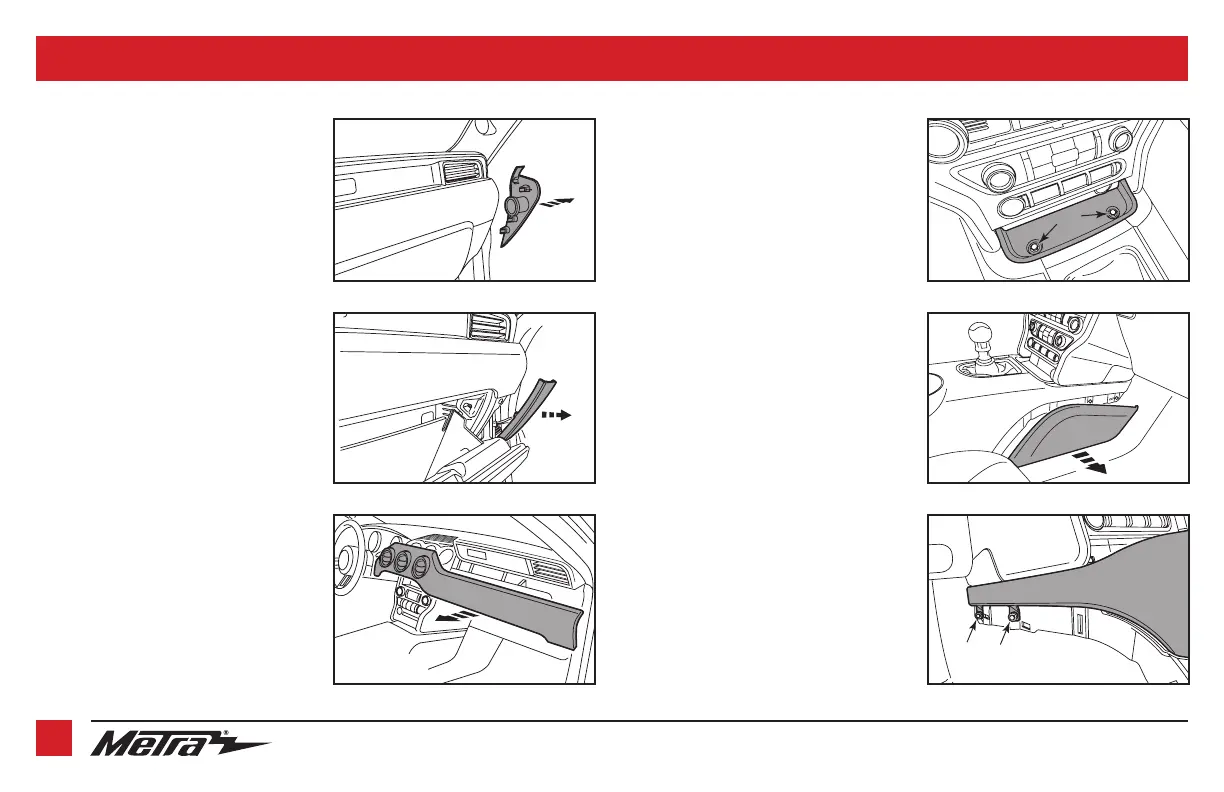

1. Open the passenger door and remove
the trim panel from the side of the dash.
(Figure A)
2. Open the glove box and remove the
trim panel on the right side. (Figure B)
3. Unclip and remove the trim/vent dash
panel. (Figure C)
DASH DISASSEMBLY
2
4. Remove the rubber tray cover in front
of the shifter, and then remove the (2)
9/32” screws exposed. (Figure D)
5. Unclip and remove the front side panels
from each side of the center console.
(Figure E)
6. Remove the (2) 9/32” screws from each
side of the center console. (Figure F)
Continued on the next page
(Figure A) (Figure D)
(Figure B) (Figure E)
(Figure C) (Figure F)
