APPLICATIONS
METRA. The World’s best kits.
™
metraonline.com1-800-221-0932
© COPYRIGHT 2014 METRA ELECTRONICS CORPORATION
REV. 9/16/2014 INST99-6520B
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.

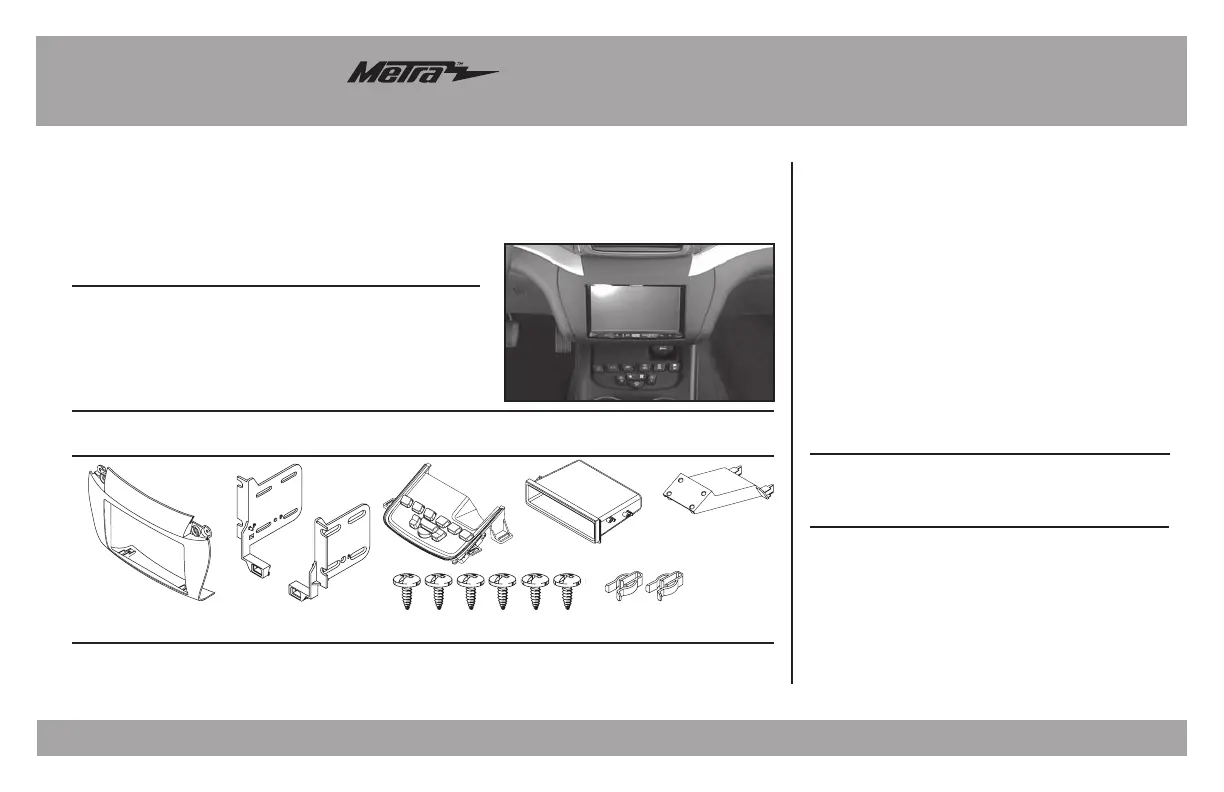

INSTALLATION INSTRUCTIONS FOR PART 99-6520B
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Included interface retains factory 4.3” screen
•
Painted matte black to match factory finish
• A) Radio trim panel • B) Radio brackets • C) A/C button housing • D) Pocket • E) Console bracket
• F) (6) #8 x 3/8” Phillips pan-head screws • G) (2) White plastic panel clips • Axxess interface and harness (not shown)
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Interface and harnesses included
Antenna Adapter: • 40-EU10 Multi-app antenna adapter
• Panel removal tool • Phillips screwdriver
• Socket Wrench • Torx Screwdriver
TOOLS REQUIRED
Dodge Journey 2011-up
(Models with 4.3” screen)
99-6520B
A
BCDE
G
Dash Disassembly
–Dodge Journey 2011-up ...................................2-3
Kit Assembly
–ISO DIN radio provision with pocket ...................4-5
–Double DIN radio provision ................................4-5
Axxess interface installation..............................6-9
Table of Contents
F
