CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 1/18/18 INST99-7633
INSTALLATION INSTRUCTIONS
99-7633
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted high gloss black

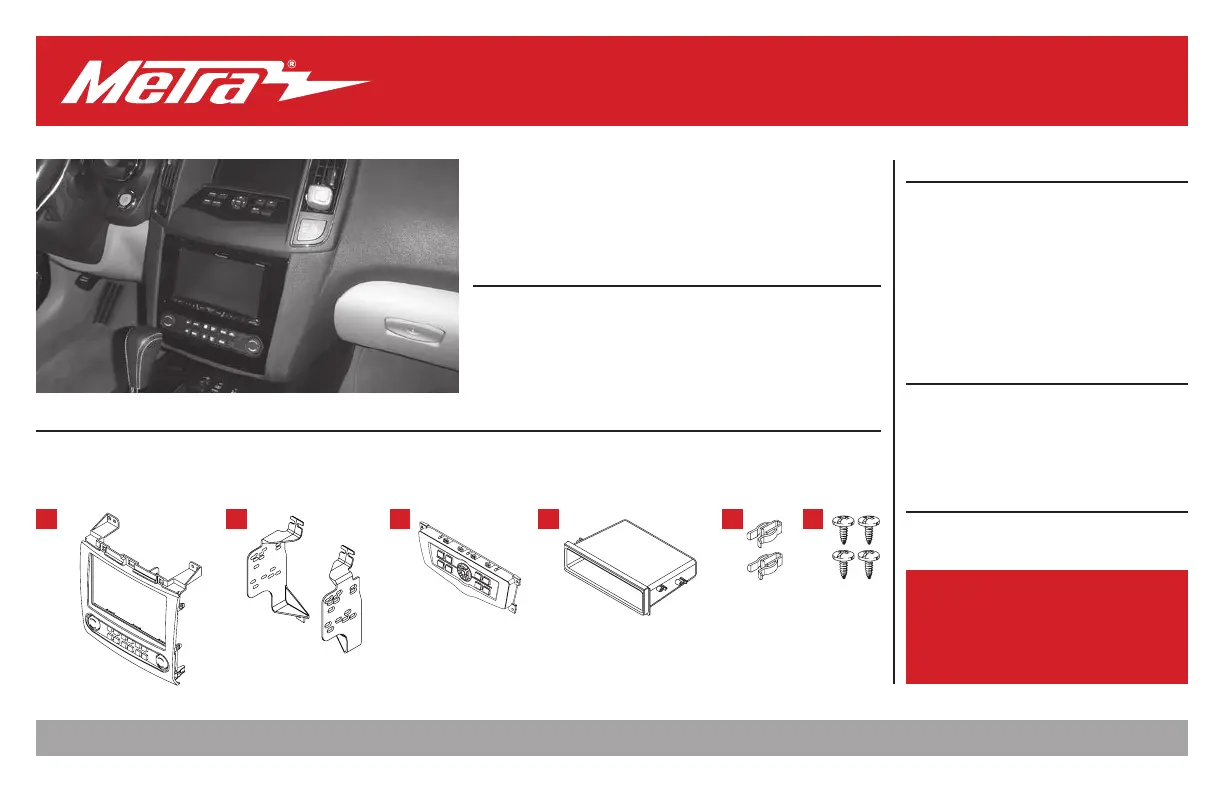

KIT COMPONENTS
• A) Radio trim panel with climate controls • B) Radio brackets • C) Keypad • D) Pocket • E) (2) Panel clips • F) (4) #8 x 3/8” Phillips screws
• G) Axxess Interface and wiring harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................2
Kit Assembly
–ISO DIN radio provision with pocket ..................3
–ISO DDIN radio provision .....................................3
Axxess Interface Installation .............................4-11
WIRING & ANTENNA CONNECTIONS
Wiring harness: • Axxess interface and harness included
Antenna adapter: • 40-NI12 (sold separately)
Steering wheel control interface: • ASWC-1 (sold separately)
A B DC FE
Nissan Maxima (with Technology Package)
2009-2014
Nissan Maxima (with NAV)
2009
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY KIT PREPARATION
Please visit Metraonline.com for
Dash Disassembly illustrations.
Please visit Metraonline.com for
Kit Preparation illustrations.
1. Unclip and remove the entire panel
above the radio including the a/c vents
and keypad, then unplug and remove
the panel. (Figure A)
2. Remove (2) Phillips screws securing the
radio/climate control panel, then unclip
and remove the panel. (Figure B)
3. Remove (4) Phillips screws securing the
radio chassis, then unplug and remove
the chassis. (Figure C)
Continue to Kit Preparation
Climate control module preparation
1. Remove the climate control module from
radio chassis assembly.
a. Slightly loosen (4) Torx screws securing
each side bracket to the radio chassis.
b. Remove (1) Torx screw from each
side of the climate control module,
then remove the module.
2. Secure the climate control module to the
radio brackets
using the factory hardware.
Keypad preparation
1. Remove (4) Philips screws securing the
factory keypad assembly to the a/c vent
and keypad panel, then remove the
keypad.
2. Attach the
keypad
provided with the kit to
the factory display panel using the factory
hardware.
3. Attach (2)
clips
provided with the kit onto
the
radio trim panel
with climate controls.
Continue to Kit Assembly
