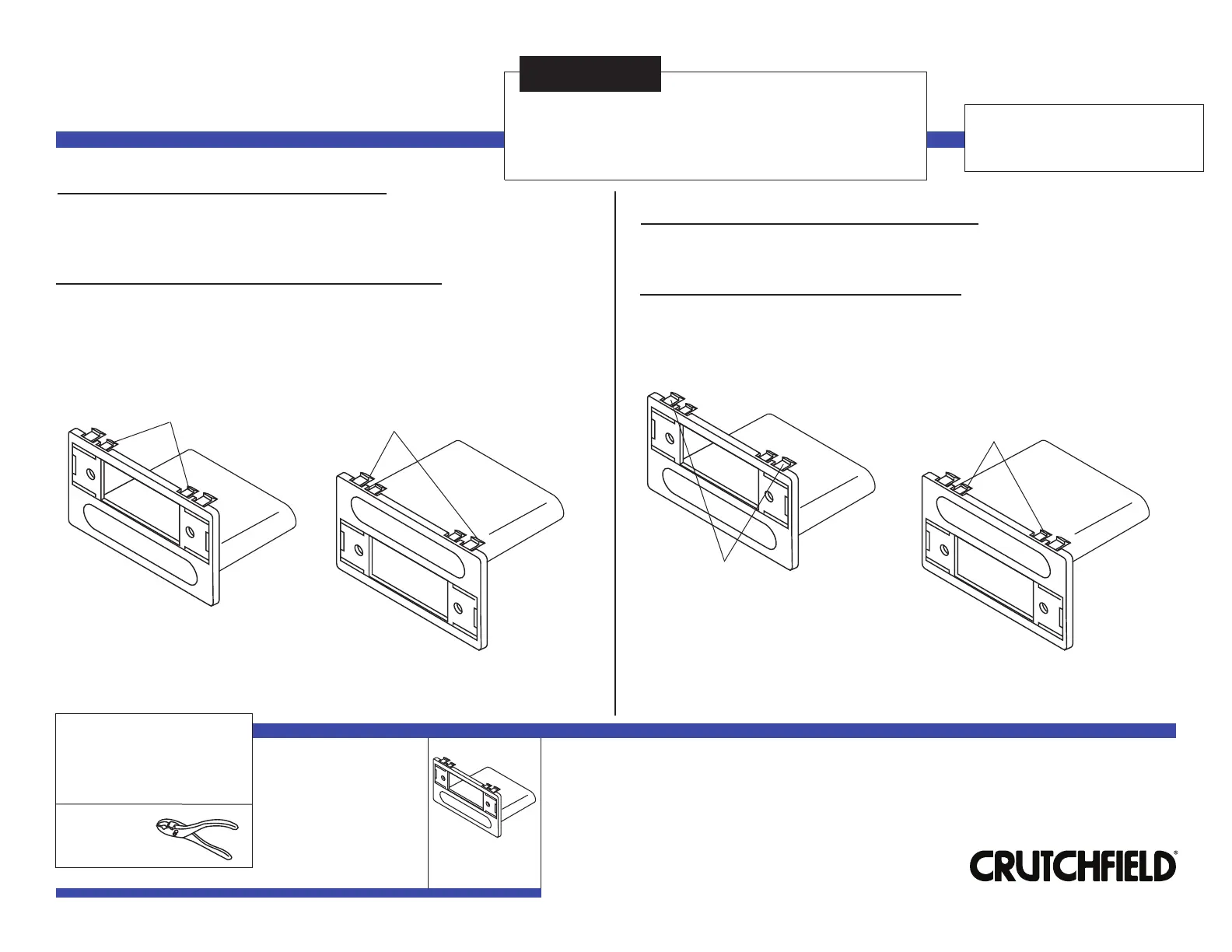

Parts

Supplied:



Mounting

Bracket

IMPORTANT

Installation Kit

Tools Required

120 99-7893

Before starting, compare items on your invoice with items

received. If any parts are missing, first carefully check through

packaging material. If an item is missing, please call:

Crutchfield

Honda/Saab

1. Using pliers, break off tabs not

labeled with a on “C” top of

mounting bracket.

Revision 02/02/14

Pliers

If your vehicle is a CR-V or Civic:

*120997893*

If your vehicle is a Prelude:

If installing a DIN receiver, follow instructions on the next page.

If installing a shaft receiver, see page 3.

“P” Tabs

(break off)

2. On bottom of mounting

bracket, break off tabs

labeled “P”.

Tabs Not Labeled

(break off)

“C” Tabs

(break off)

Tabs Not Labeled

(break off)

1. Using pliers, break off tabs

labeled with a “C” on top of

mounting bracket.

2. On bottom of mounting

bracket, break off tabs not

labeled “P”.

If installing a DIN receiver, follow instructions on the next page.

If installing a shaft receiver, see page 3.

If your vehicle is a Odyssey:

Do not break off any of the tabs on kit. Proceed to page 2.



If your vehicle is a Saab 9-3:

Proceed to instructions on page 5.

at 1-888-955-6000

Installation Kit

120 99-7893

Honda

1. Cut out shaft supports receiver mounting bracket in with a utility knife to create the (Figures 1 & 2).DIN receiver opening

2. Install kit and receiver following instructions in the Crutchfield MasterSheet for your particular vehicle.

DIN kit preparation -- Honda

Tools Required

Utility Knife

FIGURE 1 FIGURE 2

Shaft Supports

Receiver Mounting Bracket

DIN Receiver Opening

Bracket with appropriate tabs for CR-V shown.

(See page 3 or 4 if installing a shaft receiver).



Installation Kit

120 99-7893

Honda

Shaftnuts (supplied with receiver)

Spacers (supplied with your order)

Shaft Assembly -- CR-V, Civic & Prelude

Tools Required

Deep Socket

(size depends

upon receiver)

Receiver Mounting Bracket

Control Knobs

Faceplate

See the next page for shaft assembly if your vehicle is an Odyssey.

1. Choose the proper spacers (supplied with your order)

to allow receiver nosepiece to extend 1/8” to 1/4”

beyond face of receiver mounting bracket

(see inset below).

2. Secure receiver and to mounting faceplate

bracket with spacers and as shaftnuts

shown. Attach control knobs.

3. Install receiver assembly following

instructions in the Crutchfield MasterSheet

for your particular vehicle.



INSET

1/8” -1/4”

Spacer


