CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

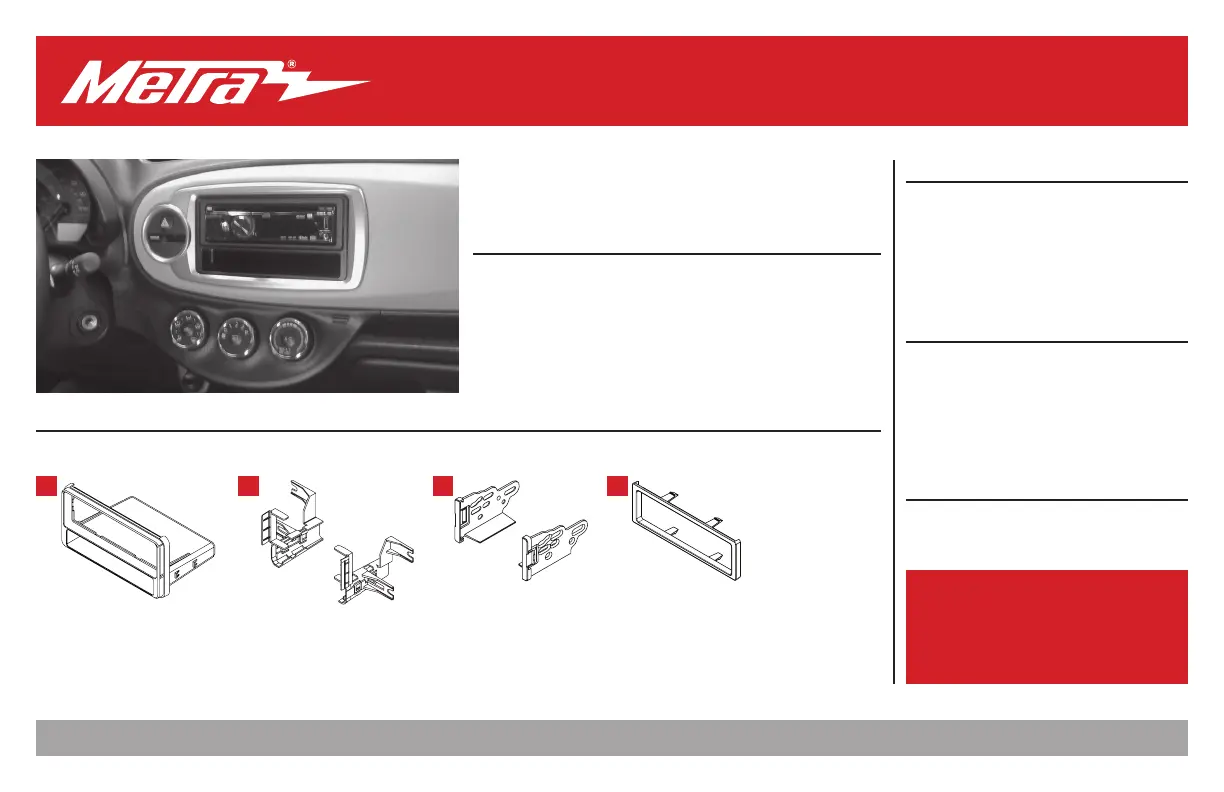

I N S TA L L AT I O N I N S T R U C T I O N S

99-8238

KIT FEATURES

• DIN radio provision with pocket

• ISO DIN radio provision with pocket

KIT COMPONENTS

• A) Radio housing • B) Radio brackets • C) ISO snap-in brackets • D) Trim plate

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 10mm socket wrench

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly

–DIN radio provision with pocket ........................3

–ISO DIN radio provision with pocket ..................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: • 70-1761

Antenna Adapter: • Not required (sedan)

• 40-LX11 (hatchback)

Steering Wheel Control Interface: ASWC-1

A B C D

Toyota Yaris 2012-2017

1.800.221.0932

MetraOnline.com

DASH DISASSEMBLY

1. Unclip and remove entire panel

including a/c vent on passenger side of

dash. (Figure A)

2. Unclip and remove the panel from

around the radio. (Figure B)

3. Remove (4) 10mm bolts and remove

factory radio. (Figure C)

Continue to Kit Assembly

(Figure A)

(Figure C)

(Figure B)

REV. 8/28/2017 INST99-8238 3

KIT ASSEMBLY

DIN radio provision with pocket

1. Slide the

radio brackets

onto the sides

of the

radio housing

until the side clips

engage.

Note:

Tabs are marked Left and Right.

(Figure A)

2. Remove the metal DIN sleeve and trim

ring from the aftermarket radio.

3. Slide the sleeve into the

radio housing

and secure by bending the metal locking

tabs down. (Figure B)

4. Slide the radio back into the sleeve until

it clicks in. (Figure C)

5. Snap the

trim plate

into the

radio

housing

. (Figure C)

6. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra. Test

the radio for proper operation.

7. Reassemble the dash in reverse order

of disassembly.

(Figure A) (Figure A)

(Figure B) (Figure B)

(Figure C) (Figure C)

ISO DIN radio provision with pocket

1. Slide the

radio brackets

onto the sides

of the

radio housing

until the side clips

engage.

Note:

Tabs are marked Left and Right.

(Figure A)

2. Remove the metal DIN sleeve and trim

ring from the aftermarket radio.

3. Secure the

ISO brackets

to the radio

with the screws supplied with the radio.

(Figure B)

4. Slide the bracket/radio assembly into

the radio opening until the side clips

engage. (Figure C)

5. Snap the

trim plate

into the

radio

housing

. (Figure C)

6. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra. Test

the radio for proper operation.

7. Reassemble the dash in reverse order

of disassembly.
