USER MANUAL

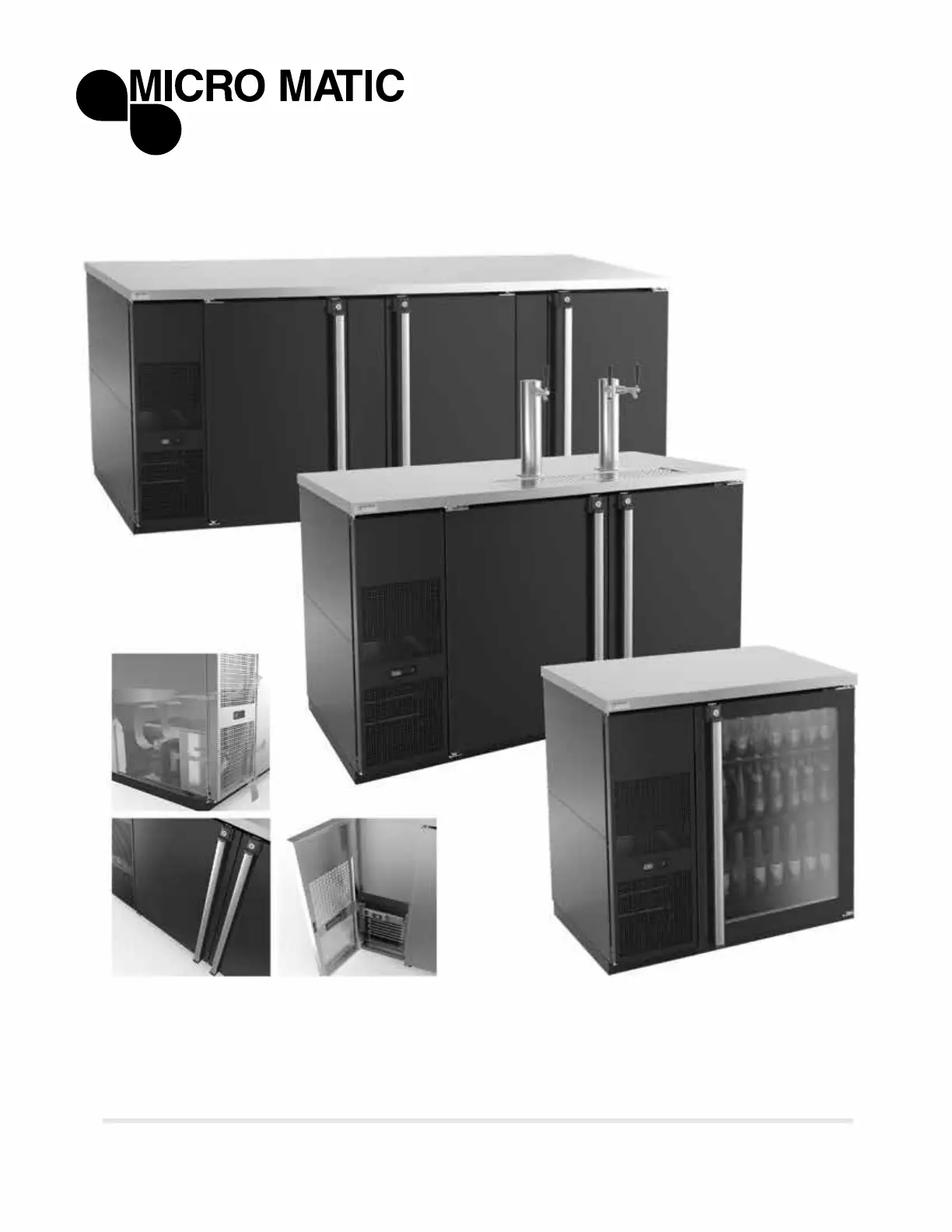

PRO-LINE™ REFRIGERATION E-SERIES™

// www.micromatic.com

CONTENTS

1 3RECEIVING AND INSPECTING

2 SPECIFICATIONS 4

3 INSTALLATION 5

3.1 UNCRATING 5

3.2 SEALING 5

3.3 CLEANING OF CABINET 5

3.4 LOCATION 6

3.5 TAPPING INSTRUCTIONS 7

3.6 DATA PLATE 8

3.7 ELECTRICAL CONNECTIONS 8

3.8 SHELVING INSTALLATION 9

4 OPERATIONS 9

4.1 MECHANICAL TEMPERATURE CONTROL 9

4.2 10DESCRIPTION OF BUTTONS ON THE CONTROLLER

4.3 ELECTRONIC TEMPERATURE CONTROL 11

4.4 DEFROST 12

5 MAINTENANCE 13

5.1 STAINLESS STEEL CARE AND CLEANING 13

5.2 14CLEANING THE CONDENSER COIL

5.3 15DRAIN MAINTENANCE

6 TROUBLESHOOTING 16

7 WIRING DIAGRAMS 17

8 WARRANTY 19

9 TECHNICAL INFORMATION 20

// www.micromatic.com

1 // RECEIVING AND INSPECTING

Upon receiving your new Micro Matic Pro-Line™ Refrigeration E-Series™ equipment,

check the package and the unit for any damages that may have occurred during

transportation. Visually inspect the exterior of the package. If damaged, open and

inspect the contents with the carrier. Any damage should be noted and reported on

the delivering carrier’s receipt.

In the event that the exterior is not damaged, yet upon opening, there is concealed

damage to the equipment notify the carrier immediately. Notication should be made

verbally as well as in written form. Request an inspection by the shipping company of

the damaged equipment. Retain all crating material until inspection has been made.

Finally, contact Micro Matic.

Open the compressor compartment housing and visually inspect package. Be sure

lines are secure and base is intact.

A NOTE FROM OUR QUALITY CONTROL MANAGER

Congratulations on your new purchase. We would like to welcome you to the Micro

Matic team. The unit in front of you is a great piece of equipment that will become one

of your most reliable tools in your daily operations for years to come!

Prior to shipping your unit, our trained service technicians tested your unit for a period

of 12 hours. This performance test was recorded and a copy of the results is included

with this service manual. During this test, our highly qualied personnel inspected your

machine for leaks, lose components, and improper noise levels. We also tested the

cooling performance in an effort to give you the best and most reliable unit possible.
