2015 Microchip Technology Inc. DS50002417A
MCP9600
Thermocouple IC
Evaluation Board
User’s Guide
2015 Microchip Technology Inc. DS50002417A-page 2
Information contained in this publication regarding device
applications and the like is provided only for your convenience
and may be superseded by updates. It is your responsibility to
ensure that your application meets with your specifications.
MICROCHIP MAKES NO REPRESENTATIONS OR
WARRANTIES OF ANY KIND WHETHER EXPRESS OR
IMPLIED, WRITTEN OR ORAL, STATUTORY OR
OTHERWISE, RELATED TO THE INFORMATION,
INCLUDING BUT NOT LIMITED TO ITS CONDITION,
QUALITY, PERFORMANCE, MERCHANTABILITY OR
FITNESS FOR PURPOSE. Microchip disclaims all liability
arising from this information and its use. Use of Microchip
devices in life support and/or safety applications is entirely at
the buyer’s risk, and the buyer agrees to defend, indemnify and
hold harmless Microchip from any and all damages, claims,
suits, or expenses resulting from such use. No licenses are
conveyed, implicitly or otherwise, under any Microchip
intellectual property rights unless otherwise stated.
Note the following details of the code protection feature on Microchip devices:
• Microchip products meet the specification contained in their particular Microchip Data Sheet.
• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the
intended manner and under normal conditions.
• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our
knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data
Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
• Microchip is willing to work with the customer who is concerned about the integrity of their code.
• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not
mean that we are guaranteeing the product as “unbreakable.”
Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our
products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts
allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.
Microchip received ISO/TS-16949:2009 certification for its worldwide
headquarters, design and wafer fabrication facilities in Chandler and
Tempe, Arizona; Gresham, Oregon and design centers in California
and India. The Company’s quality system processes and procedures
are for its PIC® MCUs and dsPIC® DSCs, KEELOQ® code hopping
devices, Serial EEPROMs, microperipherals, nonvolatile memory and
analog products. In addition, Microchip’s quality system for the design
and manufacture of development systems is ISO 9001:2000 certified.
QUALITY MANAGEMENT S
YSTEM
CERTIFIED BY DNV
==
==
==
====
ISO/TS 16949
==
==
==
====
Trademarks
The Microchip name and logo, the Microchip logo, dsPIC,
FlashFlex, flexPWR, JukeBlox, KEELOQ, KEELOQ logo, Kleer,
LANCheck, MediaLB, MOST, MOST logo, MPLAB,
OptoLyzer, PIC, PICSTART, PIC32 logo, RightTouch, SpyNIC,
SST, SST Logo, SuperFlash and UNI/O are registered
trademarks of Microchip Technology Incorporated in the
U.S.A. and other countries.
The Embedded Control Solutions Company and mTouch are
registered trademarks of Microchip Technology Incorporated
in the U.S.A.
Analog-for-the-Digital Age, BodyCom, chipKIT, chipKIT logo,
CodeGuard, dsPICDEM, dsPICDEM.net, ECAN, In-Circuit
Serial Programming, ICSP, Inter-Chip Connectivity, KleerNet,
KleerNet logo, MiWi, motorBench, MPASM, MPF, MPLAB
Certified logo, MPLIB, MPLINK, MultiTRAK, NetDetach,
Omniscient Code Generation, PICDEM, PICDEM.net, PICkit,
PICtail, RightTouch logo, REAL ICE, SQI, Serial Quad I/O,
Total Endurance, TSHARC, USBCheck, VariSense,
ViewSpan, WiperLock, Wireless DNA, and ZENA are
trademarks of Microchip Technology Incorporated in the
U.S.A. and other countries.
SQTP is a service mark of Microchip Technology Incorporated
in the U.S.A.
Silicon Storage Technology is a registered trademark of
Microchip Technology Inc. in other countries.
GestIC is a registered trademark of Microchip Technology
Germany II GmbH & Co. KG, a subsidiary of Microchip
Technology Inc., in other countries.
All other trademarks mentioned herein are property of their
respective companies.
© 2015, Microchip Technology Incorporated, Printed in the
U.S.A., All Rights Reserved.
ISBN: 978-1-63277-748-5
2015 Microchip Technology Inc. DS50002417A-page 3
Object of Declaration: MCP9600 Thermocouple IC Evaluation Board
MCP9600 THERMOCOUPLE IC
EVALUATION BOARD
USER’S GUIDE
2015 Microchip Technology Inc. DS50002417A-page 5
Table of Contents
Preface ........................................................................................................................... 7
Introduction............................................................................................................ 7
Document Layout .................................................................................................. 7
Conventions Used in This Guide........................................................................... 8
Recommended Reading........................................................................................ 9
The Microchip Web Site ........................................................................................ 9
Customer Support ................................................................................................. 9
Revision History .................................................................................................... 9
Chapter 1. Product Overview
1.1 Introduction ................................................................................................... 11
1.2 What is the MCP9600 Device? .................................................................... 11
1.3 What is the MCP9600 Thermocouple IC Evaluation Board? ....................... 11
1.4 What the MCP9600 Thermocouple IC Evaluation Board Kit Contains ......... 11
Chapter 2. Installation and Operation
2.1 Introduction ................................................................................................... 13
2.2 Required Tool ............................................................................................... 13
2.3 Getting Started ............................................................................................. 14
2.3.1 Hardware Setup ........................................................................................ 14
2.3.2 Hardware Operation .................................................................................. 14
2.4 Microchip Thermal Management Software GUI ........................................... 15
2.5 Configuring the MCP9600 ............................................................................ 17
2.6 Data Acquisition ........................................................................................... 18
Appendix A. Schematic and Layouts
A.1 Introduction .................................................................................................. 19
A.2 Board Schematic .......................................................................................... 20
A.3 Board – Top Silk .......................................................................................... 21
A.4 Board – Top Copper and Silk ....................................................................... 21
A.5 Board – Top Copper .................................................................................... 22
A.6 Board – Bottom Copper ............................................................................... 22
A.7 Board – Bottom Copper and Silk ................................................................. 23
A.8 Board – Bottom Silk ..................................................................................... 23
Appendix B. Bill of Materials (BOM).................................................................................. 25
Worldwide Sales and Service .................................................................................... 28
MCP9600 Thermocouple IC Evaluation Board User’s Guide
DS50002417A-page 6 2015 Microchip Technology Inc.
NOTES:
MCP9600 THERMOCOUPLE IC
EVALUATION BOARD
USER’S GUIDE
2015 Microchip Technology Inc. DS50002417A-page 7
Preface
INTRODUCTION
This chapter contains general information that will be useful to know before using the
MCP9600 Thermocouple IC Evaluation Board. Items discussed in this chapter include:
• Document Layout
• Conventions Used in This Guide
• Recommended Reading
• The Microchip Web Site
• Customer Support
• Revision History
DOCUMENT LAYOUT
This document describes how to use the MCP9600 Thermocouple IC Evaluation Board
as a development tool. The document is organized as follows:
•Chapter 1. “Product Overview” – This chapter includes important information
about the MCP9600 Thermocouple IC Evaluation Board.
•Chapter 2. “Installation and Operation” – This chapter includes a detailed
description of each function of the evaluation board and instructions on how to
begin using the board.
•Appendix A. “Schematic and Layouts” – Shows the schematic and layout
diagrams for MCP9600 Thermocouple IC Evaluation Board.
•Appendix B. “Bill of Materials (BOM)” – Lists the parts used to build the
MCP9600 Thermocouple IC Evaluation Board.
NOTICE TO CUSTOMERS
All documentation becomes dated, and this manual is no exception. Microchip tools and
documentation are constantly evolving to meet customer needs, so some actual dialogs
and/or tool descriptions may differ from those in this document. Please refer to our web site
(www.microchip.com) to obtain the latest documentation available.
Documents are identified with a “DS” number. This number is located on the bottom of each
page, in front of the page number. The numbering convention for the DS number is
“DSXXXXXXXXA”, where “XXXXXXXX” is the document number and “A” is the revision level
of the document.
For the most up-to-date information on development tools, see the MPLAB® IDE online help.
Select the Help menu, and then Topics to open a list of available online help files.
MCP9600 Thermocouple IC Evaluation Board User’s Guide
DS50002417A-page 10 2015 Microchip Technology Inc.
NOTES:
MCP9600 THERMOCOUPLE IC
EVALUATION BOARD
USER’S GUIDE
2015 Microchip Technology Inc. DS50002417A-page 11
Chapter 1. Product Overview
1.1 INTRODUCTION
This chapter provides an overview of the MCP9600 Thermocouple IC Evaluation Board
and covers the following topics:
• What is the MCP9600 Device?
• What is the MCP9600 Thermocouple IC Evaluation Board?
• What the MCP9600 Thermocouple IC Evaluation Board Kit Contains
1.2 WHAT IS THE MCP9600 DEVICE?
The MCP9600 is a Thermocouple Electromotive Force (EMF) to temperature
converter. This device converts thermocouple EMF to degree Celsius with integrated
Cold-Junction compensation. MCP9600 corrects the thermocouple nonlinear error
characteristics of eight thermocouple types and outputs ±1.5°C accurate temperature
data for the selected thermocouple. The correction coefficients are derived from the
National Institute of Standards and Technology (NIST) ITS-90 Thermocouple
Database.
1.3 WHAT IS THE MCP9600 THERMOCOUPLE IC EVALUATION BOARD?
The MCP9600 Thermocouple IC Evaluation Board is used to evaluate MCP9600
Thermocouple EMF voltage to degree Celsius converter. Users can easily evaluate all
device features using a Type K thermocouple. The device also supports Types J, T, N,
E, B, S and R thermocouples. Each of these types can be evaluated by replacing the
Type K thermocouple connector with the corresponding connectors.
In addition, the MCP9600 Thermocouple IC Evaluation Board connects to a PC via a
USB interface. Temperature can be data-logged using the Microchip Thermal
Management Software Graphical User Interface (GUI).
1.4 WHAT THE MCP9600 THERMOCOUPLE IC EVALUATION BOARD KIT
CONTAINS
The MCP9600 Thermocouple IC Evaluation Board package includes:
• MCP9600 Thermocouple IC Evaluation Board (ADM00665)
• Type K Thermocouple
• Mini USB Cable
• Important Information Sheet
MCP9600 THERMOCOUPLE IC
EVALUATION BOARD
USER’S GUIDE
2015 Microchip Technology Inc. DS50002417A-page 13
Chapter 2. Installation and Operation
2.1 INTRODUCTION
The MCP9600 Thermocouple IC Evaluation Board enables users to easily evaluate all
user-programmable features such as thermocouple selection, temperature alert limit
settings, temperature resolutions and Power mode.
Items discussed in this chapter include:
• Required Tool
• Getting Started
• Microchip Thermal Management Software GUI
• Configuring the MCP9600
• Data Acquisition
2.2 REQUIRED TOOL
The Personal Computer (PC) shown in Figure 2-1 needs to run on Windows® 98 SE or
later. It provides a convenient interface for the user, communicates with the board and
provides power through the USB connection.

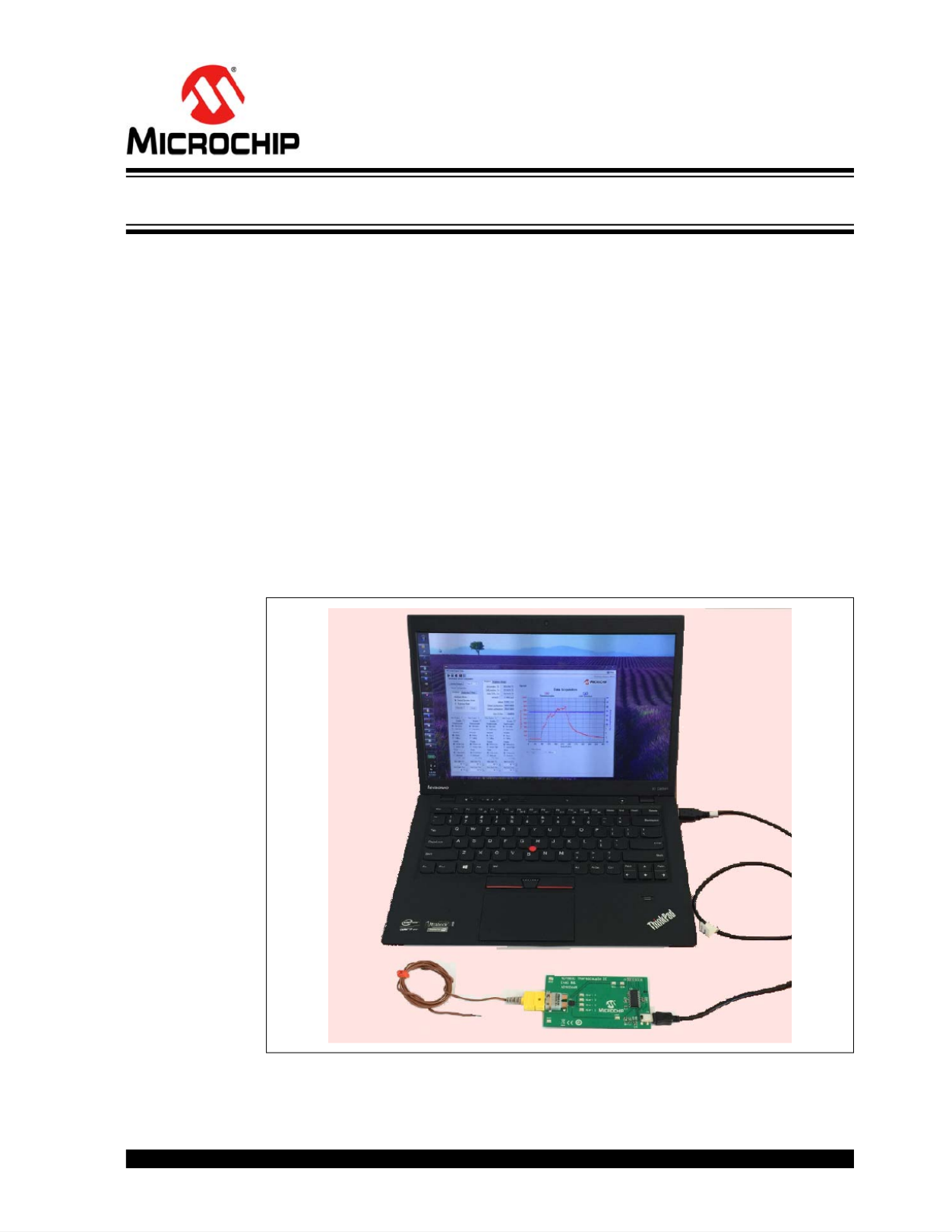

FIGURE 2-1: MCP9600 Thermocouple IC Evaluation Board Setup.
MCP9600 Thermocouple IC Evaluation Board User’s Guide
DS50002417A-page 14 2015 Microchip Technology Inc.
2.3 GETTING STARTED
This section describes how to power up and interface with the MCP9600
Thermocouple IC Evaluation Board.
2.3.1 Hardware Setup
1. The MCP9600 Thermocouple IC Evaluation Board has a mini USB connector for
a PC interface. Connect the USB cable from the evaluation board to a PC.

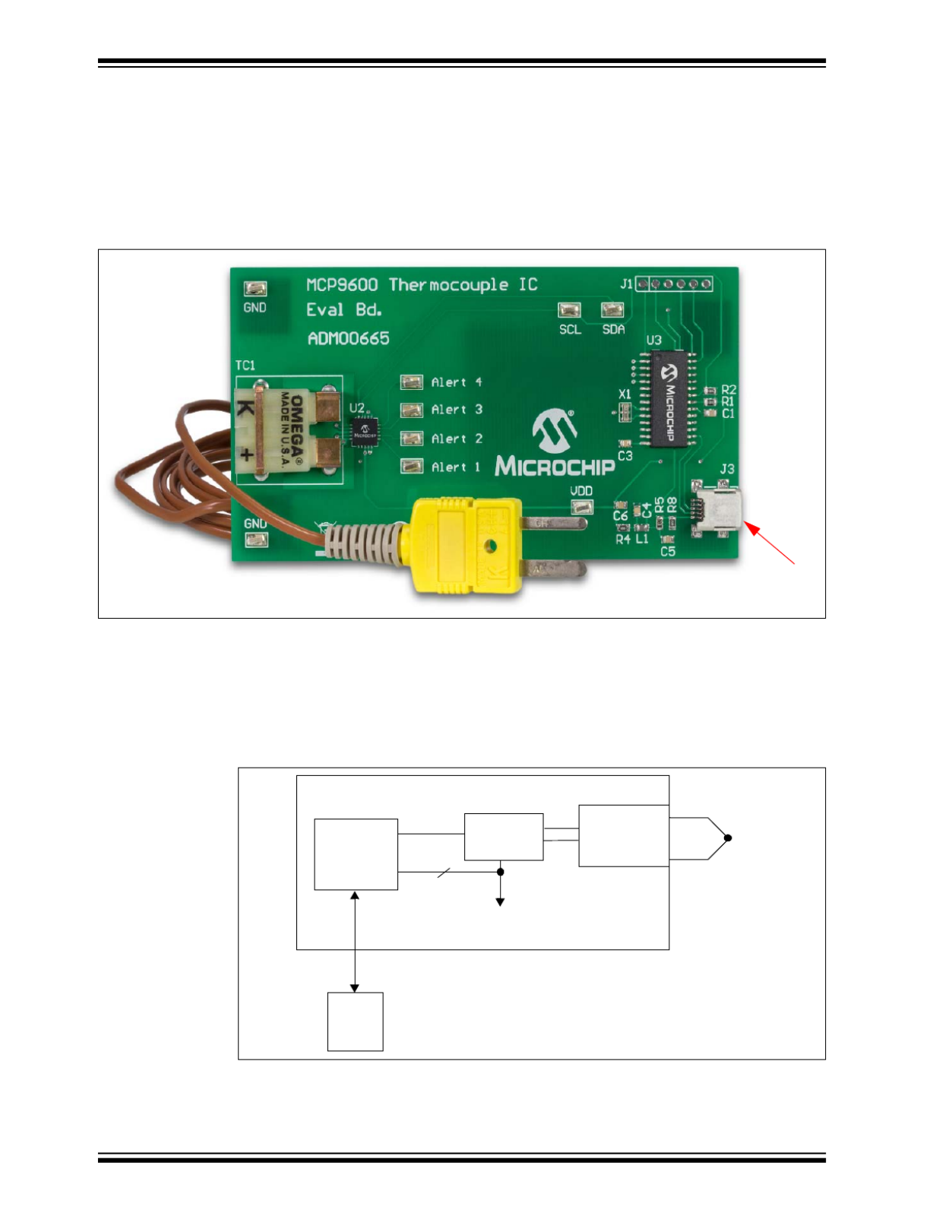

FIGURE 2-2: MCP9600 Thermocouple IC Evaluation Board.
2.3.2 Hardware Operation
The MCP9600 Thermocouple IC Evaluation Board is fully powered from a PC USB 5V
source. Once power is applied via USB and the USB is successfully enumerated, the
PIC® microcontroller is ready to receive commands from the host PC to program the
MCP9600 settings or transfer temperature data.
FIGURE 2-3: Functional Block Diagram.
Mini USB
connector
PIC18F2550
PC
USB
Interface
4 Alert Output Test Points
I
2
C bus Type K
Connector
MCP9600
K+ K+
Type K
Thermocouple
2015 Microchip Technology Inc. DS50002417A-page 17
2.5 CONFIGURING THE MCP9600
Figure 2-6 shows the user interface for various sensor options. Once these options are
selected, the software programs the device and refreshes the GUI from the device.
Therefore the GUI displays the updated device settings.

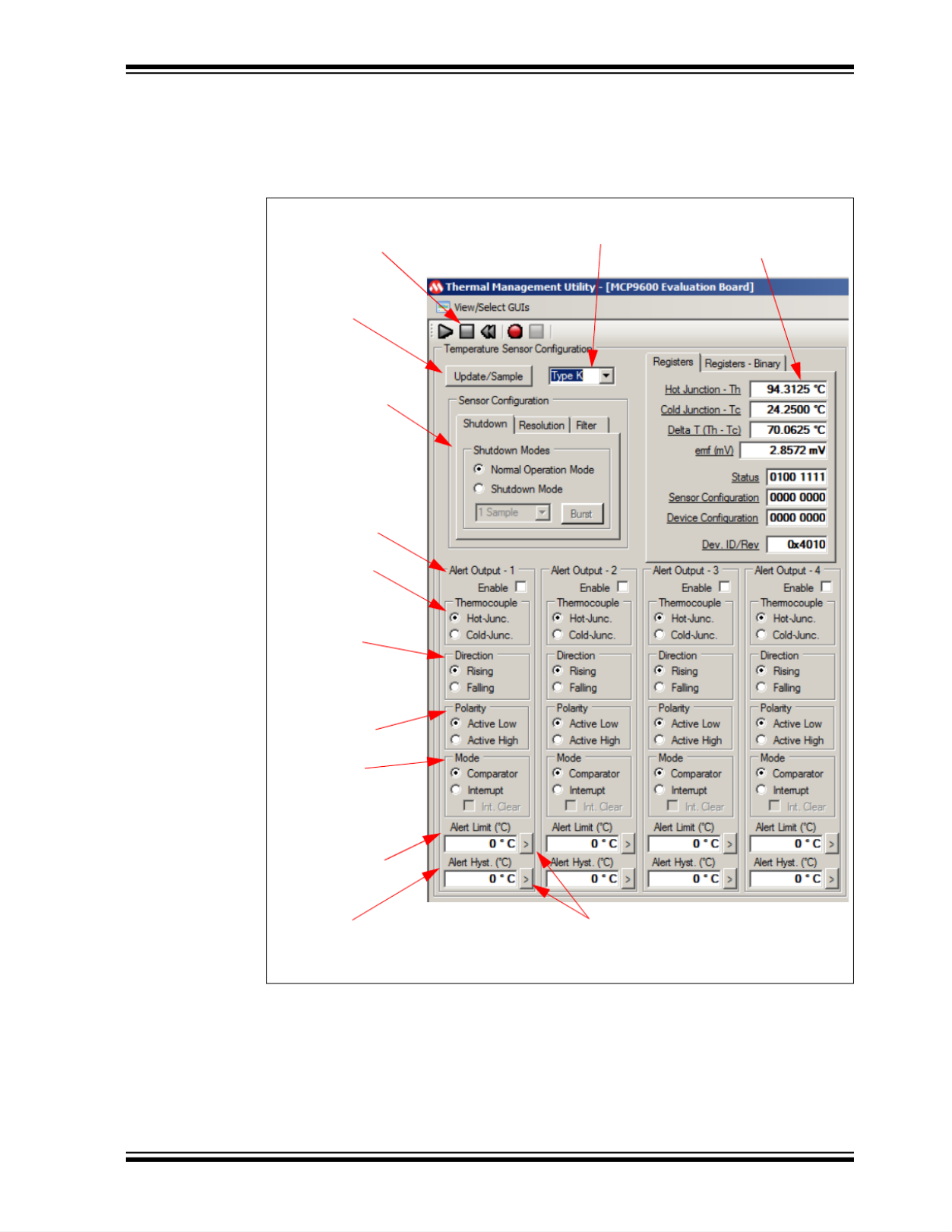

FIGURE 2-6: Sensor Configuration Options.
GUI update button
Sensor configuration
options such as
Shutdown and Burst
modes, sensor
resolution, and
temperature filter
options
Temperature Alert
options
Thermocouple
temperature to
detect
Temperature
change direction
Temperature Alert
and Hysteresis
update button
Read/Read-Write registers
from the MCP9600
Thermocouple selection:
Type K, J, T, N, S, E, B, R
Data acquisition options
Output polarity
Output mode
Temperature limit
Temperature
hysteresis limit
MCP9600 Thermocouple IC Evaluation Board User’s Guide
DS50002417A-page 18 2015 Microchip Technology Inc.
2.6 DATA ACQUISITION
The black “Play”, “Stop”, and “Reset” icons (Figure 2-7) can be used to perform
continuous data acquisitions. The red “Record” icon enables the user to data log to an
external file. The logging interval can be adjusted using the Interval scroll bar from
100 ms to 30s, as shown in Figure 2-4.

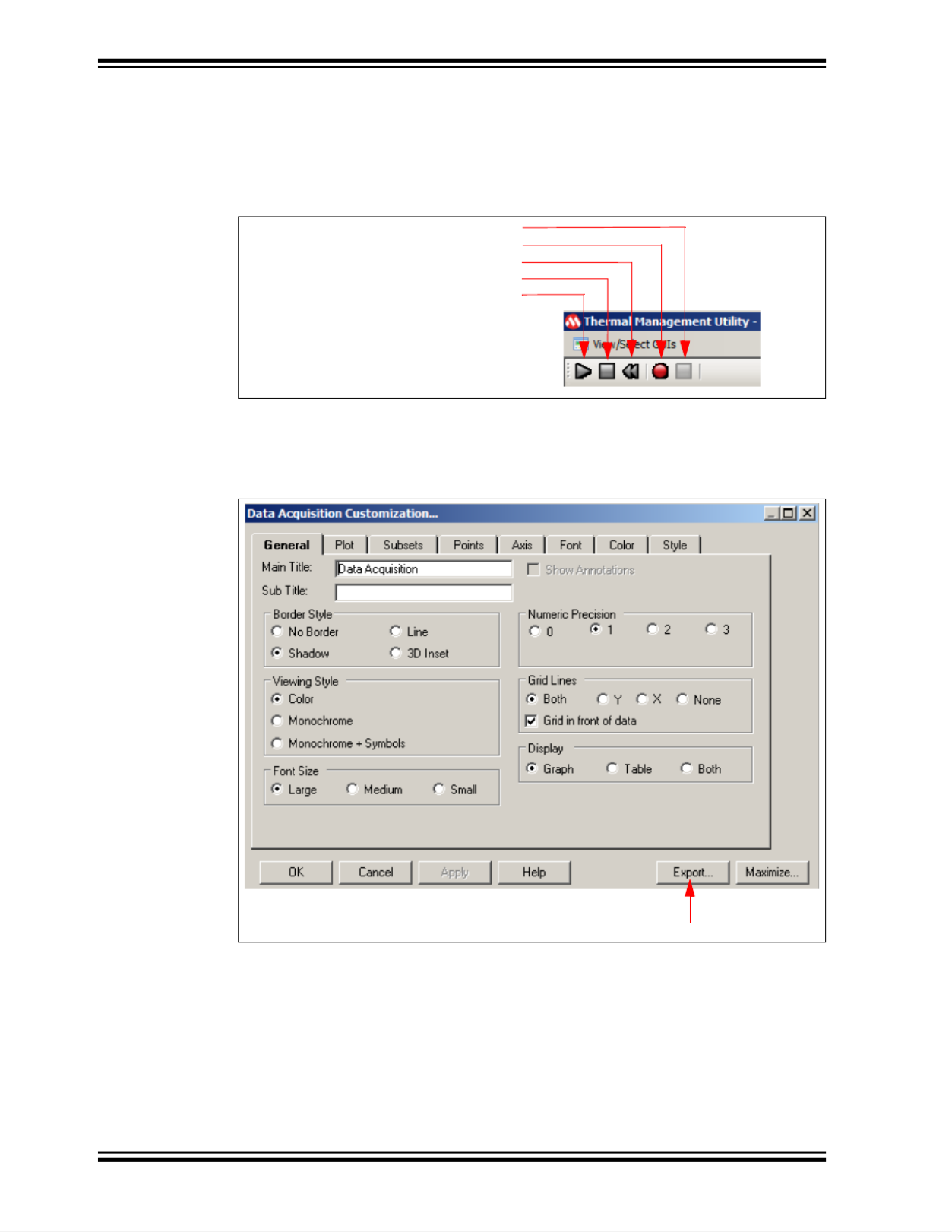

FIGURE 2-7: Real-Time Acquisition.
The data acquisition display chart (Figure 2-4) can be customized. The customizing
options (Figure 2-8) can be selected by either double-clicking or right-clicking the chart
(Figure 2-4). The displayed data can also be exported.
FIGURE 2-8: Chart Setup Options.
Start real-time acquisition
Stop real-time acquisition
Reset real-time acquisition
Start/Record real-time acquisition
Stop recording real-time acquisition
Export Data
MCP9600 THERMOCOUPLE IC
EVALUATION BOARD
USER’S GUIDE
2015 Microchip Technology Inc. DS50002417A-page 19
Appendix A. Schematic and Layouts
A.1 INTRODUCTION
This appendix contains the following schematics and layouts for the MCP9600
Thermocouple IC Evaluation Board:
• Board Schematic
• Board – Top Silk
• Board – Top Copper and Silk
• Board – Top Copper
• Board – Bottom Copper
• Board – Bottom Copper and Silk
• Board – Bottom Silk
DS50002417A-page 20 2015 Microchip Technology Inc.

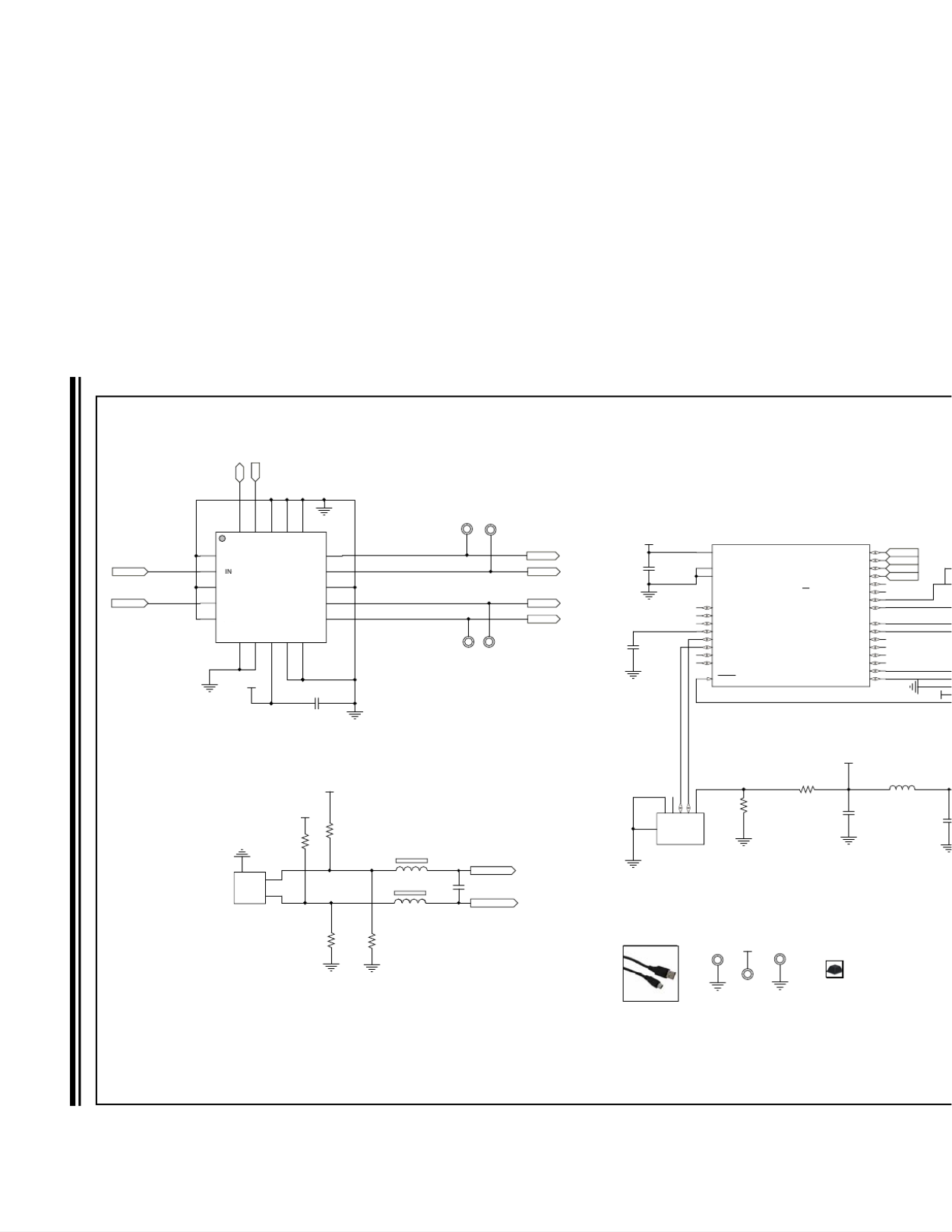

A.2 BOARD SCHEMATIC
N/C
GN
GND GND
GND
GND
GND
VCC
VCC
ALERT 1
ALERT 2
ALERT 3
ALERT 4
VDD
VCC
0.1uF
C1
USB MINI-B Female
ID 4
VBUS 1
GND 5
D- 2
D+ 3
0
J3
10R
0805
1%
R5
10uF
6.3V
0805
C5
100k
0805
0.1%
R8
0.47uF
16V 0805
C3
10uH
L1
1
X1
GND
MCLR/VPP/RE3
1
RA0/AN0/C12IN0- 2
RA1/AN1/C12IN1- 3
RA2/AN2/VREF-/CVREF/C2IN+ 4
RA3/AN3/VREF+/C1IN+ 5
RA4/T0CKI/C1OUT 6
RA5/AN4/SS/HLVDIN/C2OUT 7
VSS
8
OSC1/CLKIN/RA7 9
OSC2/CLKOUT/RA6 10
RC0/T1OSO/T13CKI
11
RC1/T1OSI/CCP2
12
RC2/CCP1/P1A
13
RC3/SCK/SCL
14
RC4/SDI/SDA
15
RC5/SDO
16
RC6/TX/CK
17
RC7/RX/DT
18
VSS
19
VDD
20
RB0/INT0/FLT0/AN12 21
RB1/INT1/AN10/C12IN3-/P1C 22
RB2/INT2/AN8/P1B 23
RB3/AN9/C12IN2-/CCP2 24
RB4/KBI0/AN11/P1D 25
RB5/KBI1/PGM 26
RB6/KBI2/PGC 27
RB7/KBI3/PGD 28
PIC18F2520-I/SO
U3
GND GND
VIN -
VIN +
VDD
VDD
R7
DNP
R6
DNP
R9
DNP
R10
DNP
FB1
Ferrite Bead
FB2
Ferrite Bead
0.1uF
50V
0805
C7
Thermocoupler
+
1
-
2
GND 0
TC1
GND
USB-A Male to
CBL1
SDA
SCL
VIN -
VIN +
ALERT 4
ALERT 3
ALERT 2
ALERT 1
VDD
GND
0.1uF
0603
C2
GND
GND
1
2
3
4
5
G
ND
V
+
G
ND
VIN
-
G
ND
GND
6
GND
7
VDD
8
GND
9
N/C
10
Alert 1 11
Alert 2 12
GND 13
Alert 3 14
Alert 4 15
Vadd 16
GND 17
GND 18
SCL 19
SDA 20
MCP9600
U2
ALERT 1
ALERT 2 ALERT 3
ALERT 4
GND
VDD
GND
GND
PAD
GND
Mini USB-B Male
Produktspecifikationer
| Varumärke: | Microchip |
| Kategori: | Inte kategoriserad |
| Modell: | MCP96L00 |
Behöver du hjälp?
Om du behöver hjälp med Microchip MCP96L00 ställ en fråga nedan och andra användare kommer att svara dig
Inte kategoriserad Microchip Manualer
12 Mars 2025
12 Mars 2025
6 Mars 2025
5 Mars 2025
4 Mars 2025
4 Mars 2025
2 Mars 2025
2 Mars 2025
2 Mars 2025
2 Mars 2025
Inte kategoriserad Manualer
- Mebby
- Integra
- Bliss Hammocks
- GW Instek
- Equip
- Graco
- Mr. Heater
- Mach Power
- Yato
- EAT
- Masterbuilt
- Nodor
- DeLock
- Portsmith
- Chamberlain
Nyaste Inte kategoriserad Manualer
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
