SY54017R/AR Evaluation Board
Low Voltage 1.2V/1.8V CML Differential
2:1 MUX (with FAIL SAFE INPUTS)
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
June 2008
M9999-062008-A
hbwhelp@micrel.com
or (408) 955-1690
General Description

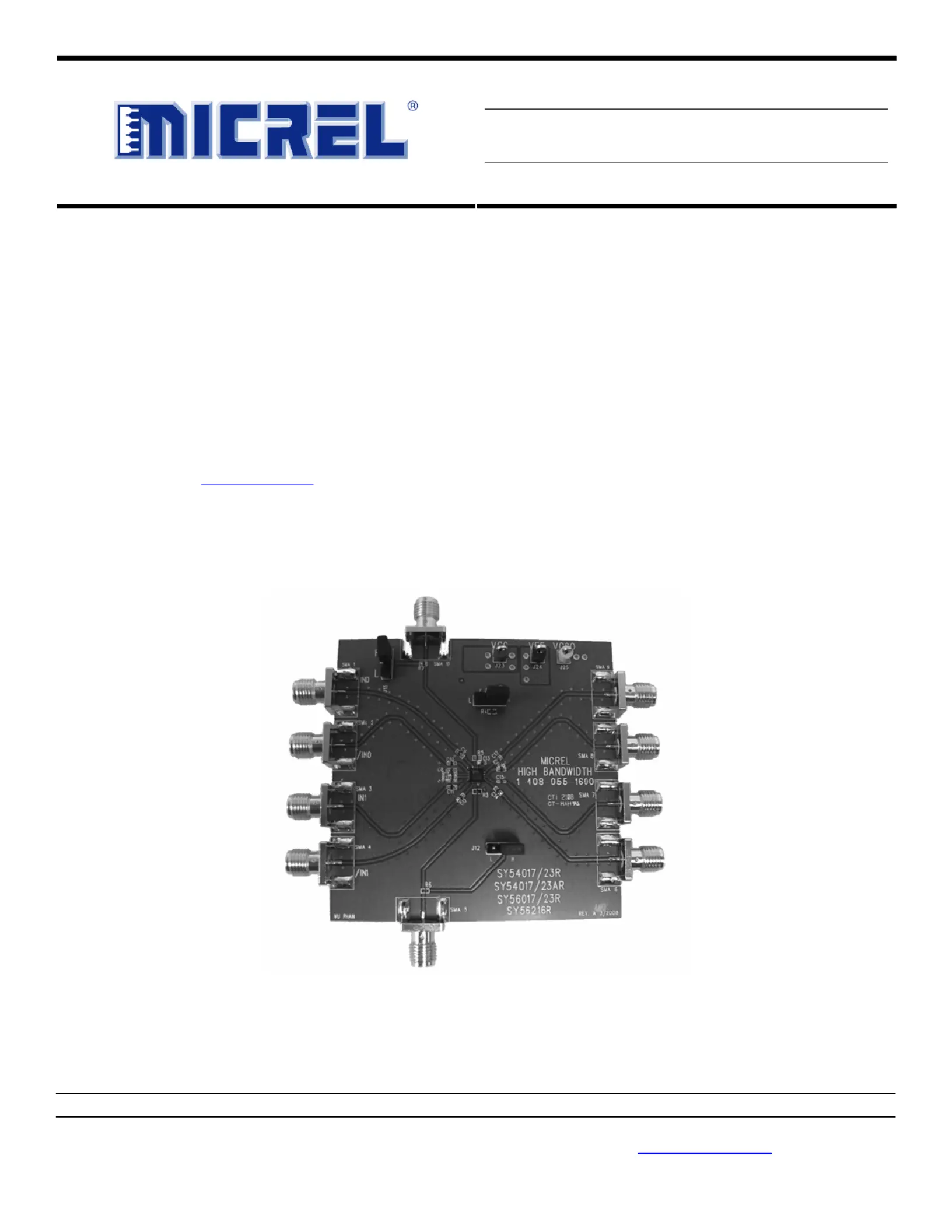

The SY54017R and SY54017AR evaluation boards are
designed for convenient set-up and quick evaluation of the
respective devices. They allow the user to evaluate the
part over the full voltage-range of the parts without
requiring any modifications to the board.
The evaluation board standard configuration is AC-coupled
inputs with DC-coupled outputs for direct interface to a
50Ω-compatible oscilloscope. For applications that require
a DC-coupled configuration, step-by-step instructions for
modifying the board are included.
All datasheets and support documentation can be found at
Micrel’s web site at: www.micrel.com
.
Features
•SY54017R/AR 1.2V/1.8V CML outputs
•Single +2.5V VCC with 1.2V/1.8V VCCO supply
•AC-coupled configuration for ease-of-use
•I/O interface includes on-board termination
•Fully assembled and tested
•Reconfigurable for DC-coupled operation
Applications
•SY54017R Low Voltage 1.2V/1.8V CML Differential 2:1
MUX with Fail Safe Inputs Datasheet
•
SY54017AR Low Voltage 1.2V/1.8V CML Differential 2:1
MUX Datasheet
___________________________________________________________________________________________________________

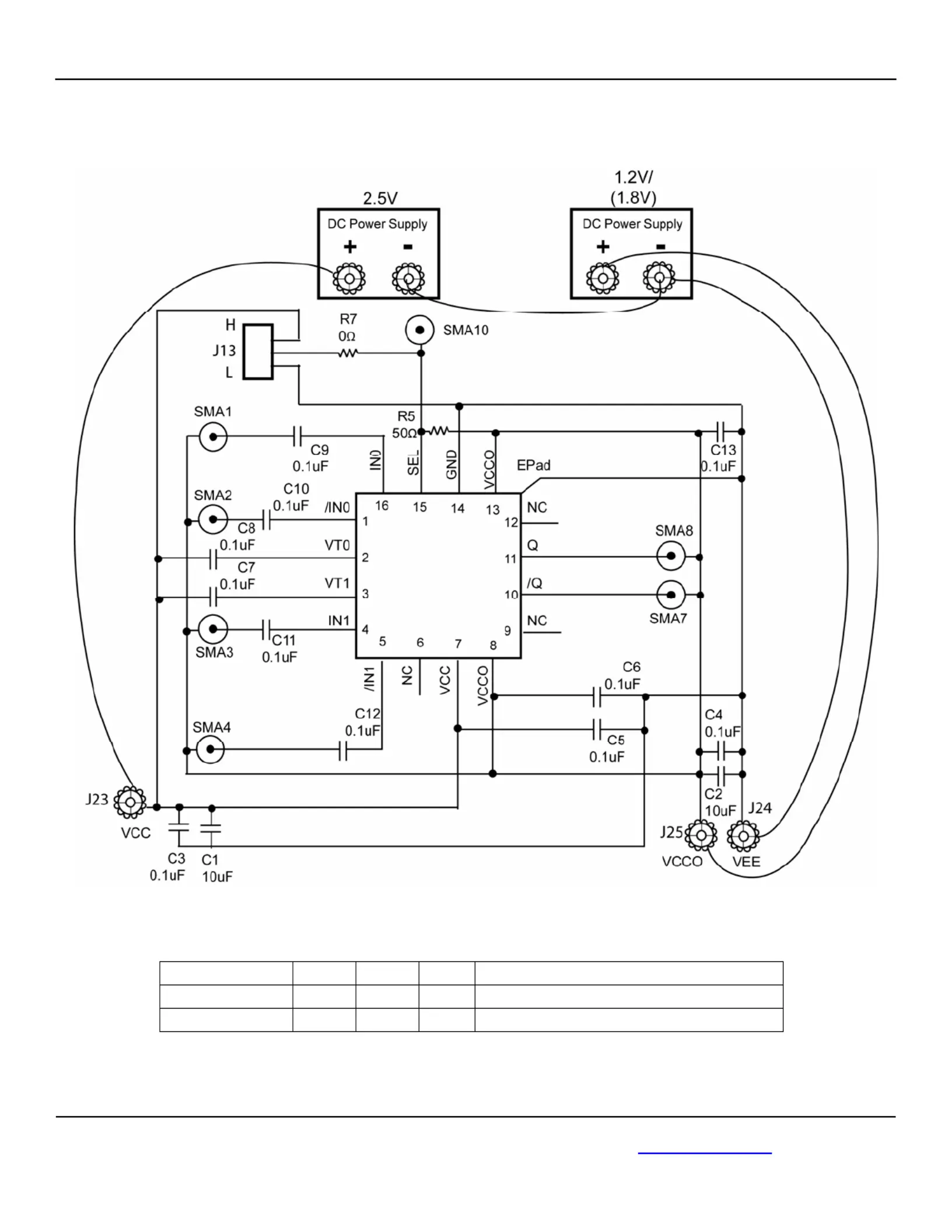

Evaluation Board
