Rackmount Light
with power distribution
rackmount light with power
distribution

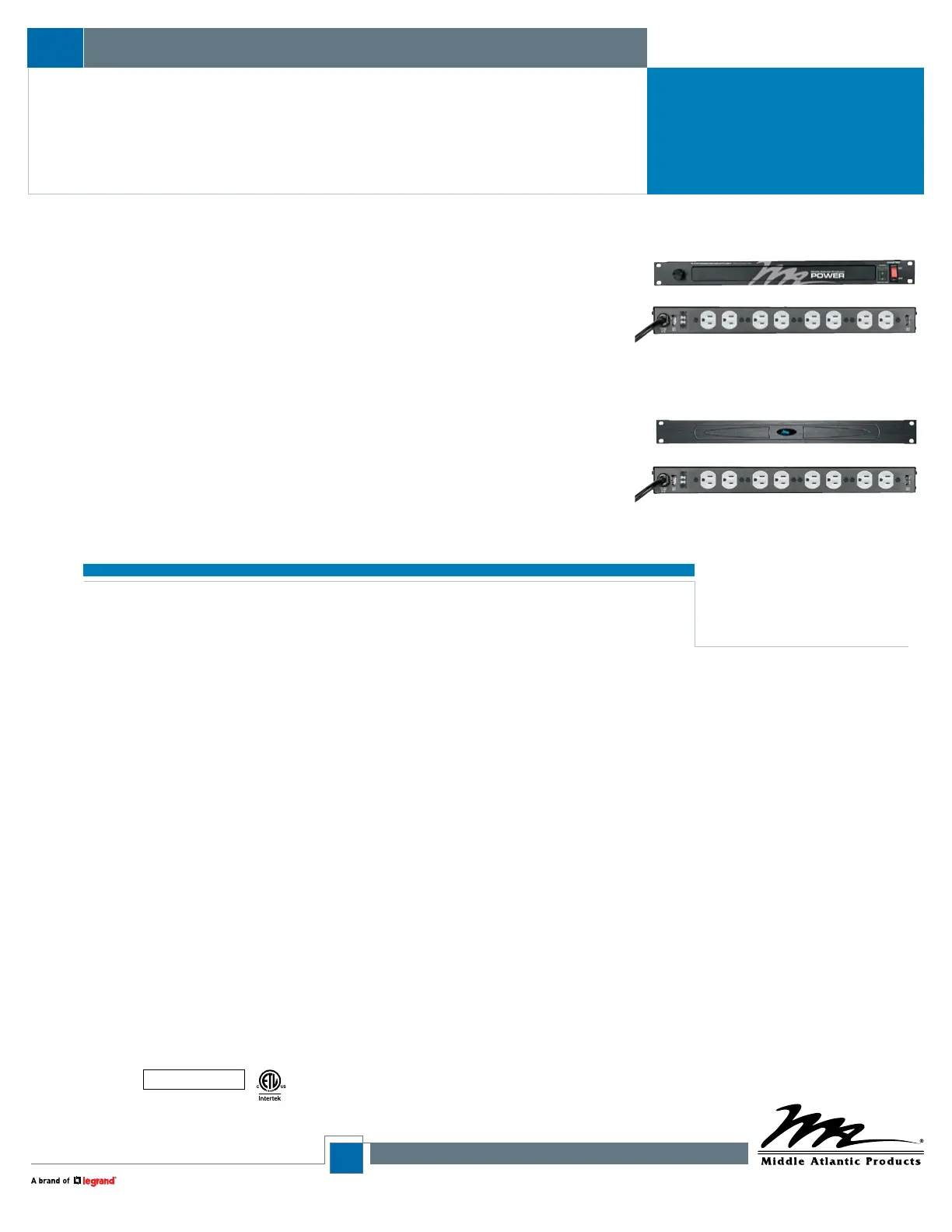

features:
• Retractable LED light
• Dimmable LED bar provides evenly distributed illumination for component viewing
• 2 rear USB style output ports for connection of LED gooseneck work lights
• 8 circuit-breaker protected NEMA 5-15R rear outlets
• 2 stage surge suppression protects against damage from power surges
and spikes (status notification via local LED and dry contact warns when surge
protection is compromised, PDLT-815RV-RN only)
• Constructed of 18-gauge steel
• “Clean ground” surge suppressor design will not pass nois
e contamination
to the ground
• Face available with flat black powder coat finish (PDLT-815RV-RN), black
brushed anodized finish (PDLT-815RVA)
• ETL Listed in the US and Canada
PDLT-815RV-RN
Rackmount light with power distribution, normally open dry contact closure for remote surge suppression status notification
to customer supplied monitoring device and LED status indicators shall be Middle Atlantic Products model #PDLT-815RV-RN.
Rackmount power shall have a 15 amp capacity, 2 stage, normal mode, surge and spike protection and EMI filtering.
Rackmount power / light unit shall operate on 120 volt nom
inal AC/60Hz power. Rackmount power / light unit shall include 9’
(14-3) SignalSAFE™ power cord with NEMA 5-15P plug with 8 rear NEMA 5-15R outlets and 15 amp circuit breaker located on
the front. Rackmount power shall feature retractable light shelf with 20 lb. weight capacity and LED light bar. Unit shall include
dimmer (front mounted knob.) “Clean ground” surge suppressor design shall not pass noise contamination to the ground
. Unit
shall occupy one rackspace and be constructed of 18-gauge steel with a flat black powder coat finish. Rackmount power / light
unit shall feature 2 rear USB style output ports for use with optional LED gooseneck work lights. Rackmount power / light unit
shall be warrantied to be free from defects in material or workmanship under normal use and conditions for a period of three
years. Rackmount power / light shall by manufactured by an ISO 9001 Registered Company. Rackmount power/light unit
shall be ETL listed to UL standard 1419, UL 60950-1 and UL 60065 in the US; CSA standard 60950-1, and CSA C22.2
No. 60065 in Canada. Rackmount power
/ light shall be warrantied to be free from defects in materials and workmanship
under normal use and conditions for a period of 3 years.
PDLT-815RVA
Rackmount light with power distribution shall be Middle Atlantic Products model # PDLT-815RVA. Rackmount power shall have
a 15 amp capacity, 2 stage, normal mode, surge and spike protection and EMI filtering. Rackmount power / light unit shall
operate on 120 volt nominal AC/60Hz power. Rackmoun
t power / light unit shall include 9’ (14-3) SignalSAFE™ power cord
with NEMA 5-15P plug with 8 NEMA 5-15R outlets and 15 amp circuit breaker located on the front. Rackmount power shall
feature retractable light shelf with 20 lb. weight capacity and LED light bar. Unit shall include dimmer button under light shelf.
Second dimmer button shall control brightness of the lighted logo. “Clean ground” surge suppressor design shall
not pass noise
contamination to the ground. Unit shall occupy one rackspace and be constructed of 18-gauge steel. Rackmount power / light
unit shall feature 2 rear USB style output ports for use with optional LED gooseneck work lights. Rackmount power / light unit
shall be warrantied to be free from defects in material or workmanship under normal use and conditions for a period of three
years. Rackmount power / light shall by manufactured by an ISO 9001 Registered Company. Rackmount power/light unit shall
be ETL listed to UL standard 1419, UL 60950-1 and UL 60065 in the US; CSA standard 60950-1, and CSA C22.2 No. 60065
in Canada. Rackmount power / light shall be war
rantied to be free from defects in materials
Customizable specification clips available at middleatlantic.com
specifications:
options:
• LED work light with 11” flexible gooseneck and
on/off switch shall be Middle Atlantic Products
model # LT-GN
front view
front view
rear view
rear view
PDLT-815RV-RN
PDLT-815RVA
EIA/ TI A COM PLIANT
middleatlantic.com | middleatlantic.ca
what great systems are built on.
™

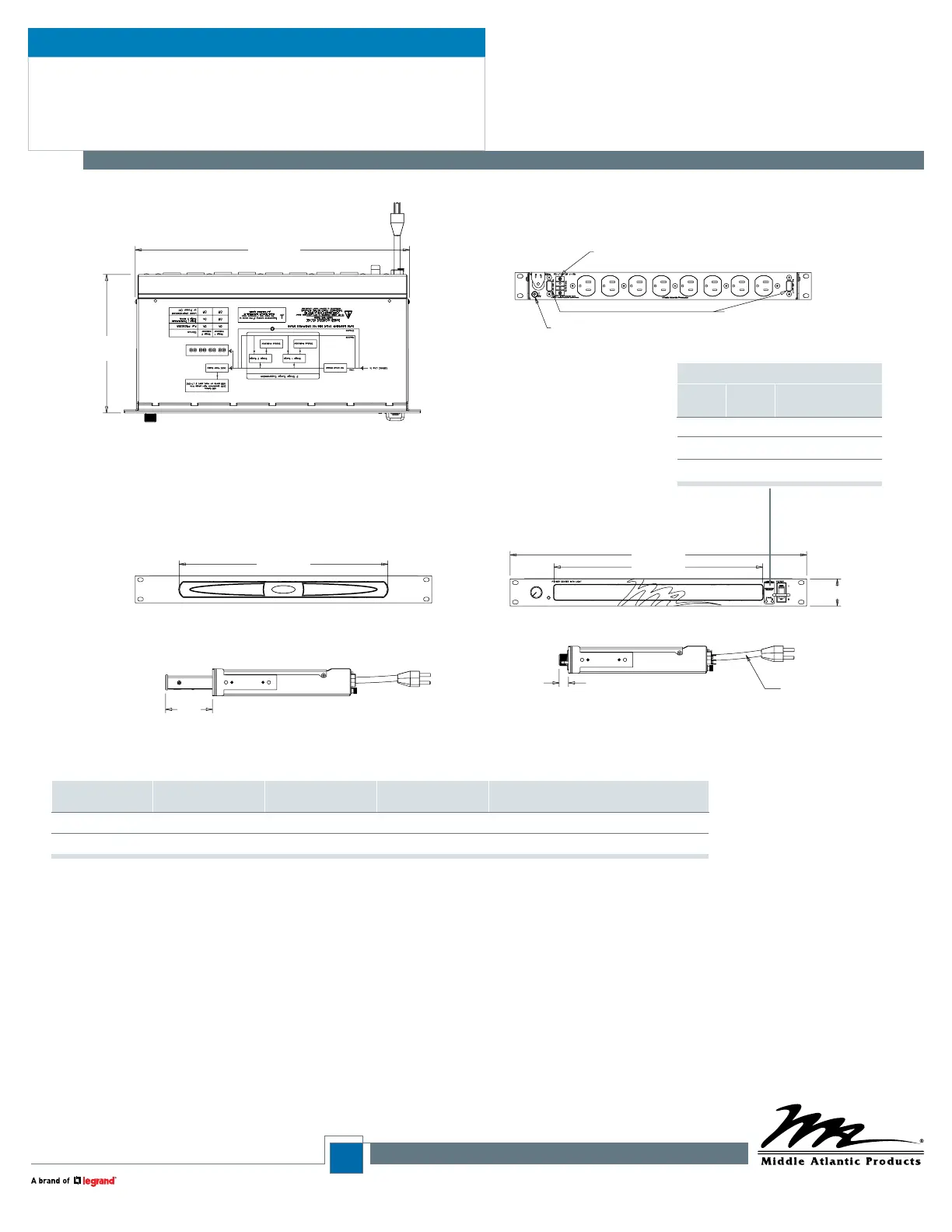

17.58 [447]
8.87
[225
]
13.37 [340]
19.00 [483]
1.74 [44]
13.37 [340]
.60 [15]
3.00
[76]
PDLT-815RVA and PDLT-815RV-RN dimmer for light and logo
is located under drawer, ref inst sheet I-00175
light drawer open
rear viewtop view
front view
PDLT-815RV-RN
front view
PDLT-815RVA
side view
10' linecord
NEMA-5-15P
(SignalSAFE™)
side view
electrical bonding point
usb ports for gooseneck light
Middle Atlantic part #LT-GN
surge status terminal block (PDLT-815RV-RN only)
Part# Front Power Switch Remote Notifier Dimmable Logo Finish
PDLT-815RV-RN yes yes no Flat black powder coat
PDLT-815RVA no no yes Black brushed anodized aluminum face
Surge Suppression Status
Stage 1
Indicator
Stage 2
Indicator Status
on on Full protection
off on
Stage 1 compromised
Stage 2 active
off off
Load unprotected
or power off
all dimensions in inches unless otherwise noted [all dimensions in brackets are in millimeters]
PDLT
basic dimensions
Maximum Derated Load (North America):
15 Amp Models: 12 Amps
20 Amp Models: 16 Amps
Note: UL File # E204950
• Maximum allowable voltage: 125 VAC (RMS)
- Maximum continuous voltage differential applied between
line and neutral
• Peak impulse current (8/20 micro seconds):
- 30,000 Amps, one time
- 19,500 Amps, two times within 5 minutes
- 7,000 Amps, ten times within 2 minutes
- Maximum peak impulse current pulse as defined between
line and neutral
- Maximum multiple impulse current derated per spec
• Protection mode: Line to Neutral
• Maximum clamping voltage: 545 Volts @ 100 Amps
• Response time: Instantaneous (Less than 1 nanosecond)
• EMI/RF Suppression: More than 20 db
- Calculated line to neutral, 100 KHz to 1 MHz suppression
based upon nominal impedance
• Surge energy dissipation: 711 Joules (10 / 100 micro seconds)
• 2 Stage surge suppression with health indicators
• Surge suppression circuit does not contaminate ground
surge suppression & EMI filter specifications (PDLT-815RV / PDLT-815RVA)
