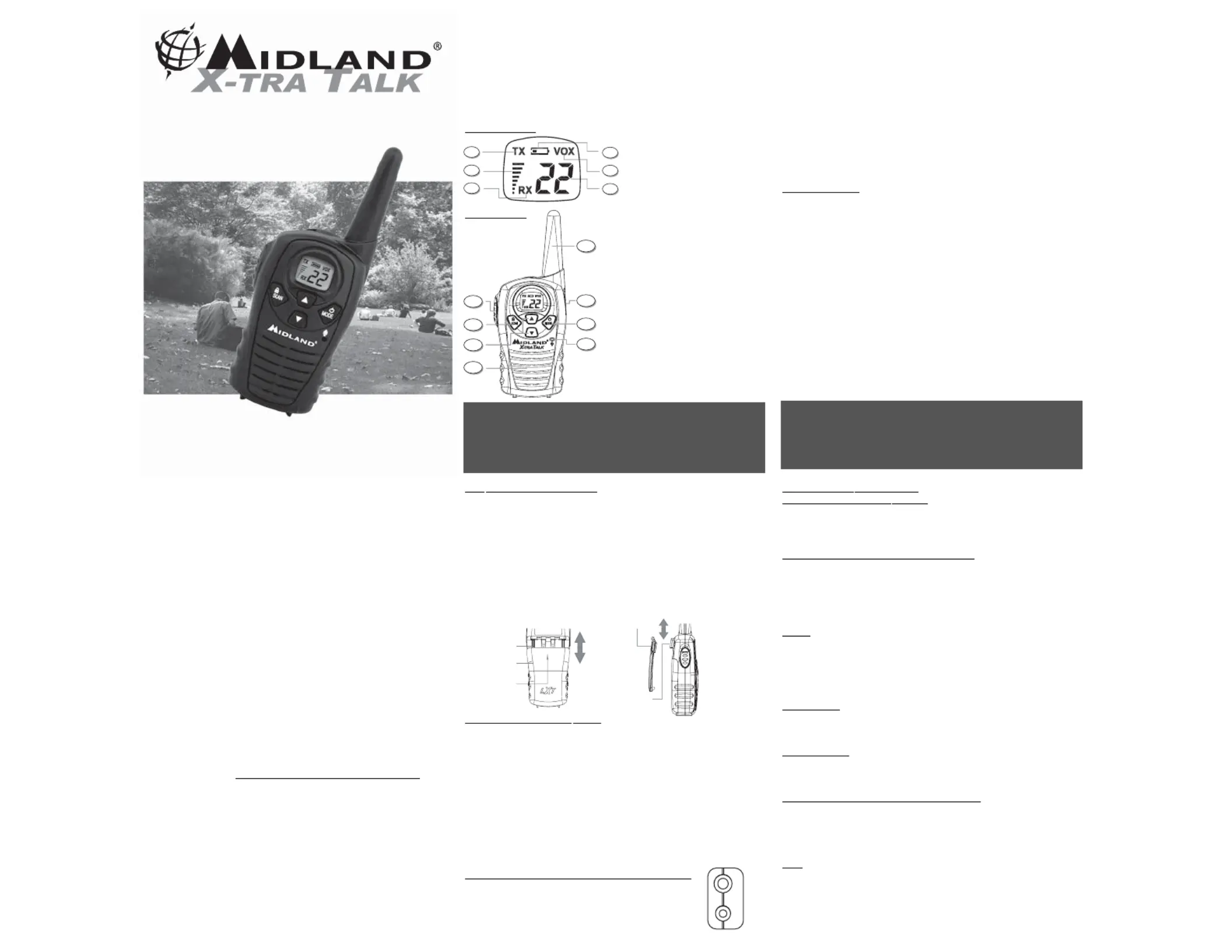

LXT114 Series

OWNER'S MANUAL

www.midlandradio.com

GMRS/FRS Radio

Welcome to the world of Midland electronics

Congratulations on your purchase of a high quality MIDLAND product. Your

2-way radio represents the state-of-the-art in high-tech engineering.

Designed for GMRS (General Mobile Radio Service) operation, this

compact package is big in performance. It is a quality piece of electronic

equipment, skillfully constructed with the nest components. The circuitry

is all solid-state and mounted on a rugged printed circuit board. Your two-

way radio is designed for reliable and trouble-free performance for years to

come.

LCD DISPLAY

1. TRANSMIT (TX) ICON – Indicates

radio is transmitting a signal.

2. VOLUME METER – Indicates the

volume setting of the radio.

3. RECEIVE (RX) ICON – Indicates

radio is receiving a transmission.

4. LOW BATTERY ICON – Indicates the

battery level is low.

5. VOX ICON – Indicates when VOX

mode is active.

6. CHANNEL NUMBER – Changes from

1~22 on GMRS/FRS band.

CONTR

OLS

7. PTT Button – Press and hold to

transmit voice communication.

8. SCAN/LOCK Button – Press to enter

SCAN mode. Press and hold to turn

KEY LOCK on/o.

9. UP

and DOWN

Button – Make

adjustments in MENU mode.

10. SPEAKER – Built-in speaker.

11. ANTENNA

12. EXTERNAL SPEAKER/MIC/CHG.

JACK

13. POWER / MODE Button – Press and

hold for at least 3 seconds to turn the

radio on/o. Press momentarily to

access Menu mode.

14. MIC – Built-in microphone.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions : (1) this device does not cause harmful interference, and (2)

this radio must accept any interference that may cause undesired operation.

To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation,

this radio has been tested and meets the FCC RF exposure guidelines when used with

Midland Radio Corp. accessories supplied or designated for this product. Use of other

accessories may not ensure compliance with FCC RF exposure guidelines.

IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION

(Only Applicable for GMRS Radio Use in the United States)

The LXT114 Series operates on GMRS (General Mobile Radio Service)

frequencies which require an FCC (Federal Communications Commission)

license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22,

which comprise the GMRS channels of the LXT114 Series. Serious penalties

could result for unlicensed use of GMRS channels, in violation of FCC rules,

as stipulated in the Communications Act's Sections 501 and 502 (amended).

You will be issued a call sign by the FCC which should be used for station

identication when operating the radio on GMRS channels. You should also

cooperate by engaging in permissible transmissions only, avoiding channel

interference with other GMRS users, and being prudent with the length of their

transmission time.

To obtain a license or ask questions about the license application, contact

the FCC at 1-888-CALL FCC or go to the FCC's website:

http://www

.fcc.gov 605and request form .

Exposure To Radio Frequency Energy

Your Midland radio is designed to comply with the following national and

international standards and guidelines regarding exposure of human being to

radio frequency electromagnetic energy:

- United States Federal Communications Commission, Code of Federal

Regulations: 47 CFR part 2 sub-part J

- American National Standards Institute (ANSI)/Institute of Electrical &

Electronic Engineers (IEEE) C95. 1-1992

- Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition

- National Council on Radiation Protection and Measurements (NCRP) of the

United States, Report 86, 1986

- International Commission on Non-lonizing Radiation Protection (ICNIRP)

1998

To control your exposure and ensure compliance with the general population

or uncontrolled environment exposure limits, transmit no more than 50% of

the time. The radio generates measurable RF energy exposure only when

transmitting.

IMPORTANT: Changes or modications to this unit not expressly approved by

MIDLAND RADIO CORP. could void your right to operate this unit. Your radio

is set up to transmit a regulated signal on an assigned frequency. It is against

the law to alter or adjust the settings inside the COMMUNICATOR to exceed

those limitations. Any adjustment to your radio must be made by qualied

technicians.

5900 Parretta Drive

Kansas City, MO 64120

Call 816.241.8500

visit us at http://www.midlandradio.com

Note: Features & Specifications are subject to change without notice.

MIDLAND is not responsible for unintentional errors or omissions on its

packaging.

BATTER

Y INSTALLA

TION

Your LXT114 Series radio operates with 3 AAA alkaline batteries or a NiMH

rechargeable batteries. The belt clip should be removed to ease installa-

tion or removal of the batteries.

To install the batteries:

1. With the back of the radio facing you, remove the belt clip (see diagram

below) for easy access, then remove the Battery Cover by pressing

down on the top center and sliding it down from the radio.

2. Insert 3 AAA batteries observing the polarity as shown on the Battery

Compartment. Installing the batteries incorrectly will prevent the unit

from operating or may damage the unit.

3. Return the Battery Cover by sliding it up on the radio. Replace the belt

clip, making sure it locks into place.

BATTERY

COMPARTMENT

BATTERY

COMPARTMENT

COVER

Press here and

push down to open

BELT CLIP

LOCK TAB

BELT CLIP

LATCH

CHARGING THE BAT YTER

Your LXT114 Series is equipped for using rechargeable NiMH batteries

which can be recharged by inserting the AC adapter into the radio charge

jack. Initial charge time is 24 hours. Charge time is about 12 hours

thereafter. For maximum battery life, we recommend charging the

batteries when the low battery icon comes on. Remove the radios from the

charger when the charge time expires.

1. Only use our NiMH batteries.

2. Do not attempt to charge alkaline batteries or any batteries or

battery packs other than the one indicated in the manual. This

may cause leakage and damage to the radio.

3. For long term storage of the radio, turn the radio OFF and

remove the batteries from the radio.

EXTERNAL SPEAKER/MICROPHONE JACK

To use an optional speaker / microphone or headset:

lInsert the plug(s) into the SPK/MIC jacks

lPlace the earbud into your ear, and adjust the mic into

your desired position.

SPK MIC

CHG

POWER ON/OFF

AND VOLUME

Press the button for at least 3 seconds to turn the radioPOWER/MODE

on/o. To increase/decrease the volume level, press the

button

during or RX STANDBY mode. The VOLUME METER will indicate the

volume setting of the radio.

TRANSMITTING AND RECEIVING A CALL

1. For maximum clarity, hold the radio 2 to 3 inches from your mouth.

2. Press and hold the button and speak in a normal voice into the PTT

microphone TX. The icon will appear continuously on the LCD Display

while transmitting.

3. To receive a call, release the icon will appear on PTT button. The RX

the display when your radio is receiving a transmission.

SCAN

Your radio can scan all 22 channels for activity. To enter, quickly press the

SCAN button. Repeat the same procedure to exit. Your radio will rapidly

scan each of the 22 channels and stop on any active channel for 4 seconds

before resuming scan. When you press the button to transmit on anPTT

active channel, the scanning function will stop and remain on the active

channel. To resume scanning, quickly press the SCAN button.

CALL ALERT

Your LXT114 Series can transmit a call alert. To send, press the PTT

button twice rapidly. The icon will appear while transmitting a call alertTX

and a tone can be heard on the speaker for conrmation.

KEYPAD LOCK

Press the button for 4 seconds. The “ ” icon will appear on theLOCK Lo

display. PTT will still be active. Repeat the same procedure to unlock the

keypad, a “ ” icon will appear on the display.LF

CHANNEL SELECTION (GMR

S/FRS BAND)

Press the button once, and then the MODE

buttons to select one of

the 22 GMRS/FRS channels. To conrm the selection, press the PTT

button or press the button again to move to the next feature setting.MODE

Note : To communicate between two LXT114 Series radios, all radios in

your group must be set to the same channel.

VOX

To turn VOX on, press the button twice, the display shows “MODE VOX”

blinking while below the “ ” icon appears. Select “ ” by pressing theoF on

buttons and push the key or button again to conrm. PTT MODE

To turn VOX o, press the button twice, the display shows “MODE VOX”

blinking while below the “ ” icon appears. Select “ ” by pressing theon oF

buttons and push the key or button again to conrm.PTT MODE

OPERATING YOUR RADIO

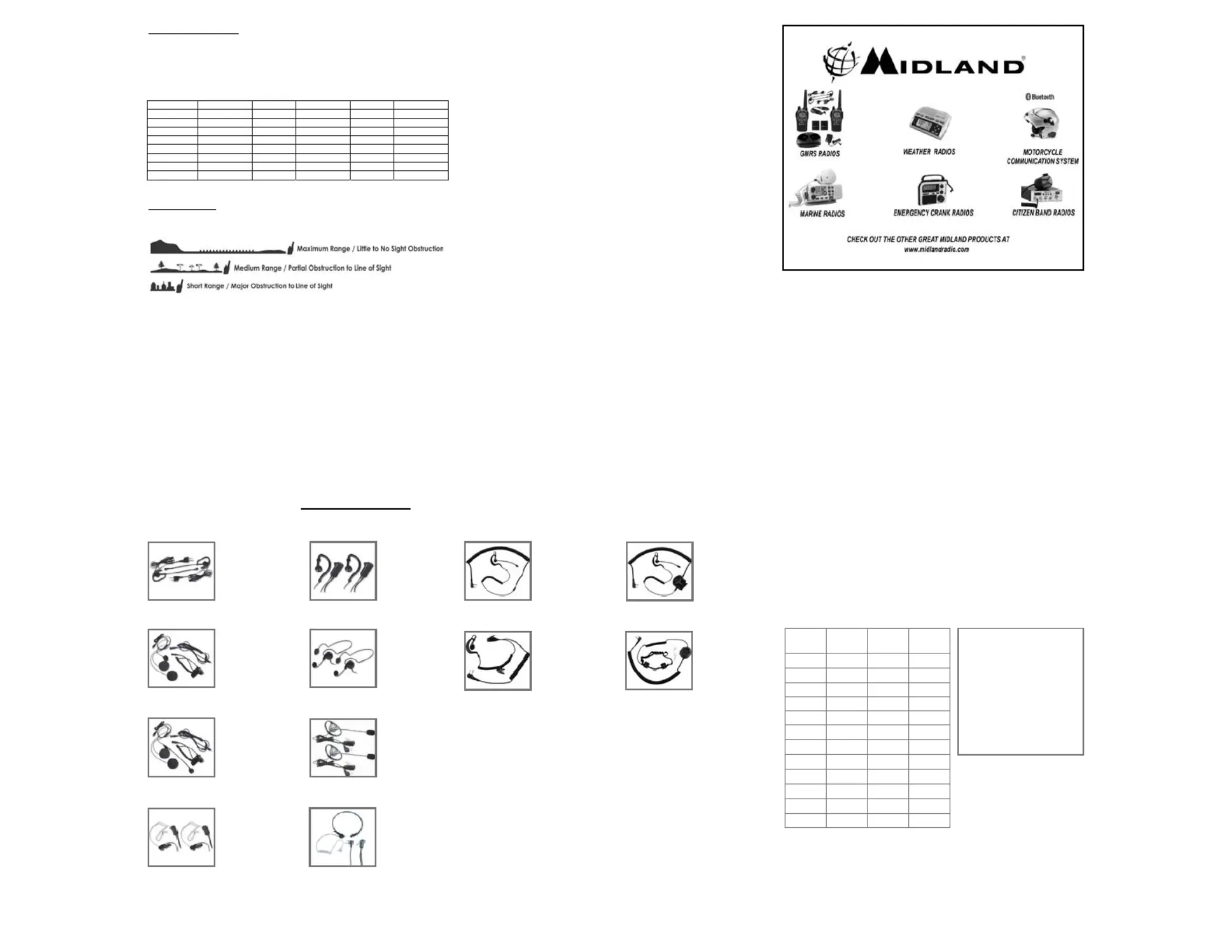

Produktspecifikationer

Varumärke:	Midland
Kategori:	Walkie-talkies
Modell:	LXT114
Vikt:	90.72 g
Batterityp:	AAA
Antal kanaler (totalt):	22 kanaler
Antal batterier:	3
Produktstorlek (BxDxH):	31.75 x 50.8 x 127 mm
Batterier medföljer:	Nej
Arbetsfrekvens:	462.550 - 467.7125 MHz
Stöttålig:	Ja
