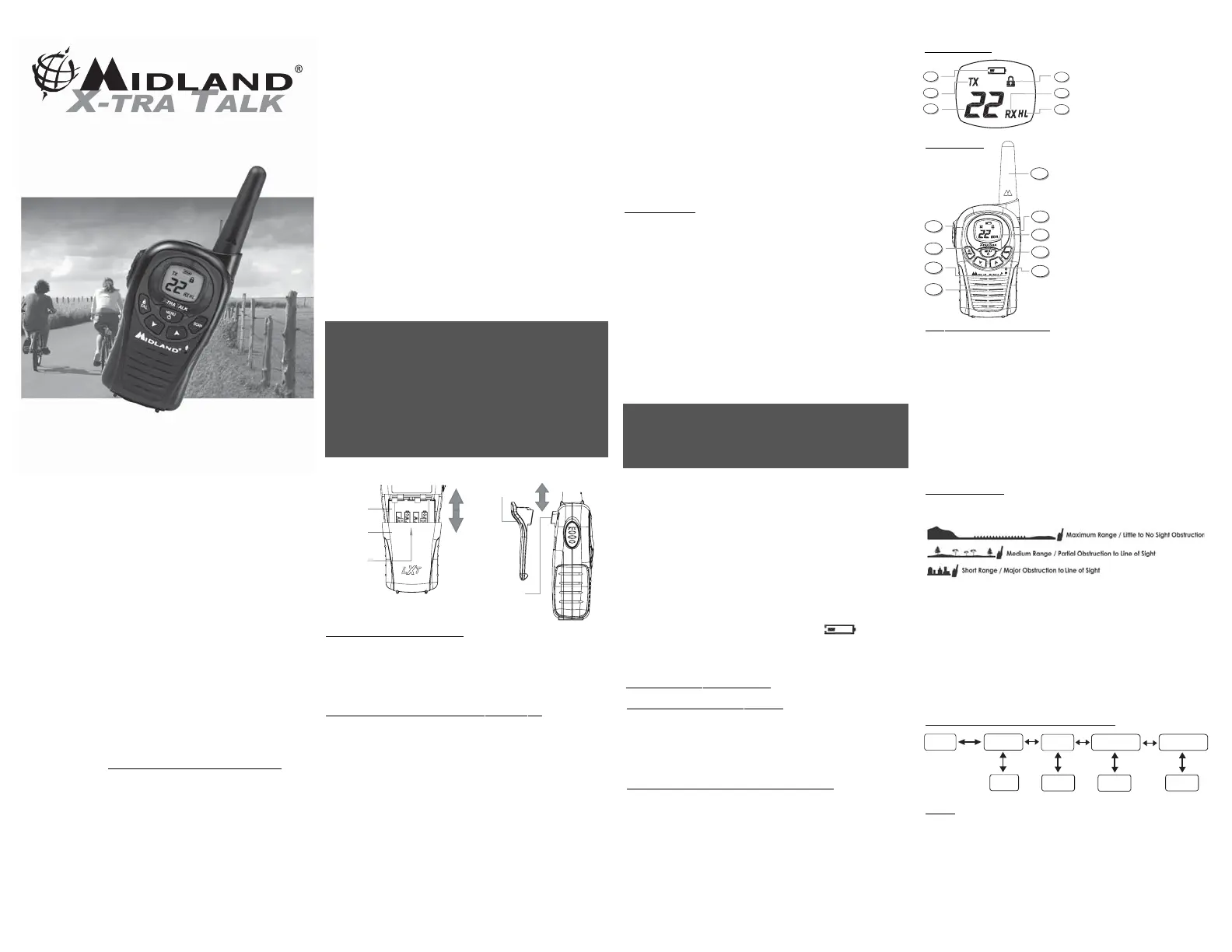

LXT380/385 Series

OWNER'S MANUAL

www.midlandradio.com

GMRS/FRS Radio

Welcome to the world of Midland electronics

Congratulations on your purchase of a high quality MIDLAND

product. Your 2-way radio represents the state-of-the-art in high-tech

engineering. Designed for GMRS (General Mobile Radio Service)

operation, this compact package is big in performance. It is a quality

piece of electronic equipment, skillfully constructed with the finest

components. The circuitry is all solid-state and mounted on a rugged

printed circuit board. Your two-way radio is designed for reliable and

trouble-free performance for years to come.

Features

- 22 GMRS/FRS Channel

- Call Alert

- Scan Function

- Roger Beep Tone

- Silent Operation

- Keypad Lock

- Power HI/LO Settings

- Auto Squelch

- Speaker / Microphone Jacks

- Battery Life Extender

- Battery Low Indicator

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions : (1) this device does not

cause harmful interference, and (2) this radio must accept any

interference that may cause undesired operation.

To maintain compliance with FCC’s RF exposure guidelines, for

body-worn operation, this radio has been tested and meets the

FCC RF exposure guidelines when used with Midland Radio

Corp. accessories supplied or designated for this product. Use of

other accessories may not ensure compliance with FCC RF

exposure guidelines.

IMPORTANT NOTICE, FCC LICENSE REQUIRED FOR GMRS OPERATION

(Only Applicable for GMRS Radio Use in the United States)

The LXT380/385 Series operates on GMRS (General Mobile Radio Service)

frequencies which require an FCC (Federal Communications Commission)

license. You must be licensed prior to operating on channels 1 - 7 or 15 - 22,

which comprise the GMRS channels of the LXT380/385 Series. Serious

penalties could result for unlicensed use of GMRS channels, in violation of FCC

rules, as stipulated in the Communications Act's Sections 501 and 502

(amended).

You will be issued a call sign by the FCC which should be used for station

identification when operating the radio on GMRS channels. You should also

cooperate by engaging in permissible transmissions only, avoiding channel

interference with other GMRS users, and being prudent with the length of their

transmission time.

To obtain a license or ask questions about the license application, contact the

FCC at 1-888-CALL FCC or go to the FCC's website:

http://www

.fcc.gov and request form 605.

Exposure To Radio Frequency Energy

Your Midland radio is designed to comply with the following national and

international standards and guidelines regarding exposure of human being to

radio frequency electromagnetic energy:

- United States Federal Communications Commission, Code of Federal

Regulations: 47 CFR part 2 sub-part J

- American National Standards Institute (ANSI)/Institute of Electrical &

Electronic Engineers (IEEE) C95. 1-1992

- Institute of Electrical and Electronic Engineer (IEEE) C95. 1-1999 Edition

- National Council on Radiation Protection and Measurements (NCRP) of the

United States, Report 86, 1986

- International Commission on Non-lonizing Radiation Protection (ICNIRP)

1998

To control your exposure and ensure compliance with the general population or

uncontrolled environment exposure limits, transmit no more than 50% of the

time. The radio generates measurable RF energy exposure only when

transmitting.

IMPORTANT: Changes or modifications to this unit not expressly approved by

MIDLAND RADIO CORP. could void your right to operate this unit. Your radio

is set up to transmit a regulated signal on an assigned frequency. It is against

the law to alter or adjust the settings inside the COMMUNICATOR to exceed

those limitations. Any adjustment to your radio must be made by qualified

technicians.

LCD DISPLAY

1. LOW BATTERY ICON – Indicates the

battery level is low.

2. TRANSMIT (TX) ICON – Indicates

radio is transmitting a signal.

3. CHANNEL NUMBER – Changes from

1~22 on GMRS/FRS band.

4. KEY LOCK ICON – Indicates KEY

LOCK mode is on.

5. RECEIVE (RX) ICON – Indicates

radio is receiving a transmission.

6. TRANSMIT POWER LEVEL ICON –

Indicates TX Power setting (H/L)

CONTROLS

7. PTT Button – Press and hold to

transmit voice communication.

8. CALL/LOCK Button – Press to send

a CALL Alert signal. Press and hold to

turn KEY LOCK on/off.

9. MIC – Built-in microphone.

10. SPEAKER – Built-in speaker.

11. ANTENNA

12. EXTERNAL SPEAKER/MIC/CHG.

JACK

13. POWER / MENU Button – Press and

hold for at least 3 seconds to turn the

radio on/off. Press momentarily to

access Menu mode.

14. SCAN Button – Press to enter SCAN

mode.

15. UP

and DOWN

Button – Make

adjustments in MENU mode.

BATTERY INST

ALLATION

Your LXT380/385 Series radio operates with either 4 AAA alkaline

batteries or an optional NiMH battery pack. The belt clip should be

removed to ease installation or removal of the batteries.

To install the batteries:

1. With the back of the radio facing you, remove the belt clip (see

diagram below) for easy access, then remove the Battery Cover by

pressing down on the top center and sliding it down from the radio.

2. Insert 4 AAA batteries observing the polarity as shown. Installing

the batteries incorrectly will prevent the unit from operating or may

damage the unit.

3. Return the Battery Cover by sliding it up on the radio. Replace the

belt clip, making sure it locks into place.

MMIIDDLLAANNDD RRAADDIIOO CCOORRPPOORRAATTIIOONN

5900 Parretta Drive

Kansas City, MO 64120

Call 816.241.8500

visit us at http://www.midlandradio.com

Note: Features & Specifications are subject to change without

notice. MIDLAND is not responsible for unintentional errors or

omissions on its packaging.

BATTERY

COMPARTMENT

BATTERY

COMPARTMENT

COVER

Press here and

push down to open

BELT CLIP

LOCK TAB

BELT CLIP

LATCH

INS

TALLING THE BELT CLIP

To install the BELT CLIP, slide the clip up into the slot on the back of

the radio until the BELT CLIP LATCH clicks. To remove the BELT

CLIP, press the LOCK TAB up, then gently pull the belt clip down

toward the bottom of the radio.

CHARGING THE OPTIONAL BATTERY PACK

Your LXT380/385 Series is equipped for using an optional recharge-

able NiMH battery pack which can be recharged with the optional

desktop charger (as described below). The LXT380/385 can also be

charged by inserting the AC adapter into the radio charge jack. Initial

charge time is 24 hours. Charge time is about 12 hours thereafter. For

maximum battery life, we recommend charging the battery pack when

the low battery icon comes on. Remove the radios from the charger

when the charge time expires.

To charge using a Desktop Charger:

1. Place the rechargeable battery packs in the radios.

2. Connect the AC adapter into an AC wall outlet.

3. Insert the AC adapter plug (or DC Cigarette Lighter adapter if

charging in vehicle) into the desktop charger jack.

4. Place the units into the desktop charger slot and note that the LED

indicator with RED color will light up, indicating charging function.

In order to ensure that the battery pack is fully charged, it is

recommended that the battery pack be charged for at least 12

hours with the radio turned OFF.

1. Only use our NiMH battery pack.

2. Do not attempt to charge alkaline batteries or any batteries

or battery packs other than the one indicated in the manual.

This may cause leakage and damage to the radio.

3. For long term storage of the radio, turn the radio OFF and

remove the batteries from the radio.

LOW BATTERY LEVEL INDICATOR

Your LXT380/385 Series has a LOW BATTERY ICON which

will only appear on the LCD display if the battery voltage level is low.

At this point, the battery needs to be charged for at least 12hrs.

WER ON/OFF AND VOLUME

Press the POWER/MENU button for at least 3 seconds to turn the

radio on/off. During Power On, the radio will beep 3 times with

different tones, the LCD will display all icons for 1 second and the

LCD display will indicate the last channel selected.

To increase/decrease the volume level, press the

button during

RX or STANDBY mode.

TRANSMITTING AND RECEIVING A CALL

To communicate, all radios in your group must be set to the same

channel.

1. For maximum clarity, hold the radio 2 to 3 inches from your mouth.

2. Press and hold the PTT button and speak in a normal voice

into the microphone. The TX icon will appear continuously on

the LCD Display while transmitting.

3. To receive a call, release the PTT button. The RX icon will appear

on the display when your radio is receiving a transmission.

OPERATING YOUR RADIO

ABOUT RANGE

Your LXT Series radios are designed to give you maximum range

under optimum conditions.

Optimum Conditions are:

l Over water

l Open rural areas without obstructions

l Flat areas where you can see the other person

To ensure you get maximum range:

l Be sure to use fresh or fully charged batteries - low batteries will

cause low power conditions

l Be sure you are on a GMRS channel - FRS channels are

restricted by the FCC to low power

l Be sure to set your radio to use Hi power.

LXT380/385 Series QUICK REFERENCE CHART

SCAN

Your LXT380/385 Series can scan all 22 channels for activity. To

enter, quickly press the SCAN button. Repeat the same procedure to

exit. Your radio will rapidly scan each of the 22 channels and stop on

any active channel for 4 seconds before resuming scan.

When you press the PTT button to transmit on an active channel, the

scanning function will stop and remain on the active channel. To

resume scanning, quickly press the SCAN button.

Channel

1~22

Roger Beep

On/Off

Power

H/L

Silent Operation

On/Off

Produktspecifikationer

Varumärke:	Midland
Kategori:	Walkie-talkies
Modell:	LXT385
Färg på produkten:	Blue, Silver
Vikt:	2300 g
Bredd:	382 mm
Djup:	256 mm
Höjd:	25.8 mm
Användarmanual:	Ja
AC-adapterfrekvens:	50 - 60 Hz
AC-adapterns inspänning:	100 - 240 V
Blåtand:	Ja
Skärm diagonal:	15.6 "
Upplösning:	1366 x 768 Pixels
Pekskärm:	Nee
Original bildförhållande:	16:9
Processorfrekvens:	2.4 GHz
Processorfamilj:	Intel® Core™ i7
Processormodel:	i7-5500U
Antal processorkärnor:	2
Wi-Fi-standarder:	802.11g, 802.11b, Wi-Fi 4 (802.11n)
Bluetooth-version:	4.0
Vormfaktor:	Clamshell
Främre kameraupplösning (numerisk):	0.5 MP
Inkluderar operativsystem:	Windows 8.1
Ethernet LAN:	Ja
Integrerad minneskortläsare:	Ja
Kompatibla minneskort:	SD
Ljudsystem:	SonicMaster
Processor litografi:	14 nm
Snabbstartsguide:	Ja
Inkluderar AC-adapter:	Ja
LED-bakgrundsbelysning:	Ja
Antal USB 2.0-portar:	1
VGA (D-Sub) port(ar):	1
Antal HDMI-portar:	1
Mikrofon, linjeingång:	Nee
DVI-port:	Nee
Antal Ethernet LAN (RJ-45)-portar:	1
Monteringsalternativ för kabellås:	Ja
Kabellåsspårtyp:	Kensington
Antal inbyggda högtalare:	2
Lösenordsskydd:	Ja
AC-adapter, ström:	65 W
Inkluderar nätsladd:	Ja
Inbyggd mikrofon:	Ja
Internminne:	4 GB
Förvarings media:	SSD
Internminnestyp:	DDR3L-SDRAM
Password bescherming:	BIOS, HDD, User
Ethernet LAN, dataöverföringshastigheter:	10,1000,100 Mbit/s
Intel® Wireless Display (Intel® WiDi):	Ja
Antal portar USB 3.2 Gen 1 (3.1 Gen 1) Typ A:	2
Processoruttag:	BGA 1168
Stepping:	F0
Systembuss:	5 GT/s
Processor antal trådar:	4
PCI Express-kortplatsversion:	2.0
Processorns driftlägen:	32-bit, 64-bit
Processorns cache:	4 MB
Tjunction:	105 °C
Busstyp:	DMI2
PCI Express-konfigurationer:	4x1, 2x4
Thermal Design Power (TDP):	15 W
Kodnamnsprocessor:	Broadwell
Maximalt antal PCI Express-linjer:	12
Typ av processorcache:	L3
ECC stöds av processor:	Nee
Processorfabrikant:	Intel
Konfigurerbar TDP-ned:	7.5 W
Konfigurerbar TDP ned frekvens:	0.6 GHz
Operativsystems arkitektur:	64-bit
Maximalt internminne:	12 GB
Total lagringskapacitet:	256 GB
Typ av optisk enhet:	Nee
Inbyggd grafikadapter:	Ja
Separat grafikadapter:	Ja
Familjens inbyggda grafikadapter:	Intel® HD Graphics
Inbyggd grafikadaptermodell:	Intel® HD Graphics 5500
Grundläggande frekvens inbyggd grafikadapter:	300 MHz
Inbyggd grafikadapter dynamisk frekvens (max):	950 MHz
Inbyggt grafikkort-ID:	0x1616
Maximalt minne inbyggd grafikadapter:	16 GB
Inbyggd grafikadapter DirectX-version:	11.2
Fram kamera:	Ja
Numerisk knappsats:	Ja
Instruktionsuppsättningar som stöds:	AVX 2.0, SSE4.1, SSE4.2
Intel® My WiFi Technology (Intel® MWT):	Nee
Intel® Smart Response Technology:	Ja
Intel® Hyper Threading Technology (Intel® HT Technology):	Ja
Intel® Turbo Boost-teknik:	2.0
Intel® Quick Sync-videoteknik:	Ja
Intel® InTru™ 3D-teknik:	Ja
Intel® Clear Video HD-teknik (Intel® CVT HD):	Ja
Intel® Insider™:	Ja
Intel® Flex Memory Access:	Ja
Intel® AES nya instruktioner (Intel® AES-NI):	Ja
Förbättrad Intel SpeedStep-teknik:	Ja
Kör Disable Bit:	Ja
Idle stater:	Ja
Termisk övervakningsteknik:	Ja
CPU-konfiguration (max):	1
Intel® Enhanced Halt State:	Ja
Intel® Clear Video Technology för mobila internetenheter (Intel® CVT för MID):	Ja
Intel® VT-x med utökade sidtabeller (EPT):	Ja
Inbyggda alternativ tillgängliga:	Nee
Grafik & IMC litografi:	14 nm
Intel® Small Business Advantage (Intel® SBA):	Ja
Intel® Secure Key:	Ja
Intel® 64:	Ja
Intel® OS Guard:	Ja
Intel® Virtualization Technology for Directed I/O (VT-d):	Ja
Intel® Clear Video-teknik:	Ja
Intel® Virtualization Technology (VT-x):	Ja
Processorpaketstorlek:	40 x 24 x 1.3 mm
Konfliktfri processor:	Ja
Intel® Identity Protection Technology (Intel® IPT):	Ja
Versie Intel® Identity Protection Technology:	1.00
Versie Intel® Secure Key Technology:	1.00
Versie Intel® Smart Response Technology:	1.00
ARK ID-processor:	85214
Intel® Trusted Execution Technology:	Nee
Intel® TSX:	Nee
Intel® Stable Image Platform Program (SIPP):	Nee
Versie Intel® Stable Image Platform Program (SIPP):	0.00
Intel® TSX-NI-version:	0.00
Intel® Anti-Theft Technology (Intel® AT):	Nee
Intel® Rapid Start-teknik:	Nee
Intel® Smart Connect-teknik:	Nee
Anslutning till basstation:	Nee
Kombinerad hörlurs/mikrofonport:	Ja
SmartCard-kortplats:	Nee
Maximal processorturbofrekvens:	3 GHz
Processorkod:	SR23W
Diskret grafikadaptermodell:	NVIDIA® GeForce® GT 940M
Antal installerade SSD:er:	1
SSD-kapacitet:	256 GB
Pekdon:	Touchpad
Windows-tangenter:	Ja
Klockhastighetsminne:	1600 MHz
Minneslayout:	1 x 4 GB
Bildområde:	Mat
Specifik grafikminnestyp:	GDDR3
Grafikminne:	2 GB
FSB-paritet:	Nee
Bussprocessor på framsidan:	- MHz
Intel® efterfrågebaserad växling:	Nee
Typ av laddningsport:	DC-in ingang
Typ CardBus PCMCIA-slot:	Nee
Processorserie:	Intel Core i7-5500 Mobile Series
ExpressCard-kortplats:	Nee
S/PDIF-utgång:	Nee
Intel® Dual Display Capable Technology:	Nee
Intel® FDI-teknik:	Ja
Intel® Rapid Storage Technology:	Nee
Intel® Fast Memory Access:	Ja
Intel® Smart Cache:	Ja
Intel® Small Business Advantage (SBA)-version:	1.00
Intel® High Definition Audio (Intel® HD Audio):	Nee
Intel® Virtualization Technology (Intel® VT):	VT-d, VT-x
LightScribe:	Nee
Wifi:	Ja
Typ produkt:	Notebook
Intel® Matrix Storage Technology (Intel® MST):	Nee
Intel® Active Management Technology (Intel® AMT):	Nee
Batteriteknik:	Lithium-Polymeer (LiPo)
Antal battericeller:	2
Processorgenerering:	Vijfde generatie Intel® Core™ i7
