Sida 1/38

Model: MCT-10QDS, MCT-10QDS-POE, MCT-10HPQ, MCT-10HPQ-POE

Please keep this manual for future reference.

TABLE OF CONTENTS

PAGE

DECLARATION……………....…………………..............……………............…....1

PRODUCT INSTRUCTIONS……….......……..............…………………....………………1

POWERING ON THE PRODUCT………...........………………………...….....….……….2

WITHOUT MOUNTING BRACKET…..........................................................2

WITH MOUNTING BRACKET…………….................................……3

INSERTING THE SD CARD.....………………….................………………………………3

INSERTING USB DEVICES……………..................……………......…………….……….3

HDMI OUTPUT.........................................................................................…..............3

HOME SCREEN.......………..…………….....................………….…......................……4

SYSTEM BAR….........................................................................................................8

APPLICATIONS.......................................................................................…11

LANGUAGE………………......…............................................................……12

DATE & TIME……………….....….......….............................…...................................13

VOLUME………………......….......….............................…...................................14

BRIGHTNESS………………......….......….............................…..............................14

SCHEDULED POWER ON/OFF………………......….......….......................................15

WI-FI....................………………......….......….............................................19

ETHERNET....................………………......….......….............................................20

BLUETOOTH....................………………......….......….............................................21

VIRTUAL KEYBOARD....................………………..........…........................................23

SWITCH INPUT METHODS......................………......….......…................................24

TAKE PHOTOS & SHOTS....................………………........…...................................26

SURF ONLINE................………………......….......….................................................29

BROWSE FILES................………………......….......…...............................................30

PLAY MEDIA................……………......….......…......................................................31

INSTALL & UNINSTALL APPS................………………......….......….......................31

INSTALL APPS................……………….......................................................31

UNINSTALL APPS................……………….....................................35

RESET TO FACTORY DEFAULT................………...................................................36

Adapt-IQ 10.1” User’s Manual

Mimo Monitors

info@mimomonitors.com

Sales: 1-855-YES-MIMO (937-6466)

Browse Files ...................................................................................................................... 30

Play Media ......................................................................................................................... 31

Install & Uninstall Apps .................................................................................................... 31

Install Apps ................................................................................................................... 31

Uninstall Apps .............................................................................................................. 35

Reset to Factory Default.................................................................................................. 36

Declaration

! Please read the instructions carefully before using the device.

! Do not put the product in high temperature, humid or dusty environment.

! Do not drop this product.

! Do not power off the device when it’s formatting or upgrading, otherwise it

will cause an operation system error.

! This product is not waterproof.

! Use only approved add-on devices.

Product Instructions

1. Camera (optional): 5M pixels camera

2. LED Indicator:

Green

Power supply is on.

Right Side

Back

Bottom

Front

Mimo Monitors

743 Alexander Rd. Suite 15

Princeton, NJ 08540

info@mimomonitors.com

Sales: 1-855-YES-MIMO (937-6466)

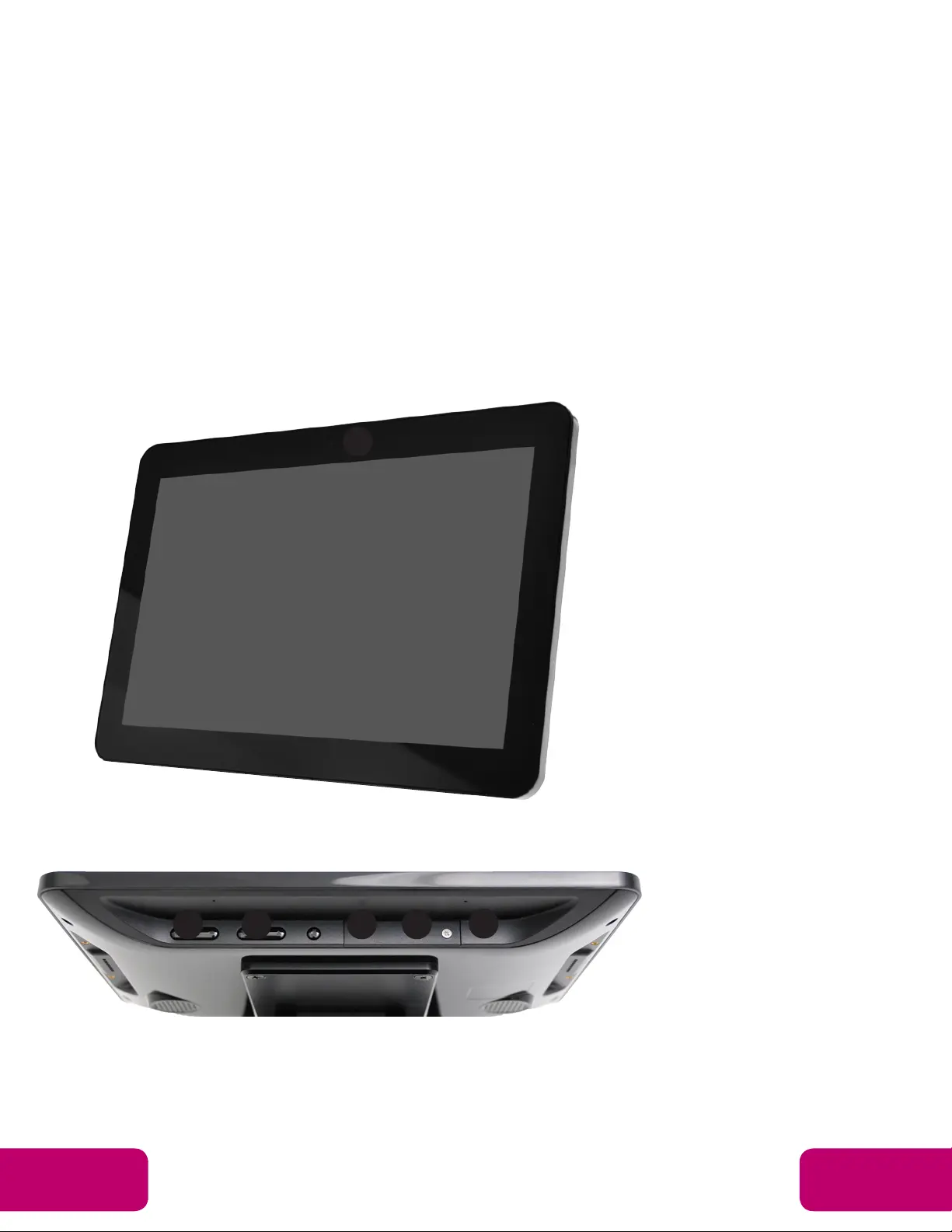

Mechanical Design

Front

1. Camera (optional)

Top

2. LED

3. SD card slot + cover

4. Menu/Enter button

5. Function keys (up/down)

6. Function keys (Vol+ / Vol-)

Back

7. Speakers

8. VESA mounting holes

9. DC in

10. Add on Module Slot

Bottom

9. DC in

10. Add on Module Slot

11. Ethernet RJ45 port

12. USB type A

13. Micro USB

14. Power switch

15. GPIO

16. RS232

11 12 13 14

2 3 4 5

2019-1118

Rev 3 - 79649

Mimo Monitors

743 Alexander Rd. Suite 15

Princeton, NJ 08540

info@mimomonitors.com

Sales: 1-855-YES-MIMO (937-6466)

Mechanical Design

Front

1. Camera (optional)

Top

2. LED

3. SD card slot + cover

4. Menu/Enter button

5. Function keys (up/down)

6. Function keys (Vol+ / Vol-)

Back

7. Speakers

8. VESA mounting holes

9. DC in

10. Add on Module Slot

Bottom

9. DC in

10. Add on Module Slot

11. Ethernet RJ45 port

12. USB type A

13. Micro USB

14. Power switch

15. GPIO

16. RS232

11 12 13 14

2 3 4 5

2019-1118

Rev 3 - 79649

Produktspecifikationer

Varumärke:	Mimo Monitors
Kategori:	ej kategoriserat
Modell:	Adapt-IQ MCT-10HPQ-POE-2LB
Skärm diagonal:	10.1 "
Upplösning:	1280 x 800 pixlar
Pekskärm:	Ja
Processorfrekvens:	1.8 GHz
Processorfamilj:	ARM Cortex
Intern lagringskapacitet:	8 GB
Wi-Fi:	Ja
Wi-Fi-standarder:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth-version:	4.2
Ljudformat som stöds:	AAC, ASF, MP2, OGG, WAV, WMA
Videoformat som stöds:	3GP, ASF, AVI, DAT, FLV, MKV, MOV, MP4, MPG, RM, TS, VOB, WMV
Ljusstyrka:	350 cd/m²
LED-bakgrundsbelysning:	Ja
DVI-port:	Nej
Inbyggda högtalare:	Ja
Antal inbyggda högtalare:	2
Certifiering:	FCC, CE, RoHS
USB-version:	2.0
Internminne:	2 GB
Processor:	A17
Medeltid mellan fel (MTBF):	50000 h
Pekskärmsteknik:	Kapacitiv
Visa vikt:	595 g
Produktdesign:	Platt skärm för digital skyltning
Typ av minneskort:	SD, SDHC
Produktens färg:	Svart
Antal USB-portar:	2
Skärmtyp:	LCD
VESA-fäste:	Ja
Inbyggd kortläsare:	Ja
Uteffekt (RMS):	6 W
Paneltyp:	TFT
Inbyggd processor:	Ja
Installerat operativsystem:	Android 8.1
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	1
Strömförbrukning (vanlig):	18 W
Temperatur vid drift:	-10 - 50 ° C
Temperaturintervall (förvaring):	-15 - 65 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Fuktighet (förvaring):	10 - 90 %
AC-inspänning:	100 - 240 V
Placeringar som kan användas:	inomhus
Nätverksansluten (Ethernet):	Ja
Likströmsingång:	Ja
Växelström Frekvens:	50 - 60 hz
Bildkomprimeringsformat:	BMP, GIF, JPG
RS-232-gränssnitt:	Ja
USB-port:	Ja
Strömförbrukning i vänteläge:	- W
Kontrastförhållande (medel):	800:1
Native bildförhållande:	16:10
Processorkärnor:	4
Bluetooth:	Ja
Ändamål:	Universal
Gränsssnitt för panelmontering:	50 x 75, 75 x 75 mm
Antalet samtidiga beröringspunkter:	10
Skärmbredd:	252 mm
Visa djupet:	24 mm
Visa höjd:	178 mm
Flerpunktsberöring:	Ja
