MOBOTIX AG • www.mobotix.com • 06/2018

Technical specifications subject to change without notice

Technical Specifications

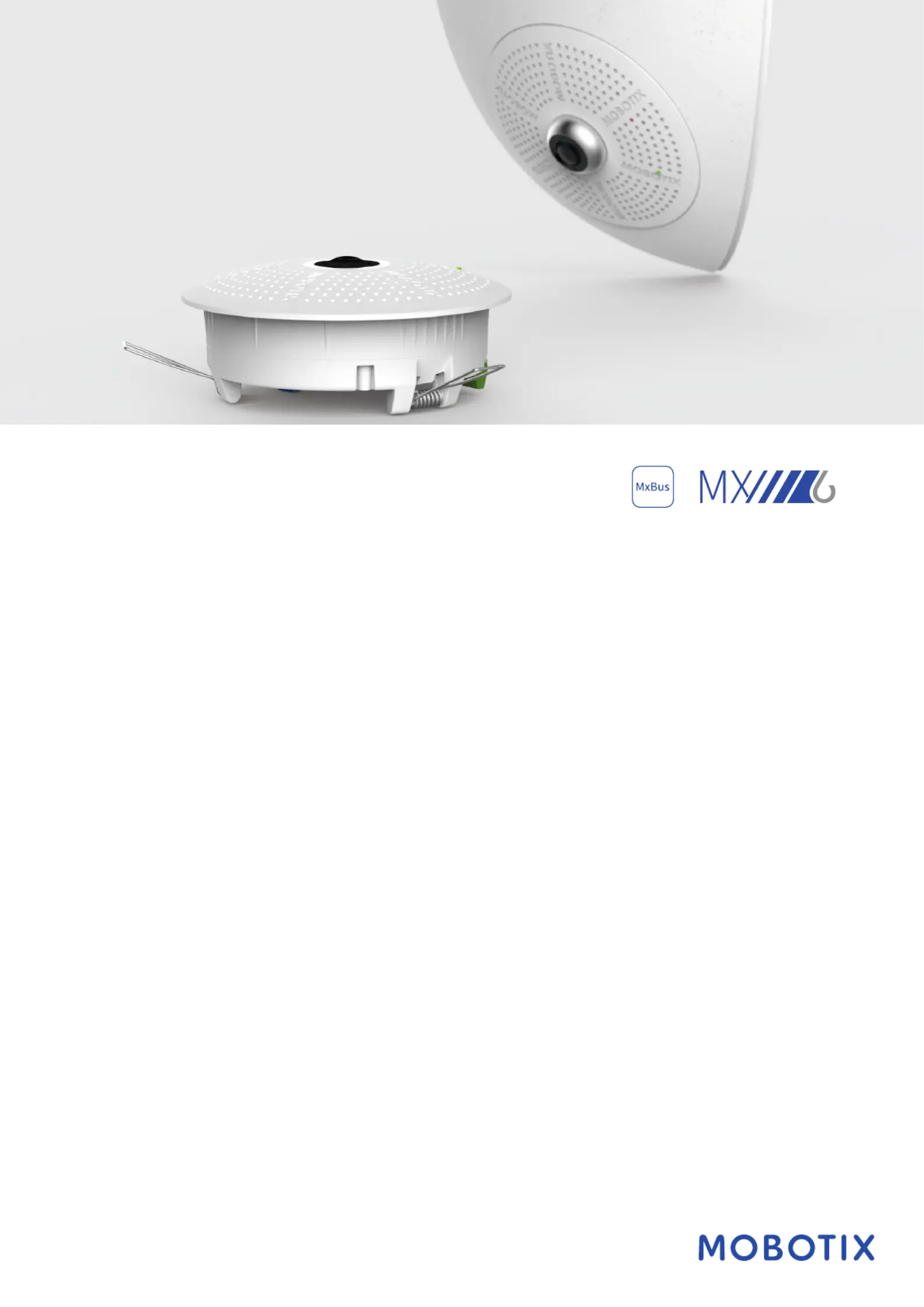

MOBOTIX c26B Indoor 360°

Indoor Ceiling Camera. Easy To Install.

The c26B is the smallest and lightest MOBOTIX hemispheric complete video system for ceiling installation indoors.

Its features include a light-sensitive 6MP day or night sensor and MxAnalytics video analysis tools, which can be

used for depicting customer movements in sales rooms, for instance. With the MxIOBoard-IC available as an

accessory, the camera receives an additional MxBus connection, two inputs and two 12V outputs.

◼ Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility

◼ Recording on an internal MicroSD card (4 GB as standard)

◼ For ceiling or corner installation, optional on-wall set

◼ MxAnalytics Video Analysis tools as standard

◼ Variants with audio package (microphone and speaker)

◼ Integrated vibration and temperature sensor

◼ As easy to install as a spotlight

IP20, 0 to 40°C

Camera Variants

c26B Body Day Or Night

Lens For Self-Assembly

c26B Day

Complete Camera

c26B Night

Complete Camera

Specialties

c26B Body with 6MP T Day or

Night sensor, additional

variants with audio package;

all lenses (except MX-B016)

available separately for self-

assembly

Factory-assembled c26

with sharply focused lens; ad

package (microphone and

hous

B Day or Night cameras

dditional variants with audio

speaker inside the camera

sing)

Lenses

c26B Body Day Or Night

Lens For Self-Assembly

c26B Day

Complete Camera

c26B Night

Complete Camera

Fisheye Lens (f/2.0, 180° x 180°)MX-B016

Not for c26B Body

Mx-c26B-6D016

Mx-c26B-AU-6D016

Mx-c26B-6N016

Mx-c26B-AU-6N016

Ultra Wide Lens (f/1.8, 103° x 77°)MX-B036

Mx-c26B-6D036

Mx-c26B-AU-6D036

Mx-c26B-6N036

Mx-c26B-AU-6N036

Super Wide Lens (f/1.8, 90° x 67°)MX-B041

Lens selection for

c26B Body Day/Night

Self-assembly only

(without Audio)

Self-assembly only

(without Audio)

Wide Lens (f/1.8, 60° x 45°)MX-B061

Body Day: Mx-c26B-6D

(Body not available with

Self-assembly only

(without Audio)

Self-assembly only

(without Audio)

Standard Lens (f/1.8, 45° x 34°)MX-B079

audio)

Body Night: Mx-c26B-6N

Self-assembly only

(without Audio)

Self-assembly only

(without Audio)

Tele Lens (f/1.8, 31° x 23°)MX-B119

Body Night: Mx-c26B-6N

(Body not available with

audio)

Self-assembly only

(without Audio)

Self-assembly only

(without Audio)

Distant Tele Lens (f/1.8, 15° x 11°)MX-B237

Self-assembly only

(without Audio)

Self-assembly only

(without Audio)

Hardware

c26B Body Day Or Night

Lens For Self-Assembly

c26B Day

Complete Camera

c26B Night

Complete Camera

Image sensor with individual exposure zones

Color or Black & White (B/W)

Color

B/W

Light sensitivity in lux at 1/60 s and 1/1 s

0.1/0.005 (Color)

0.02/0.001 (B/W)

0.1/0.005 (Color)

0.02/0.001 (B/W)

Image sensor (color or B/W sensor)

1/1.8“ CM

OS, 6MP (3072 x 2048), Progres

ssive Scan

Microprocessor

i.MX 6 Dua

l Core inkl. GPU (1 GB RAM, 512

2 MB Flash)

H.264 Hardware Codec

Yes, bandwidth limi

itation available; output image

e format up to QXGA

Protection classes

IP20 and IK06

Intended use

Ceiling or w

wall mounting, indoor use only,

no EX area

Ambient temperature (range, incl. storage)

0 to 40°C (32 to 104 °F)

Internal DVR, ex works

4 GB (microSD)

Microphone/speaker

Yes/Ye

es (variants with audio package

e only)

16bit/16kHz HD wideband audio (Opus codec)

Yes (live and audio messages)

Passive infrared sensor (PIR)

Temperature sensor

Yes

Shock detector (tamper detection)

Yes

Power consumption (typically at 20°C/68°F)

5 watts

PoE Class (IEEE 802.3af)

Class 2

or 3 (variable), factory setting:

: class 3

Interfaces Ethernet 100BaseT/MxBus/USB

Yes (MxRJ45)/No/Yes

Interface RS232

With MX-2

232-IO-Box (Order Nr: MX-OPT-

-RS1-EXT)

Interfaces MxBus and I/0 (2 outputs, 2 inputs)

With M

MxIOBoard-IC (Order Nr. Mx-A-

IO-IC)

Mounting options

Ceiling, wall or corner

Dimensions (Height x Diameter)

51 x 120 mm

Weight

212 g

Housing

Fix

xed Dome, PBT-30GF, color: wh

hite

Technical Specifications: c26B Indoor 360°

MOBOTIX AG • www.mobotix.com • 06/2018

Technical specifications subject to change without notice • Page 2

Hardware

c26B Body Day Or Night

Lens For Self-Assembly

c26B Day

Complete Camera

c26B Night

Complete Camera

Standard accessory

Allen wrench, Lens wren

nch (depending on model), 0.5

Quick Install

m Ethernet patch cable

Detailed technical documentation

www.mob

botix.com > Support > Downloa

ad Center

Online version of this document

www.mob

botix.com > Support > Downloa

ad Center

MTBF

> 80,000 hours

Certifications

EN55022:2010; EN55024:201

EN61000-6-3

AS/ NZS CI

10; EN50121-4:2006; EN61000-6

:2007+A1:2011; EN61000-6-4:20

SPR22:2009+A1:2010; CFR47 FC

6-1:2007; EN 61000-6-2:2005;

007+A1:2011;

CC part15B

Protocols

IPv4, IPv6, HTTP, HTTPS, F

server), NTP (client and serve

TP, FTPS, RTP, RTSP, UDP, SNM

er), SIP (client and server) G.711

MP, SMTP, DHCP (client and

(PCMA and PCMU) and G.722

Manufacturer‘s warranty (since May 2018)

3 years

Image Formats, Frame Rates, Image Storage

c26B Body Day Or Night

Lens For Self-Assembly

c26B Day

Complete Camera

c26B Night

Complete Camera

Available video codecs

MxPEG/MJPEG/H.264

Image formats

Freely configurable format 4:

2592x1944 (5MP), 2048

:3, 8:3, 16:9 or customized form

8x1536 (QXGA), 1920x1080 (Full

mat (Image Cropping), such as

-HD), 1280x960 (MEGA)

Multistreaming

Yes

Multicast stream via RTSP

Yes

Max. image format

6MP (3072 x 2048)

Max. frame rate (fps, only single core used)

MxPEG: 42@HD(128

MJPEG: 26@HD(12

80x720), 34@Full-HD, 24@QXGA

280x720), 13@Full-HD, 9@QXG

H.264: @Full-HD, 20@QXGA25

A, 15@5MP, 12@6MP

A, 5@5MP, 4@6MP

Number of images with 4 GB microSD (internal DVR)

CIF: 250,000, VGA:

: 125,000, HD: 40,000, QXGA: 20

0,000, 6MP: 10,000

General Functions

c26B Body Day Or Night

Lens For Self-Assembly

c26B Day

Complete Camera

c26B Night

Complete Camera

Digital zoom and pan

Yes

ONVIF compatibility

Yes (Profile S)

Genetec protocol integration

Yes

Programmable exposure zones

Yes

Snapshot recording (pre/post-alarm images)

Yes

Continuous recording with audio

Yes

(variants with audio package o

only)

Event recording with audio

Yes

(variants with audio package o

only)

Time controlled flexible event logic

Yes

Weekly schedules for recordings and actions

Yes

Event video and image transfer via FTP and email

Yes

Technical Specifications: c26B Indoor 360°

MOBOTIX AG • www.mobotix.com • 06/2018

Technical specifications subject to change without notice • Page 3

Produktspecifikationer

Varumärke:	Mobotix
Kategori:	övervakningskamera
Modell:	c26B
Vikt:	212 g
Höjd:	51 mm
Wi-Fi:	Nej
Maximal upplösning:	3072 x 2048 pixlar
Diameter:	120 mm
Antal kameror:	1
Inbyggd hårddisk:	Nej
Fast brännvidd:	3.6 mm
Zoomkapacitet:	Ja
Inbyggda högtalare:	Ja
Certifiering:	EN55032:2012\nEN55022:2010;\nEN55024:2010;\nEN50121-4:2015\nEN61000-6-1:2007;\nEN61000-6-2:2005\nEN61000-6-3:2007+A1:2011\nEN61000-6-4:2007+A1:2011\nAS/ NZS CISPR22:2009+A1:2010\nCFR47 FCC 15B
Optisk sensorstorlek:	1/1.8 "
Bildsensortyp:	CMOS
Gränssnitt:	RJ-45
Inbyggd mikrofon:	Ja
Internminne:	1024 MB
Grafikupplösningar som stöds:	1280 x 720 (HD 720),2048 x 1536 (QXGA),2592 x 1944,3072 x 2048
Modell:	IP-säkerhetskamera
Kabelteknik:	10/100Base-T(X)
Progressiv skanning:	Ja
Snabbinstallationsguide:	Ja
Flashminne:	512 MB
Samplingshastighet:	16 kHz
Antal linser:	1
Strömningsmetod:	Multicast
Antal sensorer:	1
röstigenkänning:	G.711, G.722
Temperatursensor:	Ja
Typ av minneskort:	MicroSD (TransFlash)
Produktens färg:	Vit
Monteringssats:	Ja
Inbyggd kortläsare:	Ja
Formfaktor:	Kupol-formad
Typ av ethernet-gränssnitt:	Snabb Ethernet
Strömförbrukning (vanlig):	5 W
Temperatur vid drift:	0 - 40 ° C
Internationellt skydd (IP) kod:	IP20
Kabel inkluderad:	LAN (RJ-45)
Placeringar som kan användas:	inomhus
Anslutningsteknologi:	Kabel
Monteringssätt:	Tak
Minimibelysning:	0.005 lx
Största bländarnummer:	1.8
Totalt megapixel:	6 MP
Komprimeringsformat:	H.264, M-JPEG, MxPEG
Strömmande video:	Ja
Nätverksansluten (Ethernet):	Ja
Stöd för nätverksprotokoll:	IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP, NTP, SIP
Strömkälla av typen:	PoE
Webbaserad adminstraion:	Ja
USB-port:	Ja
Bluetooth:	Nej
Kommunikationsstandarder:	IEEE 802.3af
Harmonized System (HS)-kod:	85258900
PTZ-styrning:	Ja
Objektivets betraktningsvinkel, horisontell:	103 °
Objektivets betraktningsvinkel, vertikal:	77 °
IK klass:	IK06
