MT036C
HAND-HELD PULSATION SHOWERS
INSTALLATION INSTRUCTIONS
®
CAUTION: Do not connect hand-held shower unit directly to the tub drop in a tub
shower installation, excessive back pressure will result in shared water between
the hand-held unit and the showerhead.
See Installation instructions
continued on following page.

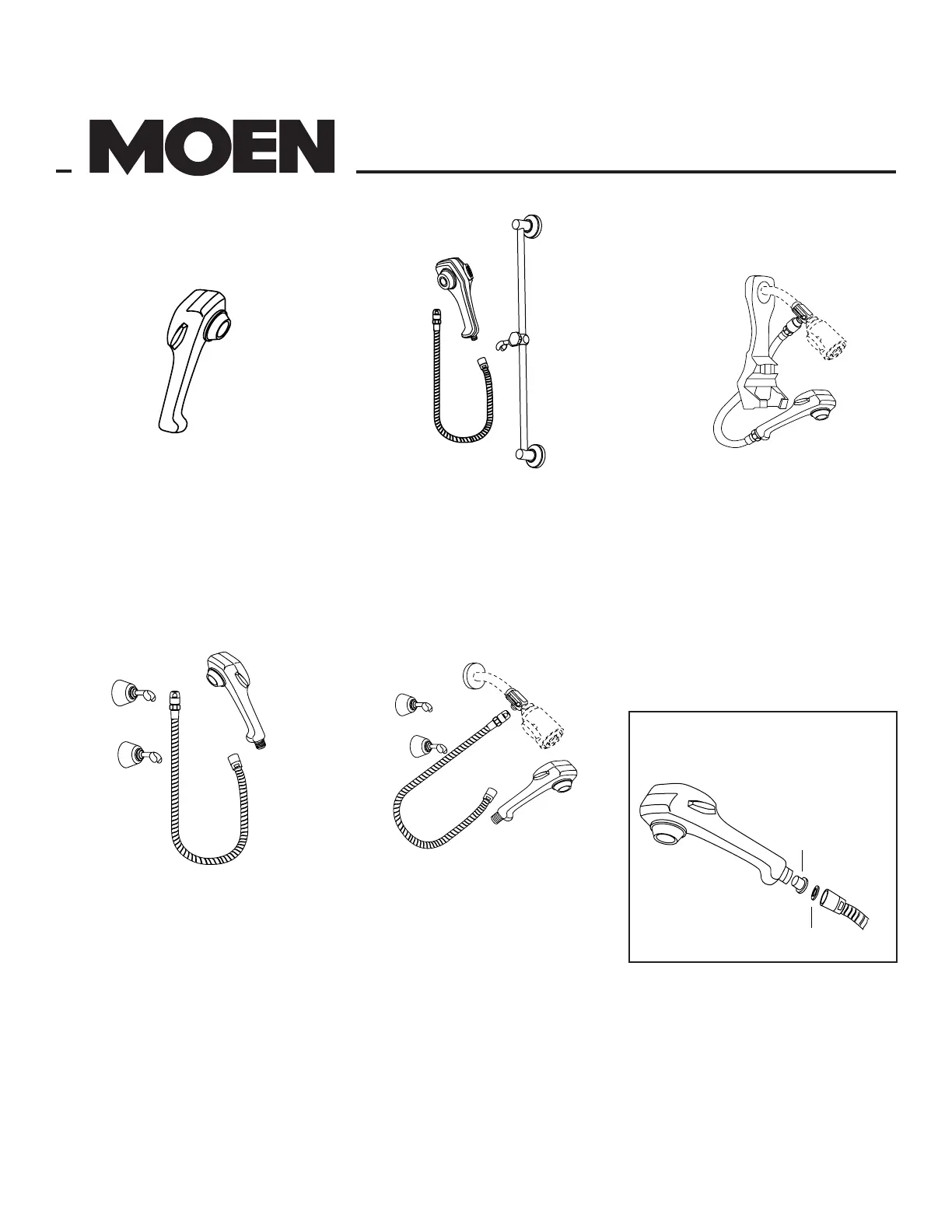

MODEL 3989
Hand-held Pulsation head, double spiral hose
with gaskets, two swivel wall brackets
and vacuum breaker
MODEL 3991
Consists of all parts in Model 3989, plus a
shower arm diverter. Install it between the
shower arm and showerhead.
MODEL 3992 OR 52710
Hand-held Pulsation head,
double spiral hose with gaskets
vacuum breaker and 30" slide bar.
THIS BAR IS
NOT
A GRAB BAR.
DO
NOT
USE FOR SUPPORT.
MODEL 3985
Hand-held Pulsation head, white vinyl hose,
shower arm diverter, vacuum breaker, and
showerhead holder.
MODEL 3980
Hand-held Pulsation head and gasket only.
FLOW
RESTRICTOR
FLAT
GASKET
➤
➤
CAUTION: do not use at gasket
when ow restrictor is used ---
ow restrictor serves as gasket.
TO INSTALL WALL BRACKETS:
Models using wall brackets are furnished with two. One is used to mount the
Pulsation head in a xed position for a standing shower. The other can be
used as a holder above the tub, within easy reach for a seated shower. The
standard distance above the oor for the upper bracket is six feet; however,
this can be varied to suit the comfort of the user. Mount the lower one within
easy reach from a sitting position in the tub and high enough to clear the rim.
Mark the screw hole positions and drill 1/4" holes to t the screw anchors
furnished.
TO INSTALL SLIDE BAR:
Mount vertically with the lower end 54" above the oor, or in a position to suit
the comfort of the user. Mark the screw hole positions and drill 1/4" holes to
t the screw anchors furnished. THIS BAR IS
NOT
A GRAB BAR. DO
NOT
USE FOR SUPPORT.
TO INSTALL PULSATION SHOWERHEAD HOLDER:
Remove the showerhead. If the installation is on a at wall, remove the
shower arm ange. On walls oset by tile, leave the ange on the arm. Use
plumbers putty in the cavity around the shower arm. Apply the two-sided
adhesive pad to the back of the holder, either side up, just above the
opening. Remove outer protective paper. Press and work the holder over
the shower arm. This is an interference t on the arm and it is a tight t over
the thread. Press it against the wall to seal. Install diverter and showerhead
as shown. Tighten all joints. Trim edges of adhesive pad.
MT036C APR 98
91869

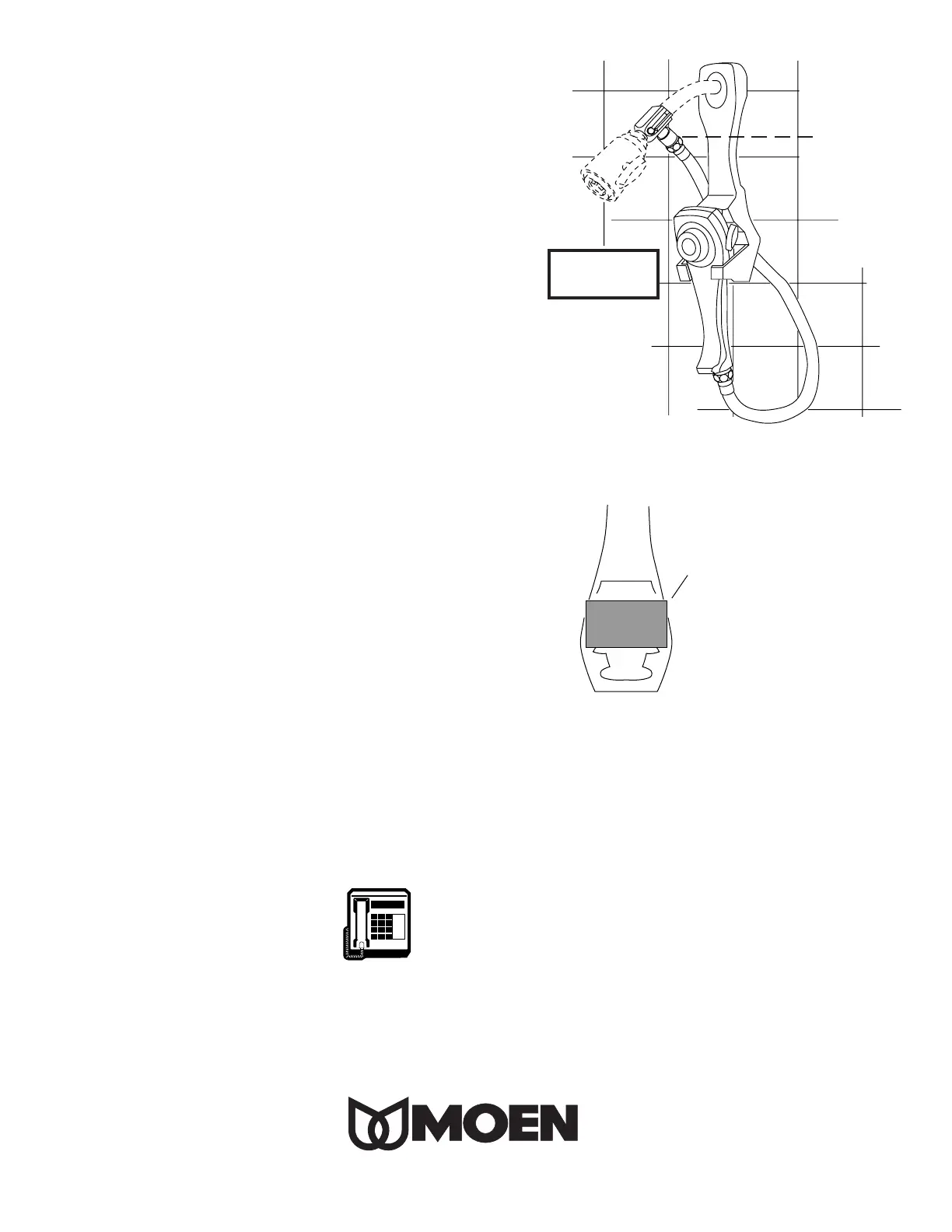

ADHESIVE PAD
➤
BACK VIEW
OF SHOWERHEAD
HOLDER
HELPLINE: Call our toll free Helpline number,
(800) 289-6636;
for answers to any product, installation, replacement
parts, or warranty questions.
Vacuum Breaker
must be installed
more than 2" above
rim of tub.
© Moen Incorporated, 1998
Printed in U.S.A.
25300 Al Moen Drive, North Olmsted, OH 44070
®
STATIONARY
SHOWERHEAD
NOT FURNISHED
