Pre-Construction Bracket Installation Instructions.
The following product is meant solely for the purpose described and the installation should be carried out by qualied personnel only.
The Monitor Audio pre-construction brackets are designed with the professional installers in mind. They will provide a quick and easy way of locating
the desired position of the Monitor Audio custom install loudspeakers.

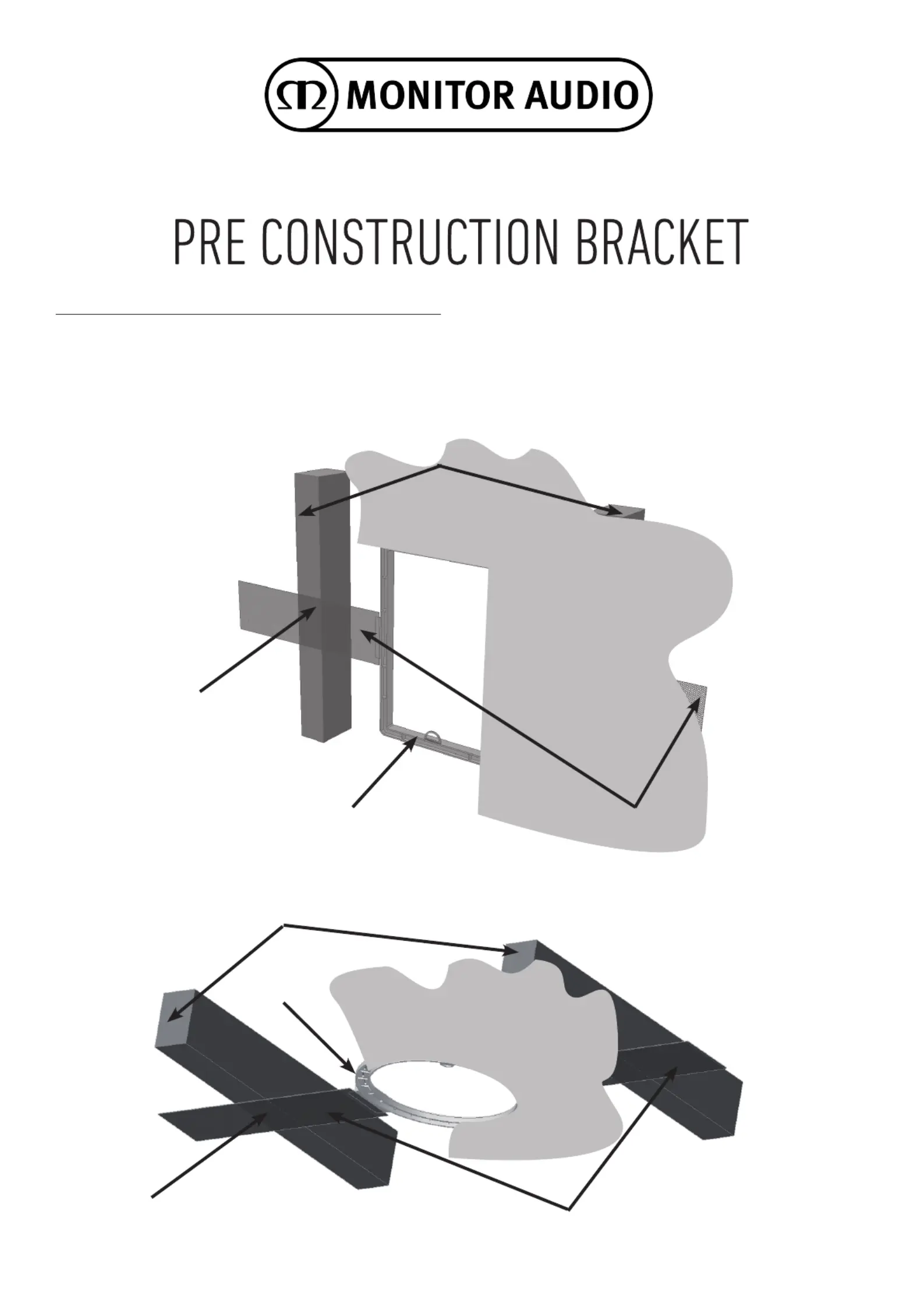

Staple wings to
studs here
Staple wings to
joists here
Pre-construction bracket
Pre-construction
bracket
Wings
Wings
Studs
Joists
In Wall
In Ceiling
Dry Wall to
inner edge of
bracket
Dry Wall to
inner edge of
bracket
Pre-Construction Bracket Installations Steps:
1. Decide location of speaker (s).

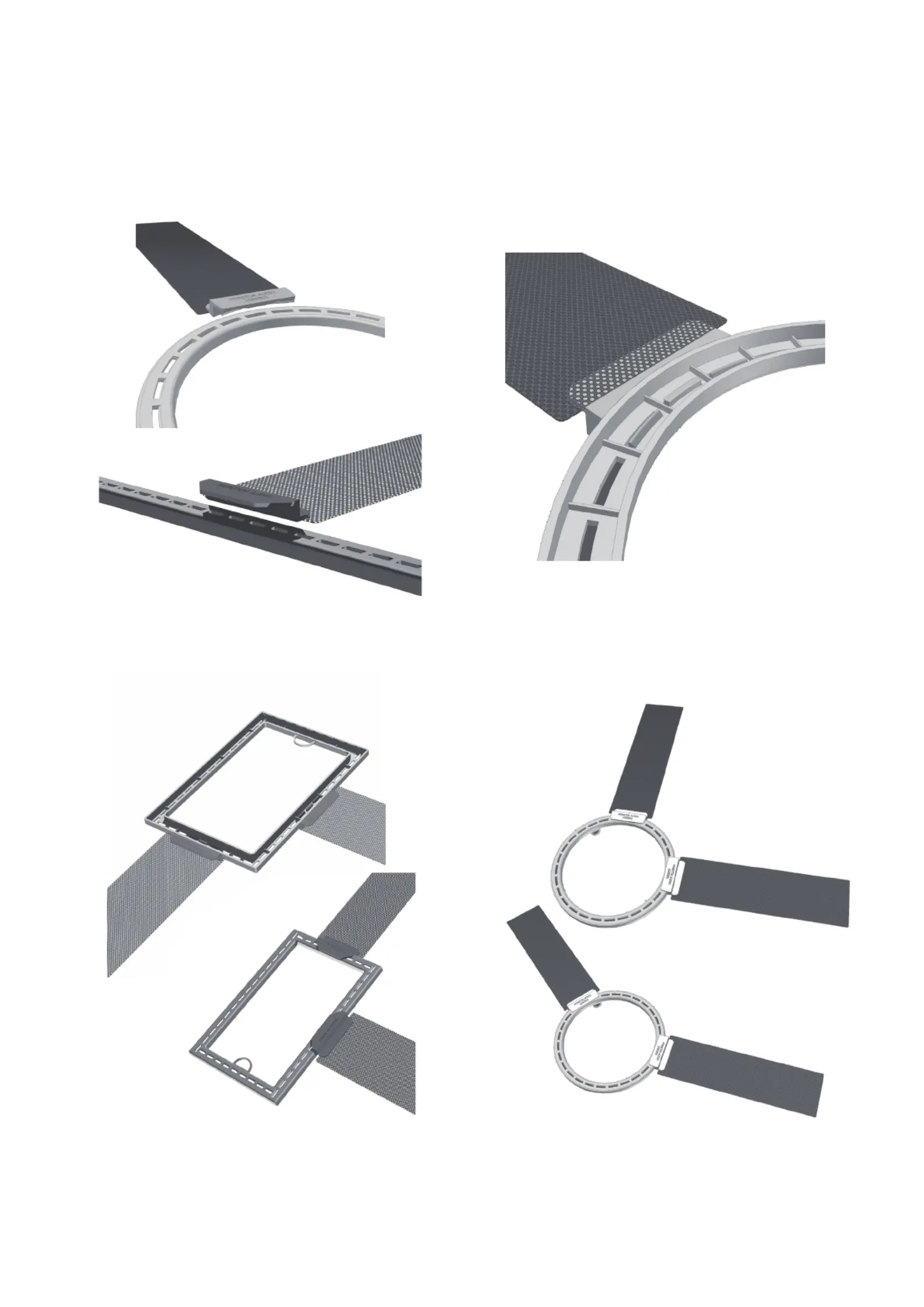

2. Clip xing wings into place in convenient location around the polymer frame to suit the joists.
NOTE: Ensure the clips of the wings are xed securely. There should be no gap around the outside of the wing where it joins the bracket. If
there is a gap, this is a sure sign one of the clips is not in correctly.
3. Staple xing wings to joists/ studs. Ensure the Monitor Audio and colour text on the wings face away from you when fastening.
4. Cable tie/ zip tie the speaker cable to the loop provided inside the moulding. Snap the loop o when installing speaker.
5. Fix plaster board/ dry wall.
6. Cut hole using INNER DO NOT CUT TO THE OUTER EDGES OF THE BRACKET.edges as cutting reference.
Alternative xing arrangements are possible:
© Monitor Audio 2017. rev3
