Prior to Fitting the Custom Install Series Speakers

CAUTION: These Custom Install loudspeakers can only be xed into plasterboard (dry-lined) or suspended ceilings/ walls with a thickness of up to 45mm

3/4

”). Solid wall installation will require channeling out and frame work constructed to provide a structure for the Tri Grip

dog legs to clamp to. For

safety reasons, if you are unsure of your ability to provide a secure and safe xing, do not attempt to x these speakers, please obtain the services of a

competent and qualied trades person.

CAUTION: Ensure that there are no water pipes or electricity cables running within the wall structure before cutting the speaker apertures. Work from

secure steps and avoid trailing wires.

Over Tightening Warning

ATTENTION INSTALLERS:

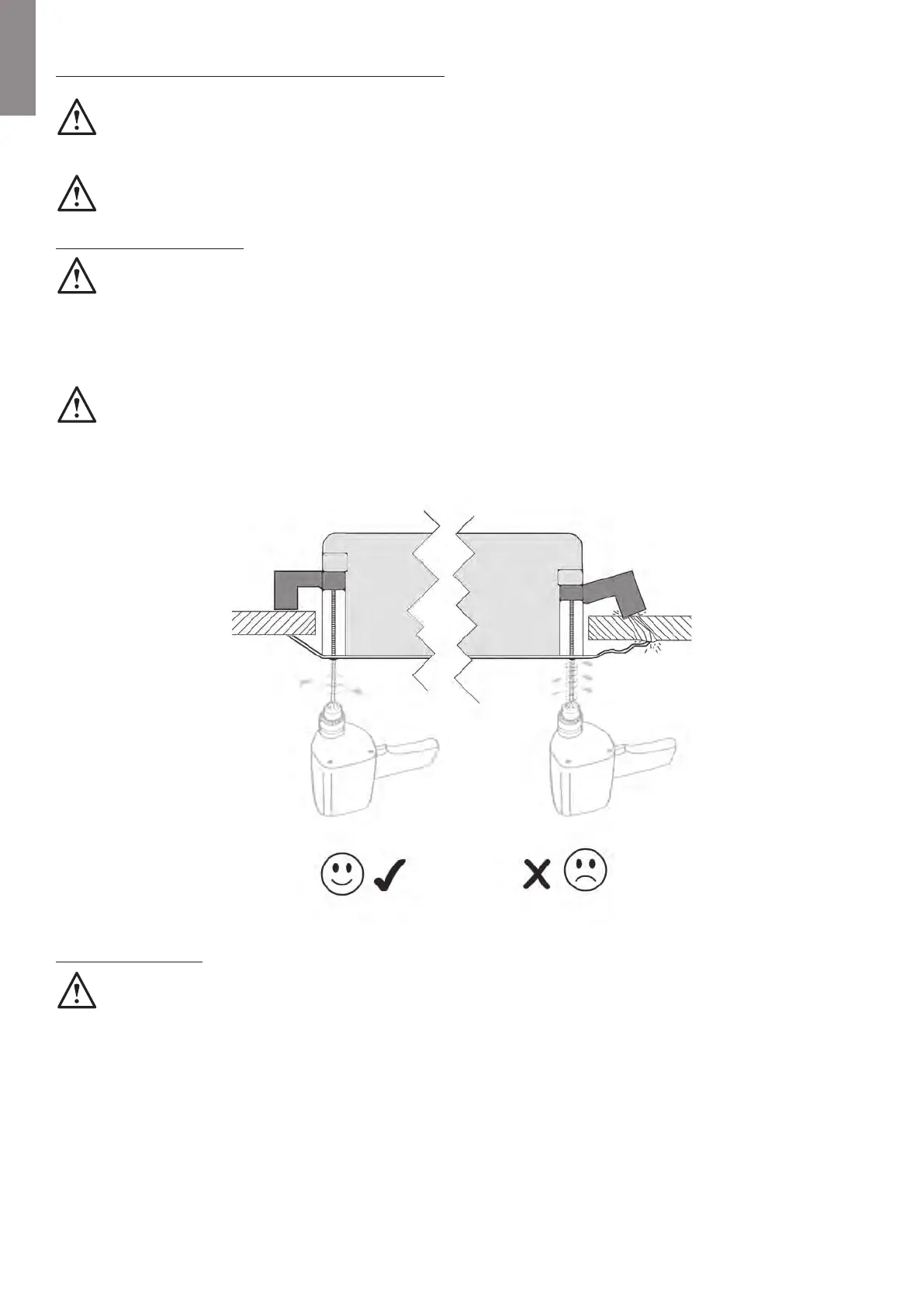

Do not over-tighten the Tri-Grip Dog Leg clamps. Over tightening the clamping mechanism on any in ceiling/ in wall speaker can result in damage to the speaker

mounting hardware, ceiling/ wall or speaker frame, and/ or deection in the speaker frame during installation.

If you notice any of the above during installation, you have overtightened the Tri Grip dog leg. Back o the mounting screw until deection is reduced to allow the

product to sit rmly against the ceiling / wall.

Do not exceed 5Kgf/cm (4.34 lbf/inch.) or 0.5 NM when tightening the Tri Grip dog leg screws.

When are using a cordless screwdriver/ drill to install this product ensure the clutch is set to it’s lowest setting to avoid from over-tightening and damaging the

mounting hardware.

Painting the Grilles

NOTE: If choosing to paint the grille, we recommend you follow these simple steps:

1. Remove the membrane scrim from the inside of the grille.

2. Paint all grilles required for the installation with the same batch of paint (if they are to be the same colour). Spray paint is easier to apply or use a stippling

action when brushing to avoid blocking the holes of the grille.

3. When dry, attach the spare membrane scrim (supplied) into the inside of the grille.

4. Fit the grille to the speaker (s).
