Installation
30” Built-In Trivection
™
Instructions
Wall Oven
JT930, JT980, ZET3038, ZET3058
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
•
IMPORTANT —Save these
instructions for local inspector’s use.
•
IMPORTANT —Observe all
governing codes and ordinances.
•Note to Installer – Be sure to leave these
instructions with the Consumer.
•Note to Consumer – Keep these
instructions for future reference.
•Skill level – Installation of this appliance
requires basic mechanical and advanced
electrical skills.
•Completion time – 1 to 3 hours
•Proper installation is the responsibility of
the installer.
•Product failure due to improper installation
is not covered under the Warranty.
WARNING
—This appliance must
be properly grounded.
•
ATTENTION INSTALLER
All electric wall ovens must be hard wired
(direct wired) into an approved junction
box. A plug and receptacle is NOT
permitted on these products.
FOR YOUR SAFETY:
•Be sure your oven is installed properly by a
qualified installer or service technician.
•Be sure the oven is securely installed in a
cabinet that is firmly attached to the house
structure. Weight on the oven door could
cause the oven to tip and result in injury.
Never allow anyone to climb, sit, stand or
hang on the oven door.
•Make sure the cabinets and wall coverings
around the oven can withstand the
temperatures (up to 200°F) generated
by the oven.
WARNING: The electrical power to
the oven supply line must be shut off while
line connections are being made. Failure to
do so could result in serious injury or death.
•To prevent damage to the door and to
prevent excessive microwave leakage, do
NOT remove the door on the single wall
oven or the upper oven door on the double
wall oven.
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com
2
Installation Instructions

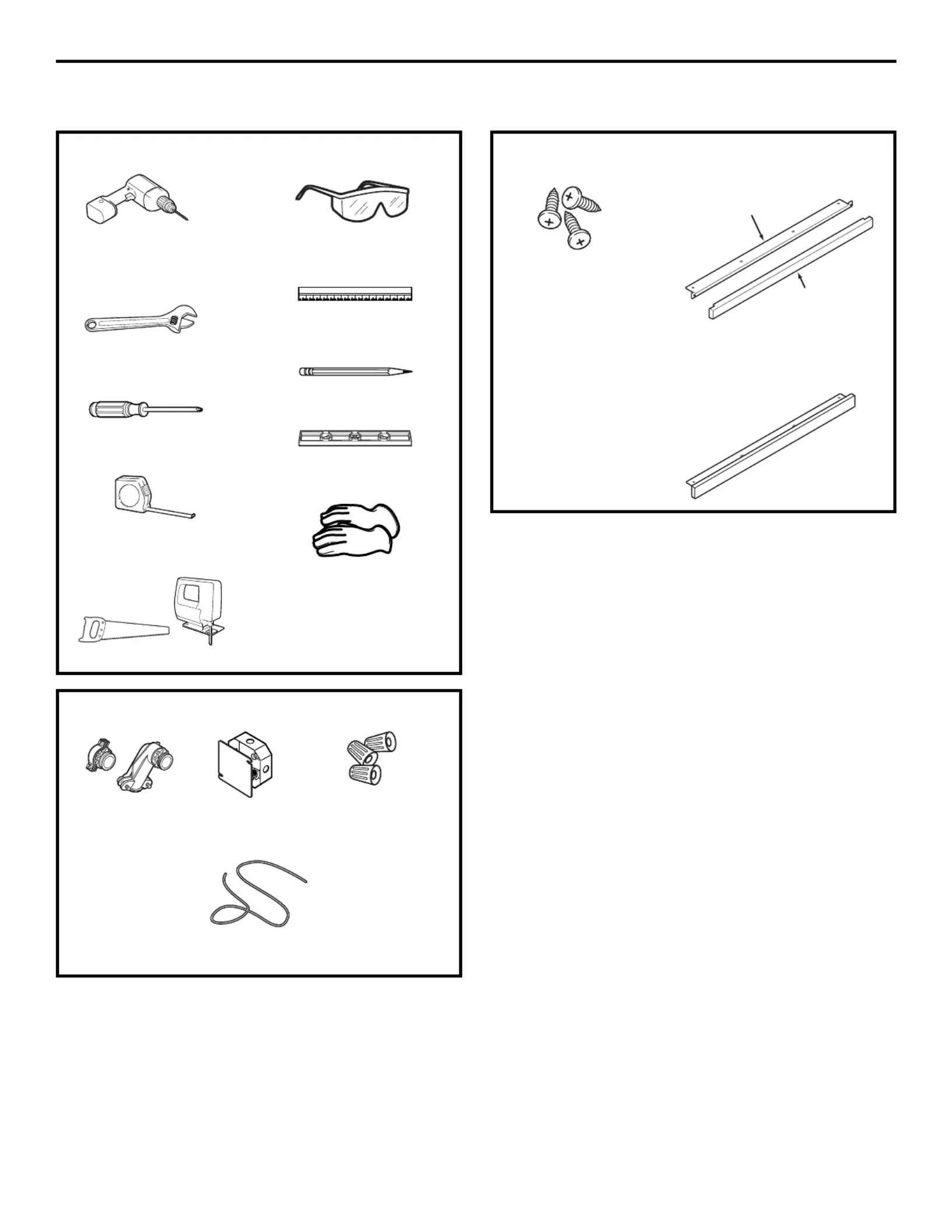

PREPARE TO INSTALL THE OVEN
TOOLS YOU WILL NEED
MATERIALS YOU MAY NEED
Wire NutsJunction Box
60” of String for Single Ovens
96” of String for Double Ovens
Adjustable Wrench
(for 1-7/16” Nut)
Level
Phillips Screwdriver
Drill with 1/8” Bit
(Extension may be
required)
Tape Measure
Hand or Sabre Saw
Pencil
Safety Glasses
Gloves
Straight Edge or
Square
PARTS INCLUDED
12 Screws
Strain Relief
Clamp for 1/2”
conduit
Metal
Bottom Trim
Plastic
Bottom Trim
Metal Bottom
Trim Assembly
OR
3
Installation Instructions
PRE-INSTALLATION
All installation information on the following
pages is to be used for SINGLE and DOUBLE
oven installation!
Remove packaging materials. Check
behind hinges. Remove plastic on trims
and panel, all tape around the oven, and
any shipping screws securing the oven
to the base pad. Use caution when lifting
the oven forward; the ovens are front
heavy.
Open oven door and remove literature
pack, broiler pan and grid, and oven
racks.
Remove Installation Instructions from
literature pack and read them carefully
before you begin.
Be sure to place all literature, Owner’s
Manual, Installation Instructions, etc. in a
safe place for future reference.
D
C
B
A
1
PRE-INSTALLATION (
CONT.)
NOTE: To prevent damage to the door and
to prevent excessive microwave leakage, do
NOT remove the door on single wall oven
models or the upper oven door on double
wall oven models.
The lower oven door on the double
wall oven may be removed as an added
convenience during installation.
See Step 4.
DO NOT LIFT THE OVEN BY THE HANDLE!
Place the oven on a table or platform
even with the cutout opening. (Platform
must support 225 lbs. single, 375 lbs.
double.)
