This kit provides for the installation of a unified grille panel
for a framed or overlay custom panel. The panel will span
the combined width of a side by side installation.
Completion Time: Allow approximately 2 hours to install
this kit.
IMPORTANT: 2 People are required to install this kit.
Disconnect power before you begin.
Installation
Instructions
ZKBSN720NSS - Stainless Steel
Unification Kit and
ZKBFN720NII Panel Unification Kit
CONTENTS:
DESIGN GUIDE
STANDARD INSTALLATION - Case Flush to Cabinet
with Proud Doors

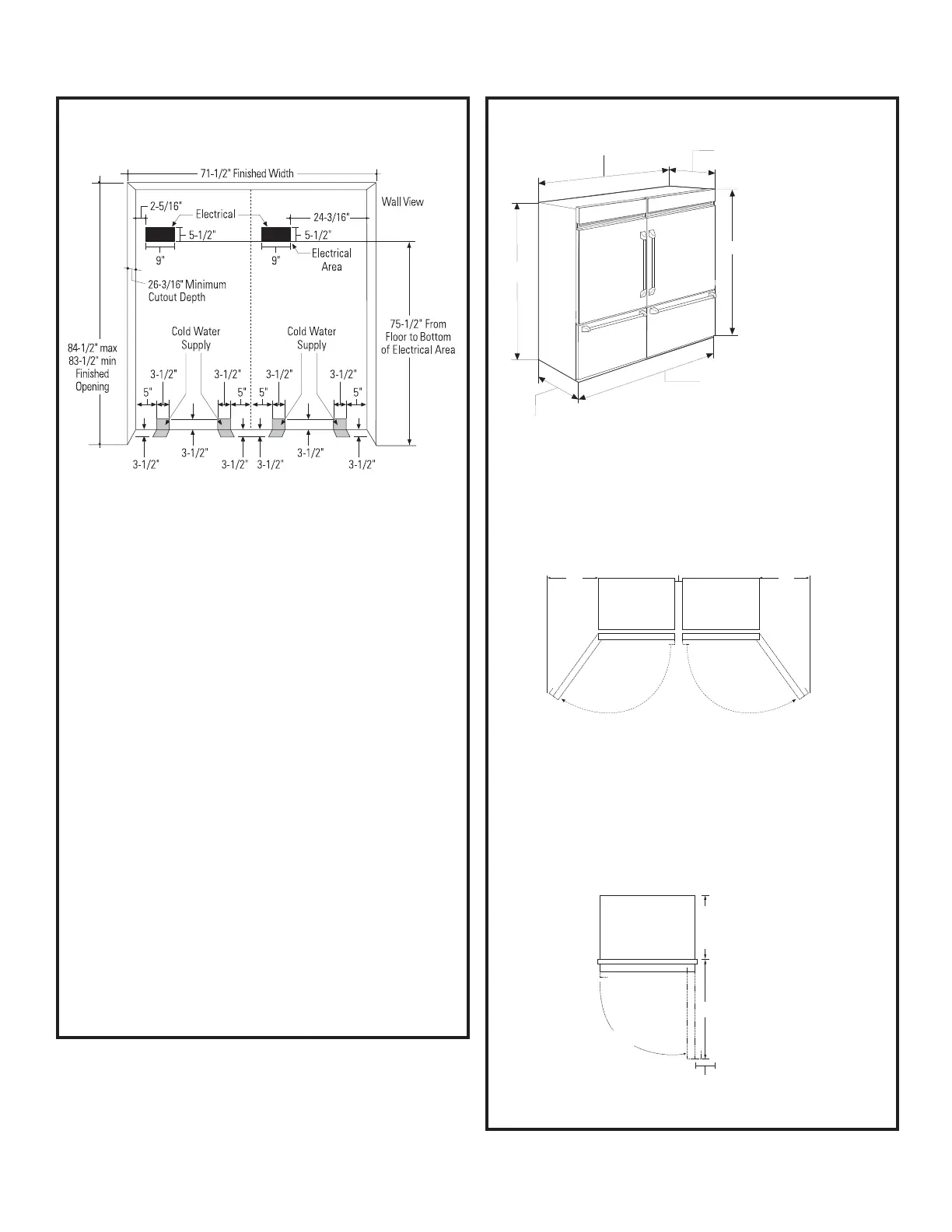

The Installation Space ......................2
Dimensions and Clearances .................2
Grille Panel Dimensions ....................3
DESIGN GUIDE
FLUSH INSTALLATION - Case Inset to Cabinet with
Flush Doors
The Installation Space ......................3
INSTALLATION INSTRUCTIONS
MATERIALS ................................4
GROUNDING THE REFRIGERATOR ............5
STEP 1. REMOVE PACKAGING ................6
STEP 2. INSTALL WATER LINES ..............6
STEP 3. INSTALL NEW CENTER TRIM .........7
STEP 4. REMOVE BOTH GRILLE PANEL
FRAMES ...........................7
STEP 5. INSTALL SIDE PANELS ..............7
STEP 6. INSTALL ANTI-TIP BRACKET ..........8
STEP 7. POSITION REFRIGERATOR AND
INSTALL TOP TRIM ..................9
STEP 8. LEVEL REFRIGERATOR .............10
STEP 9. INSTALL ANTI-TIP BRACKET .........11
STEP 10. SECURE REFRIGERATOR
TO CABINETRY ...................13
STEP 11A. INSTALL UNIFIED PANEL FRAME ..14
STEP 11B. INSTALL STAINLESS STEEL
GRILLE PANEL ..................15
STEP 12. INSTALL CENTER TRIM STRIP ......15
STEP 13. ADJUST DOOR SWING .............15
STEP 14. CHECK AND CORRECT DOOR
ALIGNMENT ......................16
STEP 15. INSTALL GRILLE BASE ............18
STEP 16. CONNECT WATER SUPPLY .........18
STEP 17. CONNECT POWER ................19
STEP 18A. INSTALL STAINLESS STEEL
TOEKICK .......................19
STEP 18B. INSTALL CUSTOM TOEKICK FOR
STANDARD INSTALLATION ........19
STEP 18C. INSTALL CUSTOM TOEKICK FOR
FLUSH INSET INSTALLATION ......19
To consult a French or Spanish version of this instruction manual, visit our Monogram.com website.
In Canada, visit Monogram.ca.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT – Save these instructions for local inspector’s use. Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
If you received a damaged unit, you should immediately contact your dealer or builder.
Skill Level – Installation of this unit requires basic mechanical, carpentry and plumbing skills. Proper installation
is the responsibility of the installer. Product failure due to improper installation is not covered under the Monogram
Warranty. See the Owner’s Manual for warranty information.
WARNING
Fire or Explosion Hazard. Keep flammable materials and vapors away from
appliance. Failure to do so can result in fire, explosion, or death.
WARNING
To reduce the risk associated with choking, do not allow children under 3 years of age to
have access to small parts during the installation of this product.
