Installation Instructions – ZUG30 Heater Kit/Cover
TO BE USED WITH HOUSEHOLD REFRIGERATORS
30" BUILT-IN
BOTTOM-FREEZER 2 DRAWER,
ALL REFERENCES TO ASSEMBLY ARE FROM THE FRONT OF THE UNITS
PARTS PROVIDED:
Installation Instructions (1)
Heater (1)
Transformer (1)
Plastic Cover (1)
Brackets (2)
Tools Required:
#2 Phillips Head Screw Driver
Step Ladder
Open Wrench Set
5 mm. Allen Wrench
IMPORTANT SAFETY NOTICE:
This kit is to be installed by a qualied service technician only. Any attempt to repair a major appliance may result in
personal injury and property damage. Neither the manufacturer nor the seller can be responsible for the interpretation
of this information or assume any liability in connection with its use.
197D9290P001 31-45446-1 05-12 GE

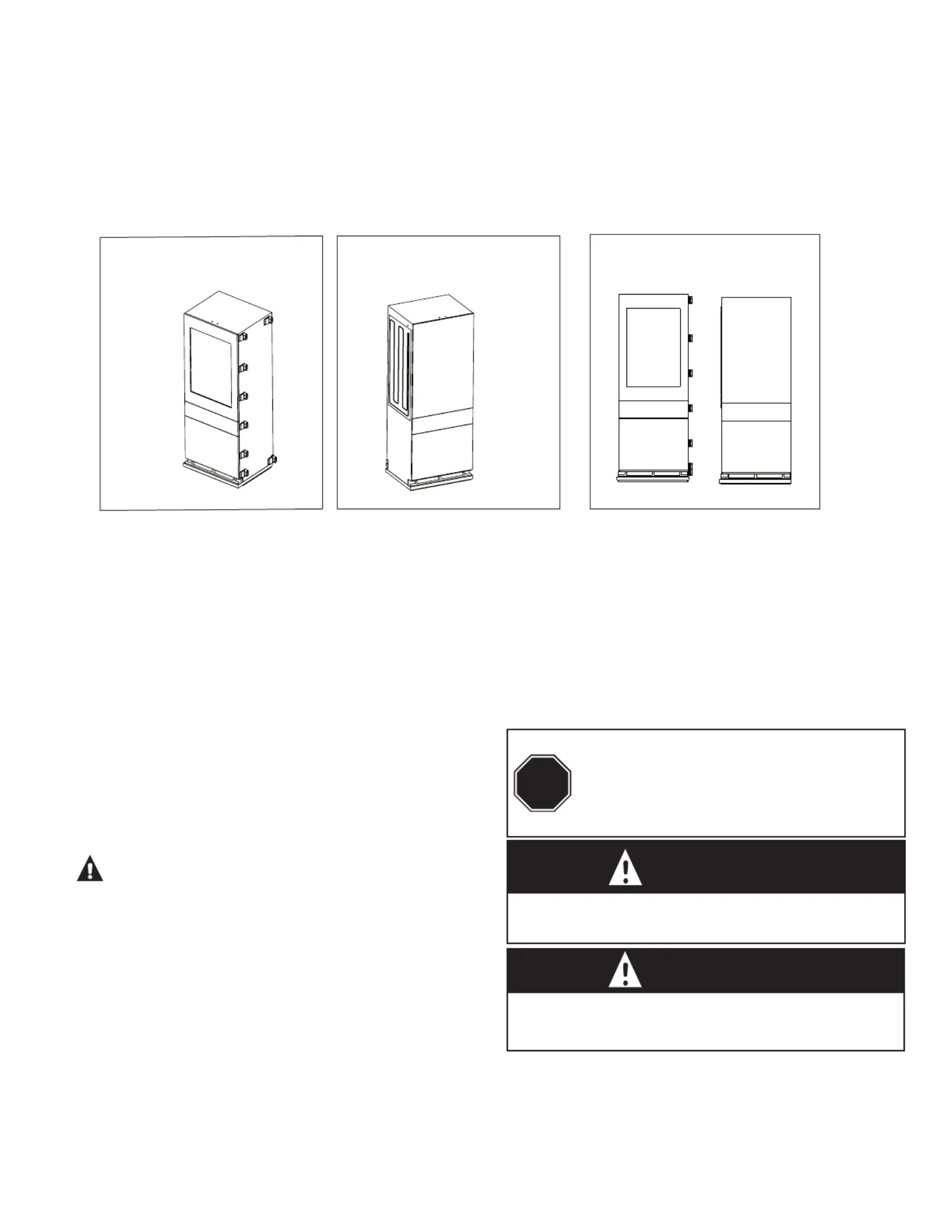

Unit 1 - Spacer Clips Installed
Unit 1
Unit 2
Unit 2 - Heater Installed
Spacer Clips (8)
Strain Relief (1)
Screw, 4.8 x 13 (4)
Bolt, M4 x 18 (2)
Nut, M4 (2)
Washer, star (4)
Bolt, M6 x 45 (3)
Nut, M6 (3)
Washer, at (6)
Wiring 'Y' Splitter (1)
NOTE: WHILE PERFORMING INSTALLATIONS
DESCRIBED IN THIS BOOK, SAFETY GLASSES OR
GOGGLES SHOULD BE WORN.
PPE Required:
Safety Glasses
Safety Gloves
BEFORE YOU BEGIN
Read these instructions
completely and carefully.
Disconnect power to the appliance before beginning installation.
Do not operate the refrigerator until the installation is complete.
WARNING
WARNING
This refrigerator is top heavy and must be handled with care.
Failure to do so can result in the unit tipping over and re
sult in death or serious injury.
Do not cut lower banding on units.
Do not remove foam base pad from front of units.
STOP

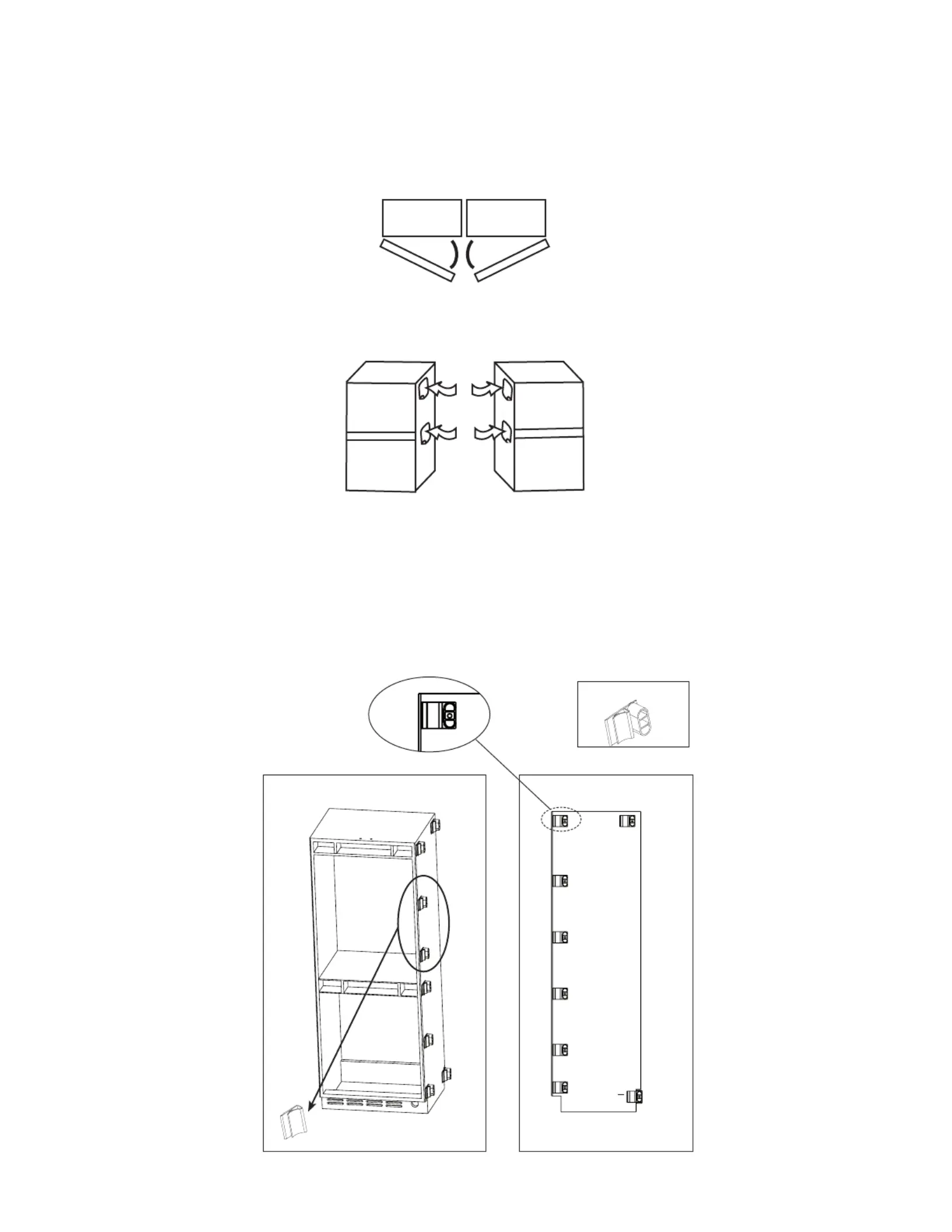

1. This heater kit will only t two units, if the doors face each other when opened. Door swing of unit 1 must
be switched from right hand swing to left hand swing. Refer to Installation Instructions 31-46542 for proper
procedure and safety measures.
2. On sides of refrigerators, remove white stickers from top and center location, to reveal holes in the case. Remove
any labels from sides of refrigerators and clean the surfaces.
3. Attach spacer clips to the inner side wall of Unit 1. Line up holes in Spacer Clips 1 and 4 with holes in case. Attach
clips 2 and 3 evenly spaced between 1 and 4. Note that clips 2 and 3 are dierent that the six other clips. It is very
important that you use clips 2 and 3 in those locations only. Clip 6 attaches on the bottom front corner, along the
front edge of Unit 1, same as clips 1 and 4. Clip 5 spaced evenly between clip 4 and 6. Clip 7 attaches to the top,
rear corner of Unit 1. Orientation is not critical. Clip 8 is attached in a later step.
Unit 1 Unit 2
Required Door Swing
(view from above)
Unit 1
Unit 2
Spacer Clips
Unit 1
Unit 2
1
1
7
7
2
2
3
3
4
4
5
5
6
6
8
8
2
1,4-8
Spacer Clips 2,3

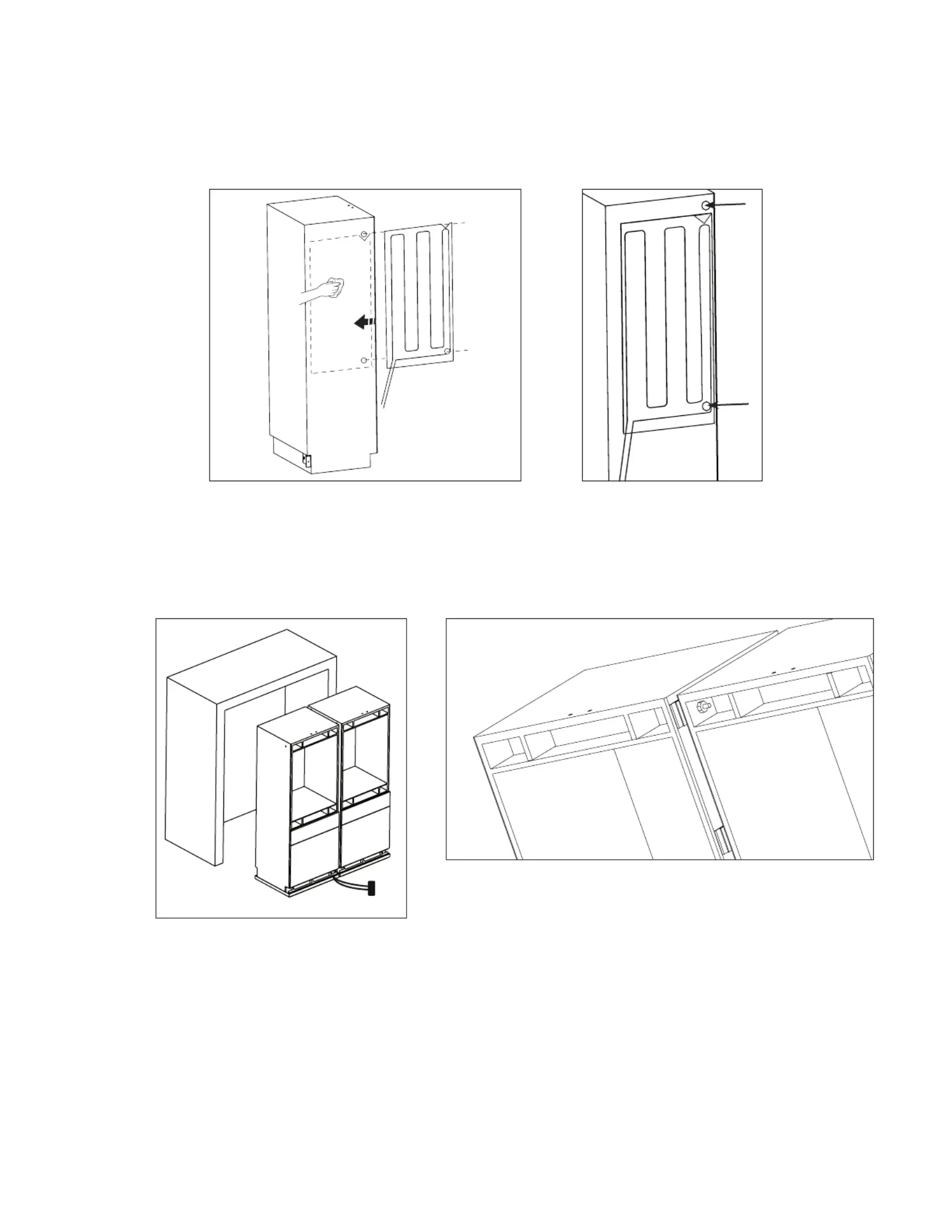

4. On Unit 2, use top and center holes to locate the foil heater. There is a hole in the foil heater. This lines up with the
hole at the center of the case. The "V" notch at the top of the heater, lines up with the top hole in the side of the
case. Remove paper backing from heater and carefully apply heater using these two holes as guides.
5. In front of cabinet enclosure, move units next to each other, whith holes lined up. Make sure heater wire is dressed
towards front of units for use in a later step. Tape heater lead wires to side of Unit 2 so that leads are sticking out
the front, below clip 6, and easily reached for use in a later step. Using bolts, washers and nuts, join the two units
together at the front - top and center. Tightened bolts until spacer clips touch Unit 2.
Rear
Front
Unit 2
Unit 1 Unit 2
Heater lead wires
3
