Sida 1/2
ZVC30LSS
GE Monogram
®

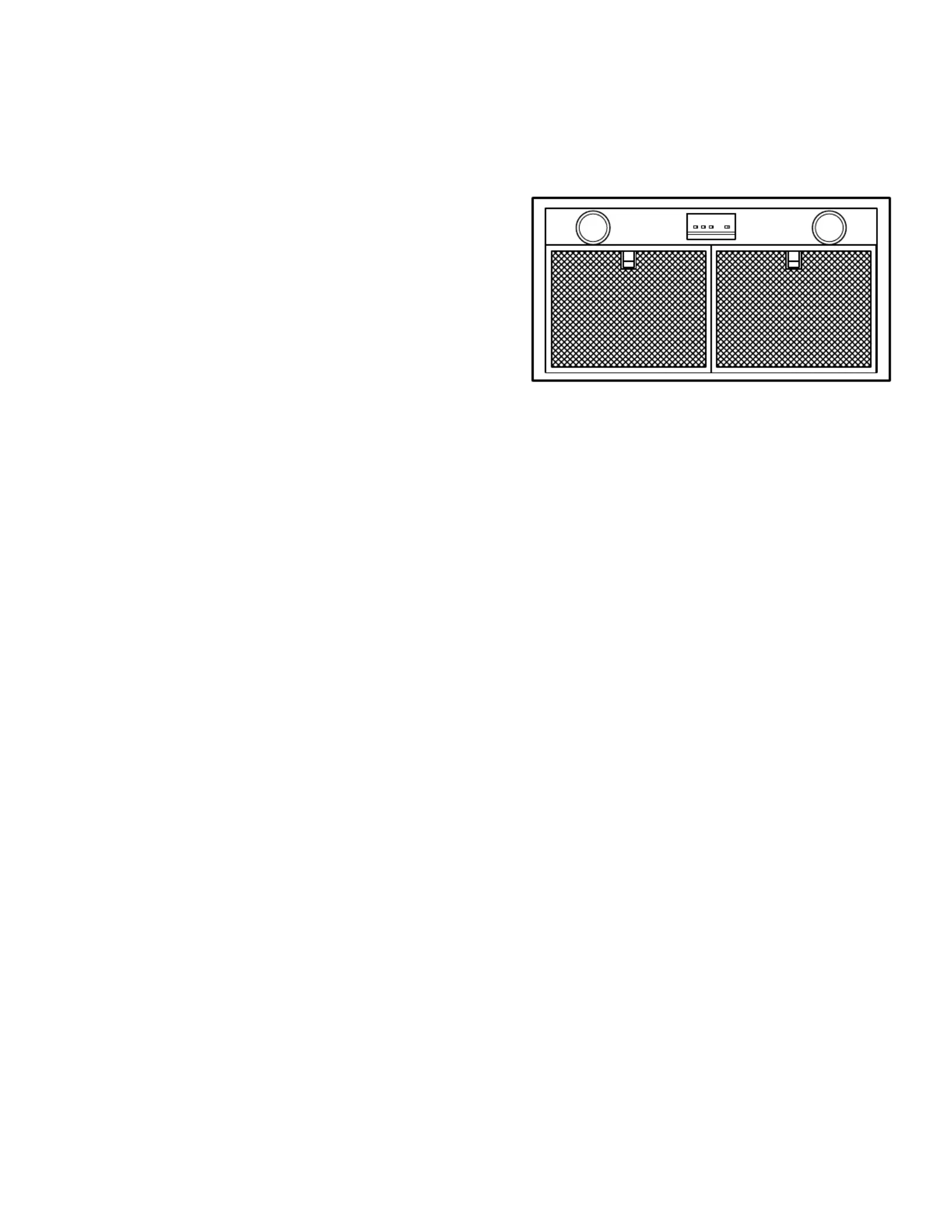

30" Custom Hood Insert
For answers to your Monogram,
®
GE Profile
™
or
GE
®
appliance questions, visit our website at
geappliances.com or call GE Answer Center
®
service, 800.626.2000.
Specification Revised 6/11
Custom Insert Liner
The custom canopy must be sized to fit the insert sleeve.
Construct the canopy with an opening that is:
26"W x 13-3/16"D
The opening must be constructed of 3/4" thick material to
allow the sleeve locking clips to engage.
Dimensions and Specifications (in inches)
Outside Dimensions
The Insert Sleeve
The bottom edge of the insert sleeve has a 7/8" wide flange
on the sides and a 1/2" wide flange on the front and back.
Remote Location for the Control
The control may be removed from the hood and installed
into a wall or countertop. A 30-ft length of wire is supplied to
accommodate most installations. A blanking plate covers the
opening when the controls are removed. The overall size of
the control is 4-1/4" wide and 2-1/4" deep.
1-11/16"
3-11/16"
We recommend that the cutout in granite or other hard
surfaces be made before the countertop is installed.
The Supplied Liner
A stainless steel liner is shipped with each hood insert. This
non-combustible liner protects the underside of the canopy.
Custom Liner
If you are not using the supplied liner, you may construct a
custom non-combustible liner. Use the supplied liner as a
template. The opening must be 26"W x 13-3/16"D. 3/4" thick
material must surround the opening to allow the sleeve
locking clips to engage. The insert sleeve inside the cabinet
should be positioned 1/2" from the rear wall so that the
center of the 8" duct is 5-1/2" from the rear wall.
130672
ZVC30LSS
GE Monogram
®
30" Custom Hood Insert
Specification Revised 6/11
Features and Benefits
• Patented Installation Process - Makes the insert
ideally suited to a wide variety of custom hood
applications; with easy and secure connection to the
ventilation duct
• Single-Blower Ventilation with 640 CFM - Provides the
power necessary to capture smoke and oily fumes
produced by high-performance cooking equipment
• Control with ADA Compliant Remote-Mount Option -
Can be removed and relocated to a more convenient
location, such as a wall or countertop
• Blower, Liner and Filters Included - No additional
components or accesssory kits required
• Two Halogen Lights - Provide four levels of
illumination over the cooking surface
• Two Stainless Steel Mesh Filters - Trap airborne
grease particles and can easily be removed for
dishwasher-safe cleaning
• Model ZVC30LSS – 30" Wide Stainless Steel
Hood Insert
130672
Produktspecifikationer
| Varumärke: | Monogram |
| Kategori: | ventilationskåpa |
| Modell: | ZVC30LSS |
