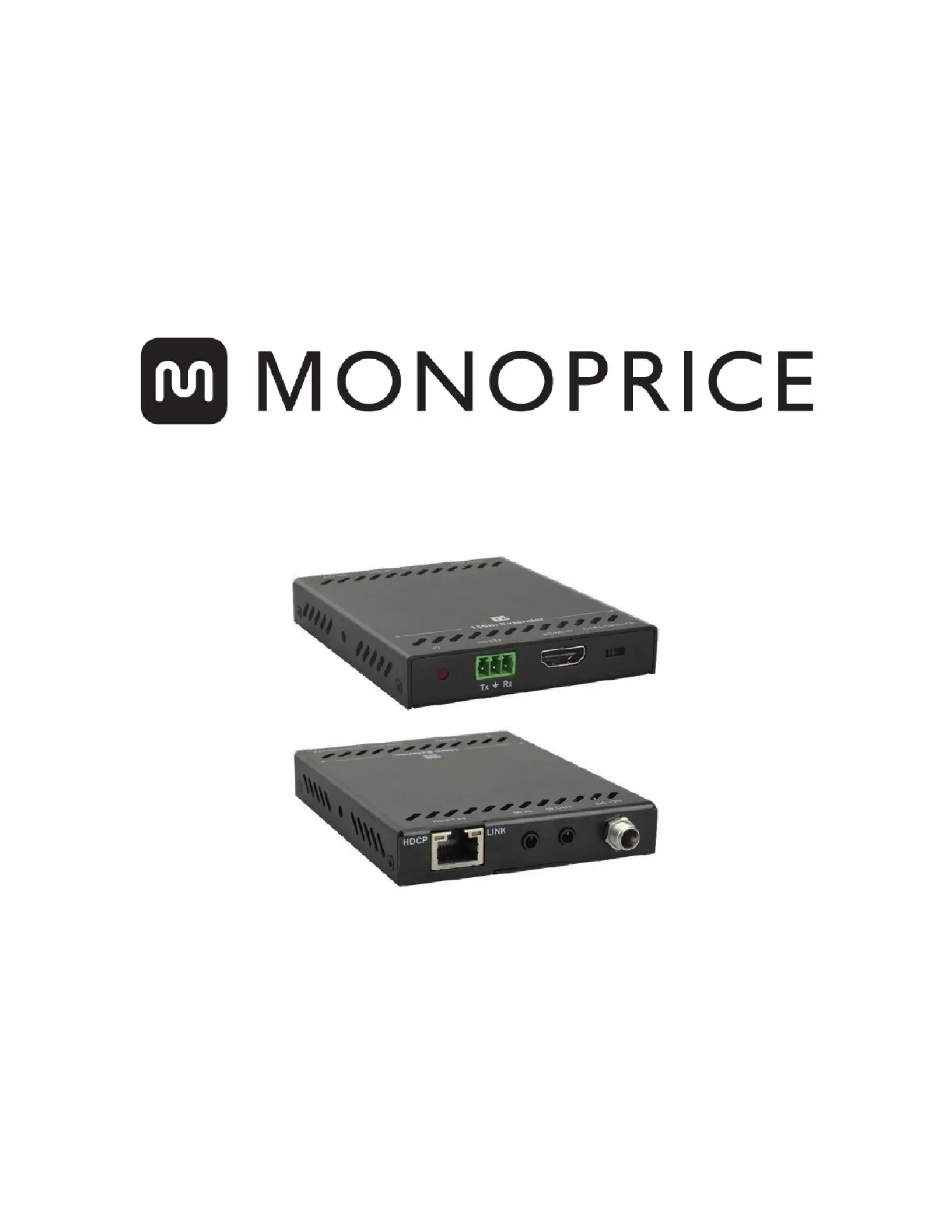

Blackbird™ HDBa

Blackbird™ HDBaBlackbird™ HDBaseT™ Extender Kit

seT™ Extender Kit

seT™ Extender KitseT™ Extender Kit

P/N 31055

User's Manual

User's Manual User's Manual

SAFETY WARNINGS AND

SAFETY WARNINGS AND SAFETY WARNINGS AND GUIDELINES

GUIDELINES

GUIDELINESGUIDELINES

Please read this entire manual before using this device, paying extra attention to these

safety warnings and guidelines. Please keep this manual in a safe place for future reference.

 This device is intended for indoor use only.

 Do not expose this device to water or moisture of any kind. Do not place drinks or

other containers with moisture on or near the device. If moisture does get in or on

the device, immediately unplug it from the power outlet and allow it to fully dry

before reapplying power.

 Do not expose this device to excessively high temperatures. Do not place it in, on,

or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it in direct

sunlight.

 Do not place or install this device in an area where it can be exposed to excessive

amounts of dust, humidity, oil, smoke, or combustible vapors.

 Prior to operation, check the unit and power cord for physical damage. Do not use if

physical damage has occurred.

 Before plugging the unit into a power outlet, ensure that the outlet provides the

same type and level of power required by the device.

 Never unplug the unit by pulling on the power cord. Always grasp the connector

head or adapter body.

 Ensure that power is turned off and disconnected before making any electrical

connections.

 Take care to prevent damage to the power cord. Do not allow it to become

crimped, pinched, walked on, or become tangled with other cords. Ensure that the

power cord does not present a tripping hazard.

 Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or

detergents. For stubborn deposits, moisten the cloth with warm water.

 This device has no user serviceable parts. Do not attempt to open, service, or

modify this device.

INTRODUCTION

INTRODUCTION INTRODUCTION

This Blackbird™ HDBaseT™ Extender Kit allows you to distribute a 1080p@60Hz HDMI®

signal to distances up to 492 feet (150 meters) over a single Cat6 Ethernet cable. It supports

bi-directional IR and RS-232 -through extension, allowing for control of local video pass

source device or the remote display. It supports bi-directional 12V Power over Cable (PoC),

simplifying the wiring and allowing for the use of only a single AC power adapter.

FEATURES

FEATURES FEATURES

 Supports resolutions up to 1080p@60Hz

 Extends to distances up to 492 feet (150 meters) using a single Cat6 Ethernet cable

 Provides up to 10.2 Gbps bandwidth

 Supports bi-directional IR and RS-232 pass-through extension

 Supports 12V Power over Cable (PoC)

 Supports RS-232 firmware updates

CUSTOMER SERVICE

CUSTOMER SERVICECUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your ordering,

purchasing, and delivery experience is second to none. If you have any problem with your

order, please give us an opportunity to make it right. You can contact a Monoprice

Customer Service representative through the Live Chat link on our website

www.monoprice.com

www.monoprice.comwww.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-

6pm PT) or via email at

support@monoprice.com

support@monoprice.comsupport@monoprice.com
