Turn drum over, measure and mark the center of the bottom.
Center the provided template on the bottom of the drum
and secure with tape. Drill three 5/16" Feeder Leg Holes.
Using a Hole Saw, drill a 2-1/4" hole in the center of the
bottom of your drum.
caution: wear eye protection
Pro Magnum will mount to the bottom of any drum or bucket
Inside Drum
Outside Drum
Bolt
Flat Nut
Feeder Mounting
Holes

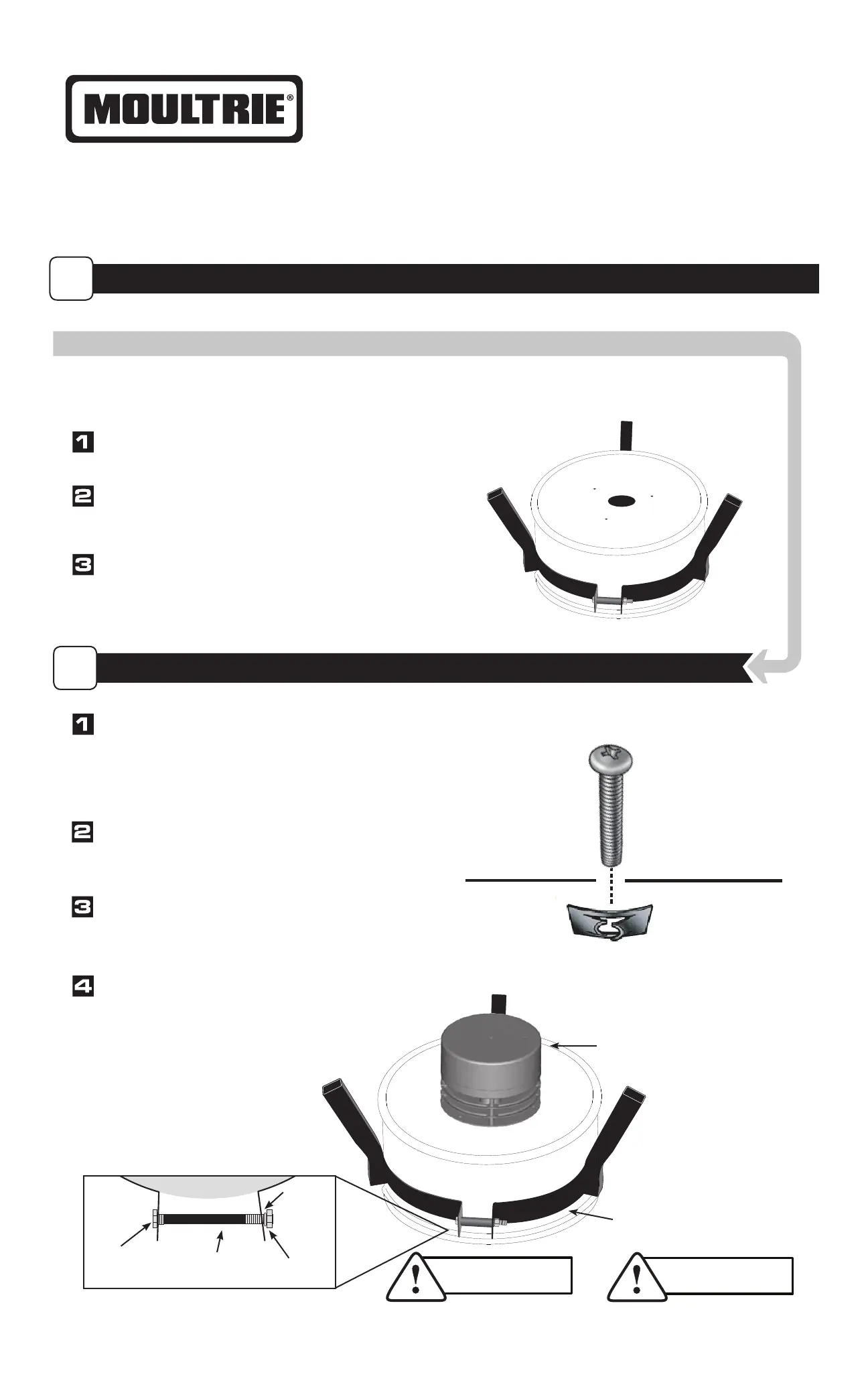

Instructions for Pro Magnum Feeder
THANK YOU for your purchase of the Pro Magnum Feeder. Please read this sheet before
operating the unit. If you should have any questions about this product or any other Moultrie
product, please contact us using the information on the back of this sheet. To help us to
better serve you and to activate your Lifetime Warranty, please submit your warranty
information online at http://www.moultriefeeders.com/warranty
DRILLING YOUR DRUM/BARREL/BUCKET
A
MOUNTING THE FEEDER
B
Turn drum over, measure and mark the center of the bottom.
Center the provided template on the bottom of the drum
and secure with tape. Drill three 5/16” Feeder Leg Holes.
Using a Hole Saw, drill a 2.25” hole in the center of the
bottom of your drum.
From the inside of the drum, slide the three provided Bolts
through the holes on the bottom and into the provided
Flat Nuts. From the inside, using a Phillips head screwdriver,
turn the Bolt clockwise until the Flat Nut is tight against
the bottom.
Slide feeder over three Bolts that are sticking rmly through
the bottom of the drum. Attach Feeder Kit to the Drum
using the three provided Wing-Nuts.
Pro Magnum will mount to the bottom of any drum or bucket
NOTE: If you purchased a Moultrie barrel, go to step II
DO NOT EXCEED 400 LBS
OF FEED IN 55-GAL FEEDERS
Pro Magnum
Feeder Kit
Belly Band
Ring
Bolt
Spacer
Lock
Washer
Nut
NOTE: DO NOT LOAD FEEDER until it is standing up and in place (see Section E).
DO NOT EXCEED 200 LBS
OF FEED IN 30-GAL FEEDERS
Belly Band
Ring
Slide the bolt through the Belly Band Ring, Spacer and
Lock Washer as shown. Tighten nut on bolt until metal
Belly Band Ring tabs are touching spacer on each side.
Turn the Metal Drum upside down and slide the Belly Band Ring
around perimeter and make sure that belly band is snug against
the bottom structure ring as shown (Moultrie barrel only).
03162016 / MFHP53764
Our Service Department will gladly answer any questions you have. Call 800-653-3334, Monday - Friday,
8:00 AM to 5:00 PM CST.
www.moultriefeeders.com
CONFIGURING AND TESTING FEEDER
D
Helpful Tips:
– For extended battery life, the Moultrie Deluxe Solar Panel (MFH-DSP) or Feeder PowerPanel (MFA-12602) can be added using the External Power Port.
– For added security against pests, the Moultrie Varmint Guard (MFA-12650) can be added.
– Replacement parts can be purchased from Moultrie’s customer service line at the number below.
– Your Moultrie Pro Magnum Feeder Kit has a Lifetime Warranty, just pay a $35.00 processing fee. Call 800-653-3334 for payment and shipping information.
INSTALLING BATTERY
C
Remove bottom and install one or two 6-Volt
Alkaline (ex. Energizer
TM
) or Moultrie
rechargeable batteries by attaching the Red
Alligator Clip to the positive terminal (+) and
the Black Alligator Clip to the negative (-)
terminal.
caution: wear eye protection
CONFIGURING AND TESTING FEEDER
INSTALLING BATTERIES
SET
UP DOWN
SET
UP DOWN
SET TIME OF DAY: Press the UP or DOWN button until the correct time of day appears.
Press and release button to single-step through the minutes or hold down to advance quickly.
The feeder will not run while buttons are being pressed and waits 10 seconds from the last
button press before it is activated. The feeder is activated when the display alternates between
the CURRENT TIME and %BATTERY.
SET FEED TIMES: Press the SET button until the
correct Timer Number appears in the upper right hand
corner as shown. Press the UP or DOWN button to set
the Feed Time.
SET RUN DURATION: Press the SET button again
to set the RUN-TIME SECONDS which can range
from zero to twenty seconds. Adjust RUN-TIME
SECONDS using the chart below. Set the RUN-TIME
SECONDS to zero to disable the feed time.
TEST TIMER: To test the Timer, PRESS AND HOLD
the SET button while the RUN-TIME SECONDS are
displayed. Release the button and get away from the
feeder when the message “TESTING GET AWAY”
appears on the display. The display will countdown five
seconds before activating the motor for the number of
RUN-TIME SECONDS programmed. The test feature is
useful for assessing the amount of feed to dispense.
SET
UP DOWN
SET
UP DOWN
SET
UP DOWN
SET
UP DOWN
Your Pro Magnum will feed up to six times per day and has been factory set to feed at 7:00am and
6:00pm for six seconds. To change the factory settings or add additional feed times, follow the
instructions below. The Battery Level is displayed every seven seconds. It is recommended that the
battery be replaced when the %BATTERY reading is 25% or below.
8:00
SET TIMER
3
AM
:06
SET TIMER
3
RUN-TIME
SECONDS
:05
TESTING GET AWAY
RUN-TIME SECONDS
Approx. feed dispensed (lbs.)
4 6 8 10 12 14 16 18
.75 1 1.5 2 2.5 3 3.5 4
NOTE: This equipment has been tested and found to comply with the limits of Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
INSTALL BATTERY: Open Kit by removing wingnut located on the bottom and remove outer case. Install a 6-Volt Alkaline
(ex. Energizer™) or Moultrie rechargeable battery (MFH-SRB6) by attaching the Red Alligator Clip to the positive terminal (+)
and the Black Alligator Clip to the negative (-) terminal. Note: When Battery Level Indicator is full, the battery is good.
If the icon is ashing, you will need to replace or recharge your battery.
SET TIME OF DAY: Press the UP or DOWN button until the correct time of day appears.
Press and release button to single-step through the minutes or hold down to advance quickly.
SET FEED TIMES: Press the SET button until the correct Timer Number appears in the upper right hand corner as
shown. Press the UP or DOWN button to set the Feed Time. Note: Factory settings are 7am and 6pm.
SET RUN DURATION: Press the SET button again to set the RUN-TIME SECONDS which can range from zero
to twenty seconds. Adjust RUN-TIME SECONDS using the chart below. Set the RUN-TIME SECONDS to zero to
disable the specic timer. Note: Factory setting is 4 seconds.
TEST FEEDER: PRESS AND HOLD the SET button while the RUN-TIME SECONDS are displayed. Release the button
and get away from the feeder when the message “TESTING GET AWAY” appears on the display.
SET FEED LEVEL: Your Feeder Timer is equipped with a Feed Level Estimator. Press the SET button until “SET FEED
REMAINING” appears. Enter the amount of feed (lbs.) added to Hopper. The timer will automatically estimate the amount
of feed remaining in lbs. and days after auto-scroll begins.
Note: The above estimates are based on using deer corn. Feed type, size and density will aect calculations.
RUN TIME (sec.)
Approx. Feed Dispensed (lbs.)
1
.38
2
.62
3
.88
4
1.0
5
1.2
6
1.5
7
1.7
8
1.9
9
2.2
10
2.4
11
2.6
12
2.8
13
3.0
14
3.3
15
3.5
16
3.7
17
4.0
18
4.2
19
4.4
20
4.6
SET
UP
DOWN
:05
Full Battery
Empty Battery
NOTE: Be sure that the Red and Black alligator clips labeled with a 1 are
attached to the same to the same battery and that the Red and Black alligator
clips labeled with a 2 (if used) are attached to the same battery.
Remove bottom and install one or two 6-volt alkaline (ex. Energizer™)
or Moultrie rechargeable batteries by attaching the Red Alligator Clip
to the postitive terminal (+) and the Black Alligator Clip to the
negative (-) terminal.
STAND UP FEEDER AND INSTALL LID
E
Place Hopper on side. Assemble three Leg Poles using four
Leg Sections each. Install a Leg Pole on the inside of each of
the Square Leg Brackets. Make sure to have all leg sections
connected properly with the sections inserted as far as they
will go. With two Leg Poles against the ground as shown,
carefully stand up the Feeder assembly.
Install lid and tighten bolt securely after adding feed.
Leg Section
Leg Pole
Square Leg
Brackets
