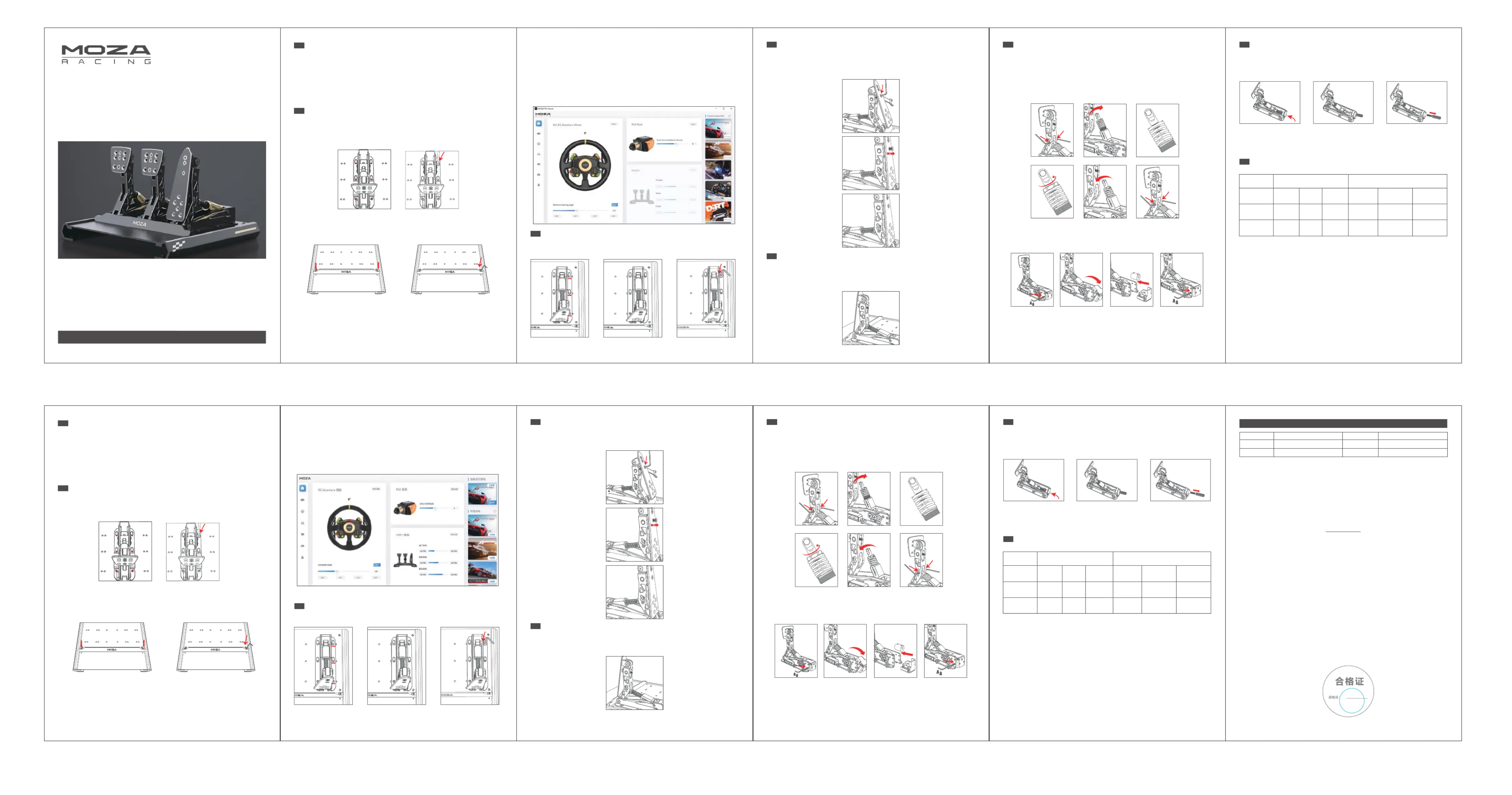

· 航空级铝合金CNC工艺

· 100kg压感传感器

· 3段式离合

· 风琴式油门

· 力度、角度、行程可调

· 多位专业车手调教

1、将踏板装在底板上并调整好安装孔位，将螺丝和垫片装上固定踏板，为了保证使用稳定性，建议

每个踏板的全部6个螺丝都安装到位

3、将油门线的接口插入刹车底部控制模块中的Throttle接口，将离合线接入控制模块中的Clutch

接口，将USB线的弯头Type-B端接入控制模块中的USB接口，另一端接入PC。

4、在MOZA Pit House中即可看到CRP踏板的工作状态。（若设备仍为灰色或踩踏后无响应，请拔

处PC端USB接口，关闭Pit House，再重新接入USB接口，打开Pit House）

5、可在Pit House中重新设置踏板的起点，终点和行程。

左右移动调节踏板与底座孔位之间的间距，选择好螺丝空位后再锁紧螺丝

使用扳手逆时针转动踏板板面的螺丝，手动拨动背面螺母，按压板面根据自身需求调节板面角度，

然后将螺母拧至与板面贴合并固定（油门、刹车和离合的板面调节方式一致）

1、更换弹簧改变刹车力度

使用两个M5扳手拧松螺丝，取出螺丝和销轴，逆时针转动并取出弹簧组件，逆时针转动扁头螺母

和平头螺母，并更换好对应的弹簧，用力按压弹簧将弹簧轴顶出，随后顺时针转动平头螺母，再将

扁头螺母固定，最后将整根弹簧组件拧入到弹簧套筒中，与定位孔平齐后，插入销轴并拧紧螺丝。

1、更换后端弹簧改变离合力曲线

转动螺栓取出弹簧，更换对应的弹簧，手压踏板板面将滚轮固定至滑轨上，调整扁头螺母使其水

平，然后顺时针转动螺栓固定

2、调节离合孔位改变离合力度，与油门同理。

2、更换阻尼块改变刹车力度

使用M5扳手取出侧面两颗螺丝，向下转动装饰盖板，取出压力传感器固定板，取出橡胶垫，更换

对应的橡胶垫后装回螺丝并固定

3、调节刹车孔位改变刹车力度，与油门同理。

扭动调节螺母改变油门行程

用手旋转弹簧上部的调节螺母，向下运动则会使油门行程变短，相应的，油门起始力度会变大，终

止力不变。

2、将挡板横放在底座上的小螺丝孔处，使两端对齐然后用M4螺丝拧紧并固定到底座上

产品介绍

01

踏板安装流程

02

踏板板面角度调节

04

刹车力度调节

06

油门力度和行程调节

05

离合调节

07

弹簧与橡胶阻尼块力度对照表

08

踏板间距调节

03

User manual 使用说明书

Master the Art of Driving

Racing Ecosystem

更多信息和教学视频请登录官网（MOZARACING.COM）进行查阅。

弹簧

颜色/类型黄红SoftMedium

Medium

Hard

硬硬软

软

中

中

黑

刹车

离合

阻尼块

QC

PASS

03

产品保修卡

产品型号

用户姓名

通讯地址

购买日期

用户电话

经销商信息（签章）

保修期

自购机日起，基座主体，方向盘，踏板和仪表显示屏保修12个月。设备外壳、说明书、线材、螺丝、扳

手、包装等不在"一年免费保修服务"范围内，但您可以选择有偿服务。

购买者在以下条件下不享受免费保修服务，但您可以选择有偿服务。

1. 超过三包有效期的；

2. 无三包凭证及有效发票的，但能够证明该产品在三包有效期内的除外 ；

3. 包修凭证上的型号与修理产品型号不符或者涂改的；

4. 非本公司特约维修人员拆动造成损坏的；

5. 因不可抗拒力造成损坏的；

6. 未按产品使用说明书要求使用、维护、保养而造成损坏的。

保修期限鉴于产品部位、不同国家法律法规等差异，将有所不同。相关国家与区域的保修期限，请

咨询MOZA官方或购买时联系的MOZA授权经销商。

产品保修条例

产品条码

尺寸：100*142mm

· CNC Aluminum Alloy.

· 100KG/220lbs load cell sensor.

· Three-stage clutch.

· Organ type accelerator.

· Adjustable resistance, angle, and Travel.

· Tunning by Experienced Drivers.

1. Install the pedals to the bottom plate and adjust the position. Install the screws and

gaskets for each pedal. In order to ensure the stability of use, it is recommended to install

all 6 screws for each pedal.

2. Mount the baffle horizontally, align both ends, and then tighten, and secure it to the base

with the M4 screws.

3. Insert the interface of the throttle line into the throttle interface found in the control

module at the bottom of the brake. Connect the clutch line to the clutch interface in the

control module, connect the elbow type-B end of the USB line to the USB interface in the

control module, and connect the other end to the PC.

4. The Working status of CRP Pedal can be viewed in the MOZA Pit House. (if the device is

still gray or there is no response after stepping on it, please unplug the USB interface at

the PC end, close the pit house, re-connect the USB interface, and reopen the MOZA Pit

House)

5. The start, end and travel of the pedal can be set in MOZA Pit House.

Adjust the pedal forward or backwards. Use the included screws to secure the pedal once

the correct position has been found.

Use a hexagon screwdriver counterclockwise to loosen the screw on the face of the pedal.

Use your hand to turn the nut to change the angle of the pedal. To lock in the pedal’s

position just secure the screw on the face of the pedal. The pedal adjustment methods for

accelerator, brake, and clutch are the same.

Loosen the screw with the M5 wrench, take out the screw and pin shaft, turn counterclock-

wise, and take out the spring assembly. Turn counterclockwise the flat nut and remove the

spring assembly

To push out the spring and shaft, depress the spring. Then turn the flat nut clockwise to

unscrew. Swap in the different spring, screw back on the caps. The spring sleeve should

be flush with the mounting hole, insert the pin and, tighten the screw.

Turn the bolt to take out the spring. Replace the corresponding spring. To test press the

pedal’s surface by hand.

2. Adjust the clutch mounting position to change the clutch force

Remove the two screws on the side with the M5 wrench. Turn the decorative cover plate

downward, take out the pressure sensor fixing plate, take out the rubber pad, replace the

corresponding rubber pad. Then reassemble.

3. Adjust the brake mounting position to change braking force.

Rotate the adjusting nut on the upper part of the spring by hand. Moving downward will

shorten the throttle stroke. Accordingly, the starting force of the throttle will increase, and

the ending force will remain unchanged.

Product Description

01

CRP Pedal Installation

02

Pedal Surface Angle Adjustment

04

Brake Force Adjustment

06

Accelerator Force and Stroke Adjustment

05

Clutch Adjustment

07

Comparison Table of Spring and Rubber Damping Block Strength

08

Pedal Spacing Adjustment

03

For more information and teaching videos, please visit the official website (MOZARACING.COM)

Spring

Color/type

YellowBlack

Red

SoftMedium

Hard

Soft

Soft

Medium

Hard

Hard

Middle

Middle

Brake

Cluth

Damping block

Twist the adjusting nut to change the Accelerator stroke

1. Change the spring to adjust braking force

2. Replace the damping block and change braking force

1. Replace the rear end spring and change the separation force curve.

正面

背面
