User's Manual
NOTEBOOK
1-2
Content
Copyright and Trademarks Notice 1-4 ................................................................................
Revision History ...........................................................................................................1-4
FCC-B Radio Frequency Interference Statement ........................................................1-5
FCC Conditions ............................................................................................................1-5
CE Conformity ..............................................................................................................1-5
Battery Regulations ......................................................................................................1-6
WEEE Statement .........................................................................................................1-6
Chemical Substances Information ....................................................................................... 1-6
RoHS Statement .................................................................................................................... 1-7
Japan JIS C 0950 Material Declaration ................................................................... 1-7
India RoHS .............................................................................................................. 1-7
Turkey EEE regulation ............................................................................................1-7
Ukraine restriction of hazardous substances .......................................................... 1-7
Vietnam RoHS.........................................................................................................1-7
Upgrade and Warranty ...............................................................................................1-8
Acquisition of Replaceable Parts .................................................................................. 1-8
Safety Instructions ........................................................................................................ 1-9
MSI Highlights ............................................................................................................1-11
Introductions 2-1 ................................................................................
Unpacking 2-2 ....................................................................................................................
Product Overview .........................................................................................................2-3
Top-open View ........................................................................................................2-3
Front Side View ....................................................................................................... 2-5
Right Side View ....................................................................................................... 2-7
Left Side View .........................................................................................................2-9
Rear Side View...................................................................................................... 2-11
Bottom Side View .................................................................................................. 2-12
How to Use the Keyboard ..........................................................................................2-14
Windows Key.........................................................................................................2-14
Quick Launch Keys ...............................................................................................2-15
Disable or Enable Touchpad ................................................................................. 2-16
Enter Sleep Mode..................................................................................................2-16
Switch Display ....................................................................................................... 2-16
Use Multiple Monitors ............................................................................................ 2-16
Adjust the Brightness Level of the Display ........................................................... 2-17
User's Manual
1-3
Adjust the Sound Level of the Speaker 2-17 .................................................................
Adjust the Brightness Level of the Keyboard Backlight LED (optional) ................2-17
Application: True Color (optional) .......................................................................... 2-18
Video: How to Use [Fn] Buttons ............................................................................ 2-18
Specifications .............................................................................................................2-19
How to Get Started 3-1 ......................................................................
Begin to Use the Notebook 3-2 ..........................................................................................
How to Use the Notebook Comfortably ........................................................................3-3
How to Manage Power Supply .....................................................................................3-4
AC/DC Adapter........................................................................................................3-4
Battery ..................................................................................................................... 3-4
How to Set Up a Power Plan in Windows 10 ...............................................................3-6
Choose or Customize a Power Plan .......................................................................3-6
Create Your Own Power Plan .................................................................................3-9
How to Use the Touchpad ......................................................................................... 3-11
How to Set Up Windows Hello Fingerprint Login ......................................................3-13
About HDD and SSD .................................................................................................. 3-18
About M.2 SSD Slot ...................................................................................................3-18
How to Connect the Internet .......................................................................................3-19
Wireless LAN.........................................................................................................3-19
Wired LAN ............................................................................................................. 3-21
How to Set Up Bluetooth Connection ......................................................................... 3-26
Activating Bluetooth Connection ...........................................................................3-26
How to Connect External Devices .............................................................................. 3-29
Video: How to Use RAID Function .............................................................................3-30
How to Select Boot Mode in BIOS .............................................................................3-31
Video: How to Restore Windows 10 Operating System on MSI Notebooks .............. 3-32
Video: How to Use MSI One Touch Install ................................................................ 3-33
1-6
Battery Regulations
European Union: Batteries, battery packs, and accumulators should
not be disposed of as unsorted household waste. Please use the
public collection system to return, recycle, or treat them in compliance
with the local regulations.
廢電池請回收
Taiwan: For better environmental protection, waste batteries should
be collected separately for recycling or special disposal.
California, USA: The button cell battery may contain perchlorate material and requires
special handling when recycled or disposed of in California.
For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/
perchlorate/
Safety Guideline for Using Lithium Battery
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the equipment manufacturer. Discard used batteries
according to manufacturer’s instructions.
WEEE Statement
European Union: Under the European Union ("EU") Directive on
Waste Electrical and Electronic Equipment, Directive 2002/96/
EC, which takes effect on August 13, 2005, products of "electrical
and electronic equipment" cannot be discarded as municipal waste
anymore and manufacturers of covered electronic equipment will be
obligated to take back such products at the end of their useful life.
Chemical Substances Information
In compliance with chemical substances regulations, such as the EU REACH Regulation
(Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides
the information of chemical substances in products at:
http://www.msi.com/html/popup/csr/evmtprtt_pcm.html
User's Manual
1-7
RoHS Statement
Japan JIS C 0950 Material Declaration
A Japanese regulatory requirement, defined by specification JIS C 0950, mandates that
manufacturers provide material declarations for certain categories of electronic products
offered for sale after July 1, 2006.
http://www.msi.com/html/popup/csr/cemm_jp.html
http://tw.msi.com/html/popup/csr_tw/cemm_jp.html
India RoHS
This product complies with the "India E-waste (Management and Handling) Rule 2011"
and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or
polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight
% for cadmium, except for the exemptions set in Schedule 2 of the Rule.
Turkey EEE regulation
Conforms to the EEE Regulations of the Republic Of Turkey.
Ukraine restriction of hazardous substances
The equipment complies with requirements of the Technical Regulation, approved by the
ResolutionofCabinetofMinistryofUkraineasofDecember3,2008№1057,interms
of restrictions for the use of certain dangerous substances in electrical and electronic
equipment.
Vietnam RoHS
As from December 1, 2012, all products manufactured by MSI comply with Circular
30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous
substances in electronic and electric products.
1-8
Upgrade and Warranty
Please note that certain components, such as memory modules, HDD, SSD, ODD,
and Bluetooth/WiFi combo card, etc., preinstalled in the product may be upgradable or
replaceable by user’s request depending on the models users purchased.
For any further information on the product users purchased, please contact the local
dealer. Do not attempt to upgrade or replace any component of the product if users do not
understand the component location or how to assembly/disassembly, since it may cause
the product to be damaged. It is recommended that you contact the authorized dealer or
service center for product service information.
Acquisition of Replaceable Parts
Please be noticed that the acquisition of replaceable parts (or compatible ones) of
the product users purchased in certain countries or territories may be fulfilled by the
manufacturer within 5 years at most since the product has been discontinued, depending
on the official regulations declared at the time. Please contact the manufacturer via http://
www.msi.com/support/ for the detailed information about the acquisition of spare parts.
User's Manual
1-11
MSI Highlights
Explore more exclusive features of MSI notebooks for all series, please visit:
http://www.msi.com and https://www.youtube.com/user/MSI
How to use SteelSeries Engine 3 on MSI notebooks
MSI collaborates with SteelSeries to develop an exclusive SteelSeries
Engine 3 in gaming notebooks. SteelSeries Engine 3 is the Apps to
combine frequently used functions for gamers in multiple devices
management.
MSI GAMING Notebook is the first gaming Notebook featuring
XSplit Gamecaster live stream app!
MSI gaming notebook features XSplit Gamecaster, the easiest live
streaming and recording solution for gamers.
Sound by Dynaudio on MSI Gaming Notebooks
MSI partners with Dynaudio, the Danish sound specialists, in its gaming
notebooks to present you an authentic fidelity audio performance.
Color Your Life with True Color
MSI has partnered with Portrait Displays, Inc. in developing more
accurate, high precision panel quality. MSI True Color Technology
guarantees that each panel in a MSI notebook comes with the finest
precision in color.
Tutorial: How to use Nahimic
Discover how to use Nahimic and its three features: Nahimic Audio
Effects, Microphone Effects and HD Audio recorder.
1-12
Introductions
User's Manual
NOTEBOOK
Introductions
2-2
Congratulations on becoming an user of this notebook, the finely designed notebook. You
will have a delightful and professional experience in using this exquisite notebook. We are
proud to tell users that this notebook is thoroughly tested and certified by our reputation for
unsurpassed dependability and customer satisfaction.
Unpacking
First, unpack the shipping carton and check all items carefully. If any item contained is
damaged or missing, please contact your local dealer immediately. Also, keep the box
and packing materials in case you need to ship the unit in the future. The package should
contain the following items:
▶ Notebook
▶ Quick Start Guide
▶ AC/DC adapter and AC power cord
▶ Optional carry bag
User's Manual
2-3
Product Overview
This section provides the description of basic aspects of the notebook. It will help you to
know more about the appearance of this notebook before using it. Please be aware that
the figures shown here are for reference only.
Top-open View
The figure of top-open view and description shown below will lead you to browse the main
operating area of your notebook.
Introductions
2-4
1. Webcam/ Webcam LED/ Internal Microphone
• This built-in webcam can be used for picture taking, video recording or
conferencing, and so on.
• Webcam LED indicator, next to the webcam, glows when webcam function is
activated; LED goes out when this function is turned off.
• The built-in microphone and its function is the same with microphone.
2. Keyboard
The built-in keyboard provides all the functions of a notebook keyboard. Refer to How
to Use the Keyboard for details.
3. Touchpad
This is the pointing device of the notebook. The notebook has a embedded fingerprint
scanner built into the touchpad, you’ll get enterprise-grade security to unlock your
notebook.
4. Power LED/ GPU Mode LED
Power
Power LED/ GPU Mode LED
• Glowing white when the notebook power is turned on, and
the UMA GPU mode is selected.
• Glowing amber when the optionally supported discrete GPU
mode is selected.
• LED goes off when the notebook is turned off.
Introductions
2-6
Battery Status
• LED glows when the battery is being charged.
• Continuously blinking if the battery fails. If the problem
persists, please contact your local authorized retailer or
service center.
• Battery LED goes out when it is fully charged or when the
AC/DC adapter is disconnected.
User's Manual
2-7

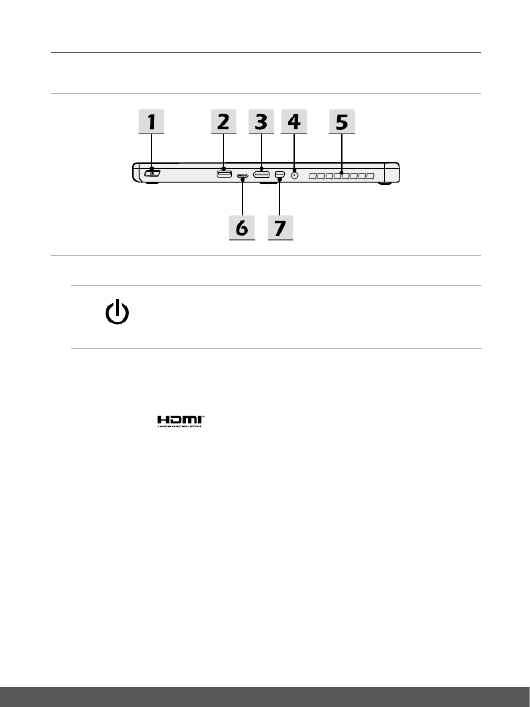

Right Side View
1. Power Button
Power
Power Button
• Use this button to turn the notebook power ON and OFF.
• Use this button to awake the notebook from the sleep state.
2. USB 2.0 Port
The USB 2.0 port allows you to connect USB-interface peripheral devices, such as the
mouse, keyboard, modem, portable hard disk module, printer, etc.
3. HDMI Connector
HDMI (High-Definition Multimedia Interface) technology is the industry-leading
interface and de-facto standard connecting high-definition (HD) and ultra high-
definition (UHD) equipment.
4. Power Connector
This connector is to connect the AC/DC adapter and supply power for the notebook.
5. Ventilator
The ventilator is designed to cool the system. DO NOT block the ventilator for air
circulation.
6. Thunderbolt (Type-C) (optional)
Thunderbolt™ 3 supports USB 3.1 connection, 4K display monitor output, up to
40Gbps data rate, and 5V 3A portable charging power when AC power is connected/ .
Introductions
2-8
7. Mini-DisplayPort
The Mini-DisplayPort is a miniaturized version of the DisplayPort, with a suitable
adapter, the Mini-DisplayPort may be used to drive displays with a VGA, DVI or HDMI
interface.
User's Manual
2-9

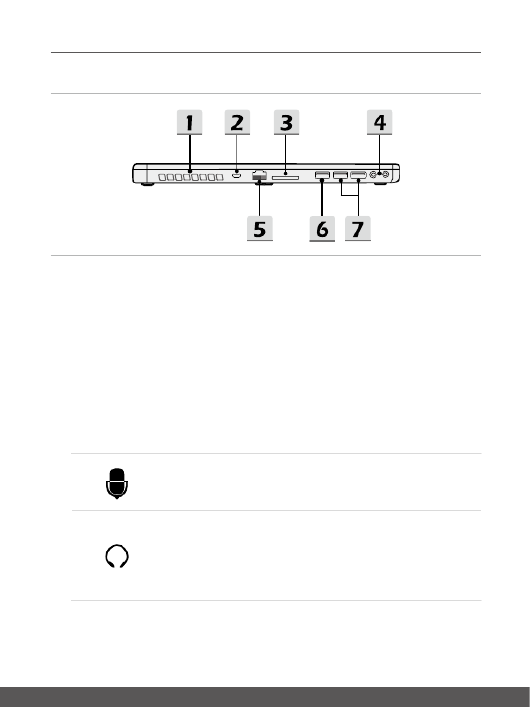

Left Side View
1. Ventilator
The ventilator is designed to cool the system. DO NOT block the ventilator for air
circulation.
2. Kensington Lock
This notebook provides a Kensington lock hole, which allows users to secure the
notebook in place.
3. Card Reader
The built-in card reader supports various types of memory cards. Check the
Specifications for details.
4. Audio Port Connectors
Make high quality sound blaster with stereo system and Hi-Fi function supported.
Microphone
Used for an external microphone.
Headphone out/ S/PDIF-out
• A connector for speakers or headphones.
• The S/PDIF connector is also provided for digital audio
transmission to external speakers through an optical fiber
cable.
User's Manual
2-11

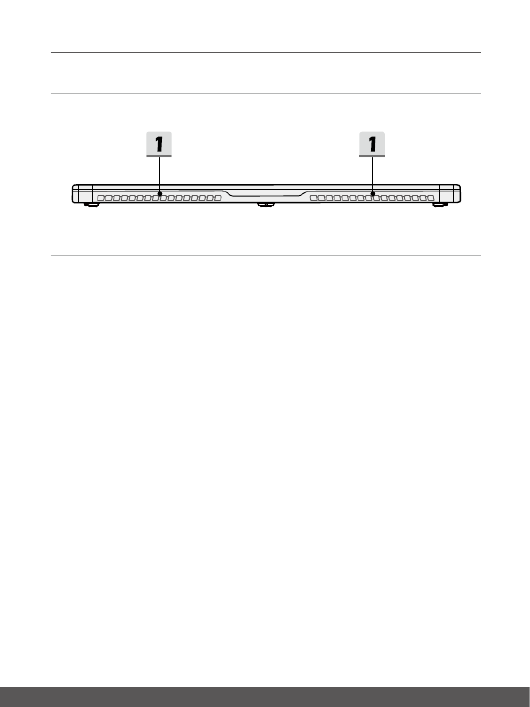

Rear Side View
1. Ventilator
The ventilator is designed to cool the system. DO NOT block the ventilator for air
circulation.
Introductions
2-12

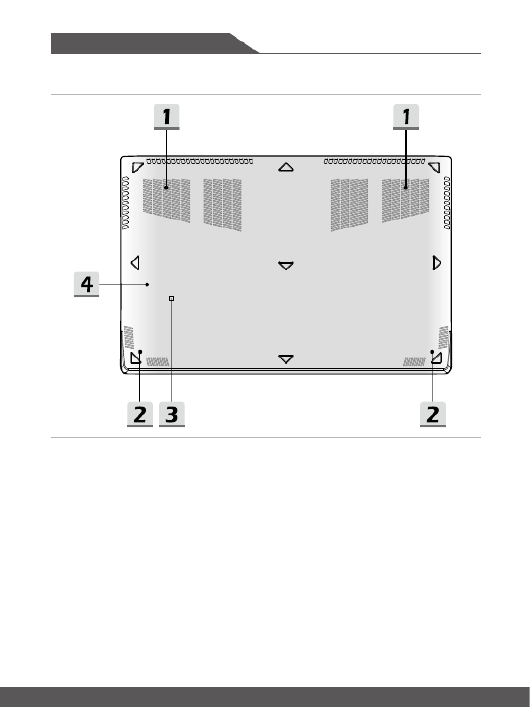

Bottom Side View
1. Ventilator
The ventilator is designed to cool the system. DO NOT block the ventilator for air
circulation.
2. Stereo Speakers
This notebook may be equipped with built-in stereo speakers which deliver the high
quality sound, and supports the HD audio technology.
3. Battery Reset Hole
Whenever the system firmware (EC) is upgraded or the system hangs, please 1)
power off the notebook; 2) remove the AC power; 3) use a straightened paperclip to
insert this hole for 10 sec; 4) connect the AC power; 5) power on the notebook.
User's Manual
2-13
4. SSD Slot 1
This notebook is equipped with a SSD M.2 slot that supports the SSD device with
PCIe or SATA interface. Contact the authorized dealer or service center for product
service.
Introductions
2-16
Disable or Enable Touchpad
+
Enable or disable the touchpad function.
Enter Sleep Mode
+
Force the computer into sleep state (depending on the system
configuration). Press the Power button to wake up the system
from sleep state.

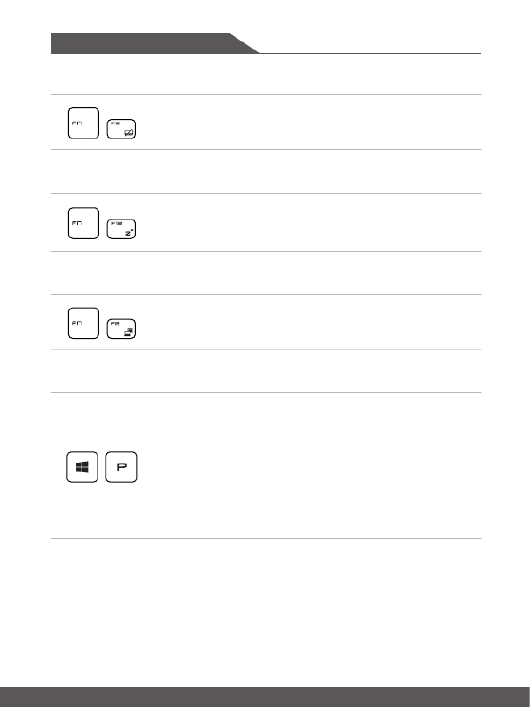

Switch Display
+
Switch the display output mode between the LCD, external
monitor and both.
Use Multiple Monitors
+
If users connect an additional monitor to the notebook, the
system will automatically detect the external monitor connected.
Users will be allowed to customize the display settings.
• Connect the monitor to the notebook.
• Press and hold the Windows key, and then press [P] key to
bring up [Project].
• Select how you want your display to project on the second
screen from the selections of PC screen only, Duplicate,
Extend, and Second screen only.
User's Manual
2-17

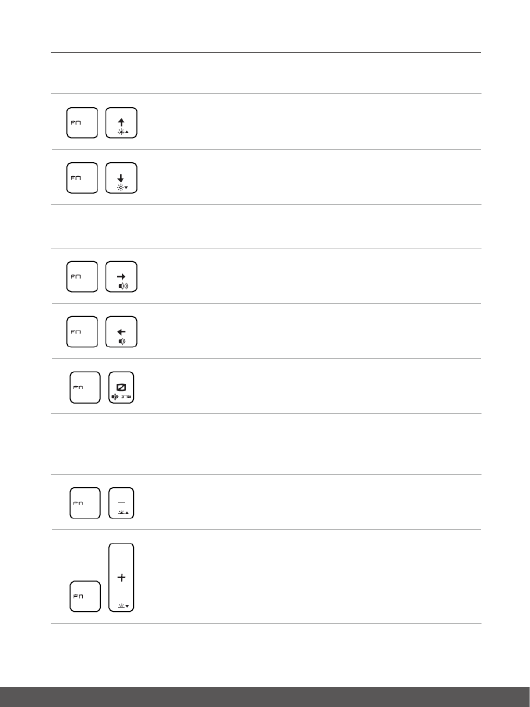

Adjust the Brightness Level of the Display
+
Increase the LCD brightness.
+
Decrease the LCD brightness.
Adjust the Sound Level of the Speaker
+
Increase the built-in speaker’s volume.
+
Decrease the built-in speaker’s volume.
+
Mute the built-in speakers.
Adjust the Brightness Level of the Keyboard Backlight LED
(optional)
+
Increase the brightness level of the keyboard backlight LEDs.
+
Decrease the brightness level of the keyboard backlight LEDs.
Introductions
2-18
Application: True Color (optional)
This notebook may be pre-installed the application. With this application, users True Color
can select various color settings for the best viewing experience.
Refer to the Notebook Software Application Manual for detailed instructions.
+
True Color
• Press and hold the key, and then press the key to Fn Z
launch the application.True Color
+
True Color
Selections
• Press and hold the key, and then press the key to Fn A
change different view modes.

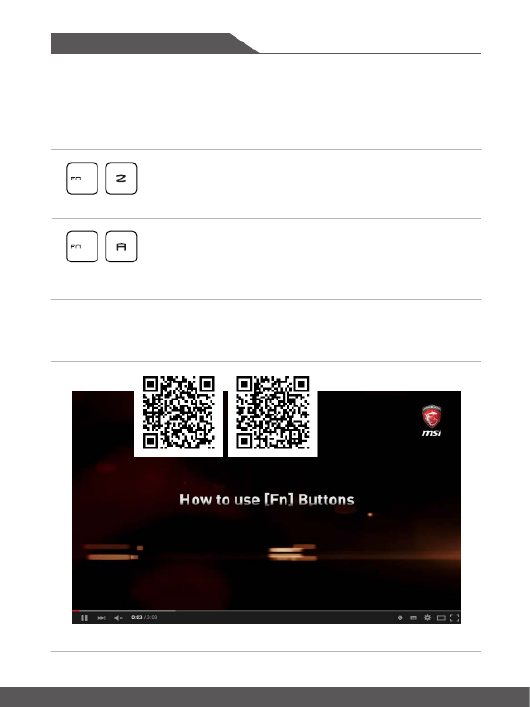

Video: How to Use [Fn] Buttons
Watch the instruction video at https://www.youtube.com/watch?v=u2EGE1rzfrQ:
YouTube Youku
Introductions
2-20
I/O Port
USB 3 x USB 3.1
1 x USB 2.0
Thunderbolt TM 3
1 x USB 3.1 Type-C
• 4K display monitor output
• up to 40Gbps data rate
• up to 5V/3A portable charging power when AC power is
connected.
Audio Connectors 1 x Mic-in
1 x Headphone-out (S/PDIF-Out supported)
Video Connectors 1 x HDMI
1 x Mini-DisplayPort
LAN 1 x RJ-45
Card Reader 1 x supports SD4.0
Communication Port
LAN Supported
Wireless LAN Supported
Bluetooth Supported
Display
LCD Type 15.6" FHD/UHD LED panel
Video
Graphics
• NVIDIA® Quadro® discrete graphics
• Intel® HD UMA graphics
• Virtual Reality optionally supported
VRAM GDDR5, based on GPU structure
Webcam
Resolution HD
Audio
Internal Speakers 2 x stereo speakers
How to Get Started
User's Manual
NOTEBOOK
How to Get Started
3-2

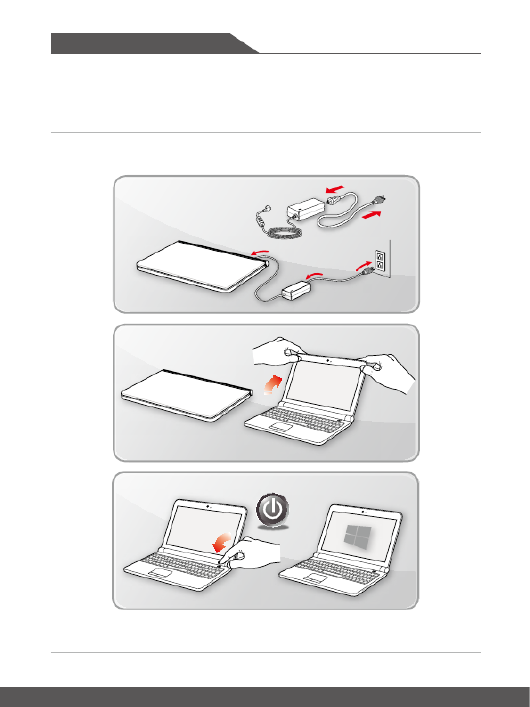

Begin to Use the Notebook
For a new user of this notebook, we would like to suggest you follow the illustrations below
to begin to use the notebook.
User's Manual
3-3

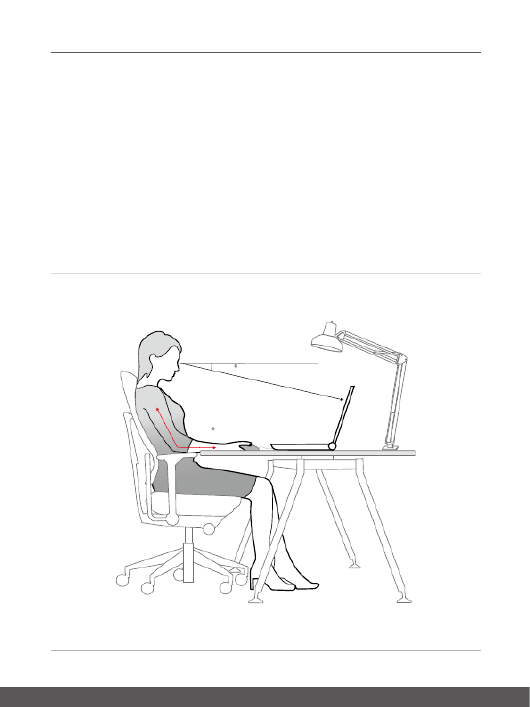

How to Use the Notebook Comfortably
If you are a beginner to the notebook, please read the following instructions to assure your
own safety, and make yourself comfortable during the operations.
▶Good illumination is essential in the work area.
▶Choose a chair and desk with good ergonomics and adjust their heights according
to your posture.
▶Adjust the backrest to support your lower back comfortably when you are sitting
upright.
▶Place your feet flat on the floor with your knees bent to a 90 degrees.
▶Adjust the angle/position of the LCD panel to have an optimal view.
▶Stretch and relax your body regularly. Always take a break after working for a period
of time.
38-7 6 cm
15-20
90-120
User's Manual
3-5
▶Battery charging behavior
To optimize battery life and avoid a sudden power loss, read the tips below:
• Suspend system operation if the system will be idle for a while or shorten the
suspend timer’s time period.
• Turn off the system if you won’t be using it for a period of time.
• Disable unnecessary settings or remove idle peripherals.
• Connect an AC/DC adapter to the system whenever possible.
▶How to charge the battery properly
Please pay attention to the following tips before recharging the battery:
• If a charged battery pack is not available, save your work and close all running
programs and shut down the system.
• Plug in an AC/DC adapter.
• You can use the system, suspend system operation or shut down and turn off the
system without interrupting the charging process.
• The Li-ion or Li-polymer battery has no memory effect. It is unnecessary to
discharge the battery before recharging. However, to optimize the life of battery,
we suggest that consuming the battery power completely once a month is
necessary.
• The actual charging time will be determined by the applications in use.
How to Get Started
3-6
How to Set Up a Power Plan in Windows 10
A power plan is a collection of hardware and system settings that manages how your
computer uses and conserves power. Power plans can save energy, maximize system
performance, or balance energy conservation with performance. The default power plans
— Balanced and Power saver — meet most people's needs. But you can modify settings
for existing plans or create your own plan.

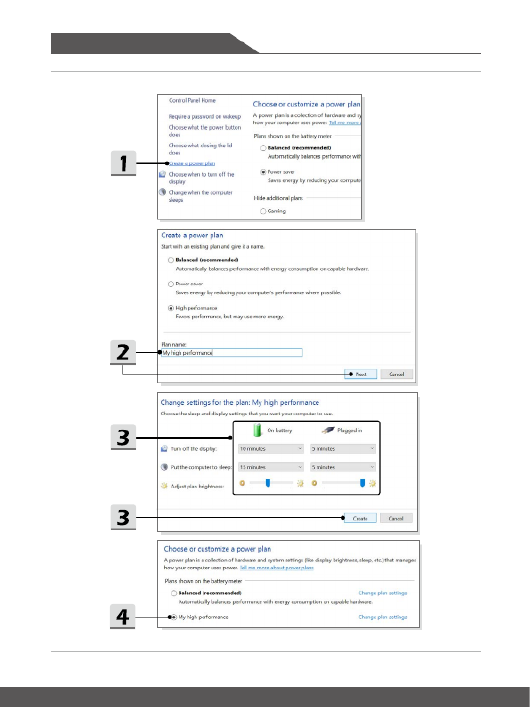

Choose or Customize a Power Plan

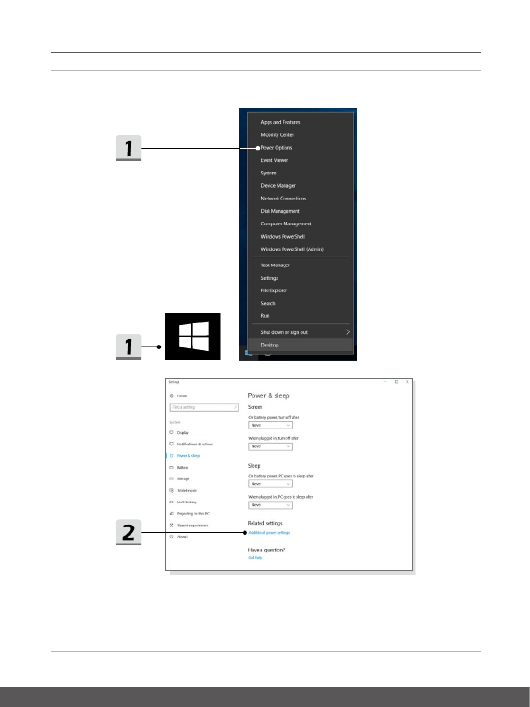

1. Find [Windows] icon in the lower-left corner of the screen. Right click it to unfold the
selection menu. Select [Power Options] within the menu.
2. Select [Additional power settings] under [Related settings].
3. Choose a Power Plan by left clicking on one of the selections from the Power Plan
list. The Power Plan of [Balanced] is selected as an example here. Click on the
[Change plan settings] to the right of the power plan to customize a power plan.
4. Choose the sleep and display settings you want your computer to use. Click on
[Change advanced power settings] to make changes to the selected power plan
settings to meet your needs.
5. To restore the selected Power Plan back to its default settings, click on [Restore
plan defaults] and then click [Yes] to confirm.
6. Click [OK] to finish.
User's Manual
3-7
How to Get Started
3-8
How to Get Started
3-10
User's Manual
3-11
How to Use the Touchpad
The touchpad integrated in your notebook is a pointing device that is compatible with
standard mouse, allowing you to control the notebook by pointing the location of the cursor
on the screen.
▶Configure the Touchpad
You can customize the pointing device to meet your personal needs. For example, if
you are a left-handed user, you may want to swap the functions of the two buttons.
In addition, you can change the size, shape, moving speed and other advanced
features of the cursor on the screen.
To configure the touchpad, you can use the standard Microsoft or IBM PS/2 driver in
your Windows operating system. The Mouse Properties in Control Panel allows you
to change the configuration.

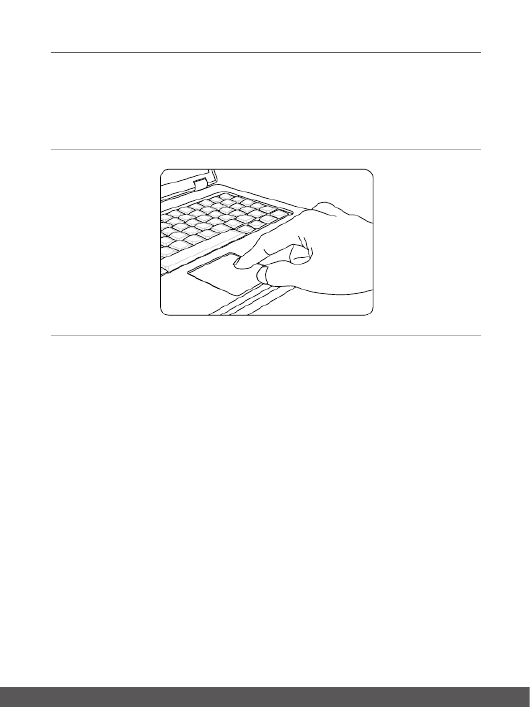

▶Position and Move
Place your finger on the touchpad (usually using the forefinger), and the rectangular
pad will act as a miniature duplicate of your display. When you move your fingertip
across the pad, the cursor on the screen will move simultaneously to the same
direction. When your finger reaches the edge of the pad, lift your finger and place it
on a proper location of the touchpad to continue the movement.
User's Manual
3-13
How to Set Up Windows Hello Fingerprint Login
Windows Hello is a more secure, personal way to get instant access to your Windows 10
devices using fingerprint or facial recognition. The feature requires fingerprint reader or a
infrared camera that supports it. Once you’re set up, you’ll be able to sign in with a quick
swipe or glance.
Follow below instructions to login with a touch. You need to set up a password and PIN
code before you're allowed to use Windows.
▶Create a Password

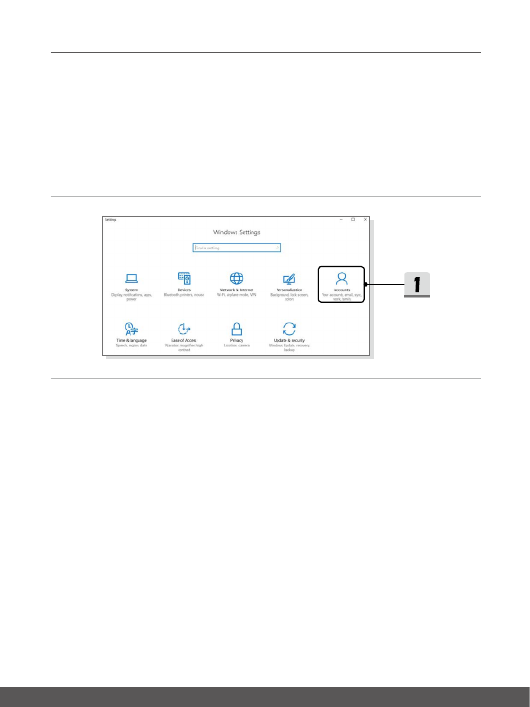

1. Open up Settings and locate [Accounts].
2. In Sign-in options, click the [Add] button under Password.
3. Enter a new password, then click [Next].
4. Enter again to verify your account password, click [OK] to close.
User's Manual
3-15

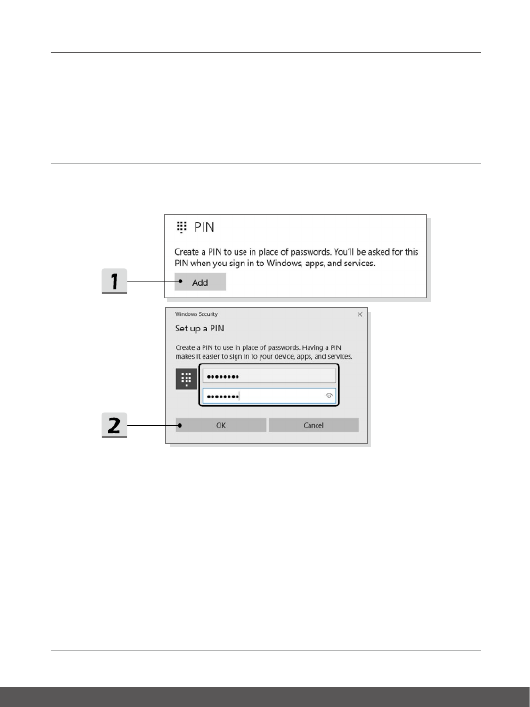

▶Set up a PIN
1. In Sign-in options, click the [Add] button under PIN.
2. You may be asked to verify in your account with a password. If so, follow the
on-screen instructions. Enter a new PIN and then re-enter to confirm, click [OK]
to close.
Produktspecifikationer
| Varumärke: | MSI |
| Kategori: | Inte kategoriserad |
| Modell: | WS63 8SJ |
| Färg på produkten: | Beige, Brown |
| Vikt: | 2000 g |
| Bredd: | 280 mm |
| Djup: | 145 mm |
| Höjd: | 220 mm |
| Förpackningens vikt: | 2100 g |
| Förpackningens bredd: | 310 mm |
| Djuppackning: | 170 mm |
| Förpackningshöjd: | 245 mm |
| Användarmanual: | Ja |
| Kraftkälla: | AC/Batterij |
| Blåtand: | Nee |
| Ljudformat som stöds: | MP3 |
| USB uttag: | Ja |
| Typ av anslutningskontakt: | 3,5 mm |
| Medföljande kablar: | AC |
| Integrerad minneskortläsare: | Nee |
| Garantikort: | Ja |
| Genomsnittlig effekt: | 5 W |
| Antal inbyggda högtalare: | 2 |
| Antal batterier/batterier som stöds: | 8 |
| Volymkontroll: | Draaiknop |
| Hörlursutgångar: | 1 |
| Väckarklocka: | Nee |
| Bakgrundsbelysning-färg: | Wit |
| Typ av optisk enhet: | Speler |
| Klockfunktion: | Nee |
| Hörlurarna avstängda: | Ja |
| Linjeingång: | Ja |
| Spela MP3: | Ja |
| AUX ingång: | Ja |
| Typ-av-optisk-enhet: | CD, CD-DA, CD-R |
| Frekvensband som stöds: | AM, FM |
| Kassettdäck: | Nee |
| Kompatibel batteristorlek: | C |
| Antenn: | Ja |
| FM-band: | 64 - 108 MHz |
| Fjärrkontroll ingår: | Ja |
| AC-ingångsspänning: | 220 V |
| AC-ingångsfrekvens: | 50 Hz |
| Type beeldscherm: | LCD |
| AM-bandintervall: | 520 - 1620 kHz |
Behöver du hjälp?
Om du behöver hjälp med MSI WS63 8SJ ställ en fråga nedan och andra användare kommer att svara dig
Inte kategoriserad MSI Manualer
7 April 2025
26 Februari 2025
20 Februari 2025
20 Februari 2025
MSI GeForce RTX 4070 SUPER 12G GAMING X SLIM MLG Bruksanvisning
20 Februari 2025
20 Februari 2025
20 Februari 2025
20 Februari 2025
20 Februari 2025
12 Februari 2025
Inte kategoriserad Manualer
- Schleich
- PSSO
- Statron
- Palmer
- Synco
- NWS
- Doomoo
- MEPROLIGHT
- Alpine
- Vizio
- Bitspower
- Contour Design
- URC
- Prologue
- Ventura
Nyaste Inte kategoriserad Manualer
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
