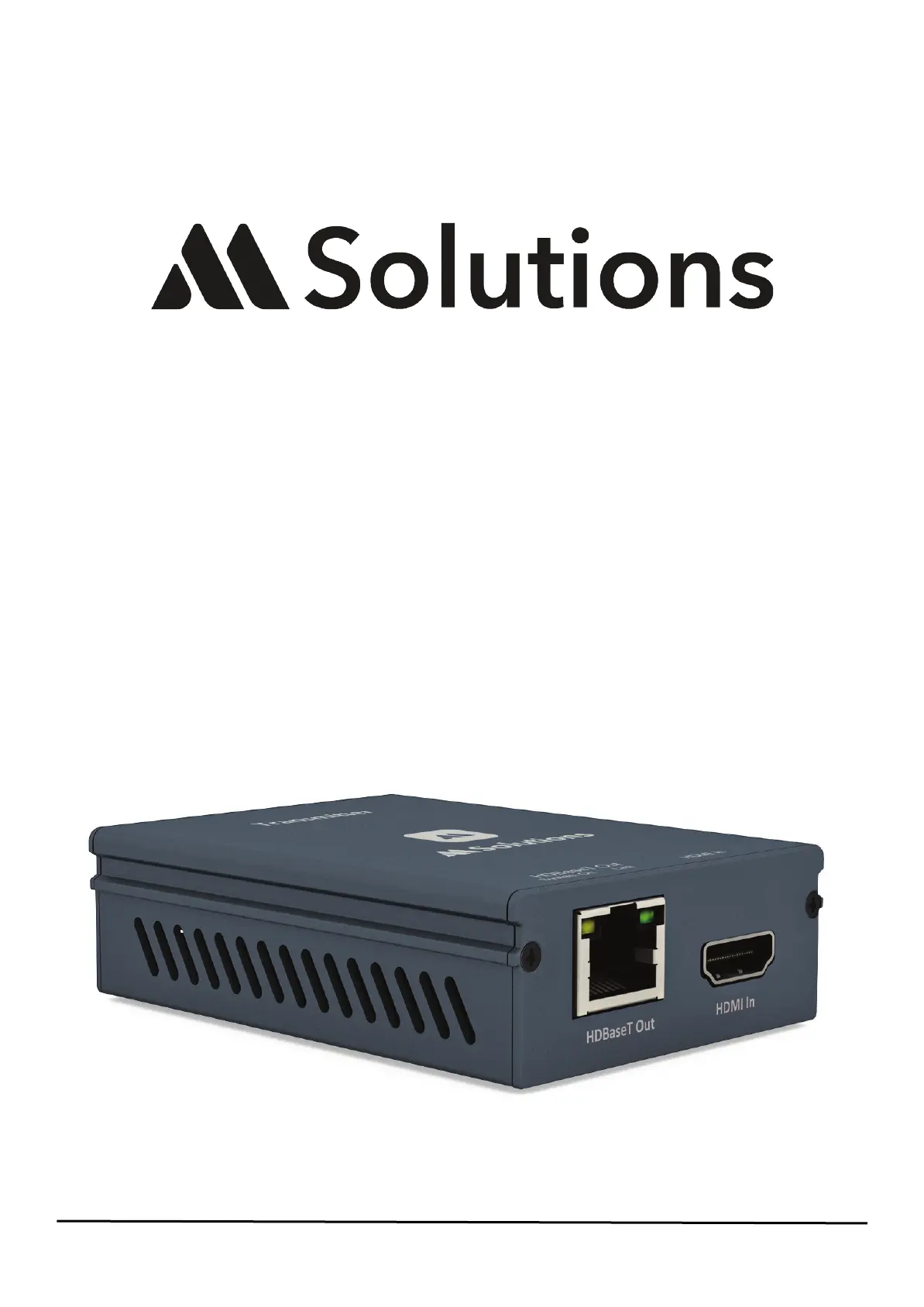

User Guide
MS-3PRI
HDBaseT™ Extender Set - 4K to 90m 18G,
Uncompressed 4K 4:4:4 60, PoC, RS-232 pass through,
with single channel bi-directional IR
Revision: 1.0 January 2024
02
support@m4sol.com | www.m4sol.com
MS-3PRI USER GUIDE
Introduction 03
Key Features 03
Connectivity Overview (TX and RX) 04
Understanding the LED’s 05
Cabling for HDBaseT 05
Power 06
IR Control & RS-232 Control 06
Specifications & Package Contents 07
Schematic 08
Contents
Notices
• This MSolutions product contains electrical components that may be damaged by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of surge protection is highly recommended in order to protect and extend the life
of your equipment.
• The transmission distances of HDMI over Cat cables are measured using TE CONNECTIVITY 1427071-6 EIA/
TIA-568-B termination (T568B) of cables is recommended for optimal performance. To minimise interference
of unshielded twisted pairs in the Cat5e/6 cable, do not run the HDBaseT / Cat5e/6/6a cabling with or in close
parallel proximity to mains power cables.
• Do not substitute or use any other power supply other than the enclosed unit, or an MSolutions approved
replacement. Do not disassemble either the Transmitter or Receiver units for any reason. Doing so will void the
manufacturer’s warranty.
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and other countries.
• Dolby is a trademark of Dolby Laboratories.
• MSolutions reserves the right to change the specifications of this unit without prior notice. As a result of this,
physical representations or graphical elements contained within this user guide may not be accurate.
