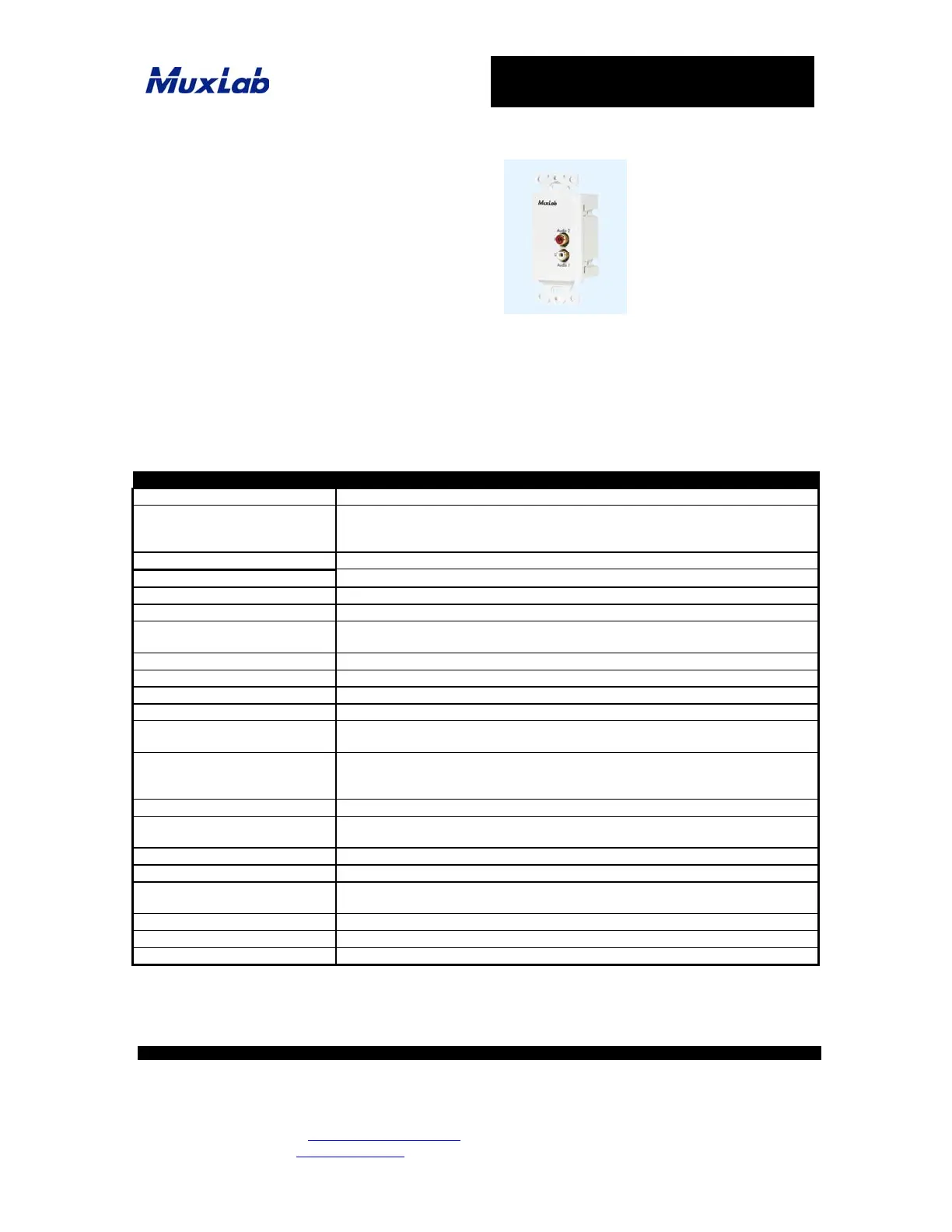

Stereo Hi-Fi Wall Balun
500028-WP-US
__________________________________________________________________________________
© MuxLab Inc. 2011 Stereo Hi-Fi Wall Balun
MuxLab Inc.
8495 Dalton Road, Mount Royal, Quebec, H4T 1V5
Tel: (+1) 514 905 0588 Fax: (+1) 514 905 0589
Toll Free: 877 689-5228
E-mail: videoease@muxlab.com
URL: www.muxlab.com
Overview
The Stereo Hi-Fi Wall Balun (500028-WP-US)
allows unbalanced line level stereo analogue
audio to be transmitted via Category 5e/6
unshielded copper twisted pair (UTP) in a point-
to-point connection. The product is designed for
audio applications where full-range, hi-fidelity
audio frequency response is required.
Used in pairs, the Stereo Hi-Fi Wall Balun
eliminates costly and bulky coaxial cable,
allowing audio equipment to be connected or
moved within a structured cabling environment.
Applications
Boardroom systems, classroom training,
auditoriums, custom home installations and
intercom systems.
Features & Benefits
20 Hz to 20 KHz bandwidth
Cost-efficient cabling
Up to 3,250 ft (1km) via Cat5e/6 UTP
Quicker moves, adds and changes
Compatible with Decora™ face plates
Specifications
Environment
Line level unbalanced analogue audio
Devices
DVD players, satellite receivers, MPEG players, laptops, hi-fidelity stereo audio
amplifiers, audio switchers, AV monitors, powered subwoofer and other line level
audio equipment
Transmission
Transparent to the user.
3dB Bandwidth
20 Hz to 20 KHz over the distance range
Maximum Input
1.1Vp-p (unbalanced)
Insertion Loss per balun pair
Less than 2 dB over the frequency range.
Common Mode Rejection
Greater than 60 dB @ 1 KHz
Greater than 40 dB over the frequency and distance range
THD
Maximum 0.007% @ 1 KHz over distance range.
Audio Source Impedance
100 ohms maximum
Audio Receiver Impedance
10 k ohms minimum
Max. Distance – Cat5e/6 UTP
3,250 ft (1km)
Pin Configuration (RJ45)
EIA 568 A or B
Audio 1 (White): pins 1[R] & 2 [T]
Audio 2 (Red): pins 3 [R] & 6 [T]
Cable – UTP
24AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pf/foot.
Attenuation: 6.6 dB/1000 ft at 1 MHz
Cable – Coax
Shielded audio cable
Connectors
Two (2) RCA-F
One (1) RJ45
Temperature
Operating: 0º to 55º C. Storage:-20º to 85º C. Humidity: up to 95%
Enclosure
ABS. Fire retardant plastic
Dimensions
4.1” (104 mm) x 1.8” (45.7 mm) x 1.44” (36.6 mm). Choose 1.6” (40 mm) deep
back box to allow for Cat 5E/6 wiring connection.
Weight
4.1 oz (115 g)
Warranty
Lifetime
Order Information
500028-WP-US Stereo Hi-Fi Wall Balun, US
Decora ™ is a registered trademark of Leviton Manufacturing Co, Inc.
