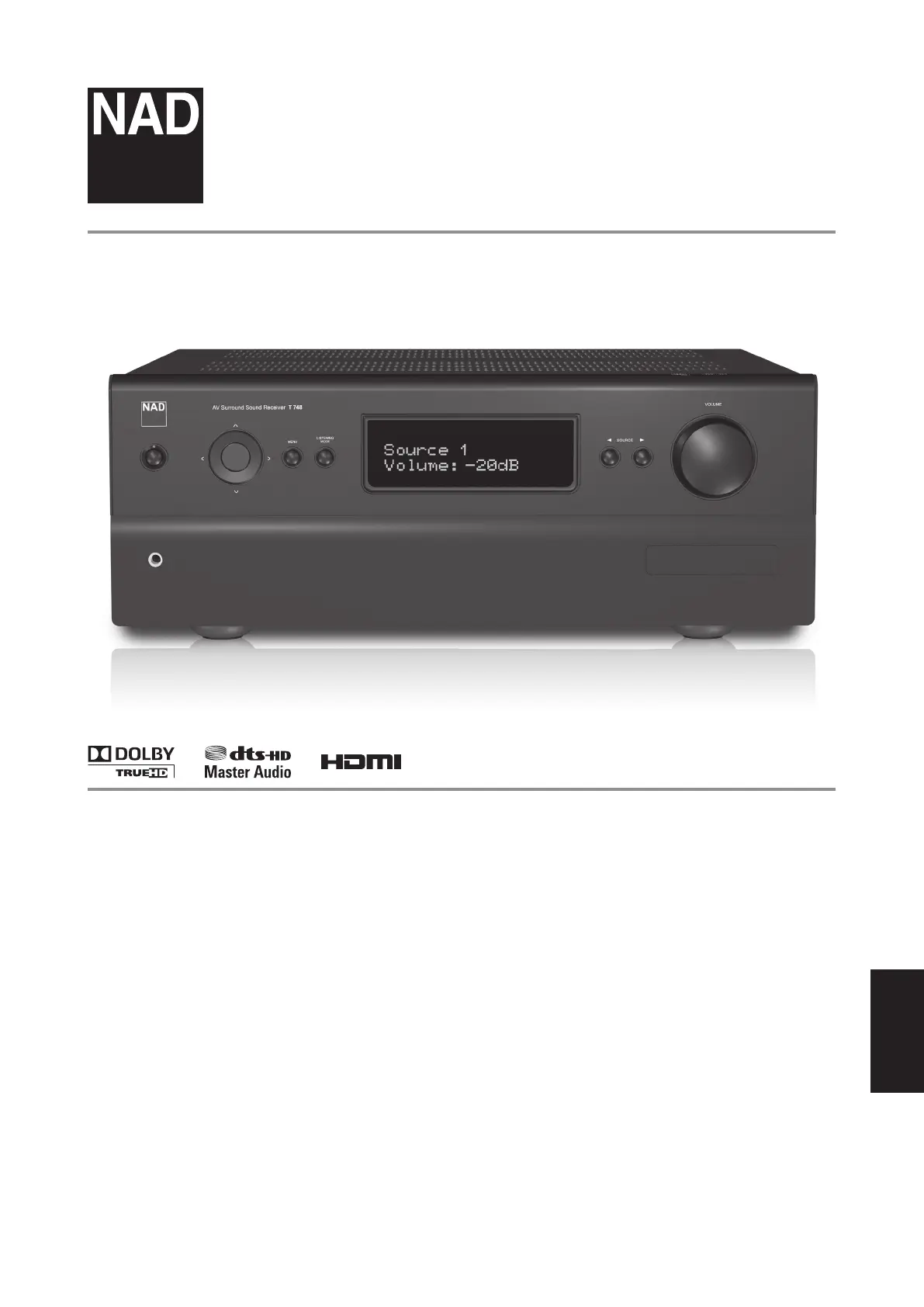

T 748

AV Surround Sound Receiver

ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ

Owner’s Manual

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN

AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER

TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE”

WITHIN THE PRODUCT’S ENCLOSURE THAT MAYBE OF

SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC

SHOCK TO PERSONS.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS

INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT

OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN

THE LITERATURE ACCOMPANYING THE APPLIANCE.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

SAVE THESE INSTRUCTIONS FOR LATER USE. FOLLOW ALL

WARNINGS AND INSTRUCTIONS MARKED ON THE EQUIPMENT.

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with a dry cloth.

7 Do not block any of the ventilation openings. Install in accordance with

the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including ampliers) that produce heat.

9 Do not defeat the safety purpose of the polarized or grounding type

plug. A polarized plug has two blades with one wider than the other.

A grounding type plug has two blades and a third grounding prong.

The wide blade or the third prong is provided for your safety. When the

provided plug does not t into your outlet, consult an electrician for

replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the

apparatus.

11 Only use the attachments/accessories specied by the manufacturer.

12 Use only with a cart, stand, tripod, bracket, or table specied

by the manufacturer, or sold with the apparatus. When a

cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when unused for long

periods of time.

14 Refer all servicing to qualied service personnel. Servicing is required

when the apparatus has been damaged in any way, such as power

supply cord or plug is damaged, liquid has been spilled or objects have

fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer’s attention to Section

820-40 of the NEC which provides guidelines for proper grounding and, in

particular, species that the cable ground shall be connected to the grounding

system of the building, as close to the point of cable entry as practical.

FCC NOTICE

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation.

This equipment generates uses and can radiate radio frequency energy

and if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment o and on, the user

is encouraged to try to correct the interference by one or more of the

following measures

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to

which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT SAFETY INSTRUCTIONS

ENGLISH PORTUGUÊSFRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

WARNING!

The unit must not be exposed to dripping or splashing liquids, and liquid-

lled objects such as vases or cups should not be placed on the unit.

CAUTION

Changes or modications to this equipment not expressly approved by

NAD Electronics for compliance could void the user’s authority to operate

this equipment.

CAUTION

These servicing instructions are for use by qualied service personnel only. To

reduce the risk of electric shock, do not perform any servicing other than that

contained in the operating instructions unless you are qualied to do so.

ATTENTION

Disconnect this apparatus from the AC mains completely by unplugging

the power cord plug from the AC receptacle.

CAUTION REGARDING PLACEMENT

To maintain proper ventilation, be sure to leave a space around the unit

(from the largest outer dimensions including projections) that is equal to or

greater than shown below.

Left and Right Panels: 10 cm

Rear Panel: 10 cm

Top Panel: 20 cm

NOTES ON ENVIRONMENTAL PROTECTION

At the end of its useful life, this product must not be disposed

of with regular household waste but must be returned to a

collection point for the recycling of electrical and electronic

equipment. The symbol on the product, user’s manual and

packaging, point this out.

The materials can be reused in accordance with their markings. Through

re-use, recycling of raw materials or other forms of recycling of old

products, you are making an important contribution to the protection of

our environment. Your local administrative oce can advise you of the

responsible waste disposal point.

INFORMATION ABOUT COLLECTION AND DISPOSAL OF

WASTE BATTERIES (DIRECTIVE 2006/66/EC OF THE EUROPEAN

PARLIAMENT AND THE COUNCIL OF EUROPEAN UNION) (FOR

EUROPEAN CUSTOMERS ONLY)

Batteries bearing any of these symbols indicate

that they should be treated as “separate collection”

and not as municipal waste. It is encouraged that

necessary measures are implemented to maximize

the separate collection of waste batteries and

to minimize the disposal of batteries as mixed

municipal waste.

End-users are exhorted not to dispose waste

batteries as unsorted municipal waste. In order to

achieve a high level of recycling waste batteries,

discard waste batteries separately and properly through an accessible

collection point in your vicinity. For more information about collection and

recycling of waste batteries, please contact your local municipality, your

waste disposal service or the point of sale where you purchased the items.

By ensuring compliance and conformance to proper disposal of waste

batteries, potential hazardous eects on human health is prevented and

the negative impact of batteries and waste batteries on the environment

is minimized, thus contributing to the protection, preservation and quality

improvement of the environment.

NOTE: THE T

748

IS NOT AN AUTO VOLTAGE UNIT. CONNECT ONLY

TO THE PRESCRIBED AC OUTLET, I.E., 120V 60HZ OR 230V 50HZ.

RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT)

The model and serial number of your new T 748 are located on the back of

the cabinet. For your future convenience, we suggest that you record these

numbers here:

Model no: ......................................

Serial no.: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

IMPORTANT SAFETY INSTRUCTIONS

NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited

ENGLISHPORTUGUÊS FRANÇAISESPAÑOLITALIANODEUTSCHNEDERLANDSSVENSKAРУССКИЙ
