AUDI DYNAMIC-INT
NTV-KIT700
Overview
The AUDI-DYN INT Kit interfaces a backup camera (with dynamic guidelines) and one additional
video input (front cam, etc) to the factory media screen in select Audi vehicles with the Concert
media system (MMi controls on vertical radio face, not console).

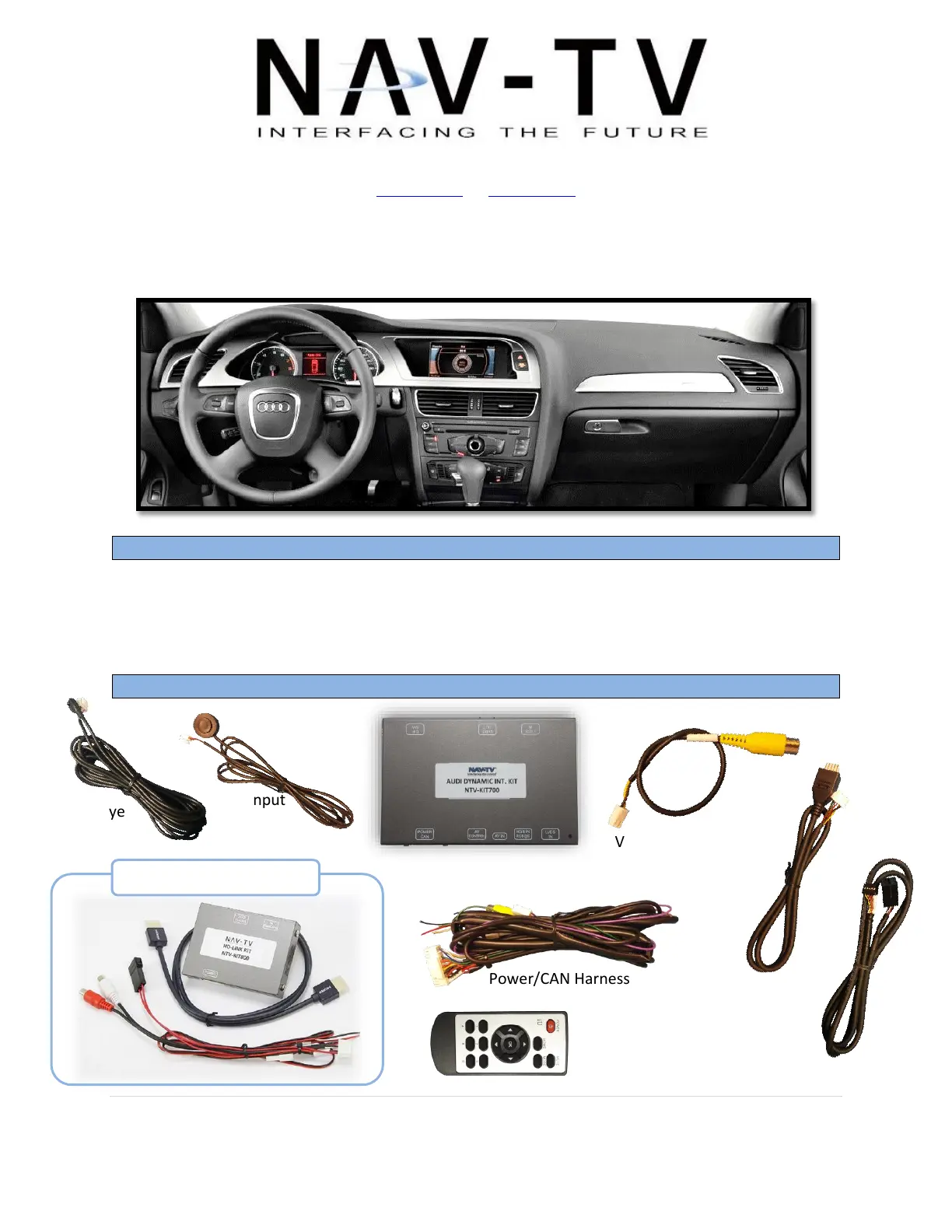

Kit Contents
VIDEO Input RCA
Power/CAN Harness
LVDS-IN Cable
AUDI-DYN INT Interface
OSD Menu
Remote
LVDS-OUT Cable
IR-Eye
Cable
Input
Toggle
Switch
HD-LINK Optional KIT800
BHM
11/21/17
NTV-DOC242
Agreement: End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for
misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is
intended for off-road use and passenger entertainment only.
2 | P a g e
Upon button presses

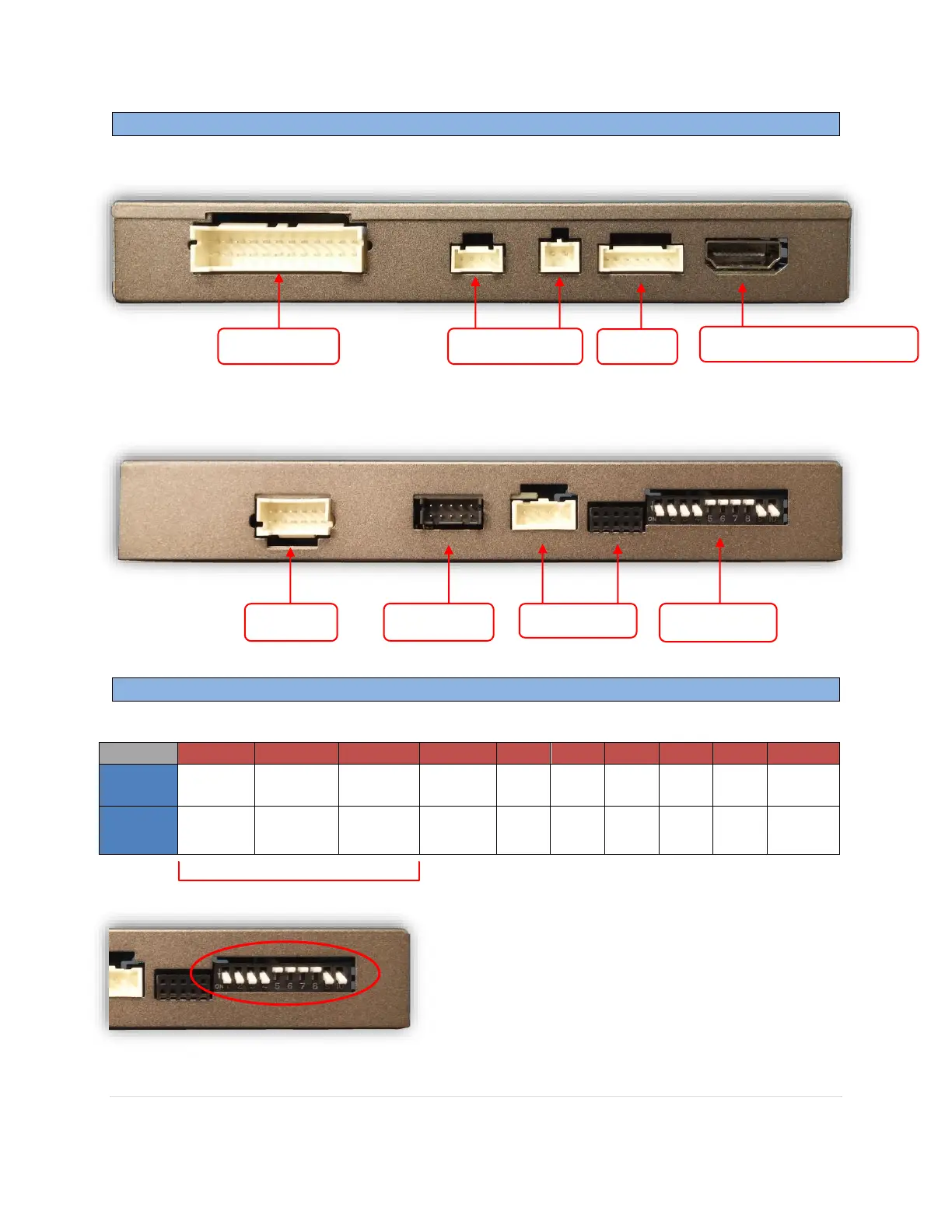

Interface Connectors
Dip Switch Settings
Dip SW:
1
2
3
4
5
6
7
8
9
10
UP
Skips
RGB
Skips
V1
Skips
V2
RVC OFF
N.C.
N.C.
N.C.
N.C.
HIGH
RES
Keep
Down
DOWN
Enables
RGB
Enables
V1
Enables
V2
RVC ON
N.C.
N.C.
N.C
N.C.
LOW
RES
Keep
Down
Power/CAN
OUOUT
Dip Switches
Note: If the dip switches are not configured prior to
installation you must remove power to the unit prior to
making adjustments to the dip switches.
LVDS-IN
LVDS-OUT
RGB IN
Not Used
OUOUT
HDMI Cable from HD-LINK
Not Used
