User’s Manual
Large Format Display
MultiSync P435
MultiSync P495
MultiSync P555
MultiSync MA431
MultiSync MA491
MultiSync MA551
MODEL: P435, P495, P555, MA431, MA491, MA551
Please find your model name on the label on the rear side of the monitor.
Table of Contents
Important Information 2 .................................................
Recommended Use & Maintenance 8 ...........................
Recommended Use 8 ....................................................
Maintenance 8 ...............................................................
Features
Chapter 1 Installation
Setup Overview 11 ........................................................
Mounting (for Customer) 14 ...........................................
Mounting (for Trained Installers) 15 ...............................
Mounting Location 16 ....................................................
Orientation 17 ................................................................
Ventilation Requirements 18 ..........................................
Mounting on Ceilings 18 ................................................
Attaching Mounting Accessories 18 ..............................
Installing and Removing the
Optional Table Top Stand .......................................... 19
Chapter 2 Parts Names and Functions

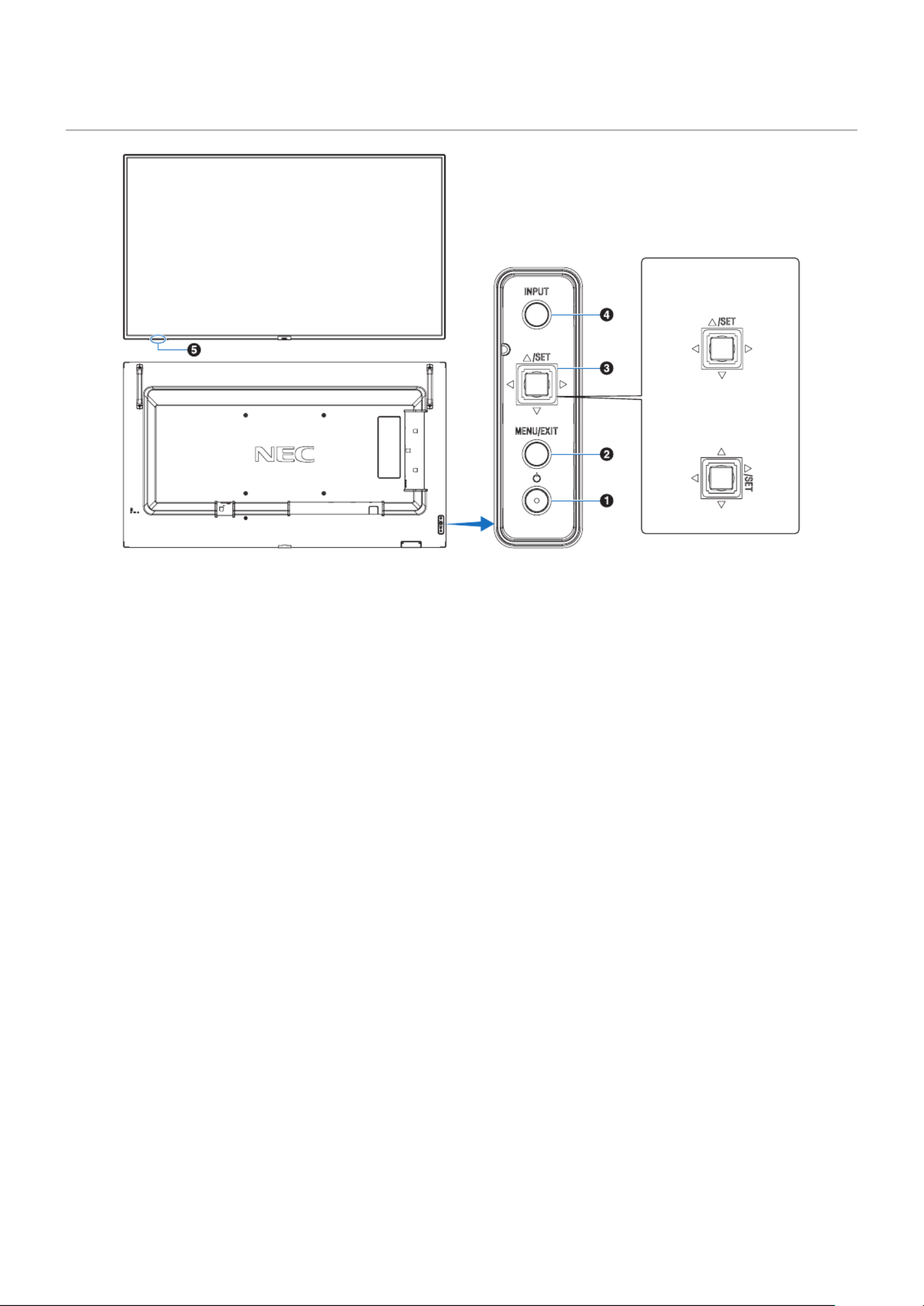

Control Panel 21 ............................................................

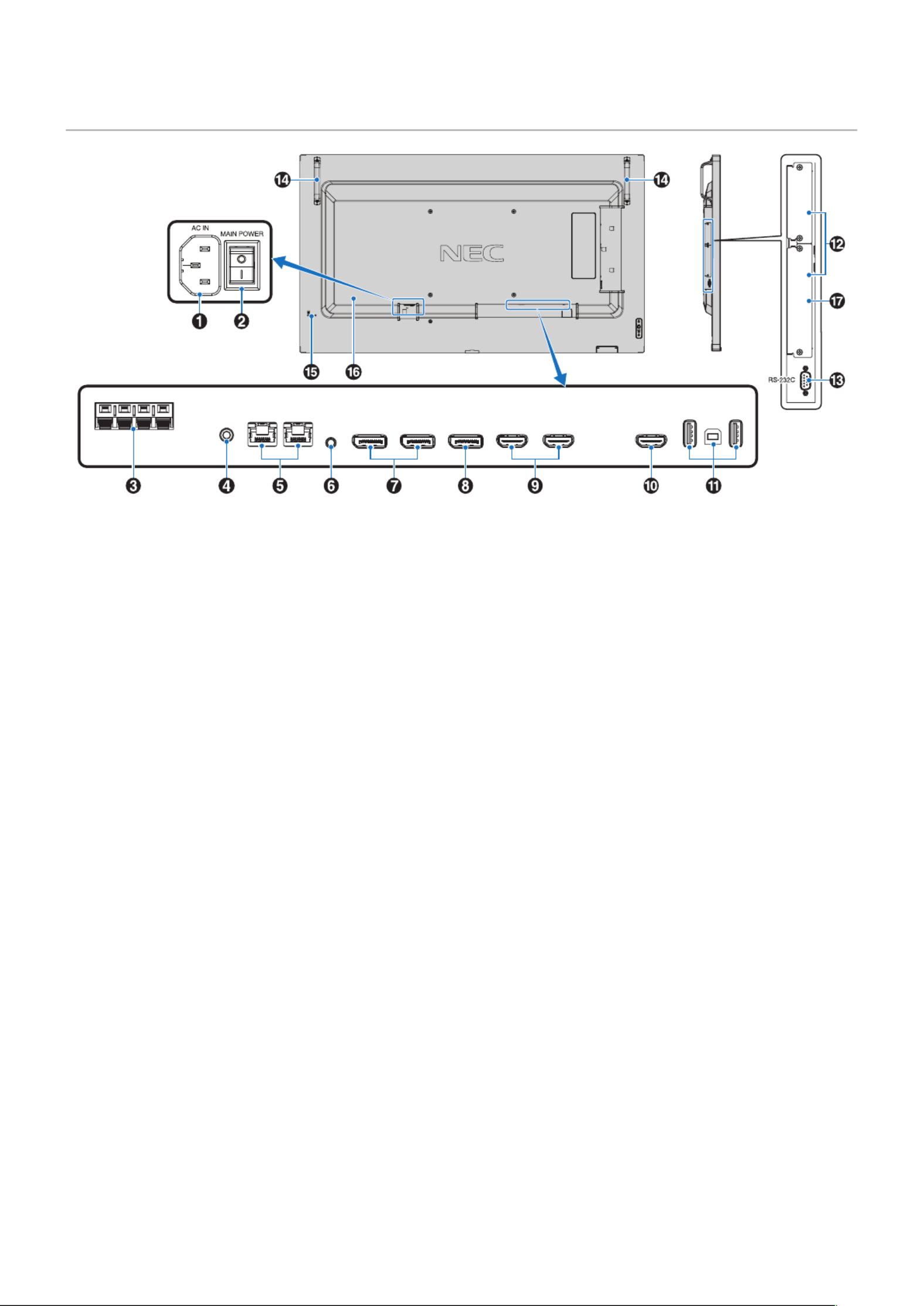

Terminal Panel 22 ..........................................................
Wireless Remote Control 24 ..........................................
Chapter 3 Connections
Wiring Diagram 27 .........................................................
Connecting to a Personal Computer 28 .........................
Connecting to a Media Device with HDMI 28 ................
HDMI-CEC Command 30 ..............................................
Internal Video Sources ............................................. 31
Option Boards for the Monitor 31 ..................................
Connecting a USB Device 31 ........................................
Chapter 4 Basic Operation
Power ON and OFF Modes 33 ......................................
Operating Range for the Remote Control 34 .................
Using Power Management 34 .......................................
Showing the Information OSD 35 ..................................
Switching Between Picture Modes 35 ...........................
Setting the Aspect Ratio 36 ...........................................
Using Point Zoom 37 .....................................................
OSD (On-Screen Display) Controls 38 ..........................
Chapter 5 Advanced Operation
Creating a Power Schedule 41 ......................................
Advanced Color Adjustment ..................................... 42
Using the SpectraView Engine 42 .................................
Using Stand-alone calibration 45 ...................................
Using Other Picture Modes 48 ......................................
Setting Security and Locking
the Monitor Controls 49 .................................................
Password Security 49 ....................................................
Locking the Button Controls 51 .....................................
Chapter 6 Multi-Monitor Setup
Connecting Multiple Monitors 54 ...................................
Video Out Connection 57 ..............................................
Setting the Remote Control ID Function 58 ...................
Chapter 7 External Control
Controlling the Monitor via RS-232C 60 ........................
Controlling the Monitor via LAN 61 ................................
HTTP Browser 62 ..........................................................
OSD Menu Settings in the Monitor Web controls 63 .....
Network Settings 64 ......................................................
Commands 69 ...............................................................
Proof of Play 70 .............................................................
Chapter 8 Troubleshooting
Screen Image and Video Signal Issues 72 Hardware Issues 73 .................... .......................................................
Chapter 9 Specifications
Compatible signal list 76 ................................................
P435 77 .........................................................................
P495 78 .........................................................................
P555 79 .........................................................................
MA431 80 ......................................................................
MA491 81 ......................................................................
MA551 82 ......................................................................
English−2
Important Information
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE
THE FOLLOWING WHEN SETTING UP AND
USING THE LCD COLOR MONITOR:

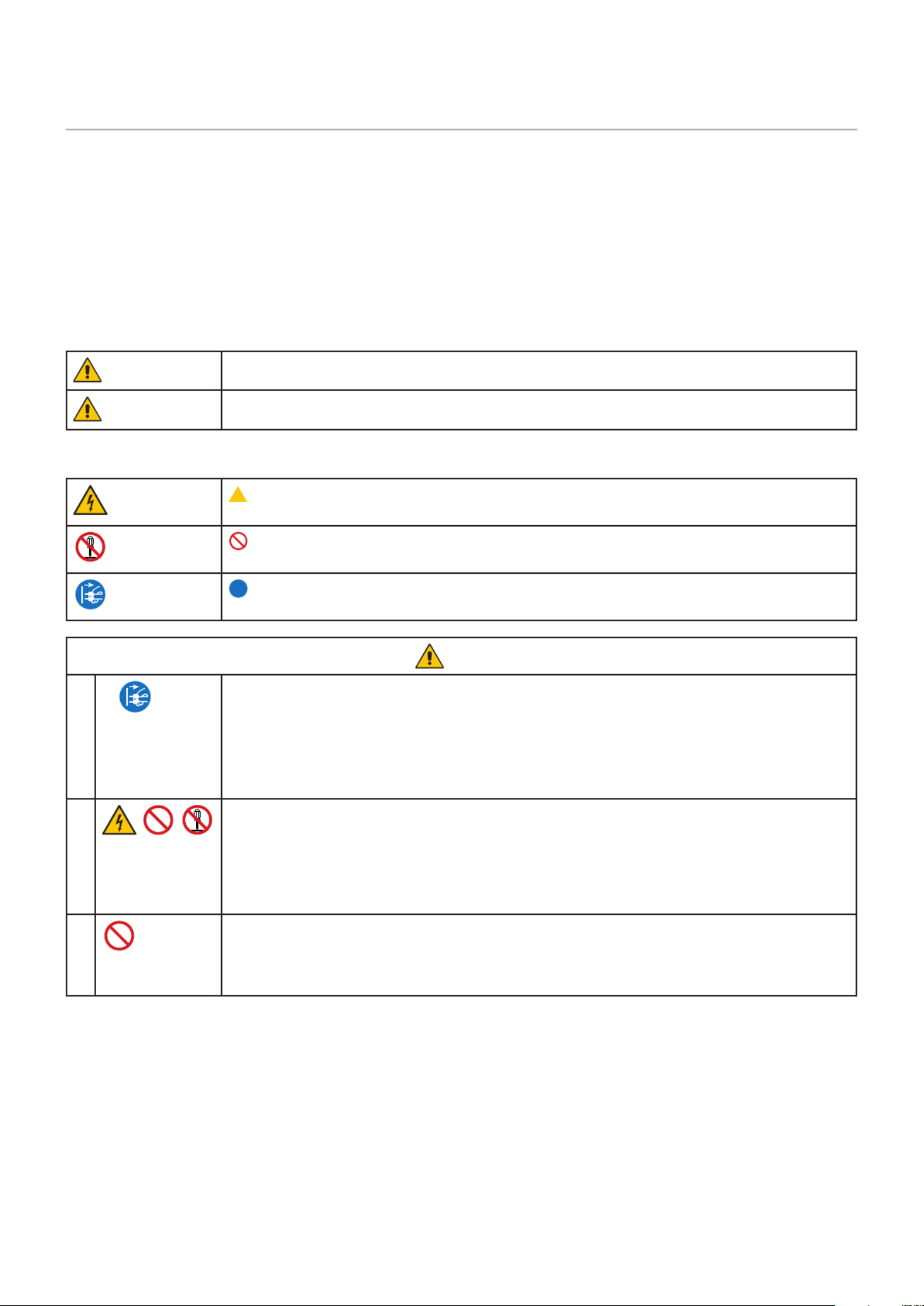

About the Symbols
To ensure safe and proper use of the product, this manual uses a number of symbols to prevent injury to you and others as well
as damage to property. The symbols and their meanings are described below. Be sure to understand them thoroughly before
reading this manual.
WARNING Failing to heed this symbol and handling the product incorrectly could result in accidents leading to
major injury or death.
CAUTION Failing to heed this symbol and handling the product incorrectly could result in personal injury or
damage to surrounding property.
Examples of symbols
Indicates a warning or caution.
This symbol indicates you should be careful of electric shocks.
Indicates a prohibited action.
This symbol indicates something that must be prohibited.
Indicates a mandatory action.
This symbol indicates that the power cord should be unplugged from the power outlet.
WARNING
1
UNPLUG THE
POWER CORD
Unplug the power cord if the product malfunctions.
Should the product emit smoke or strange odors or sounds, or if the product has been dropped or
the cabinet broken, turn off the product’s power, then unplug the power cord from the power outlet.
Failure to do so could not only lead to fire or electric shock, it could also result in vision impairment.
Contact your dealer for repairs.
Never try to repair the product on your own. Doing so is dangerous.
2
Do not open or remove the product’s cabinet.
Do not disassemble the product.
There are high voltage areas in the product. Opening or removing product covers and modifying the
product may expose you to electric shock, fire, or other risks.
Refer all servicing to qualified service personnel.
3
Do not use the product if it has structural damage.
If you notice any structural damage such as cracks or unnatural wobbling, please refer servicing
to qualified service personnel. If the product is used in this condition, the product may fall or cause
personal injury.
English−3
WARNING
4
Handle the power cord with care. Damaging the cord could lead to fire or electric shock.
• Do not place heavy objects on the cord.
• Do not place the cord under the product.
• Do not cover the cord with a rug, etc.
• Do not scratch or modify the cord.
• Do not bend, twist or pull the cord with excessive force.
• Do not apply heat to the cord.
Should the cord be damaged (exposed core wires, broken wires, etc.), ask your dealer to replace it.
5Do not touch the power plug if you hear thunder. Doing so could result in electric shock.
6
Please use the power cord provided with this product in accordance with the power cord table.
If a power cord is not supplied with this product, please contact NEC. For all other cases, please
use the power cord with the plug style that matches the power socket where the product is located.
The compatible power cord corresponds to the AC voltage of the power outlet and has been
approved by, and complies with, the safety standards in the country of purchase.
7
For proper installation it is strongly recommended to use a trained service person.
Failure to follow the standard installation procedures could result in damage to the product or injury
to the user or installer.
8

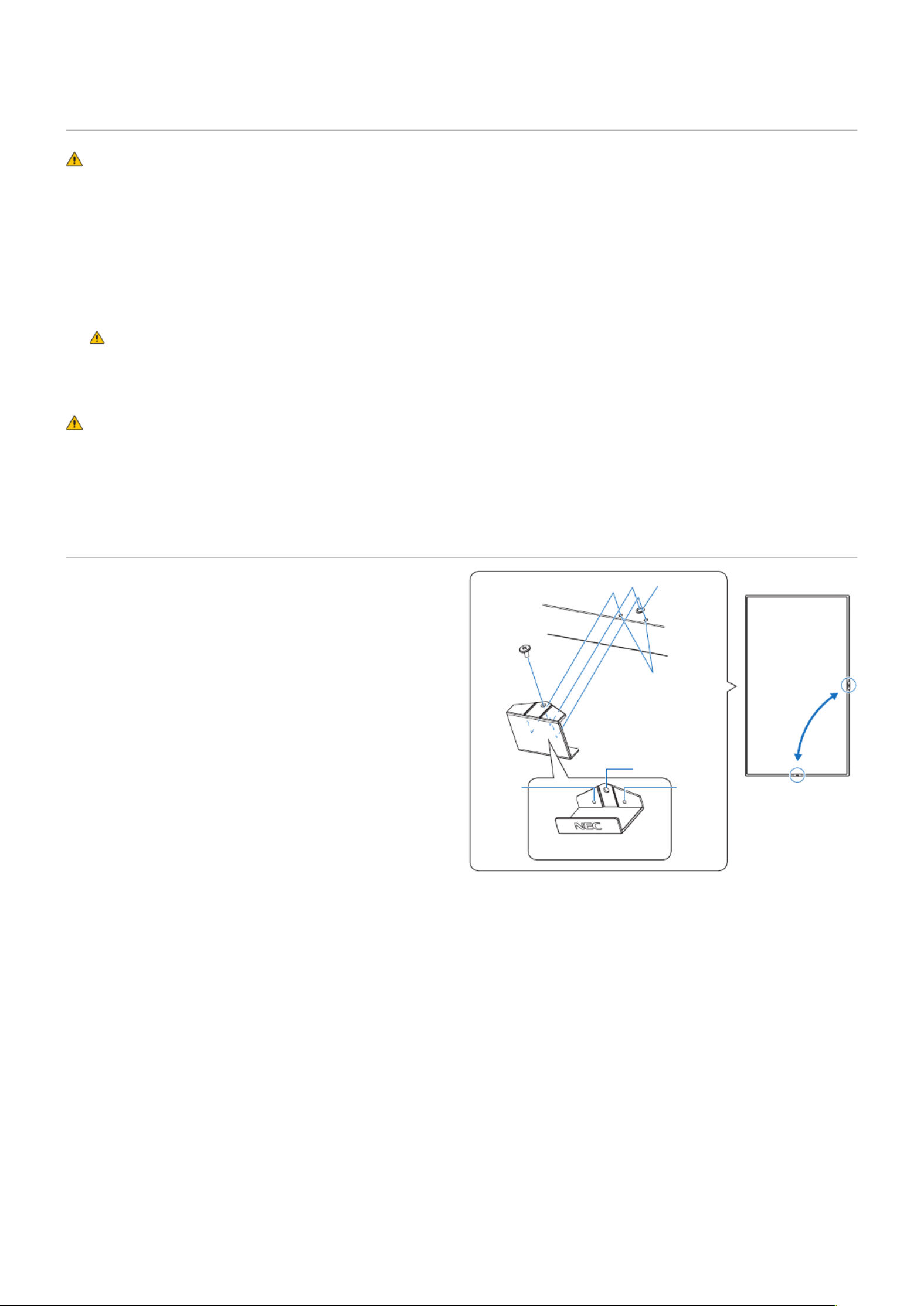

Please install the product in accordance with the following information.
This product cannot be used or installed without the table top stand or other mounting accessory for
support.
• P495/P555/MA491/MA551: DO NOT use this product on the floor with the table top stand.
Please use this product on a table or with a mounting accessory for support.
When transporting, moving, or installing the product, please use as many people as necessary to be
able to lift the product without causing personal injury or damage to the product.
We recommend two or more people.
Please refer to the instructions included with the optional mounting equipment for detailed
information about attaching or removing.
Do not cover the vent on the product. Improper installation of the product may result in damage to
the product, an electric shock or fire.
Do not install the product in the locations below:
• Poorly ventilated spaces.
• Near a radiator, other heat sources, or in direct sunshine.
• Continual vibration areas.
• Humid, dusty, steamy, or oily areas.
• Outdoors.
• High-temperature environment where humidity changes rapidly and condensation is likely to
occur.
• A ceiling or wall that is not strong enough to support the product and mounting accessories.
Do not mount the product upside down.
English−4
WARNING
9
Prevent tipping and falling for earthquakes or other shocks.
To prevent personal injury or damage to the product caused by tipping over due to earthquakes or
other shocks, make sure to install the product in a stable location and take measures to prevent
falling.
The measures to prevent falling and tipping are intended for reducing the risk of injury, but may not
guarantee the effectiveness against all earthquakes.
The product may tip causing personal injury.
• When using the product with the optional table top stand, fasten the product to a wall using a
cord or chain that can support the weight of the product in order to prevent the product from
falling. Fasten the cord or chain to the product using the clamps and screws provided with the
product or the table top stand.
Depending on the table top stand, the stand has the structure for preventing tipping.
• Be sure to remove the cord or chain from the wall before moving the product to prevent personal
injury or damage to the product.
The product may fall causing personal injury.
• Do not attempt to hang the product using an installation safety wire.
• Please install the product in an area on the wall or ceiling strong enough to support the weight of
the product.
• Prepare the product using mounting accessories, such as hook, eye bolt, or mounting parts, and
then secure the product with a safety wire. The safety wire must not be tight.
• Please make sure the mounting accessories are strong enough to support the product weight
and size before installing it.
Stability Hazard.
The product may fall, causing serious personal injury or death. To prevent injury, this product must be
securely attached to the floor/wall in accordance with the installation instructions.
Many injuries, particularly to children, can be avoided by taking simple precautions such as:
• ALWAYS use stands or installation methods recommended by the manufacturer of the product
set.
• ALWAYS use furniture that can safely support the product.
• ALWAYS ensure the product is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the product or its
controls.
• ALWAYS route cords and cables connected to your product so they cannot be tripped over, pulled
or grabbed.
• NEVER place a product in an unstable location.
• NEVER place the product on tall furniture (for example, cupboards or bookcases) without
anchoring both the furniture and the product to a suitable support.
• NEVER place the product on cloth or other materials that may be located between the product
and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the
top of the product or furniture on which the product is placed.
If the existing product is going to be retained and relocated, the same considerations as above
should be applied.
English−5

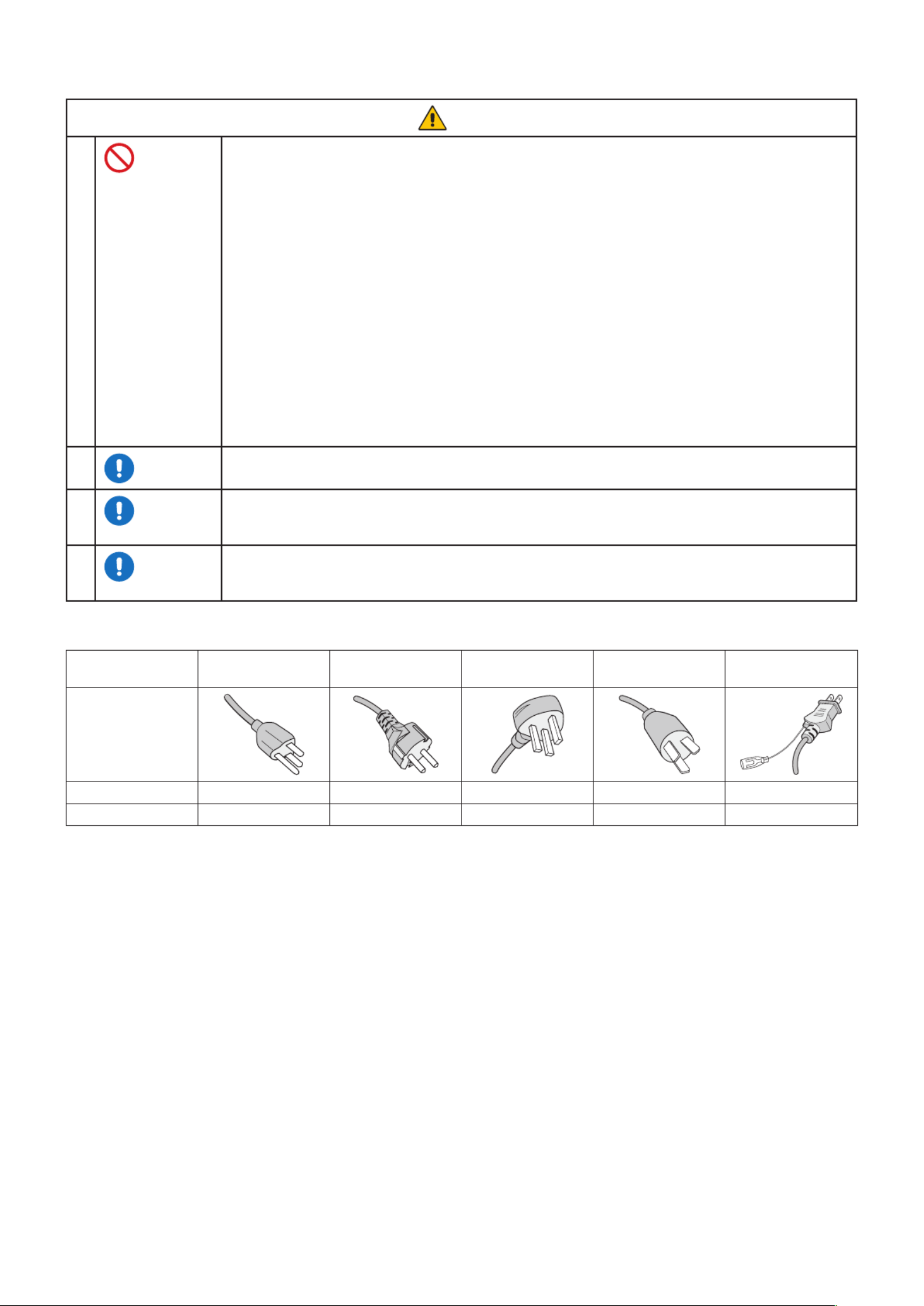

WARNING
10 Do not place this product on a sloping or unstable cart, stand or table. Doing so could lead to falling
or tipping and cause personal injury.
11
Do not insert objects of any kind into the cabinet slots. It may cause electric shock, fire, or product
failure. Keep objects away from children and babies.
12
Do not spill any liquids into the cabinet or use your product near water.
Immediately turn off the power and unplug your product from the wall outlet, then refer servicing
to qualified service personnel. It may cause an electric shock or start a fire.
13 Do not use flammable gas sprays to remove dust when cleaning the product. Doing so could lead to
a fire.
14
Securely fasten the Option Board.
Ensure the Option Board is securely fastened using the original screws to prevent the OPTION from
falling out the product. A falling Option Board may expose you to danger.
English−6
CAUTION
1
Handling the power cord.
Handle the power cord with care. Damaging the cord could lead to fire or electric shock.
• When connecting the power cord to the product’s AC IN terminal, make sure the connector is
fully and firmly inserted.
• Fasten the power cord to the product by attaching the screw and clamp to prevent loose
connection. (Recommended Fasten Force: 120 - 190 N•cm).
• Do not connect or disconnect the power cord with wet hands.
• When connecting or disconnecting the power cord, pull the power cord out by holding onto its
plug.
• When cleaning the product, for safety purposes, unplug the power cord from the power outlet
beforehand. Regularly dust off the power cord by using a soft dry cloth.
• Before moving the product, make sure the product power is off, then unplug the power cord
from the power outlet and check that all cables connecting the product to other devices are
disconnected.
• When you are not planning to use the product for an extended period of time, always unplug the
power cord from the power outlet.
• This equipment is designed to be used in the condition of the power cord connected to the earth.
If the power cord is not connected to the earth, it may cause electric shock. Please make sure the
power cord is earthed properly.
2Do not bind the power cord and the USB cable. It may trap heat and cause a fire.
3
Do not connect to a LAN with excessive voltage.
When using a LAN cable, do not connect to a peripheral device with wiring that might have excessive
voltage. Excessive voltage on the LAN port may cause an electric shock.
4
Do not climb on the table where the product is installed. Do not install the product on a wheeled table
if the wheels on the table have not been properly locked. The product may fall, causing damage to
the product or personal injury.
5
Installation, removal, and height adjustment of the optional table top stand.
• When installing the table top stand, handle the unit with care to avoid pinching your fingers.
• Installing the product at the wrong height can cause tipping.
Please install your product at proper height to prevent personal injury or damage to the product.
6
Do not push or climb on the product. Do not grab or hang onto the product.
The product may fall, causing damage to the product or personal injury.
7Do not impact the LCD panel surface. It can cause serious damage to the product or personal injury.
English−7
CAUTION
8
Incorrect usage of batteries can result in leaks or bursting.
• Insert batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the
battery compartment.
• Do not mix battery brands.
• Do not combine new and old batteries. This can shorten battery life or cause liquid leakage of
batteries.
• Remove dead batteries immediately to prevent battery acid from leaking into the battery
compartment.
• Do not touch exposed battery acid, it may injure your skin.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, can
result in an explosion.
• Leaving a battery in an extremely high temperature surrounding environment, or a battery subject
to extremely low air pressure, can result in an explosion or the leakage of flammable liquid or gas.
• Contact your dealer or local authorities when disposing of batteries.
9Suitable for entertainment purposes at controlled luminous environments, to avoid disturbing
reflections from the screen.
10
When running the cooling fan continuously, we recommend wiping clean the ventilation holes a
minimum of once a month. Failure to do so could lead to fire or electric shock or damage to the
product.
11
To ensure the product’s reliability, please clean the ventilation holes at the rear side of the cabinet
at least once a year to remove dirt and dust. Failure to do so could lead to fire or electric shock or
damage to the product.
Power Cord Table
Plug Type North America European
Continental U.K. Chinese Japanese
Plug Shape
Region U.S.A./Canada EU U.K. China Japan
Voltage 120* 230 230 220 100
* Please use this power cord under 125 V power supply.
NOTE: This product can only be serviced in the country where it was purchased.
Connecting to a TV*1
• Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code
(NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.
• The screen of the coaxial cable is intended to be connected to earth in the building installation.
*1: The product you purchased may not have this feature.
English−8
Recommended Use & Maintenance
Recommended Use
Ergonomics
To realize the maximum ergonomic benefits, we recommend the following:
• For optimum performance of the monitor, allow 20 minutes for warming up. Avoid reproduction of still patterns on the monitor
for long periods of time to avoid image persistence (after image effects).
• Rest your eyes periodically by focusing on an object at least 5 feet away. Blink often.
• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections.
• Adjust the monitor’s brightness, contrast and sharpness controls to enhance readability.
• Get regular eye checkups.
• Use the preset Size and Position controls with standard input signals.
• Use the preset color settings.
• Use non-interlaced signals.
• Do not view the primary color blue on a dark background. It is difficult to see and may cause eye fatigue due to insufficient
contrast.
Maintenance
Cleaning the LCD Screen
• When the LCD screen is dusty, please gently wipe with a soft cloth.
• Clean the LCD screen surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!
• Please do not rub the LCD screen with a hard or abrasive material.
• Please do not apply pressure to the LCD screen surface.
• Please do not use OA cleaner as it will cause deterioration or discoloration on the LCD screen surface.
Cleaning the Cabinet
• Unplug the power supply.
• Gently wipe the cabinet with a soft cloth.
• To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.
NOTE: DO NOT clean with benzene thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner,
soap powder, or insecticide. Rubber or vinyl should not be in contact with the cabinet for an extended period of time.
These types of fluids and materials can cause the paint to deteriorate, crack or peel.
English−9
Features
• High definition
– UHD panel employed
The high-resolution 4K display (3840 x 2160), which boasts four times the pixel resolution of full-HD displays, enables
precise reproduction of details in 4K video and high-resolution images.
Moreover, use of a wide color gamut panel in combination with our proprietary SpectraView Engine ensures highly
precise reproduction of color.
– 8K Solution
Supports 8K signals. (Input via DisplayPort 1 only)
Combining screens using the Tile Matrix feature (2 V MONITORS x 2 H MONITORS) using DisplayPort Daisy Chain
cabling enables the display of real 8K video.
• Stable and safe operation
– Cooling fan
Depending on the conditions or location of use, a cooling fan works to ensure the liquid crystal display stays cool during
prolonged use, reducing the burden on the display.
– Dual Daisy Chain Mode
Use of both HDMI and DisplayPort output at the same time ensures video continues to be shown even if one of the video
signals is interrupted.
– Equipped with G-sensor
When installing the monitor vertically, viewers are given appropriate installation guidance.
• Simple and convenient
– Remote resource management/operation status management/control
Compatibility with NaViSet Administrator 2 enables network operation of multiple NEC monitors and projectors, as well
as network-based asset management.
– Simple tile matrix feature
Video signals from HDMI and DisplayPort can easily be shown across multiple screens.
– Preset mode feature
Creating different visual and audio settings for various purposes ensures simple monitor operation.
– Audio/Video Mute
Audio and video can be muted individually.
– Still image feature
Freezes the video so that its still image shows on-screen.
– Multi-picture feature (PIP/PBP)
Supports multi-screen viewing using two or four screens.
– Quick input change
Enables seamless switching between two selected input sources.
– Joystick key
A joystick-like mechanism on the screen itself enables intuitive operation.
– Automatic time setting
The current time is taken from an NTP server for simple time setting and syncing.
• Wide-ranging expandability
– Intel® Smart Display Module (Intel® SDM) compatible option slot (Intel® SDM Small (Intel® SDM-S)/Intel® SDM
Large (Intel® SDM-L))
Intel® SDM enables compatibility with the scaling and operating methods of various systems.
English−10
Chapter 1 Installation
This Chapter Includes:
>“Setup Overview” on page 11
>“Mounting (for Customer)” on page 14
>“Mounting (for Trained Installers)” on page 15
>“Attaching Mounting Accessories” on page 18
NOTE:
For box contents, please refer to the printed contents sheet provided in the box.
Product warranty does not cover damage caused by improper installation. Failure to follow these recommendations could result
in voiding the warranty.
English−11
Setup Overview
1. Determine the installation location
WARNING:Please refer to “WARNING 7” “WARNING 8” “WARNING 9”, and .
NOTE:To avoid scratching the LCD panel, always place a soft cloth, such as a blanket that is larger than the monitor’s
screen area, on the table before laying the monitor face down when installing the monitor stand or mounting
accessories.

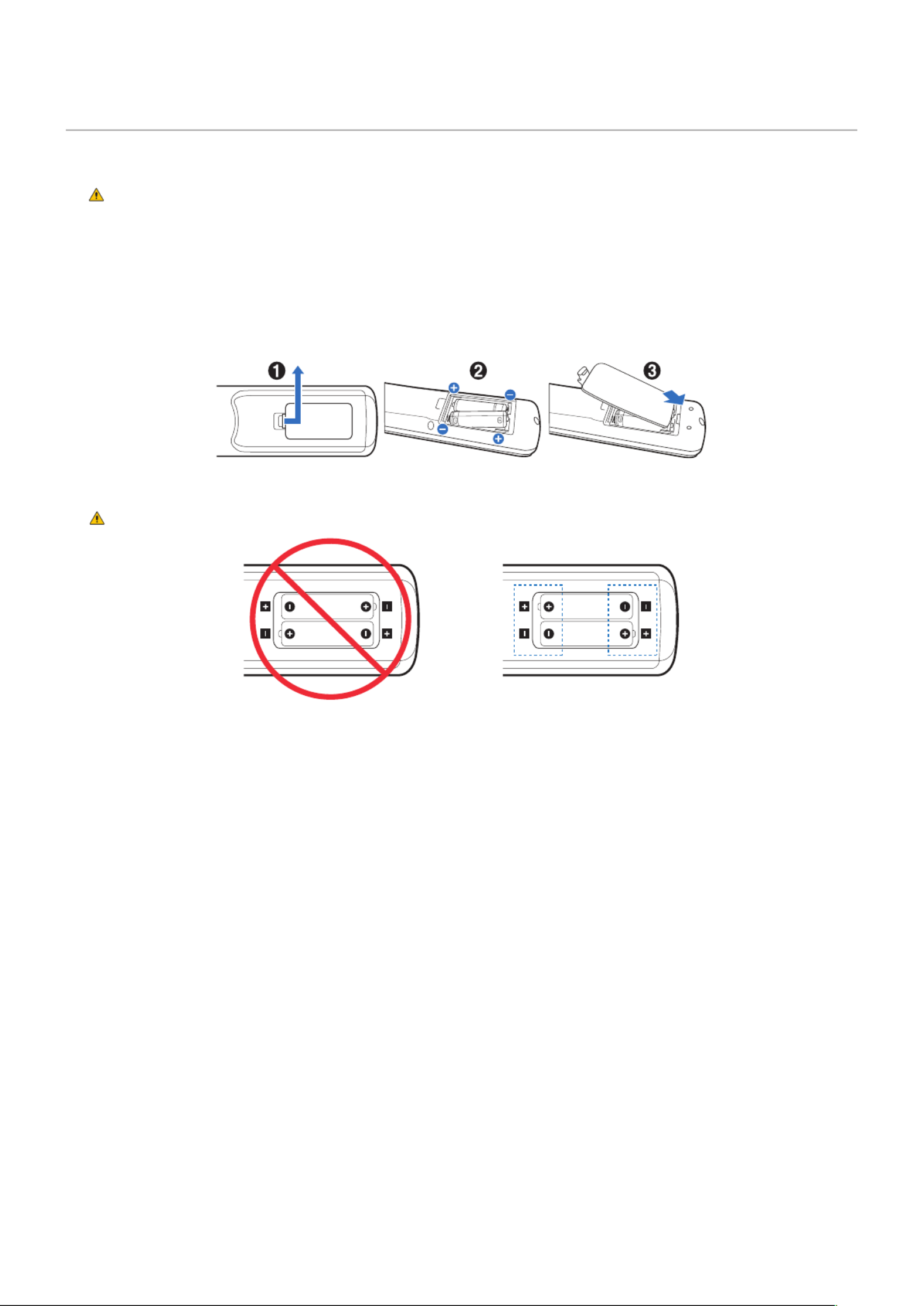

2. Install the remote control batteries
The remote control is powered by two 1.5 V AAA batteries.
To install or replace batteries:
NEC recommends the following battery use:
CAUTION:Please refer to “CAUTION 8”.
NOTE:If you do not intend to use the remote control for a long period of time, remove the batteries.
3. Connect external equipment (see page 26)
• To protect the external equipment, turn off the main power before making connections.
• Refer to the user’s manual of your equipment for further information.
NOTE:Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in
loss of image.
English−12

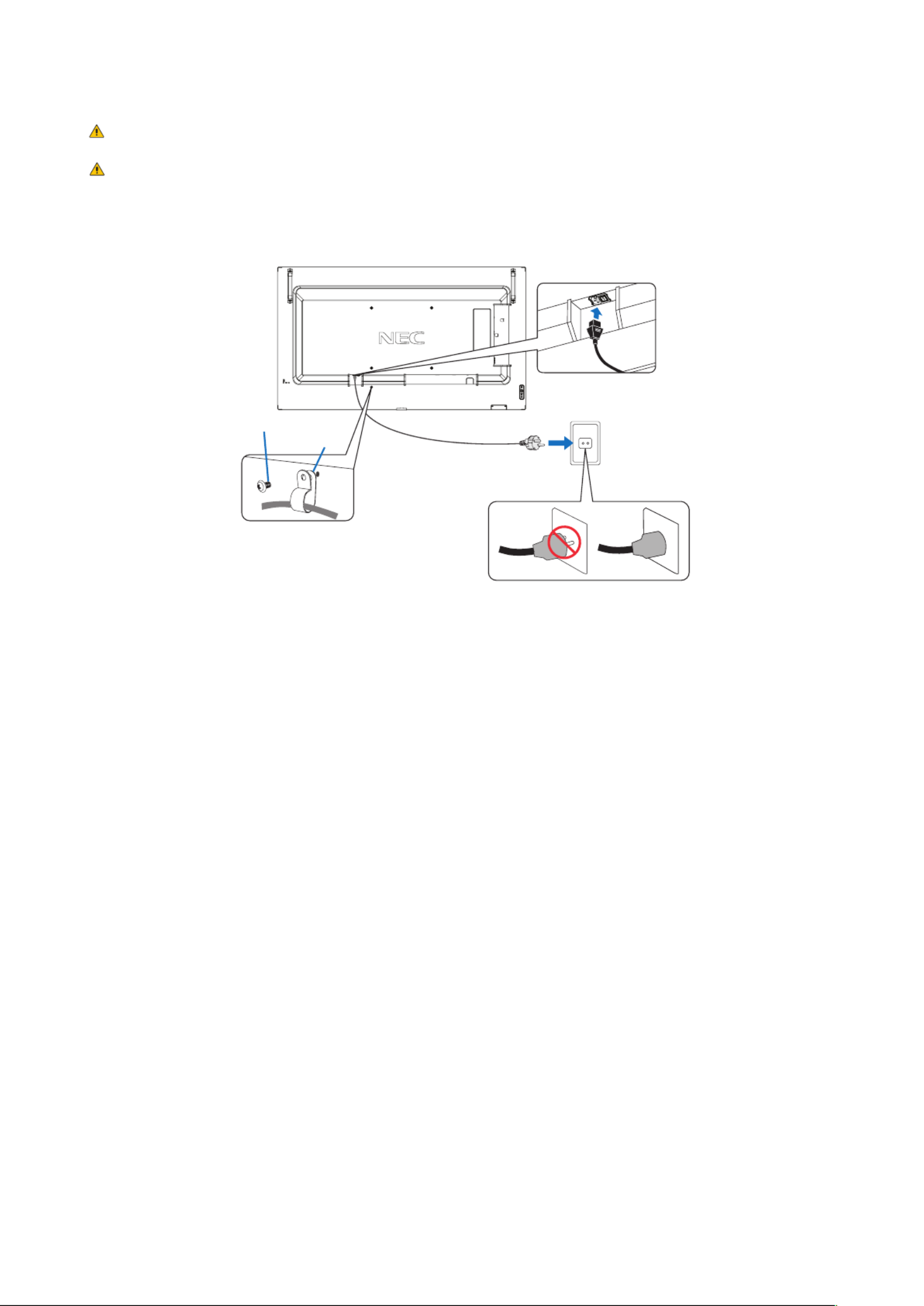

4. Connect the supplied power cord
WARNING:Please refer to the “Important Information” section of this user’s manual for proper selection of an
AC power cord.
CAUTION:Please refer to “CAUTION 1”.
NOTE:• The monitor should be installed close to an easily accessible power outlet.
• Please make sure that enough power is supplied to the monitor. Please refer to the “Power Supply” in the
specification (See “P435” on page 77 “P495” on page 78 “P555” on page 79 “MA431” on page 80, , , ,
“MA491” on page 81 “MA551” on page 82 and ).
Clamp
Screw
5. Cable information
CAUTION: Use the provided specified cables with this product so as not to interfere with radio and television reception.
For HDMI, USB and DisplayPort, please use a shielded signal cable.
Use of other cables and adapters may cause interference with radio and television reception.
6. Turn on the power for the monitor and the external equipment
Switch on the monitor power first.
7. Operate the attached external equipment
Select the input source for the attached equipment to show the image signal on screen.
NOTE:If you have selected anything other than HDMI1 for the input, if the main power is turned off, DDC communication
will not be available.
8. Adjust the sound
Make volume adjustments when required.
9. Adjust the picture settings (see page 90)
If necessary, make adjustments to the backlight, colors, contrast, and image position in the OSD PICTURE menu.
English−13
10. Recommended adjustments
The backlight used for this monitor has a limited life and its brightness decreases with the usage time.
Also, if the same still image is shown for a long time, “Image Persistence” may occur. “Image Persistence” is a phenomenon
in which the image of an LCD remains visible after the device has been turned off.
The “Image Persistence” is gradually eliminated by changing the screen, but if the same screen is shown for too long, the
“Image Persistence” will not disappear.
To avoid shortening this monitor’s lifetime, please note the following:
• Turn off the main power of this monitor when not in use.
• Use the button on the main unit or the STANDBY button on the remote control to put the unit in standby mode.⏻
• Use [POWER SAVE SETTINGS] in the [PROTECT] OSD menu. When there is no input signal the monitor will
automatically switch to power save mode.
• If you cover the panel surface of the main unit with a protective cover made of glass or acrylic, the panel surface will be
sealed and the internal temperature will rise.
Use the screen saver, the computer’s power management function, or reduce the monitor’s brightness to prevent the
internal temperature from rising.
• To reduce the load on the LCD panel, use [SCREEN SAVER] in the [PROTECT] OSD menu.
• Use [SCHEDULE] in the OSD menu to automatically power the monitor on or stand by at any time.
NOTE:When using the schedule function, be sure to set [DATE & TIME] in the [SYSTEM] OSD menu.
English−14
Mounting (for Customer)
WARNING: Please refer to “WARNING 7”.
Please contact your supplier as they may be able to provide a list of qualified installation professionals. Mounting on a wall or
ceiling and hiring a technician is the customer’s responsibility.
Maintenance
• Periodically check for loose screws, gaps, distortions, or other problems that may occur with the mounting equipment.
If a problem is detected, please refer to qualified personnel for service.
• Regularly check the mounting location for signs of damage or weakness that may occur over time.
WARNING:Please refer to “WARNING 8”.
Prevent Tipping
WARNING: Please refer to “WARNING 7” “WARNING 9”and .
• Please refer to the table top stand manual of ST-401 or ST-43M for “structure of Prevent Tipping”.
Before attaching the monitor to the wall, make sure that the wall can support the weight of the monitor.
Changing the Logo Ornament Position
When using the monitor in the portrait position, the logo
ornament position can be changed.
Removing the logo ornament: unscrew the installed screw
then take off the logo ornament.
Attaching the logo ornament: adjust the protrusions inside of
the logo ornament into the protrusion holes on the bezel. Make
sure the hole for the screw on the logo ornament and the hole
for the screw on the bezel are aligned. Install the logo ornament
with the screw which is used for installing the logo ornament.
(Recommended Fasten Force: 30-40 N•cm).
NOTE: Do not use any other screw to install the logo ornament.
Inside of logo ornament
Screw hole
Protrusion
Screw hole
Protrusion holes
Protrusion
English−15
Mounting (for Trained Installers)
WARNING: Please refer to “WARNING 9”.
Carefully inspect the location where the unit is to be mounted. Not all walls or ceilings are capable of supporting the weight of
the unit. The weight of this monitor is provided in the specifications (see “P435” on page 77 “P495” on page 78, , “P555”
on page 79, “MA431” on page 80, “MA491” on page 81 and “MA551” on page 82). Product warranty does not cover
damage caused by improper installation, re-modeling, or natural disasters. Failure to comply with these recommendations could
result in voiding the warranty.
To ensure safe installation, use two or more brackets to mount the unit. Mount the unit to at least two points on the installation
location.
WARNING: Please refer to the section.“Important Information”
Please note the following when mounting on a wall or ceiling:
• When using mounting accessories other than those that are NEC approved, they must
comply with the VESA-compatible (FDMlv1) mounting method.
• NEC recommends mounting interfaces that comply with UL1678 standard in North America.
• Prior to mounting, inspect the installation location to ensure that it is strong enough to
support the weight of the unit so that the unit will be safe from harm.
• For detailed information, refer to the instructions included with the mounting equipment.
NEC strongly recommends using the screws as shown below.
If using screws longer than below mentioned, check the depth of the hole.
Screw Size Bracket Hole
(C)
No Thread
(D)
Recommended
Fasten Force
(A) (B)
M6 10-12 mm + thickness of bracket and washer in length 8.5 mm 4.5 mm 390 ~ 670 N•cm≤Ø

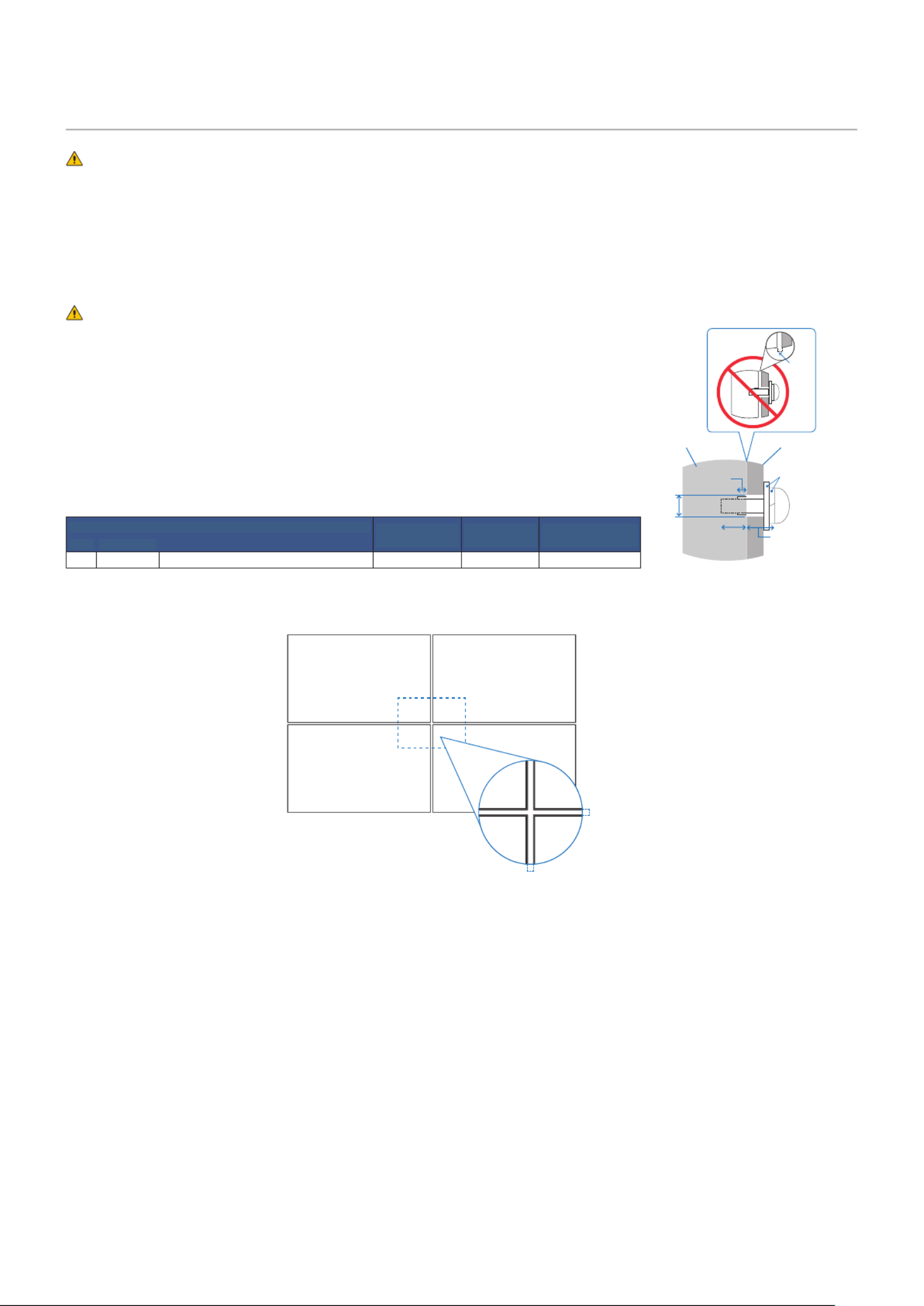

NOTE: When used in a video wall configuration for a long time, slight expansion of the monitors may happen due to
temperature changes. It is recommended that a gap of over one millimeter is kept between adjacent monitor edges.
> 1 mm
> 1 mm
A
Unit
C
Washers
Mounting
Bracket
No thread
D
Thickness of
bracket and
washers
B
Gap
English−16
Installing a safety wire
WARNING: Please refer to “WARNING 9”.
CAUTION: Please refer to “CAUTION 7”.
NOTE:When installing, do not apply pressure to the LCD panel or excessive force to any part of the monitor by pushing or
leaning on it. This may cause the monitor to become distorted or damaged.

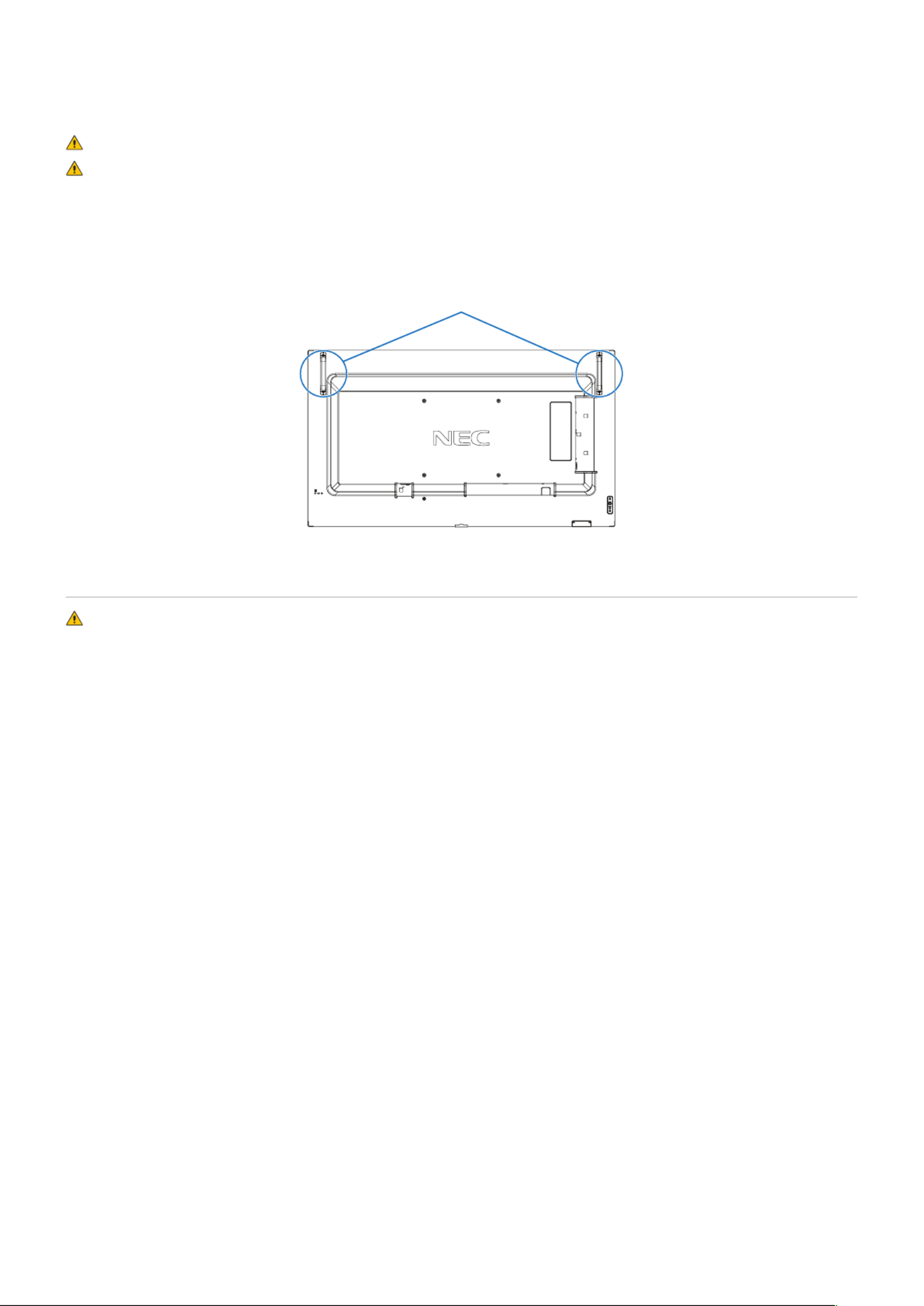

Handles for safety wire
(Fasten force: 120 - 190 N•cm).
Safety wire for landscape position
Mounting Location
WARNING: Please refer to “WARNING 8”.
NOTE:Allow for adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away
from the monitor and from the mounting equipment.
English−18

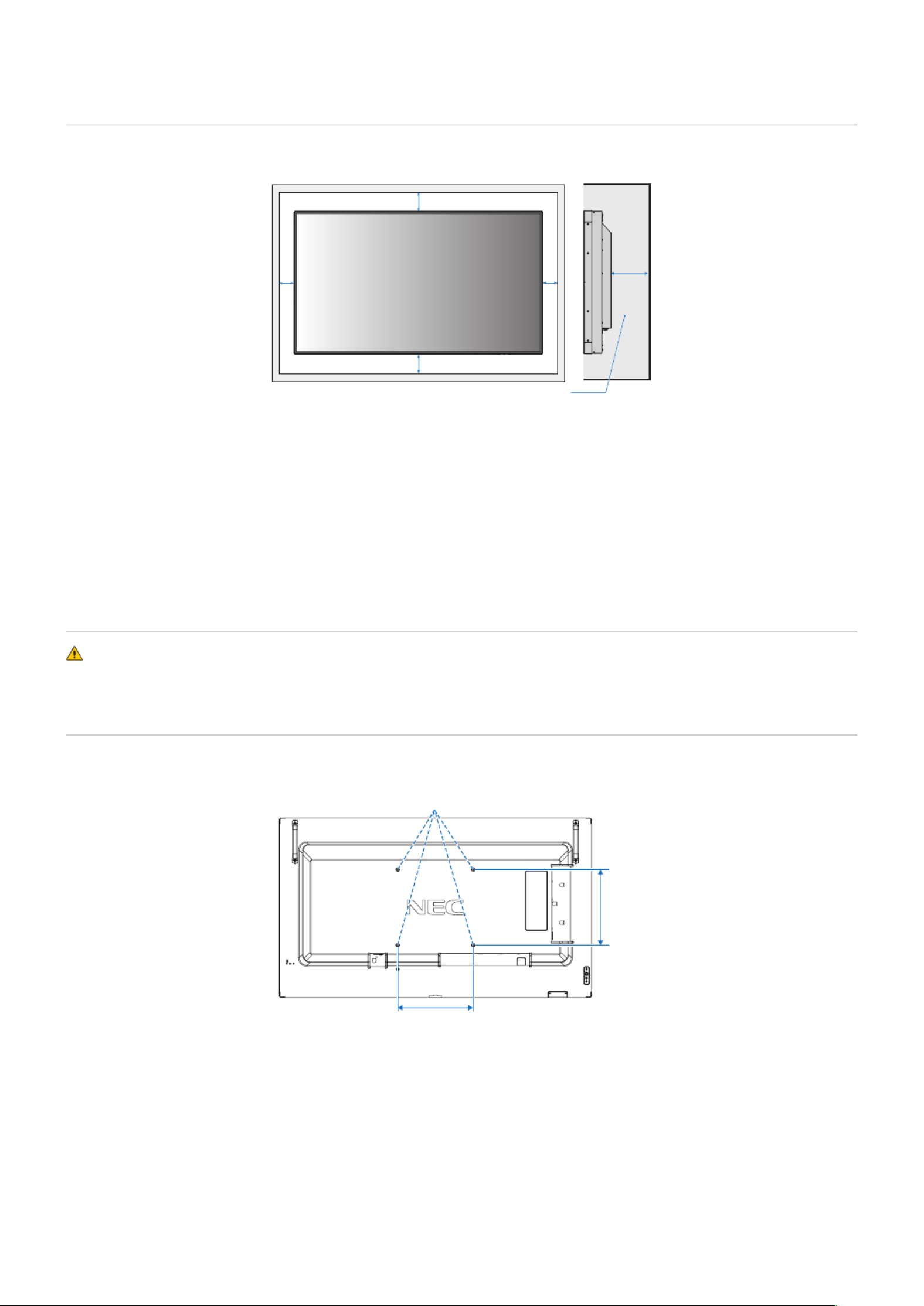

Ventilation Requirements
When mounting in an enclosed space or recessed area, leave adequate room between the monitor and the enclosure to allow
heat to disperse, as shown below.
≥100 mm
≥100 mm
≥30 mm
≥100 mm
≥100 mm
<40 °C
NOTE: • Allow adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away
from the unit and the mounting equipment; especially when you use monitors in a multiple screen configuration.
• This monitor has internal temperature sensors.
If the monitor overheats, a “Caution” warning appears. If the “Caution” warning appears, stop using the unit, turn off
the power and allow it to cool.
If the monitor is used in an enclosed area or if the LCD panel is covered with a protective screen, and the
temperature is higher than the normal operating temperature, please turn the cooling fan to [ON] within the
[FAN CONTROL] menu within the OSD menu (see ).page 101
Mounting on Ceilings
WARNING: Please refer to “WARNING 8” and “WARNING 9”.
Attaching Mounting Accessories
The monitor is designed for use with the VESA mounting system. Be careful to avoid tipping the monitor when attaching
accessories.
300 mm
300 mm
VESA Mounting Interface M6
Mounting accessories can be attached with the monitor in the face down position. To avoid scratching the LCD panel, always
place a soft cloth, such as a blanket that is larger than the monitor’s screen area, on the table before laying the monitor face
down. Make sure there is nothing on the table that can damage the monitor.
When using mounting accessories other than those that are NEC compliant and approved, they must comply with the VESA Flat
Display Mounting Interface Standard (FDMI).
NOTE: Prior to installation, place the monitor face down on a flat even surface that is larger than the monitor screen.
Use a sturdy table that can easily support the weight of the monitor.
English−19

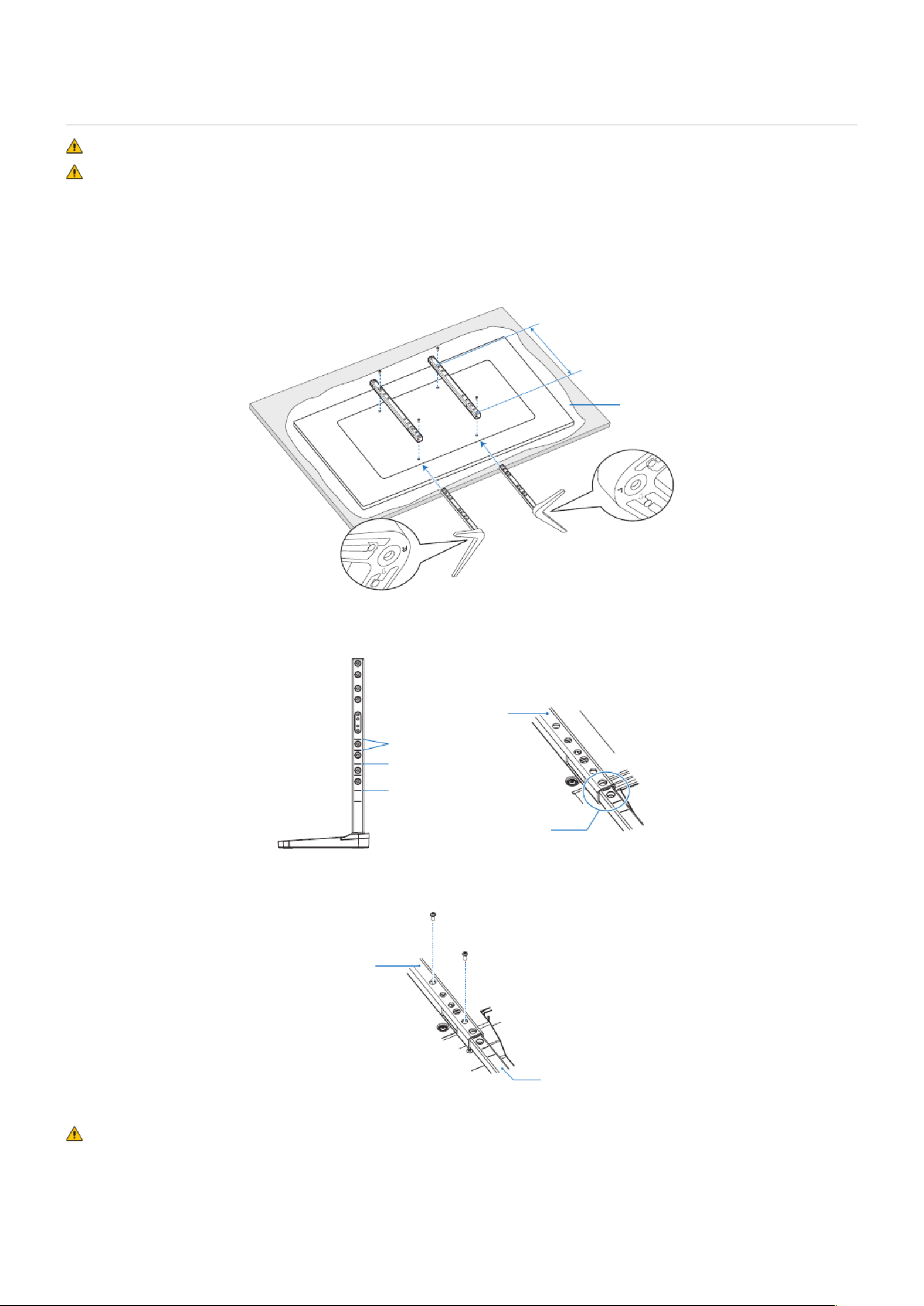

Installing and Removing the Optional Table Top Stand
WARNING: Please refer to “WARNING 8”.
CAUTION: Please refer to “CAUTION 5”.
For installation, follow the instructions included with the stand or mounting equipment. Use only those devices recommended by
the manufacturer.
NOTE: • Use the ST-401 or ST-43M.
• ONLY use screws which are included with the optional table top stand.
• The monitor can only be used in the landscape orientation with the tabletop stand.
300 mm
Soft cloth
Table
Height adjustment (P555/MA551 only)
1. The lines on the stand pole are indicators of the height adjustment ( ). Please adjust the pipe to the lines.Figure 1
Figure 1
P555/MA551 High/Low
Pipe
Adjust the pipe to a line.
P495/MA491
P435/MA431
2. Please install the stand pole and the pipe with included screws. Please screw the two screw holes at the pipe ( ).Figure 2
Pipe
Figure 2
Stand pole
CAUTION: Please refer to “CAUTION 5”.
English−20
Chapter 2 Parts Names and Functions
This Chapter Includes:
>“Control Panel” on page 21
>“Terminal Panel” on page 22
>“Wireless Remote Control” on page 24
English−21

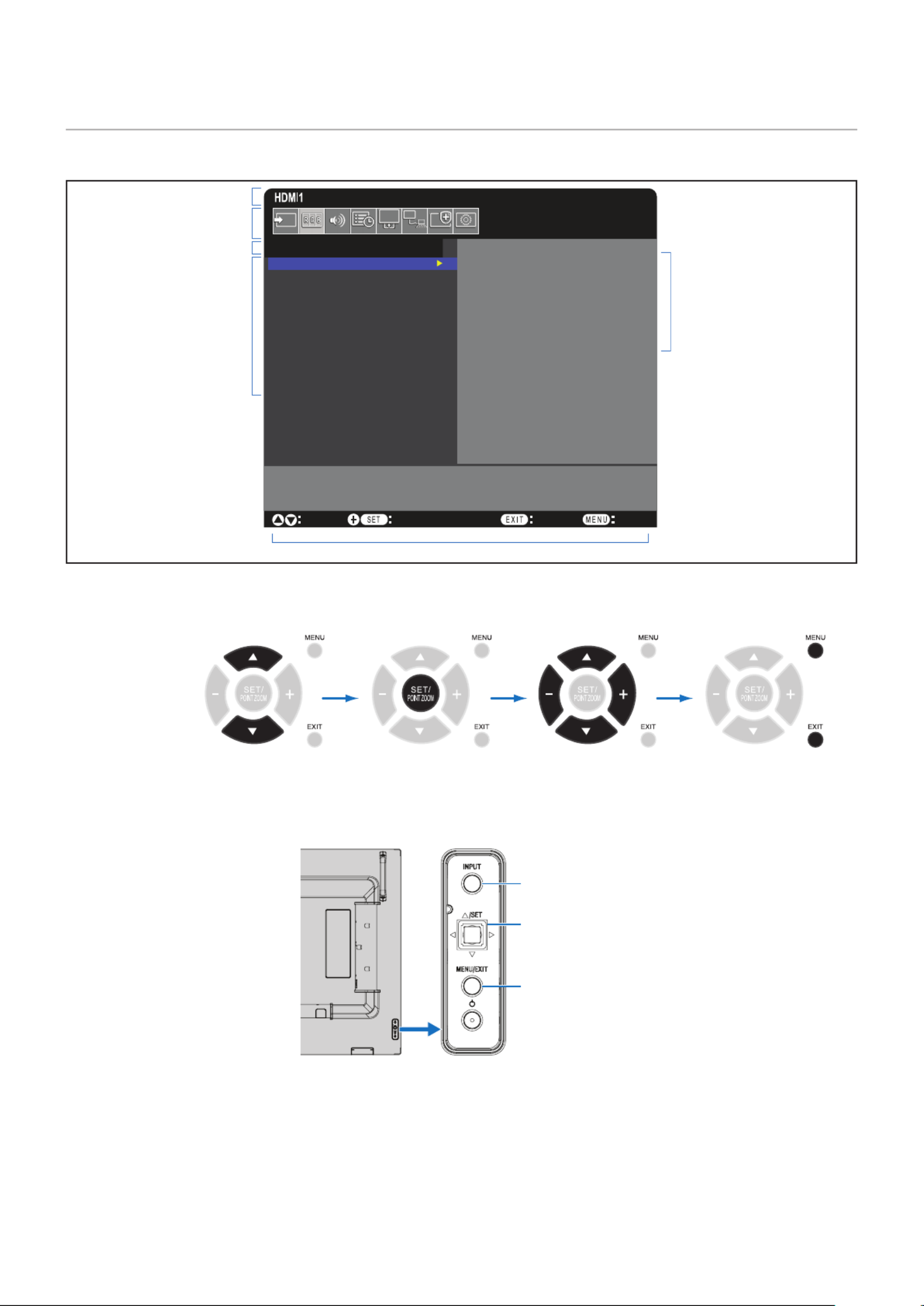

Control Panel
Monitor in
Landscape position
Up
Down
RightLeft
Up
Down
RightLeft
Monitor in
Portrait position
1 Button (power button)⏻
Switches between power on and standby. See .page 33
2 MENU/EXIT Button
Opens the OSD menu when the OSD menu is closed.
Acts as a back button within the OSD menu to move to the
previous OSD menu.
Acts as an exit button to close the OSD menu when on the
main menu.
3 5-Direction-Key/SET Button*1
v w/ : Navigates to the left or right through the OSD menu.
Move the LEFT/RIGHT key left or right to increase or
decrease the adjustment.
You can adjust the VOLUME directly by moving the LEFT/
RIGHT key while the OSD menu is closed.
s r/ : Navigates up or down through the OSD menu.
SET: Acts as a set button when making a selection when the
OSD menu is open.
*1: The v w r s, , and functions change according to the monitor orientation
(landscape/portrait).
4 INPUT Button
INPUT: Cycles through the available inputs when the OSD
menu is closed.
[DisplayPort1], [DisplayPort2], [HDMI1], [HDMI2],
[OPTION]*1, [COMPUTE MODULE]*2. These are
available inputs only, shown as their factory preset
name.
*1: This function depends on which Option Board is installed in the monitor.
*2: This input is available when the optional Raspberry Pi Compute Module
Interface Board and Raspberry Pi Compute Module are installed.
See .page 84
5 Remote Control Sensor, Ambient Light Sensor, and
Power Indicator
Remote Control Sensor: Receives the signal from the
remote control (when using the wireless remote control).
See .page 34
Ambient light sensor: Detects the level of ambient light,
allowing the monitor to make automatic adjustments to the
backlight setting, resulting in a more comfortable viewing
experience. Do not cover this sensor. See .page 46
Power Indicator:
• Glows blue when the monitor is in active mode*1.
• Green and Amber blink alternately when the
[SCHEDULE INFORMATION] function is enabled*1.
• When a component failure is detected within the monitor,
the indicator will blink red or blink a combination of red
and blue.
• Please refer to the Power ON and OFF Modes table on
page 33.
*1: If [OFF] is selected in the [POWER INDICATOR] the LED will not glow
when the monitor is in active mode. See .page 106
English−22
Terminal Panel
USB-A
DisplayPort
IN 1
DisplayPort
IN 2
DisplayPort
OUT
HDMI IN 1
(ARC) HDMI IN 2 HDMI OUT
LAN 1 LAN 2
EXTERNA SPEAKERL
A TUDIO OU USB-B
SERVICE
REMOTE
IN
HDMI
1 AC IN Connector
Connects with the supplied power cord.
2 Main Power Switch
On/Off switch to turn main power ON/OFF.
3 EXTERNAL SPEAKER TERMINAL
Outputs the audio signal.
Red terminal is plus (+).
Black terminal is minus (–).
NOTE:This speaker terminal is for 15W + 15W (8 ohm)
speaker.
4 AUDIO OUT
Audio signal output from DisplayPort and HDMI to an
external device (stereo receiver, amplifier, etc.).
NOTE:This connector is not a headphone terminal.
5 LAN Port 1/2 (RJ-45)
Connect to LAN in order to manage and control the monitor
over the network. See .page 61
6 REMOTE
Use an optional sensor unit by connecting it to your monitor.
NOTE:Do not use this connector unless specified.
7 DisplayPort IN 1/2
DisplayPort signals input.
8 DisplayPort OUT
DisplayPort signals output.
9 HDMI IN 1/2 (HDMI1 (ARC)/HDMI2)
HDMI signals input.
NOTE:• HDMI1 terminal also supports ARC (Audio
Return Channel) for audio output.
• ARC sends the monitor’s sound to audio
equipment with an HDMI1 ARC connector.
• Use the included ARC-supported HDMI cable.
The audio equipment will output the monitor’s
audio.
• The audio equipment can be controlled with the
included remote control.
0 HDMI OUT
HDMI signals output.
! USB ports
For the USB port information, please see “Connecting a
USB Device” on page 31.
USB-A (Hub/0.5 A): Downstream port (USB Type-A).
USB-B (Ctrl): Upstream port (USB Type-B).
Service (2A): Service port. Power supply for USB devices.
@ Option Board Slot
Slot for installation of an Intel® SDM.
NOTE:Please contact your supplier for a list of
compatible Option Boards.
# RS-232C IN (D-Sub 9-pin)
Connect RS-232C input from external equipment, such
as a computer, in order to control RS-232C functions.
See .page 60
English−24

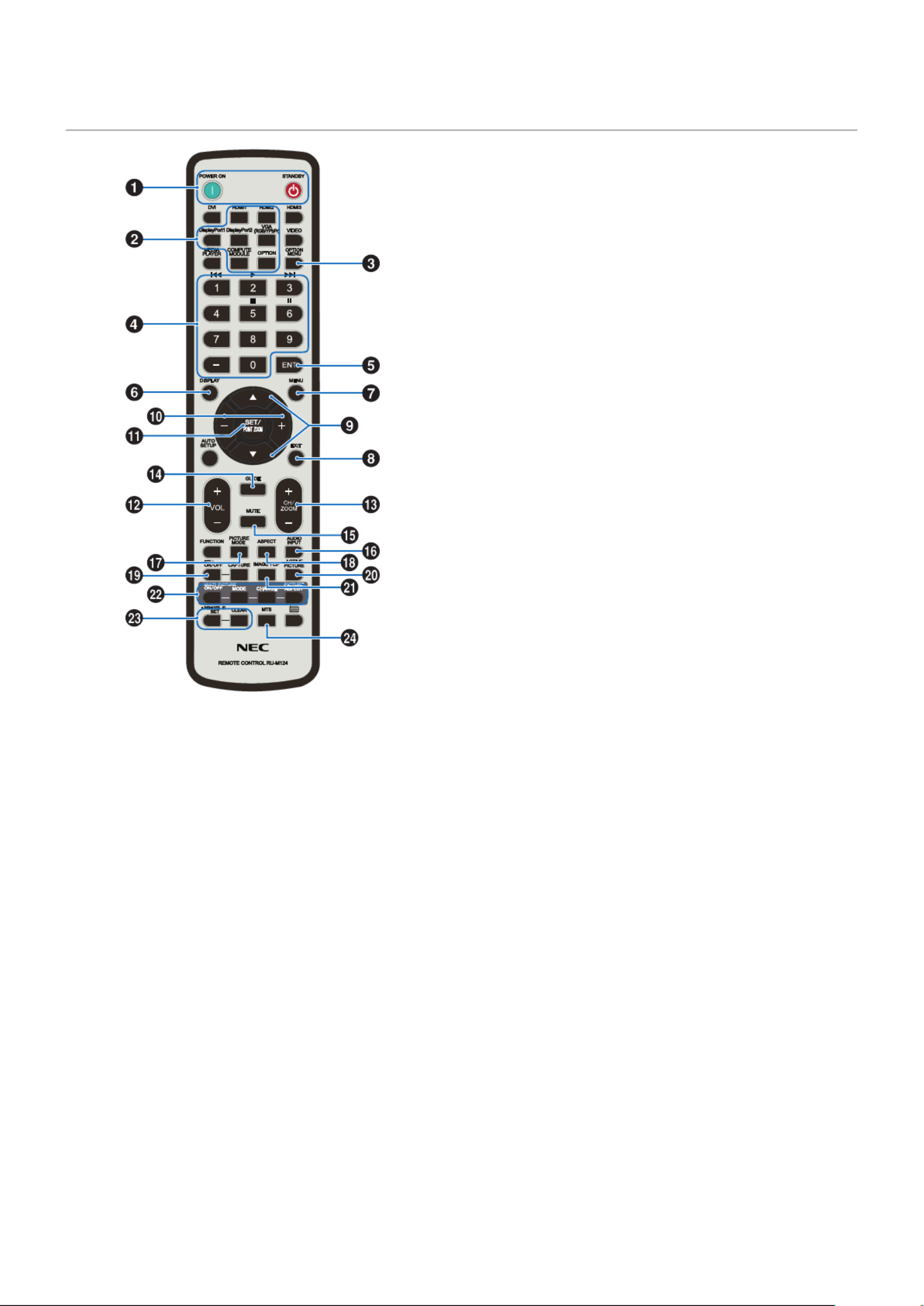

Wireless Remote Control
1
NOTE:The buttons with no explanation are not used with
your monitor model.
1 POWER ON and STANDBY Buttons
POWER ON resumes full power from low power mode.
STANDBY puts the monitor in low power mode.
See .page 33
2 INPUT Button
Cycles through the available inputs.
These are available inputs only, shown as their factory
preset name.
3 OPTION MENU Button
For use when an Option Board is installed. See .page 22
The function depends on which Option Board is installed in the monitor.
4 KEYPAD
Press the buttons to set and change passwords, change the
channel and set the REMOTE ID. See .page 58
Some buttons are used for CEC (Consumer Electronics
Control).
5 ENT Button
Makes selections.
For use with an Option Board. The function depends on
which Option Board is installed in the monitor.
Some buttons are used for CEC (Consumer Electronics
Control).
6 DISPLAY Button
Shows/Hides the information OSD. See .page 38
Unlocks the remote control’s buttons if they have been
locked in the [LOCK SETTINGS] in the [PROTECT] menu.
Press and hold the DISPLAY button for more than five
seconds to unlock the remote. See page 51.
7 MENU Button
Opens and closes the OSD menu. See .page 38
8 EXIT Button
Acts as a back button within the OSD to move to the
previous OSD menu.
Acts as an EXIT button to close the OSD menu when on the
main menu.
9 / Button (up/down button)
Act as navigation buttons, within the OSD menu to move the
highlighted area up or down.
0 –/+ Button (minus/plus button)
Act as navigation buttons, within the OSD menu to move the
highlighted area left or right.
Increases or decreases the adjustment level within the
selected OSD menu setting.
! SET/POINT ZOOM Button
SET: When the OSD menu is open, this button acts as a set
button when you make a selection.
POINT ZOOM: When the OSD menu is closed, this button
acts as a point zoom button. See .page 37
@ VOLUME +/– Button
Increases or decreases the audio output level.
# CH/ZOOM +/– Button*
Increases or decreases the point zoom level. Please refer to
the Point Zoom instructions. See .page 37
*: When using with an Option Board, the function depends on which Option
Board is installed in the monitor.
$ GUIDE Button
For use with an Option Board. The function depends on
which Option Board is installed in the monitor.
English−26
Chapter 3 Connections
This Chapter Includes:
>“Wiring Diagram” on page 27
>“Connecting to a Personal Computer” on page 28
>“Connecting to a Media Device with HDMI” on page 28
>“HDMI-CEC Command” on page 30
>“Internal Video Sources” on page 31
>“Connecting a USB Device” on page 31
Connecting External Equipment
NOTE: • Do not connect or disconnect cables when turning on the monitor’s main power or other external equipment’s power
as this may result in loss of image.
• Do not use an attenuating (built-in resistor) audio cable. Using an audio cable with a built-in resistor will lower the
sound level.
Before making connections:
• Turn off the device’s power before connecting it to the monitor.
• Refer to the device’s user manual for available connection types and instructions for the device.
• We recommend turning off the monitor’s main power before connecting or disconnecting a USB storage device to avoid data
corruption.
English−28
Connecting to a Personal Computer
Connecting to a Computer with HDMI
• Please use an HDMI cable with the HDMI logo.
• It may take a moment for the signal to appear after turning on the computer.
• Some display cards or drivers may not show an image correctly.
• When you use a computer with HDMI, please set [OVERSCAN] to [AUTO] or [OFF] as display drivers may not be fully
compatible and may not show an image correctly. See .page 89
• If the source signal is 4K (50 Hz/60 Hz) or HDCP 2.2 or HDR, please set [MODE2] at [HDMI] in [ADVANCED].
See .page 88
• If the monitor’s main power is turned on after a connected computer is turned on, sometimes an image is not shown. In this
case, please turn off the computer then turn it on again.
• When input signal is 4K, please use high-speed HDMI cable.
Connecting a Computer with DisplayPort
• Please use a DisplayPort cable with the DisplayPort compliance logo.
• To use the DisplayPort out connector, please refer to Video out. See .page 57
• It may take a moment for the signal to appear after turning on the computer.
• When connecting a DisplayPort cable to a component with a signal conversion adapter, an image may not appear.
• Some DisplayPort cables feature a locking function. When removing this cable, hold down the top button to release the lock.
• To output DisplayPort audio, set [DisplayPort1] or [DisplayPort2] at [AUDIO INPUT] in the OSD or choose [DisplayPort1] or
[DisplayPort2] using the remote control AUDIO INPUT button.
• If the monitor’s main power is turned on after a connected computer is turned on, sometimes an image is not shown. In this
case, please turn off the computer then turn it on again.
• If input signal is 8K, please use a DisplayPort cable with the 8K logo.
Connecting to a Media Device with HDMI
Connect using a single HDMI cable for the highest picture and audio quality from Blu-ray players, streaming media players, or
game consoles. 4K UHD content is shown when the connected media player also supports 4K content.
Supports HDCP (High-bandwidth Digital Contents Protection) coding, a type of digital rights management that prevents high-
definition content, in Blu-ray discs, DVDs and streaming media, from being copied or broadcast illegally.
NOTE: • Supports 1920x1080 (60 Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz,
480i@60Hz, 3840x2160 (30 Hz/24 Hz/25 Hz/50 Hz (MODE2)/60 Hz (MODE2)),
4096x2160 (24 Hz/25 Hz (MODE2)/30 Hz (MODE2)/50 Hz (MODE2)/60 Hz (MODE2)).
• Connect the HDMI cable when both the media player and the monitor are powered off.
• Use an HDMI cable with the HDMI logo.
• Some HDMI cables and devices may not show an image correctly due to different HDMI specifications.
• HDCP is a system for preventing illegal copying of video data sent over a digital signal. If you are unable to view
material via the digital inputs, this does not necessarily mean that the monitor is not functioning properly.
• When input signal is 4K, please use high-speed HDMI cable.
English−29
Connecting to audio equipment with ARC function
If connecting audio equipment with ARC function to HDMI1 (ARC) using the included ARC-supported HDMI cable, the audio
equipment outputs the monitor’s sound.
• The sound via HDMI1 (ARC) is not adjustable by the OSD menu.
• When the ARC function is activated, the monitor’s internal speakers are muted.
• The playing picture’s sound is output to audio equipment via HDMI1 (ARC). The HDMI1 (ARC) does not send an audio signal
that is not supported by the input connector of playing pictures. Please refer to “Specifications” for the supported signal of
each input connector.
HDMI-CEC (Consumer Electronics Control)
HDMI-CEC provides compatible media players, connected via HDMI, the ability to communicate and allow limited control
between the device and the monitor. For example, turning on a Blu-ray player can immediately switch input to the Blu-ray player
without using the remote control. Not all devices are fully compatible, and, in some cases, the media device manufacturer may
only provide compatibility with its own monitors or TVs. See “HDMI-CEC Command” on page 30.
When supported, the monitor’s remote control can be used to control the HDMI media device.
NOTE: The instructions in this section guide you through configuring [CEC] in the monitor’s OSD menu. These settings can
also be configured using the monitor’s web controls. The function names and location in the web controls are the same
as the OSD menu.

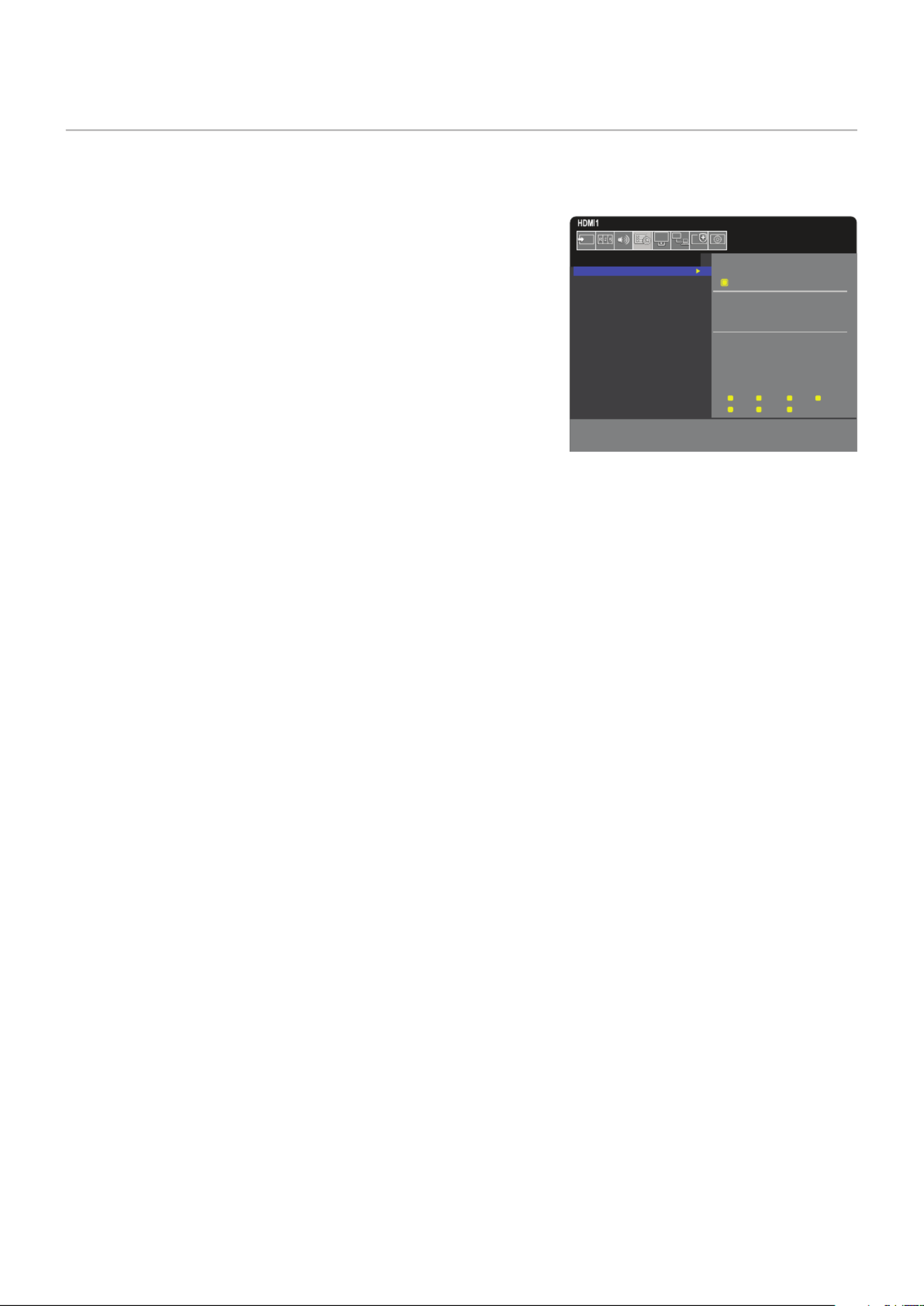

Enabling CEC
1. Connect a CEC device to the HDMI port.
Press the HDMI button on the remote control .
2. Press the MENU button to open the OSD menu.
3. Navigate to [ADVANCED] then to [CEC].
4. Select [MODE1] or [MODE2] for [CEC].
5. Select SET under [SEARCH DEVICE].
When the search is complete, the HDMI port with a CEC connected device is shown with its name.
If no CEC device is found, make sure the device is plugged in, turned on, it supports CEC and CEC is enabled. Depending
on the manufacturer, the CEC feature may have a different name. Refer to the device’s product manual.
6. Press the EXIT button on the remote control.
English−31
Internal Video Sources
Option Boards for the Monitor
When an Option Board or a Raspberry Pi Compute Module Interface Board and Raspberry Pi Compute Module are installed
in the monitor, it will show as available in the list in the [INPUT] of the OSD menu. Option Boards, the Raspberry Pi Compute
Module Interface Board and Raspberry Pi Compute Module are available separately and must be physically installed in the
monitor. This document contains instructions for how to use the monitor without any additional options. The locations where an
Option Board and the Raspberry Pi Compute Module Interface Board, Raspberry Pi Compute Module are installed is indicated
on the Terminal Panel diagram (see ). Full installation and usage instructions are provided with the individual device page 22
or available online.
NOTE: • The optional DS1-IF20CE Compute Module Interface Board and Raspberry Pi Compute Module are available
separately. Please contact an authorized NEC dealer for more information. Installation must be performed by a
qualified technician. Do not attempt to install a Compute Module Interface Board and Raspberry Pi Compute Module
by yourself. See .page 84
• Please contact your supplier for available Option Boards.
Connecting a USB Device
Some of the USB ports on the monitor’s terminal panel have different uses depending on the type of connected USB device.
Please follow these guidelines when using these ports with supported devices.
USB-A (Hub/0.5A): USB downstream port (Type-A).
Connection used by external USB devices (such as cameras, flash memory, keyboards, etc.)
USB-B (Ctrl): USB upstream port (Type-B).
Connection to a computer with a USB cable. A USB compatible computer connected to USB-B (Ctrl) can
control the devices connected to USB-A (Hub/0.5A) port.
Service (2A): Service port/Power supply port.
This port is for future software upgrades.
Provides up to 2A of power to a connected USB device, such as HDMI streaming media or presenter
sticks. The actual amount of power consumption depends on the connected device. Make sure to use a
USB cable that supports 2A.
Enable [USB POWER] in the [USB] settings of the [SYSTEM] menu in the OSD. See .page 106
Please refer to the specifications pages for power supply information. See .page 75
NOTE: When connecting a color sensor to the Service (2A) port, please set [EXTERNAL CONTROL] in
[USB] to [DISABLE].
CAUTION: Pleaser refer to “CAUTION 2”.
NOTE: • Please make sure the connector shape and orientation is correctly aligned when connecting the USB device or
cable.
• Connecting/disconnecting a USB storage device with the monitor already powered on is not recommended. To
prevent damage to the monitor and possible corruption of the connected device’s data files, the monitor’s main power
switch should be off before making connections or disconnections.
English−32
Chapter 4 Basic Operation
This Chapter Includes:
>“Power ON and OFF Modes” on page 33
>“Operating Range for the Remote Control” on page 34
>“Using Power Management” on page 34
>“Showing the Information OSD” on page 35
>“Switching Between Picture Modes” on page 35
>“Setting the Aspect Ratio” on page 36
>“Using Point Zoom” on page 37
>“OSD (On-Screen Display) Controls” on page 38
English−33
Power ON and OFF Modes
Press the button on the Control Panel or POWER ON button on the remote control to turn on the monitor. ⏻

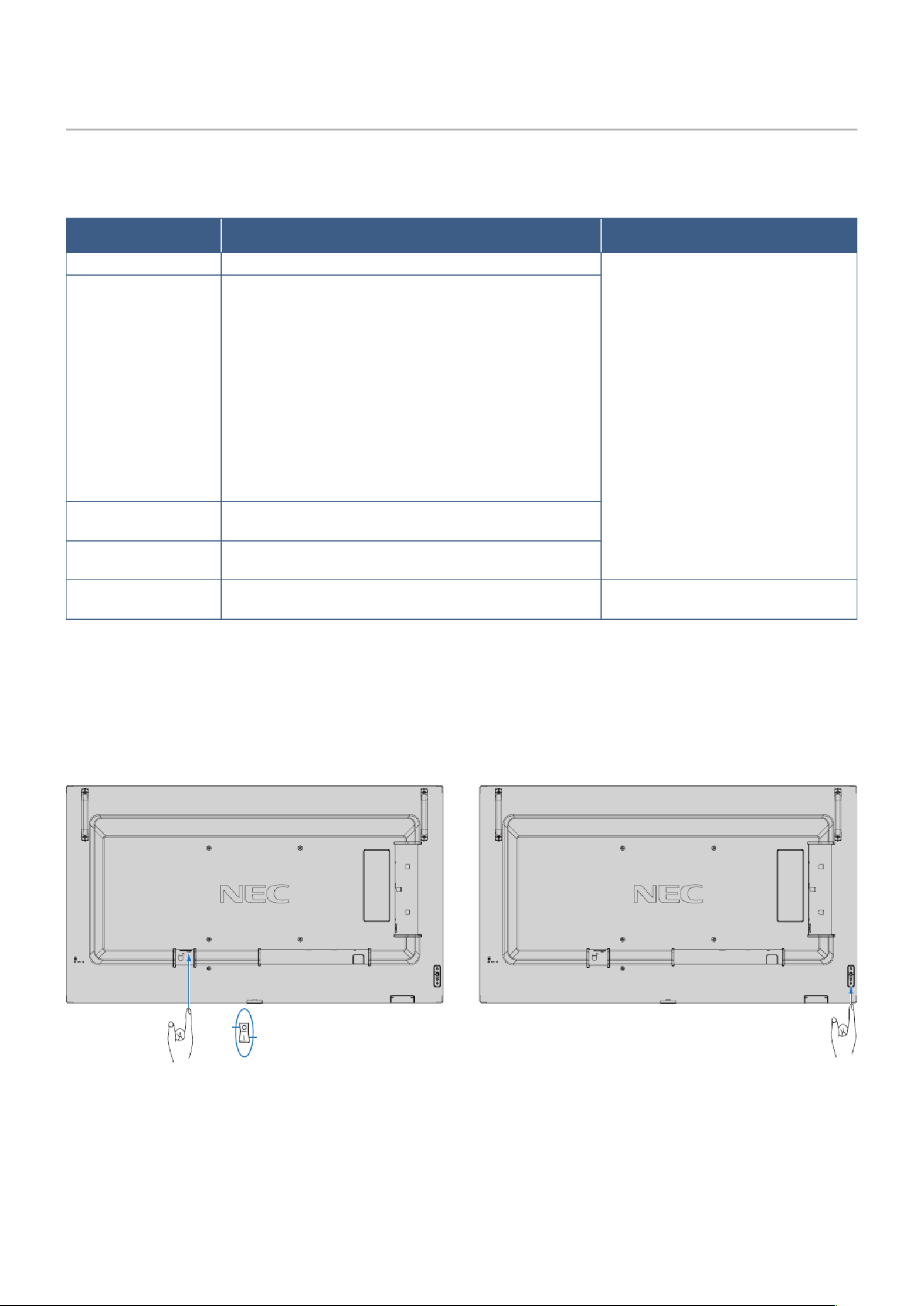

The monitor’s power LED indicates the current status of the monitor. Please refer to the following table for information about the
power indicator.
Power indicator status and
lighting pattern Condition Recovery
Glowing blue Normal Turn on the monitor by the remote 1.
control or the monitor button.
2. Send an AV signal input to the
monitor.
Blinking green*1Under any of the conditions below, no input signal has
been detected by the monitor during the period of time
you set:
• The monitor is using an Option Board*2.
• [AUTO INPUT CHANGE] is set to a setting except for
[NONE].
• [USB POWER] is set to [ON].
• [SLOT POWER] is set to [ON].
• [POWER CONTROL LINK] of [CEC] is set to [ENABLE].
• [DisplayPort VERSION] is set to [1.2 MST] or [1.4 MST].
• [QUICK START] is [ENABLE].
Glowing amber No AV signal input has been detected by the monitor during
the period of time you set. (with network signal input)
Blinking amber No AV signal input has been detected by the monitor during
the period of time you set. (no network signal input)
Glowing red Turn off the monitor by the remote control or the monitor
button.
Turn on the monitor by the remote
control or the monitor button.
*1: Time setting for auto power save is available at [POWER SAVE SETTINGS] (See ).page 101
*2: [SLOT POWER] is [ON] or [AUTO].
NOTE: • The blue power indicator that the monitor is powered on and functioning normally can be turned off in the monitor’s
OSD menu options. See .page 106
• If the indicator is blinking red in a combination of long and short durations, a certain failure might have occurred.
Please contact your supplier.
The Main Power switch must be in the ON position in order to power up the monitor using the POWER ON button on the remote
control or the button on the Control Panel.⏻
Main Power Switch
OFF ON ⏻ Button
English−35

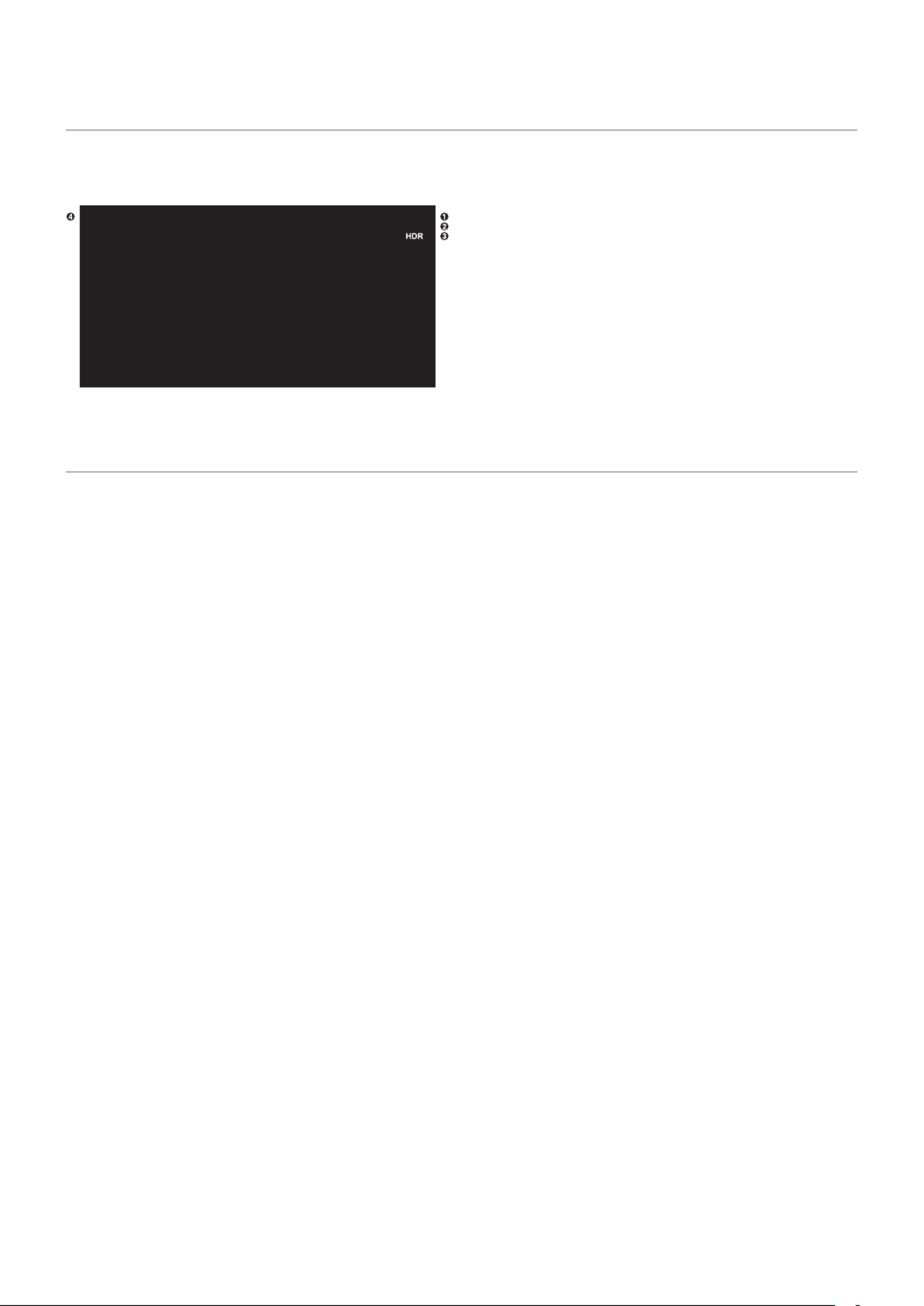

Showing the Information OSD
The Information OSD provides information such as: Input Source, Picture Size, IP Address, Monitor ID, etc.
Press the DISPLAY button on the remote control to bring up the Information OSD.
H
3840 x 2160@60Hz
HDMI1MONI R ID:1TO
IP ADDRESS: 192.168.0.10
1 Input name
2 Resolution Information
3 HDR Information
4 Communication Info*
* Shows when [COMMUNICATION INFO.] is [ON].
Green: Connected LAN
Red: Not connected LAN
Switching Between Picture Modes
Press the PICTURE MODE button on the wireless remote control to cycle through the picture modes [NATIVE], [RETAIL],
[CONFERENCING], [HIGHBRIGHT], [TRANSPORTATION] and [CUSTOM].
The picture modes are pre-configured with settings for general use. See “Using Other Picture Modes” on page 48 for
instructions on changing the picture mode settings.
English−36

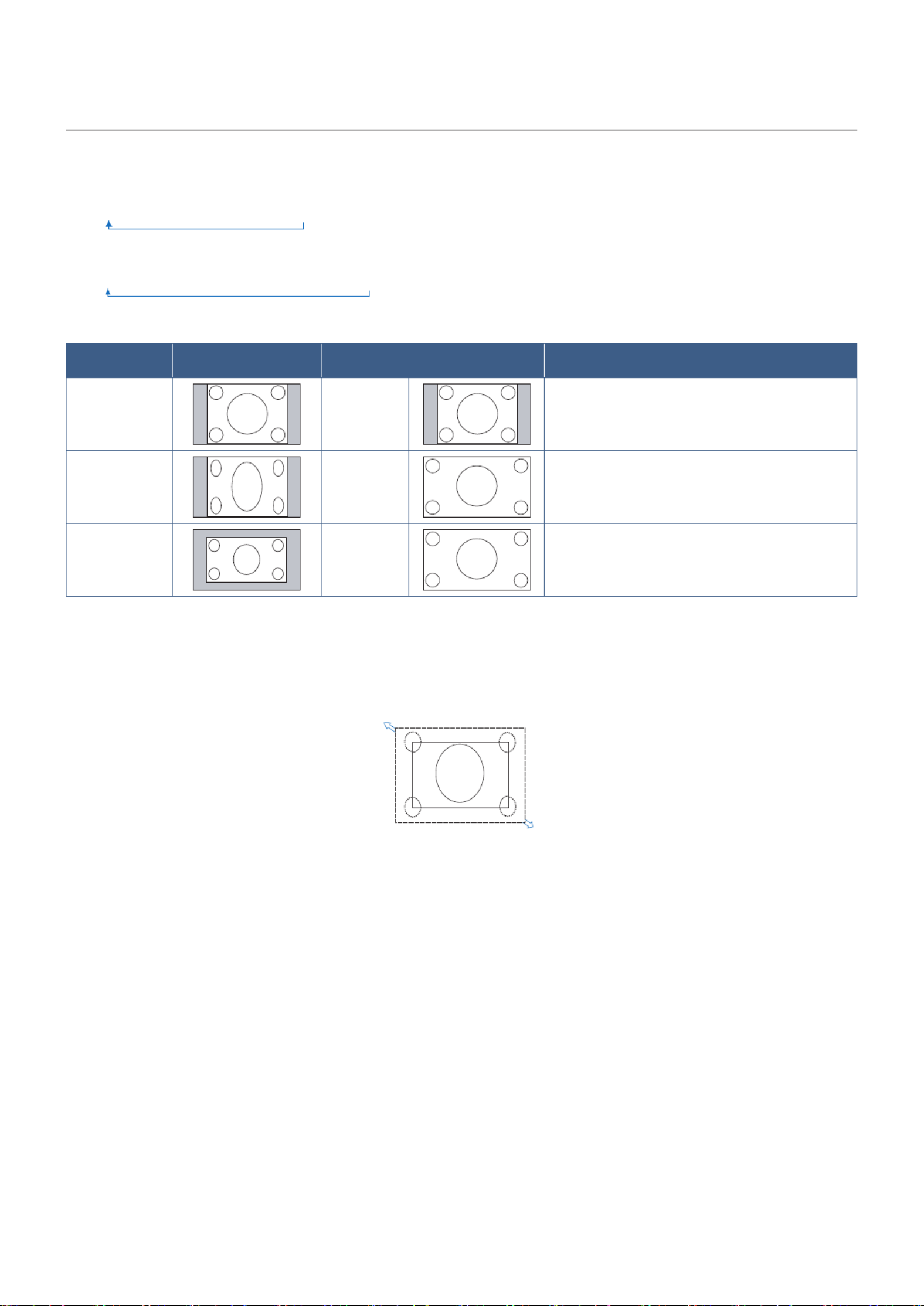

Setting the Aspect Ratio
Press the ASPECT button on the remote control to cycle through the options available for the current input signal.
For DisplayPort1, DisplayPort2, OPTION (DisplayPort)*1
• [FULL] [1:1] [ZOOM] [NORMAL] ➙ ➙ ➙
For HDMI1, HDMI2, OPTION (TMDS)*1, COMPUTE MODULE*2
• [FULL] [WIDE] [1:1] [ZOOM] [NORMAL] ➙ ➙ ➙ ➙
*1: This function depends on which Option Board is installed in the monitor.
*2: This input is available when the optional Raspberry Pi Compute Module Interface Board and Raspberry Pi Compute Module are installed.
Aspect ratio of
image Unchanged view*3Recommended selection for picture
aspect*3Description
4:3 [NORMAL] Reproduces the aspect ratio that is sent from
the source.
Squeeze [FULL] Fills the entire screen.
Letterbox [WIDE] Expands a 16:9 letter box signal to fill the entire
screen.
*3
: Gray areas indicate unused portions of the screen.
[1:1]: Shows the image in a 1 by 1 pixel format.
[ZOOM]
• The zoom function increases the image size, which expands the image beyond the active screen area. The parts of the
image outside the active screen area are not shown.
ZOOM
ZOOM
English−37
Using Point Zoom

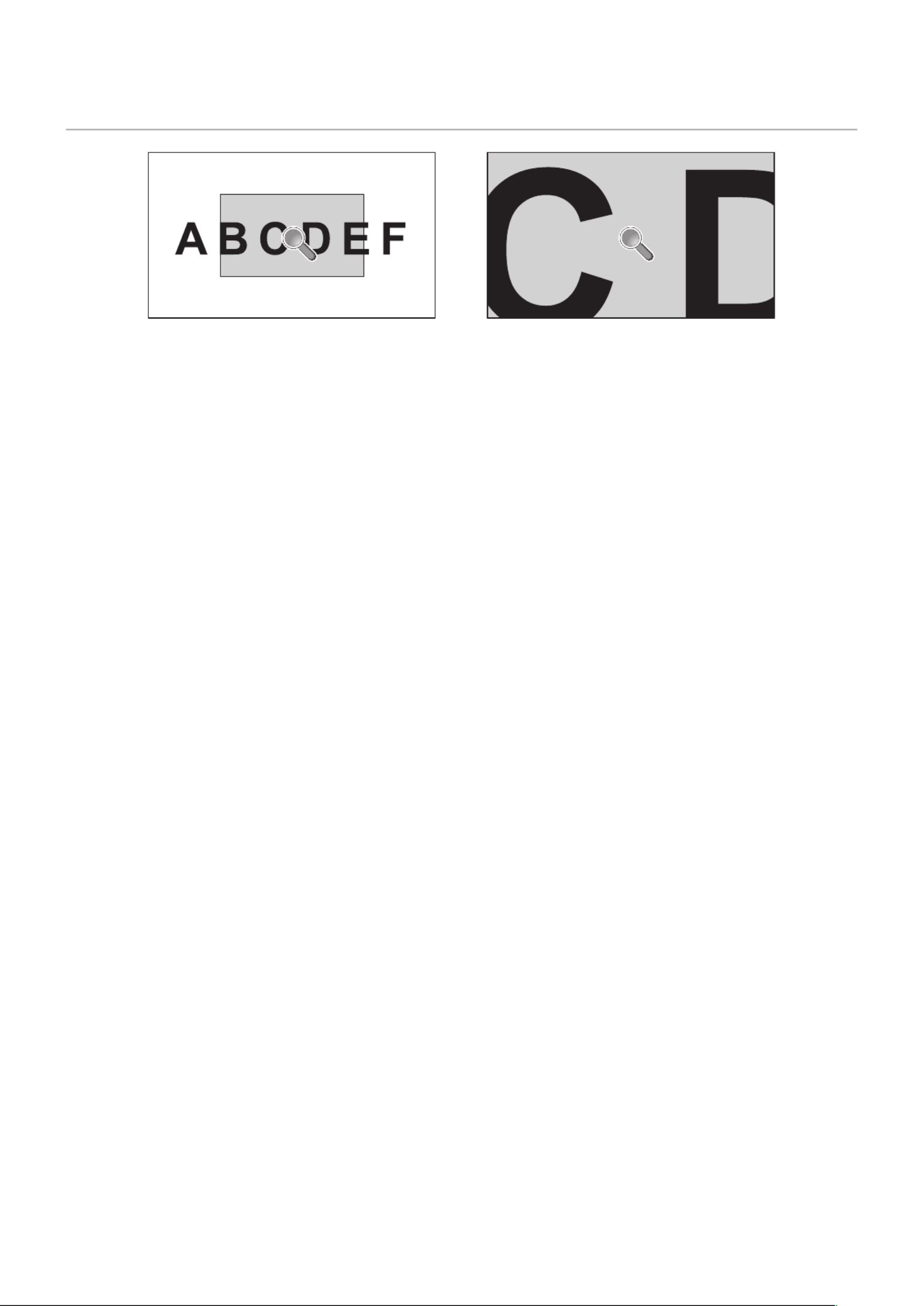

The POINT ZOOM function increases the image size and expands it horizontally and vertically simultaneously. The image can
be increased up to 10 times its size.
1. Press the SET/POINT ZOOM button on the remote control. A magnifier icon appears on-screen.
2. Move the magnifier to the area of the image you want to focus on by pressing the + – buttons.
3. Press the CH/ZOOM+ button to zoom in. Press CH/ZOOM– button to zoom out. When zooming in, the image expands past
the active screen area. The area at the magnifier location shifts closer to the center of the screen at each magnification level.
4. Press the SET/POINT ZOOM button to close the magnifier.
5. The image will remain zoomed in after closing the magnifier. Press the EXIT button to return to the normal image size.
NOTE: • The image may look distorted when using this function.
• This function is disabled when one of these functions is active: [MOTION] in [SCREEN SAVER], [TILE MATRIX],
[MULTI PICTURE], [IMAGE FLIP], [QUICK INPUT CHANGE], [MODE1] or [MODE] in [CEC], [DUAL DAISY CHAIN
MODE], [ROTATE] or if input is set to [DisplayPort1] then [DisplayPort VERSION] is set to [1.4].
• The STILL function does not work when the [POINT ZOOM] function is active.
• When the [ASPECT] setting is [ZOOM], pressing the POINT ZOOM button automatically sets the [ASPECT] to
[FULL] and then starts the POINT ZOOM function.
• After exiting POINT ZOOM, the [ASPECT] will return to the previous [ASPECT] setting. When the [ASPECT] is
changed during the POINT ZOOM operation, [ZOOM] will be set to [FULL].
• The magnifier icon will not move outside the active picture area.
• The image returns to the normal size after changing the input signal or when the monitor is powered off.
• POINT ZOOM is not available with DisplayPort signal 4K (60 Hz) 10bit.
• This function is released when one of these functions is active while this function is operating: [MOTION] in
[SCREEN SAVER], [TILE MATRIX], [MULTI PICTURE], [IMAGE FLIP], [QUICK INPUT CHANGE], [MODE1] or
[MODE] in [CEC], [DUAL DAISY CHAIN MODE], [AUDIO INPUT], [ROTATE] or if input is set to [DisplayPort1] then
[DisplayPort VERSION] is set to [1.4].
English−38
OSD (On-Screen Display) Controls
NOTE: Some functions may not be available depending on the model or optional equipment.
Goto Adjustment
Select Return Close
PICTURE:
PICTURE MODE
BACKLIGHT
VIDEO BLACK LEVEL
GAMMA
COLOR
CONTRAST
BACKLIGHT DIMMING
SPECTRAVIEW ENGINE
ADVANCED
NATIVE
RETAIL
CONFERENCING
HIGHBRIGHT
TRANSPORTATION
CUSTOM
Input source
Main Menu Icons
Main Menu Item
Sub Menu
Key Guide
Adjustment Settings
Remote Control
Press or
to navigate to a
sub-menu.
Press SET/POINT
ZOOM to select an
option.
Press or , + or –
to select the function or
setting to be adjusted.
Press MENU or EXIT.
Control Panel
Press INPUT to select an option.
Press MENU/EXIT to open or exit the
OSD menu.
Move , , , keys to select the r s v w
function or setting to be adjusted.
Press SET to select an option.
English−39
Below is a brief summary of where controls are under each menu item. A table listing all options is located in “OSD Controls List”
on page 86.
INPUT: Select settings related to the input signal source.
PICTURE: Select one of the default picture modes, manually adjust the color settings, adjust the aspect ratio,
and adjust other settings related to the picture.
AUDIO: Adjust volume, balance, equalizer, and select settings related to the audio.
SCHEDULE: Create auto power on/off schedules, set the daylight savings time, and off timer.
SLOT: Select settings related to an Option Board if installed.
NETWORK: Set network information, security, etc.
PROTECT: Select options related to protecting the monitor hardware, such as configuring the cooling fans,
adjusting automatic power save and power on delay, and enabling the alert mail to be notified when an error
occurs in the monitor.
SYSTEM: View the monitor information, set the date and time, select the languages of the on-screen display
menu, or perform a factory reset.
English−40
Chapter 5 Advanced Operation
This Chapter Includes:
>“Creating a Power Schedule” on page 41
>“Advanced Color Adjustment” on page 42
>“Using Other Picture Modes” on page 48
>“Setting Security and Locking the Monitor Controls” on page 49
English−41
Creating a Power Schedule
The schedule function allows the monitor to automatically change between power on and standby modes at different times.
To program the schedule:
1. Enter the [SCHEDULE] menu.
a Using the remote control, highlight [SCHEDULE SETTINGS] using
the and buttons.
b
Press the SET/POINT ZOOM or the button to enter the Settings menu. +
c
Highlight the desired schedule number and press SET/POINT ZOOM
button.
d
The box next to the number will turn yellow.
The schedule can now be programmed.
2. Use the button to highlight the [POWER]. Use the and buttons to + –
set [ON].
To set a power off schedule, set [OFF].
3. Use the button to highlight the [TIME]. Use the and buttons to set the time.+ –
4. Use the and buttons to highlight [INPUT]. Use the and buttons to choose the input source. + –
5. Use the button to select [DATE] or [EVERY WEEK]. Press the SET/POINT ZOOM button on a menu which is suitable for
the schedule.
If the schedule is to be run on a specific day, choose [DATE] and press the SET/POINT ZOOM button.
If a weekly schedule is desired, choose the [EVERY WEEK] using the and buttons and pressing SET/POINT ZOOM
button to select. Then select the specific day and press SET/POINT ZOOM button.
6. After a schedule is programmed, the remaining schedules can then be set. Press MENU button to leave the OSD or press
EXIT button to go back to the previous menu.
NOTE: • The [DATE & TIME] needs to be set before adding schedules.
• Schedules you configure are saved when exiting the [SCHEDULE INFORMATION] window.
• If multiple schedules are set to start at the same time, the conflicting schedule with the highest number is given
priority.
• Schedules will not run when the [OFF TIMER] is set to [ON].
• If an input signal or picture mode is no longer valid, it will show its text in red. Highlight the red text and press SET to
change to a valid setting. For example, an input signal may become invalid if the [INPUT-ADVANCED] settings are
changed for that input after it was selected for the schedule.
• Schedules do not run while the [SCHEDULE INFORMATION] menu is open.
Set date and time to the monitor:
TIME ZONE: Set the time difference between the region where the monitor is used and the UTC (Universal Time, Coordinated).
• Initial value: +00:00.
• When using the monitor in Japan, set the time as [+09:00].
INTERNET TIME SERVER: Sets the current date and time.
• When synchronizing the time with the NTP server on the network to obtain the correct time, set [INTERNET TIME SERVER]
to [ON]. Then enter the IP address of the NTP server or the [HOST NAME] and perform [UPDATE].
IMPORTANT:• When a period of about two weeks has passed after disconnecting the power cord of the monitor, the time will
be initialized and the clock function will stop. When initialized, the date becomes [01.01.2020] and the time
becomes [00:00]. If the clock function has stopped, configure the [DATE & TIME] again.
SCHEDULE:
SCHEDULE SETTINGS
OFF TIMER
RESET
SETTINGS:
1
POWER: ON
TIME: 04 : 03
INPUT: HDMI1
DATE
YEAR: 2020
MONTH: JANUARY
DAY: 01
EVERY WEEK
SUN MON TUE WED
THU FRI SAT
English−42
Advanced Color Adjustment
The SpectraView Engine (SVE) is a custom color processor engine integrated in the monitor. It combines individual
characterization and calibration of the monitor during production together with temperature and time monitoring, to provide an
unparalleled level of color control, accuracy and stability.
Adjustable color uniformity correction is available, utilizing detailed individual factory screen measurements together with the
SVE to produce the best possible matching displays.
The SVE provides the utmost in versatility; from faster and more advanced color calibration, to the ability to accurately emulate
colorspaces such as Adobe®RGB and sRGB, to performing printer output emulations using ICC Profiles and internal 3D Look
Up Tables.
The SVE can operate in one of two modes: On or Off.
To enable or disable the SpectraView Engine using the remote control:
1. Using the remote control, press the MENU button.
2. Navigate to the [PICTURE] menu then to [SPECTRAVIEW ENGINE].
Use the + – buttons to navigate the OSD menu.
3. Highlight [ON] or [OFF] and press SET/POINT ZOOM to enable or disable the SpectraView Engine.
4. Press EXIT button to return to the main [PICTURE] menu.
Using the SpectraView Engine
When the SVE is on, the monitor’s internal processor will handle many of the color management features and the user color
controls allow a unique level of precision to be achieved. The white point is adjusted using a CIE x, y control and the grayscale
response of the display is calculated and managed by the monitor itself.
The SVE includes Uniformity Correction, where different levels of compensation can be selected to enable a trade-off between
the most uniform brightness and color vs. maximum brightness.
The SVE has five Picture Mode memories that can be individually configured and selected. Each individual Picture Mode can
store fully customized color settings. This allows you to quickly switch between different settings by just changing between
picture modes.
Using the SVE will also give access to other advanced functionality, such as the ability to emulate several modes of human color
vision deficiency as well as the ability to select the monitor’s output color gamut.
To change the settings in each SVE picture mode:
Presets have been configured with settings for general use as described in the “Preset Types” table next page. When choosing
a preset for the SVE picture mode, all of the settings are immediately adjusted to match the preset. Each setting can be
individually adjusted to customize as needed.
1. Using the remote control, press the MENU button.
2. Navigate to the [PICTURE] menu then to [PICTURE MODE].
Use the + – buttons to navigate the OSD menu.
3. Press the + button to navigate to the [PICTURE MODE] field.
4. Select a setting from 1 through 5 at [PICTURE MODE].
• 1 2 3 4 5 ➙➙➙➙
English−43
5. Select a preset item at [PRESET].
Choose the [PRESET] that is most suitable for the type of content that is shown or application usage.
Each [PICTURE MODE] includes [LUMINANCE], [BLACK] (Black level), [GAMMA], [WHITE (K)] (color temperature),
[WHITE (x, y)] (White point CIE x, y), [RED] (Red Primary CIE x, y), [GREEN] (Green Primary CIE x, y), and [BLUE] (Blue
Primary CIE x, y), settings. You can change these settings in the “Picture Mode” menu.
If any settings need to be changed, press the button to navigate through the settings and make any adjustments needed
using the + – buttons.
6. Press EXIT button to return to the main [PICTURE] menu.

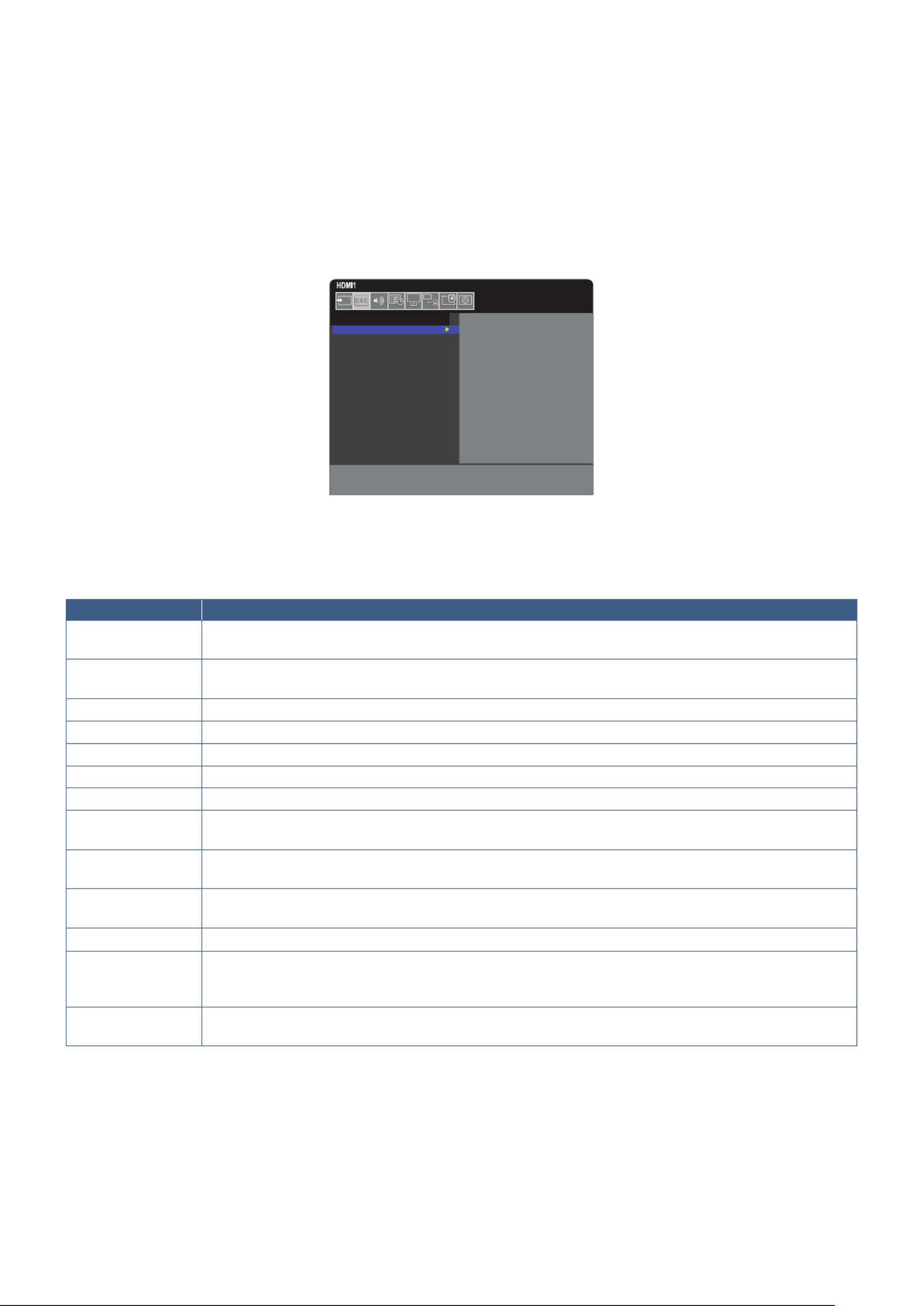

PICTURE:
PICTURE MODE
EMULATION
6 AXIS COLOR TRIM
UNIFORMITY
BACKLIGHT DIMMING
SPECTRAVIEW ENGINE
ADVANCED
PICTURE MODE 5
PRESET Programmable
3D LUT EMU. MySetting-1
LUMINANCE cd/m400 2
BLACK 0.5 cd/m2
GAMMA Custom
CUSTOM VALUE 2.2
WHITE 10000 K
x: 0.279 y: 0.292
RED x: 0.642 y: 0.332
GREEN x: 0.307 y: 0.602
BLUE x: 0.153 y: 0.053
NOTE: • Changing the settings in the [PICTURE MODE] menu does not change the default settings for the [PRESET].
• “” mark is shown if the Picture Mode settings have been changed from the default preset settings.
Preset Types
PRESET PURPOSE
sRGB The standard color setting of the Internet, Windows® operating systems, and many smart-phone and
other digital cameras. Recommended setting for general color management.
AdobeRGB Wider color gamut setting used in high-end graphics applications such as professional digital still
cameras and printing.
eciRGB_v2 Color setting recommended by Europe printing group, ECI (The European Color Initiative).
DCI-P3 Color setting for digital cinema.
Rec.709 Color setting for High-definition television.
Rec.2100 (HLG) Color setting for HDR (High Dynamic Range) broadcasting.
Rec.2100 (PQ) Color setting for HDR (High Dynamic Range) digital cinema on disc and internet streaming.
Low Blue Reduces blue light emitted from the monitor. Paper-like color setting.
(The Low Blue function substantially reduces blue light and helps to alleviate eye-strain.)
Signage Color setting for use in digital signage applications with high ambient lighting conditions where a bright
and high color temperature white point may be desirable.
TV Studio Color setting for use with “on set shooting” where the monitor’s screen will be captured by the camera
and should match the studio set’s incandescent lighting.
Full Native LCD panel color gamut. Suitable for use with color managed applications.
DICOM sim. Color setting for medical imaging that conforms to DICOM GSDF (Grayscale Standard Display
Function).
NOTE: Do not use for diagnostic purposes.
Programmable Programmable preset for MultiProfiler and other supported software. The preset name can be changed
by software.
English−46
To open the STAND-ALONE CALIBRATION window using the remote control:
1. Press the MENU button.
2. Navigate to the [PICTURE] menu then to [SPECTRAVIEW ENGINE].
Use the + – buttons to navigate the OSD menu.
3. Highlight [ON] and press SET/POINT ZOOM button to enable the SpectraView Engine.
4. Navigate to [CALIBRATION] then press SET/POINT ZOOM button. The STAND-ALONE CALIBRATION window appears.
5. Highlight a menu then press SET/POINT ZOOM button.
6. Press the EXIT button to close the OSD window.
Follow the instructions on the OSD message.

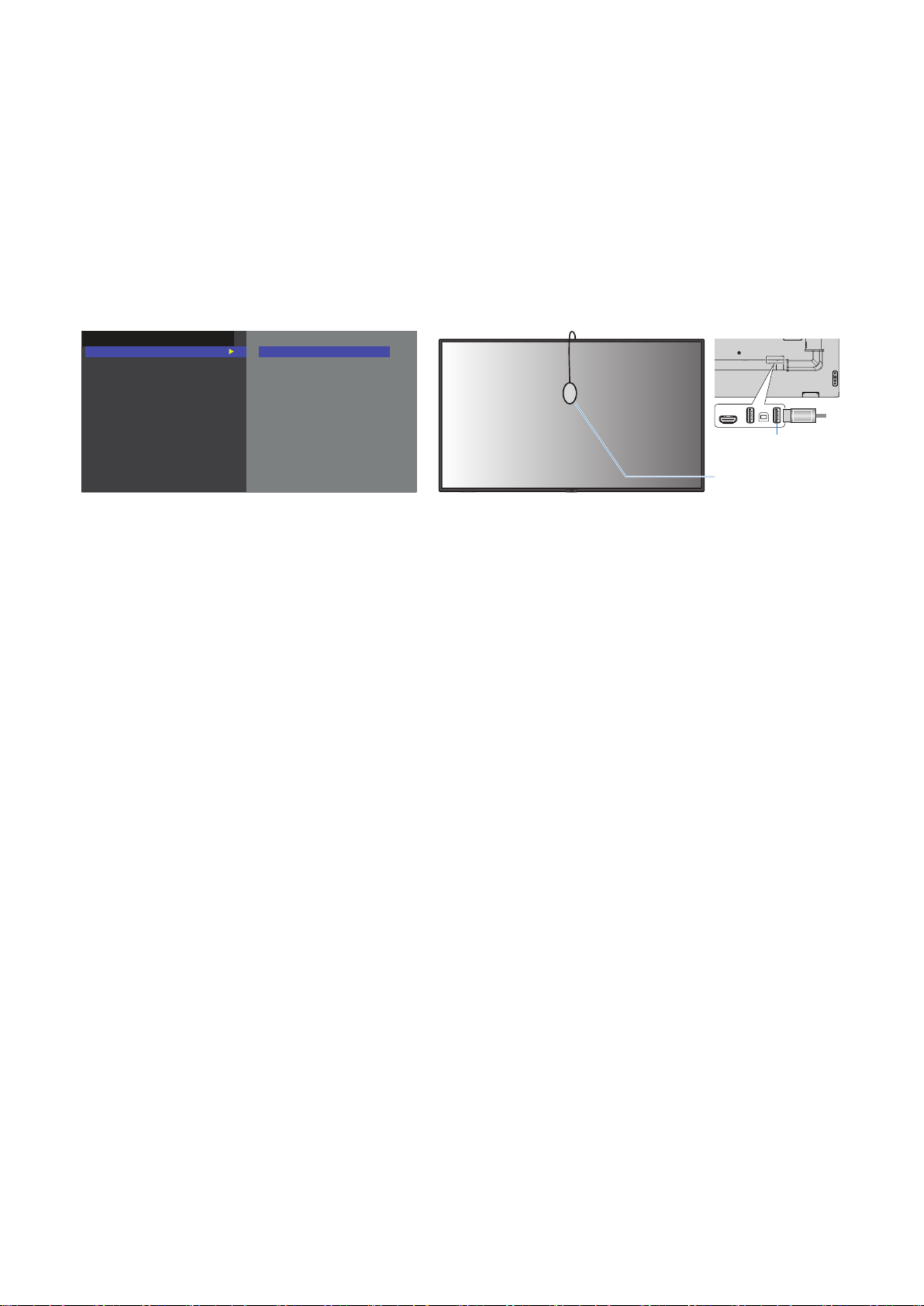

USB color sensor
STAND-ALONE CALIBRATION:
FUNCTION SELECTION SELF CALIBRATION
RESET CALIBRATION
VALIDATION
WHITE COPY
LAST CALIBRATION
2020/03/03 17:15
MDSVSENSOR3: CONNECTED
Press Set key to select function
Service (2A) port
Self calibration
This function updates the monitor’s internal SpectraView Engine color processor to use measurements taken using a supported
color sensor device. These measurements will become the reference for all color settings in the monitor.
When an NEC MDSVSENSOR 3 color sensor is connected to the monitor’s USB Service (2A) port, the monitor takes
measurements and is calibrated automatically. Place the color sensor at the center of the screen and follow the messages
shown.
Otherwise, if using a near-range colorimeter device, measurements must be taken manually with the device and the CIE Y/x/y
values individually entered via the OSD using the remote control. Y is in units of cd/m2.
Depending on the monitor usage and other factors, performing a Self Calibration at least once per year is recommended.
Reset calibration
This deletes the color measurement data created by the Self Calibration function and returns to the original factory internal
reference color measurement data. All Picture Modes will automatically be updated. If you are using NEC Display Wall
Calibrator, uniformity adjustment data is also deleted.
Validation
This can be used to determine if the Self Calibration operation should be performed.
It compares measurements taken of various color patches on the screen by the color sensor with the expected values calculated
by the SVE, which uses the current internal reference color measurement data. The result of this comparison is indicated as an
average color difference (dE) value. Larger values mean there is a larger difference between the measurements and the internal
reference. If the dE value is higher than 3.0, Self Calibration is recommended to update the internal reference color data.
The Self Calibration function must have been previously performed before this function is available on the OSD menu.
NOTE:• [Self calibration], [Validation] and [WHITE COPY] are not available if the input is [DISPLAYPORT1] then [DisplayPort
VERSION] is set [1.4].
• The date and time stamped results of the “Self calibration” and “Validation” functions are stored in the monitor
and can be read by software on your computer. Setting the [YEAR], [MONTH], [DAY] and [TIME] in [SYSTEM] ➙
[DATE & TIME] OSD menu is required for this function.
English−48
Using Other Picture Modes
There are different picture modes available when the SpectraView Engine is off in the OSD menu. These picture modes have
also been configured with settings as described in the “Picture Mode Types” table below.
To change picture modes:
Press the PICTURE MODE button on the wireless remote control to cycle through the modes, or select the mode in the
[PICTURE] list in the OSD menu.
These picture modes are available based on the selected input:
• For [DisplayPort1], [DisplayPort2], [HDMI1], [HDMI2], [COMPUTE MODULE]*2, [OPTION*1]
NATIVE RETAIL CONFERENCING HIGHBRIGHT ➙ ➙ ➙ ➙ TRANSPORTATION ➙ CUSTOM
*1: This function depends on which Option Board is installed in the monitor.
*2: This input is available when the optional Raspberry Pi Compute Module Interface Board and Raspberry Pi Compute Module are installed.
Picture Mode Types
PICTURE MODE PURPOSE
NATIVE Standard setting.
RETAIL Bright, vivid colors ideal for advertising and branding.
CONFERENCING Lower color temperature and optimized natural human complexions.
HIGHBRIGHT Maximum backlight brightness with higher color temperature for brighter ambient environments.
TRANSPORTATION Maximum backlight brightness with high contrast to read text under all conditions.
CUSTOM Custom setting.
NOTE: Changing any of the settings of the [PICTURE] in the OSD menu will change the settings for the current input only.
English−49
Setting Security and Locking the Monitor Controls
Under normal operation, the monitor can be controlled by any person using the remote control or the monitor control panel. You
can prevent unauthorized use and changes to the monitor settings by enabling the options for Security and Lock Settings.
The security and locking functions covered in this section are:
• Setting the password
• Enabling password security
• Locking the remote control buttons
• Locking the monitor control panel buttons
NOTE: The instructions in this section describe locking access to the monitor controls. Other security settings available for this
monitor are described in the related sections for those controls:
• “Network Settings” on page 64 for the monitor’s web controls.
Settings Location
The instructions in this section guide you through configuring security and locking functions in the monitor’s OSD menu. These
settings can also be configured using the monitor’s web controls. The function names and location in the web controls are the
same as the OSD menu. See .page 63
The menu options for Security and Lock Settings are in the [PROTECT] menu in both the OSD menu and web controls.
PASSWORD:
oooo
SECURE MODE:
START-UP LOCK
CONTROL LOCK
CHANGE PASSWORD
CURRENT PASSWORD:
oooo
NEW PASSWORD:
oooo
CONFIRM PASSWORD:
oooo
PROTECT:
POWER SAVE SETTINGS
THERMAL MANAGEMENT
SCREEN SAVER
POWER ON DELAY
SECURITY SETTINGS
LOCK SETTINGS
ALERT MAIL
RESET
Password Security
When password security is enabled, a four-digit passcode is required when turning on the main power and/or accessing the
OSD (see ). The monitor will function normally after the password is entered. If no buttons have been pressed for page 50
30 seconds, the monitor will return to SECURE MODE automatically and the password will be required again.
NOTE:If you change the password make a note of the password in a secure location. If you forget your password, you will need
to contact technical support to get a recovery password to access the monitor OSD menu.
English−50

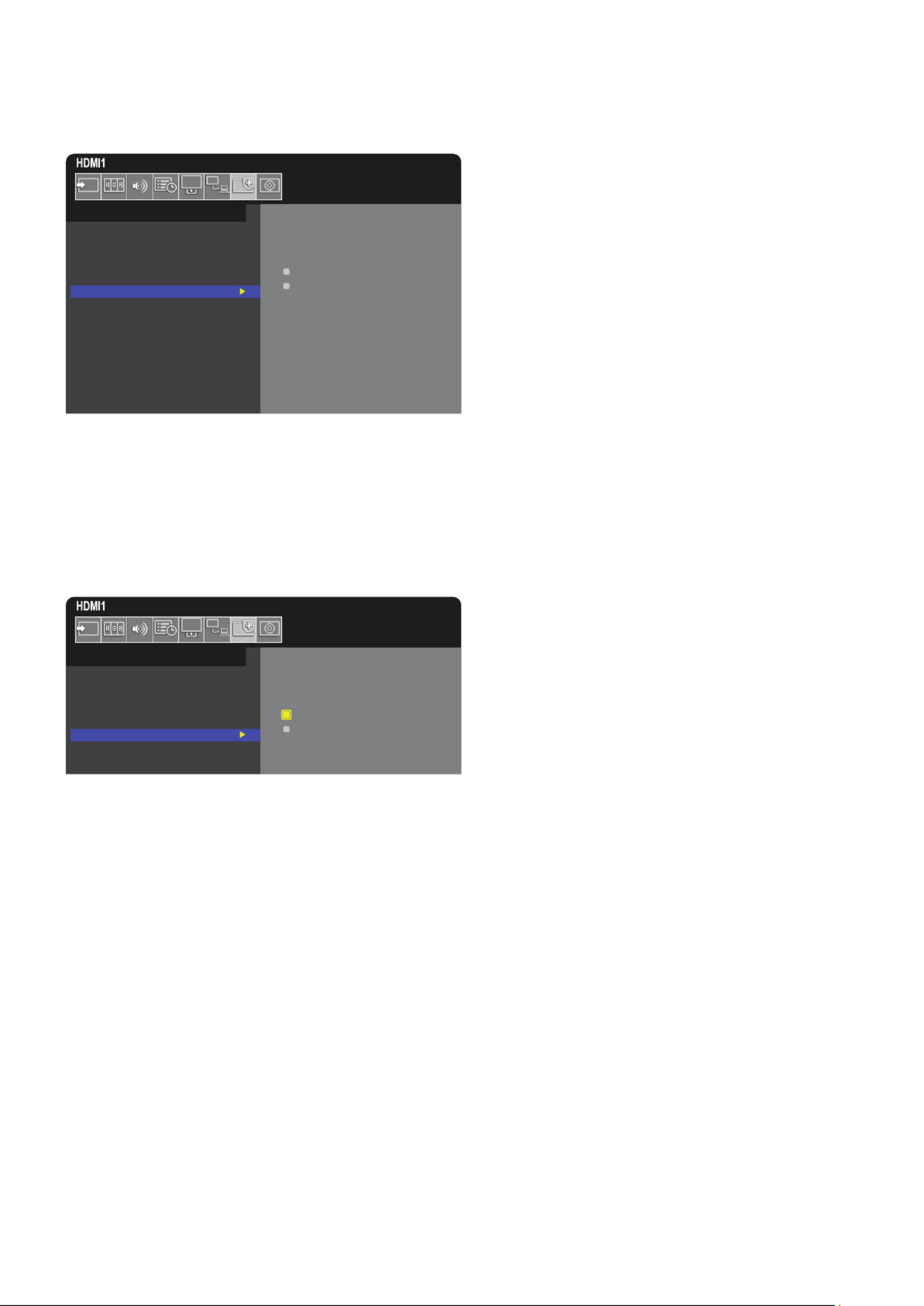

Set a password for the monitor
This step is only required if you want to change the password.
PASSWORD:
oooo
SECURE MODE:
START-UP LOCK
CONTROL LOCK
CHANGE PASSWORD
CURRENT PASSWORD:
o ooo
NEW PASSWORD:
oooo
CONFIRM PASSWORD:
oooo
PROTECT:
POWER SAVE SETTINGS
THERMAL MANAGEMENT
SCREEN SAVER
POWER ON DELAY
SECURITY SETTINGS
LOCK SETTINGS
ALERT MAIL
RESET
1. Using the remote control, navigate to [PROTECT] then to [SECURITY SETTINGS].
2. Under [CHANGE PASSWORD], enter the password in the [CURRENT PASSWORD] field. (The default password is: 0 0 0 0).
3. Input a [NEW PASSWORD] and then input it again in the [CONFIRM PASSWORD] field.
4. The new password is immediately saved.
Enable password security
PASSWORD:
oooo
SECURE MODE:
START-UP LOCK
CONTROL LOCK
PROTECT:
POWER SAVE SETTINGS
THERMAL MANAGEMENT
SCREEN SAVER
POWER ON DELAY
SECURITY SETTINGS
LOCK SETTINGS
ALERT MAIL
1. Using the remote control, navigate to [PROTECT] then to [SECURITY SETTINGS].
2. Enter the password in the [PASSWORD] field to access the [SECURE MODE] settings.
3. Select the type of [SECURE MODE] you want to use:
• [START-UP LOCK] – the password is required when turning on the monitor from the main power switch.
When this option is selected the password is only required on power cycle using the main power switch or after power
failure. This option does not prompt for a password when using the remote control POWER ON and STANDBY buttons or
the button on the monitor control panel.⏻
• [CONTROL LOCK] – the password is required to use any of the remote control buttons or buttons on the monitor.
English−51
Locking the Button Controls
The lock settings prevent the monitor from responding to button presses on the IR remote control or monitor control panel. When
locking the button controls, some buttons can be configured to remain unlocked for users to adjust the settings. Locking and
unlocking the button controls do not require a password.
Locking the IR Remote Buttons
The [IR] in the [LOCK SETTINGS] prevent the monitor from being controlled using the remote control. Enabling the [IR] does not
lock the buttons on the monitor control panel.

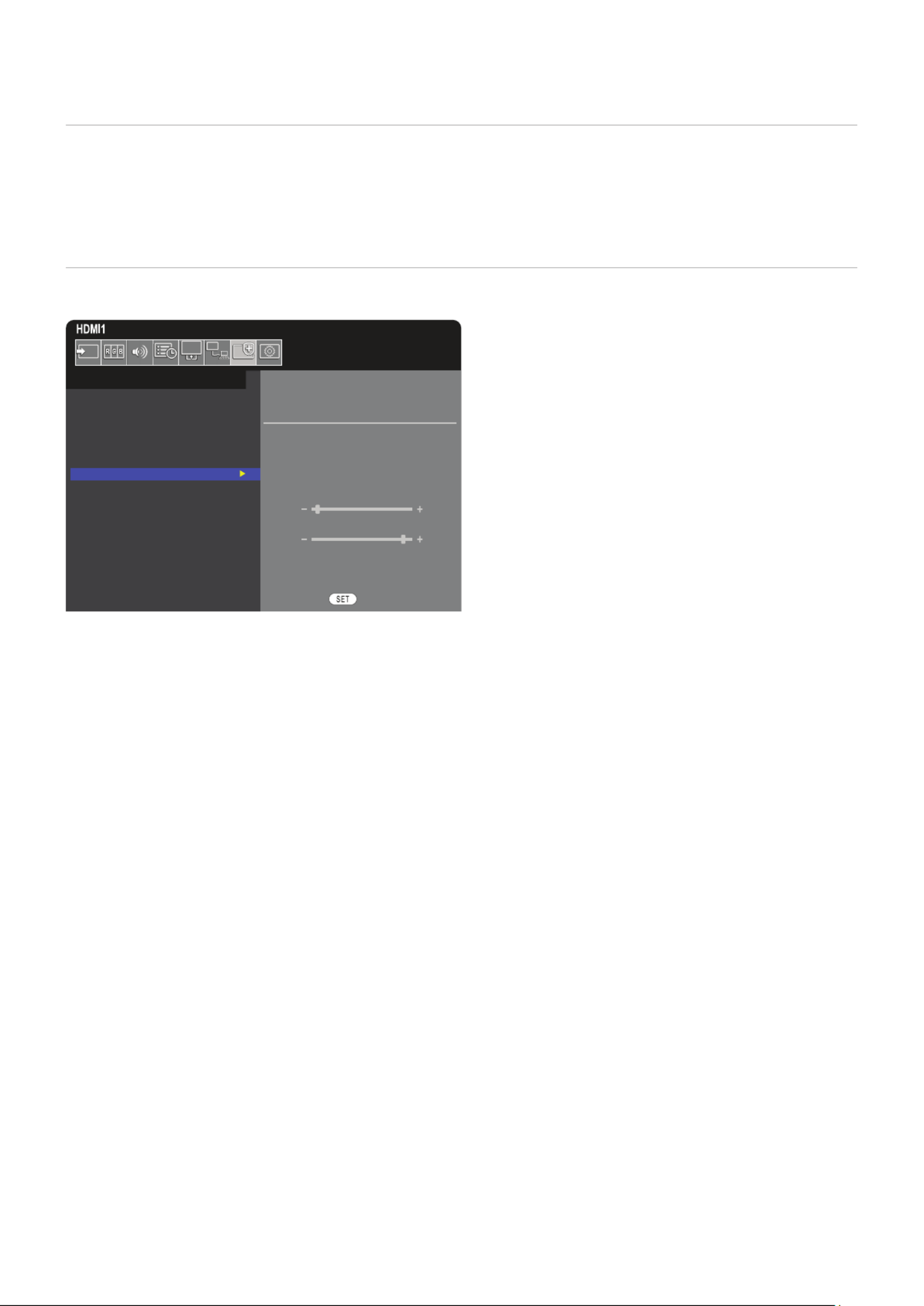

SELECT IR
MODE UNLOCK
POWER
/ LOCKUNLOCK
VOLUME
/ LOCKUNLOCK
MIN VOL
10
MAX VOL
80
INPUT
/ LOCKUNLOCK
PRESS TO EXECUTE
PROTECT:
POWER SAVE SETTINGS
THERMAL MANAGEMENT
SCREEN SAVER
POWER ON DELAY
SECURITY SETTINGS
LOCK SETTINGS
ALERT MAIL
RESET
1. Using the remote control, navigate to [PROTECT] then to [LOCK SETTINGS].
2. Under the [SELECT] option, press the , buttons to change the setting to [IR].
3. Under [MODE] choose the lock mode you want to enable.
• [UNLOCK] – all buttons are unlocked.
• [ALL LOCK] – all buttons are locked.
• [CUSTOM LOCK] – all remote buttons are locked except for the following buttons that can be individually set as locked
or unlocked.
• [POWER] – select [UNLOCK] to be able to use the button when the IR Remote is locked. Select [LOCK] to lock the ⏻
button.
• [VOLUME] – select [UNLOCK] to be able to control the volume with the VOL+, VOL– buttons when the IR Remote is
locked. Select [LOCK] to prevent volume adjustment.
When activating the volume lock, the monitor volume will immediately change to the MIN VOL value.
• [MIN VOL] [MAX VOL] and – the volume buttons are unlocked, and the volume level can only be adjusted within
the [MIN] and [MAX] range set.
The [VOLUME] must be set to [UNLOCK] for this setting to operate.
• [INPUT] – select [UNLOCK] to unlock all input buttons. Select [LOCK] to lock all input buttons.
4. Select [SET] to activate all settings.
Unlocking the IR Remote Controls
• IR Remote Control – to return to normal operation, press-and-hold the DISPLAY button for at least 5 seconds.
English−52
Locking the Control Panel Buttons and key
The [KEY] in the [LOCK SETTINGS] prevents the monitor from being controlled using the buttons and key on the monitor control
panel. Enabling the [KEY] does not lock the buttons on the remote control.

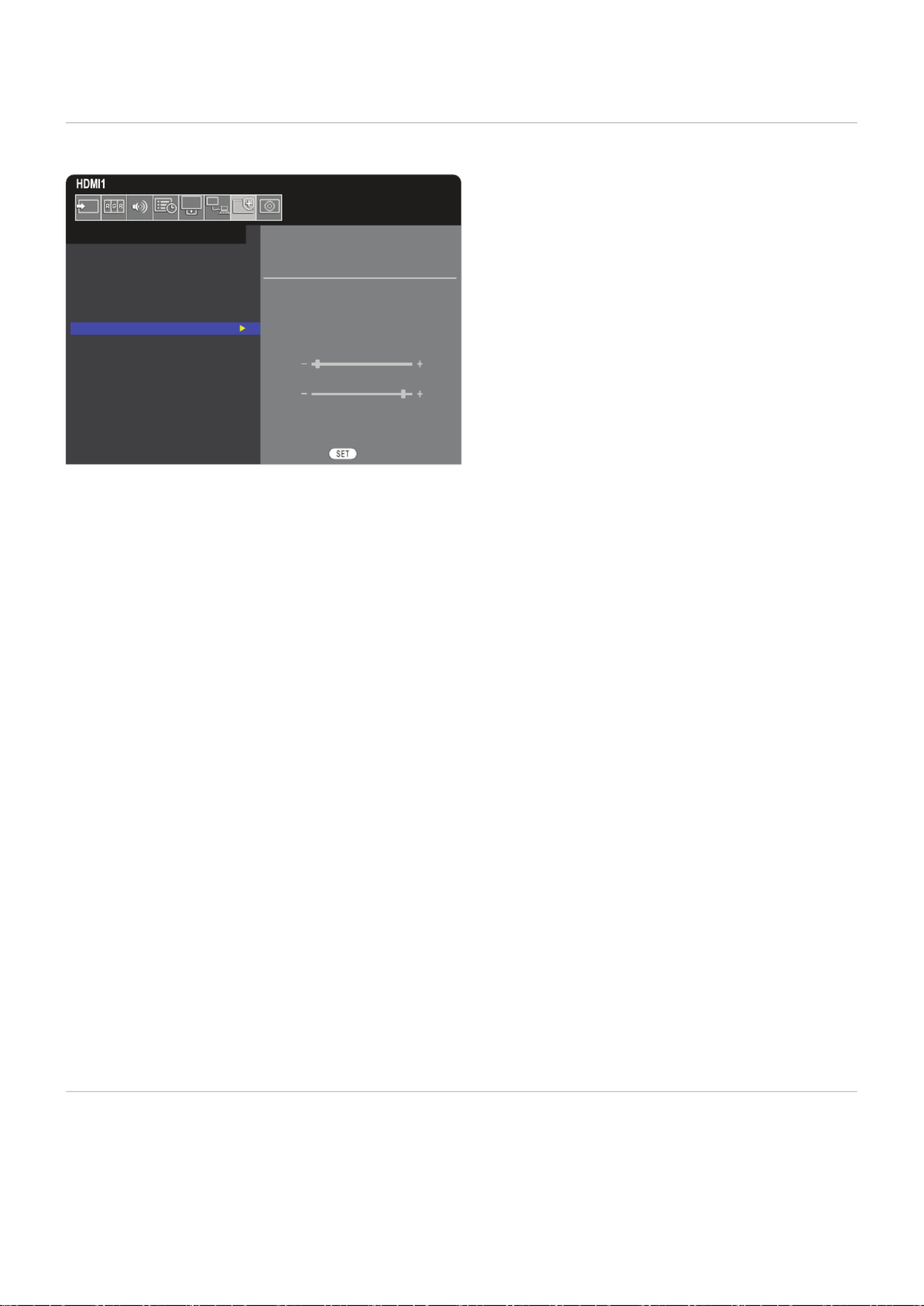

SELECT KEY
MODE UNLOCK
POWER
/ LOCKUNLOCK
VOLUME
/ LOCKUNLOCK
MIN VOL
10
MAX VOL
80
INPUT
/ LOCKUNLOCK
PRESS TO EXECUTE
PROTECT:
POWER SAVE SETTINGS
THERMAL MANAGEMENT
SCREEN SAVER
POWER ON DELAY
SECURITY SETTINGS
LOCK SETTINGS
ALERT MAIL
RESET
1. Using the remote control, navigate to [PROTECT] then to [LOCK SETTINGS].
2. Under the [SELECT] option, press the , buttons to change the setting to [KEY].
3. Under [MODE] choose the lock mode you want to enable.
• [UNLOCK] – all keys are unlocked.
• [ALL LOCK] – all key buttons are locked.
• [CUSTOM LOCK] – all key buttons are locked except for the following buttons that can be individually set to be locked or
unlocked.
• [POWER] – select [UNLOCK] to be able to use the button when the keys are locked.⏻
• [VOLUME] – select [UNLOCK] to be able to control the volume with the / keys when the keys are locked. Select v w
[LOCK] to prevent volume adjustment.
When activating the volume lock, the monitor volume will immediately change to the [MIN VOL] value.
• [MIN VOL] [MAX VOL] and – the / keys are unlocked and the volume can only be adjusted within the [MIN] and v w
[MAX] set.
The [VOLUME] must be set to [UNLOCK] for this setting to operate.
• [INPUT] – select [UNLOCK] to be able to change the inputs using the INPUT/SET button.
4. Select [SET] to activate all settings.
Unlocking the buttons and key on the monitor control panel
Key/Buttons – to return to normal operation unlock all the buttons/keys on the main unit control panel by pressing the SET key
and MENU/EXIT button on the main unit control panel at the same time for 3 seconds or longer.
OSD Menu – to return to normal operation, use the remote control to navigate to [PROTECT] then to [LOCK SETTINGS]. Under
the [SELECT] option, change the setting to [KEY]. Under [MODE] choose [UNLOCK] and then select [SET].
Locking the IR Remote Buttons and the Control Panel Buttons/key
Select [PROTECT] [LOCK SETTINGS] [SELECT] [KEY & IR] from the OSD menu.➙ ➙ ➙
For the subsequent setting procedure, buttons/keys for which the lock is enabled, and unlocking method, refer to “Lock button
operation on remote control” and “Lock button/key operation on the main unit control panel”.
English−53
Chapter 6 Multi-Monitor Setup
This Chapter Includes:
>“Connecting Multiple Monitors” on page 54
>“Video Out Connection” on page 57
>“Setting the Remote Control ID Function” on page 58
English−54
Connecting Multiple Monitors
Monitors can be connected to each other, both communication and video connections, in multiple monitor installations. Chaining
the video connections together creates a video wall where a single image can be tiled across all displays. When connecting
multiple monitors to install a video wall, communication and video cable connections are necessary and their configuration must
be carefully considered. Please refer to the “Wiring Diagram” on page 27 for making communication and video connections.
The monitor settings for configuring a video wall in the OSD and Monitor Web page settings are under [PICTURE], [SYSTEM].
• [PICTURE-ADVANCED]-[AUTO TILE MATRIX] – automatically configures the multi-display settings when the communication
and video ports are chained together. This automatically sets the [MONITOR ID] and position of the monitors in the video
wall following the physical wiring between the monitors.
Input the number of monitors arranged horizontally and vertically on the master monitor. The following settings are set
automatically when you run the auto setup: OSD menu [H MONITORS], [V MONITORS], [POSITION], [DisplayPort
VERSION], [HDMI MODE], [VIDEO OUT SETTINGS] and Input signal.
NOTE:• [MONITOR ID] in [AUTO ID/IP SETTING] will be automatically executed.
• This function is released if [MOTION] in [SCREEN SAVER] is activated.
• If input is DisplayPort 4K (60Hz) 10bit, this function is disabled.

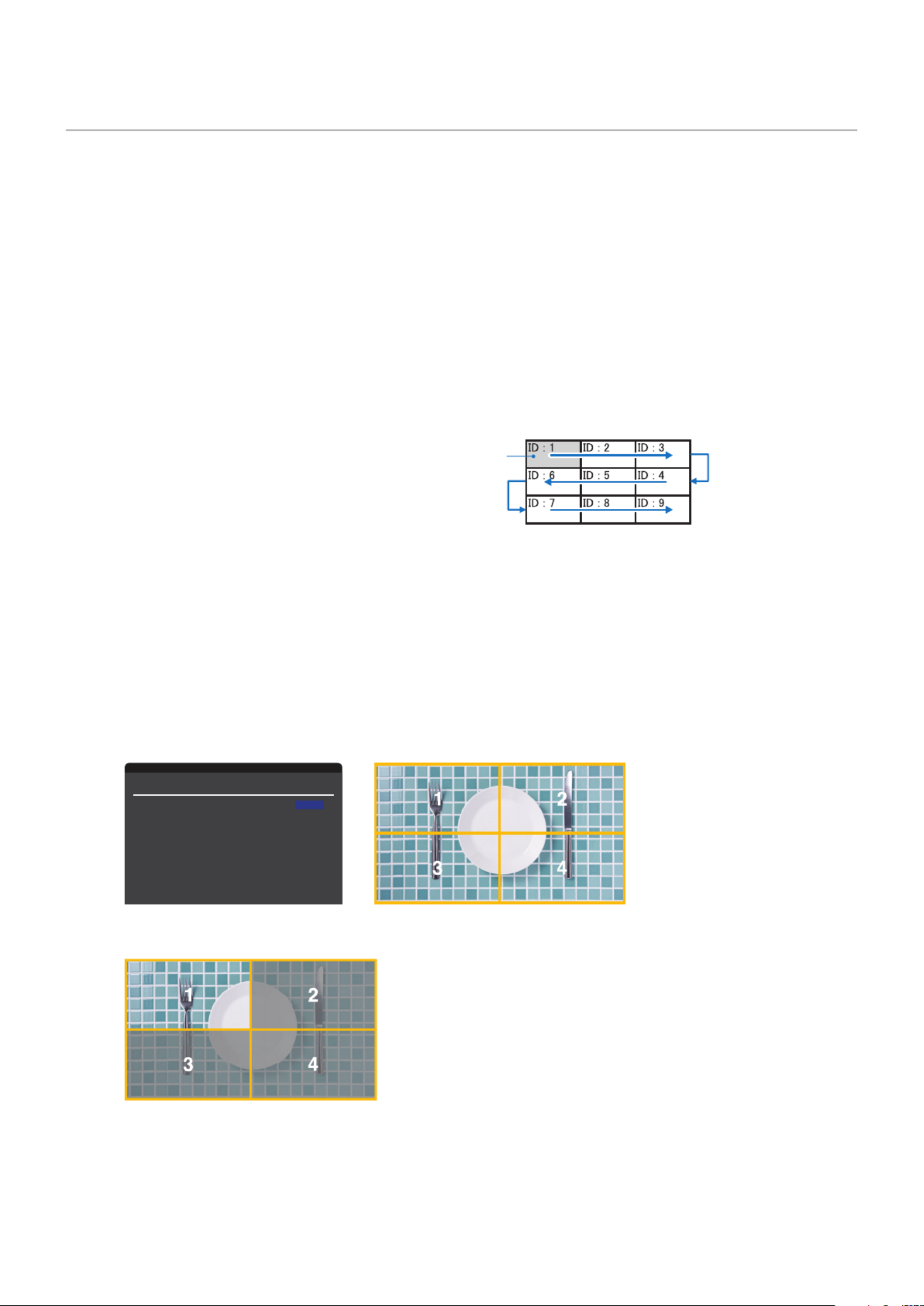

Example of installation via LAN:
H MONITORS 3
V MONITORS 3
Master monitor
• [PICTURE-ADVANCED]-[TILE MATRIX] – allows one image to be expanded and shown over multiple screens (up to 100)
through a distribution amplifier. Manually input the number of horizontal and vertical monitor in the video wall, position of
the monitor in the wall, and turn on or off Tile Compensation. When tilting HDCP content, please refer to the “Video Out
Connection” on page 57.
• [TILE COMP] - scales the image to compensate for the width of the screen bezel in order to create a seamless image.
• [TILE CUT] - select a part of an image to show in full-screen.
Example of TILE CUT 1x2 (Portrait configuration)
For the monitor on top:
1. Set H MONITORS [2] and V MONITORS [2].
One image will be divided by 4 then put number from 1 to 4.
OSD Monitor screen
TILE MATRIX
H MONITORS 2
V MONITORS 2
POSITION 1
TILE COMP ON / OFF
H SIZE 0
V SIZE 0
H ADJUSTMENT 0
V ADJUSTMENT 0
TILE CUT ON / OFF
H ADJUSTMENT 0
V ADJUSTMENT 0
TILE MATRIX ON / OFF
2. Select 1 to 4 at [POSITION].
e.g. Selecting 1
Produktspecifikationer
| Varumärke: | Nec |
| Kategori: | Övervaka |
| Modell: | MultiSync MA491 |
Behöver du hjälp?
Om du behöver hjälp med Nec MultiSync MA491 ställ en fråga nedan och andra användare kommer att svara dig
Övervaka Nec Manualer
9 April 2025
11 Februari 2025
11 Februari 2025
11 Februari 2025
7 Januari 2025
1 Januari 2025
1 Januari 2025
1 Januari 2025
14 Oktober 2024
11 Oktober 2024
Övervaka Manualer
- CTOUCH
- Yiynova
- Allen & Heath
- Triton
- Crestron
- Blue Sky
- KeepOut
- DTEN
- 3M
- Behringer
- Approx
- Ganz
- PureTools
- Apc
- PreSonus
Nyaste Övervaka Manualer
9 April 2025
8 April 2025
8 April 2025
7 April 2025
5 April 2025
5 April 2025
4 April 2025
4 April 2025
2 April 2025
2 April 2025
