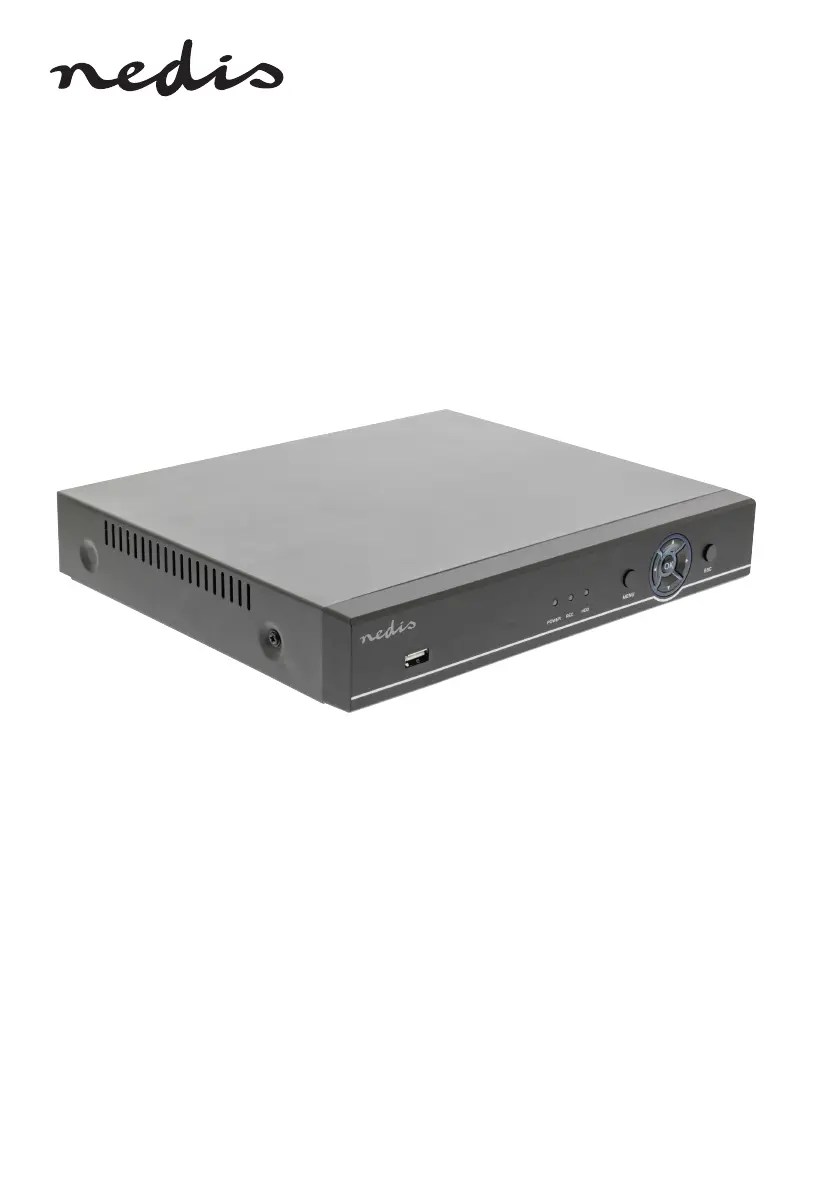

User manual

AHDR204CBK

Main Board Sensor Industrial Embedded Microprocessor

Operating System Embedded LINUX operating system

Signal Support AHD, IPC, CVBS, TVI, CVI (5 in 1)

Video Coding H.264

Video Format 4CH / 8CH 1080p

Video Frame PAL: 1 - 25 FPS / NTSC: 1 - 30 FPS

Double Stream Support

Interface USB Port (2x), RS485, SATA HDD (max 8 GB), VGA, HDMI, CVBS,

BNC (4x / 8x), RCA input, RCA output

Recording Mode Automatic / Manual / Scheduled / Motion Detection / Alarm Recording

Recording Resolution Self-adaption

Playback 4CH 1080p

Playback Mode Instant / Search / Event

Backup Mode USB / Network

Protocol Support TCP/IP, UDP, PPPoE, DHCP, DDNS, NTP etc.

P2P Cloud N_EYE Pro APP / www.yunyis.com

Supported access Mobile App (iOS / Android), UTC control, 3G, WIFI

Power 12 VDC

Power Consumption < 15W (no HDD)

Operating conditions -10 - 55 °C / 10 - 90% humidity

Phyiscal 255 x 215 x 45 mm / < 1,5 KG (no HDD)

Sensor

System

Recording

Manage

Network

Power

Others

Figure "A" Figure "B"

Figure "C"

English

1. Connect

- Connect the cameras to the recorder with the coaxial cables using BNC connector

- Use the power splitter to power the cameras

- Connect the DVR to a TV or monitor using the preferred connector

- Connect the mouse using USB

- Connect the recorder to the internet using an Ethernet cable (if desired)

- Finally power up the recorder with the included power adapter.

2. Start Up

Press the start button and make sure the TV/monitor is set to the right input source. It will enter the real-time monitoring screen as

shown in gure "A":

3. Navigation

Right-click anywhere to access the “Right-click menu”.

At rst attempt login is required, default username is admin, default password is 123456

Use the left mouse button to navigate through the menu, right click in the menu to go back.

4. Shutdown

- Right-click anywhere to access the “Right-click menu”, choose “Shut down system” and “Close”, or

- Long press the startup button at the front panel (not recommended as it may damage the hard disk)

5. Recovery

At sudden system power o, the recording video will be stored automatically and after reboot, the recorder will automatically

resume to the status before power o.

6. Recording

In the Record Cong menu you can set each camera’s recording schedule. By selecting the preferred recording mode and clicking

individual timeslots or dragging to set a larger timezone or to cover multiple days at once.

White means that no recording will be done in this timeslot, blue means constant recording is done and green means that

recording will only happen after motion is being detected.

After a schedule is nished, it can easily be copied to one or more cameras. See gure "B"

7. Motion detection

In right-click menu - main menu - system settings - output mode the motion detection can be enabled and dierent settings can

be set:

- 3 dierent sensitivity settings

- exact action(s) to take: Record one or more channels, take snapshot, send Email or show triggered camera fullscreen.

- Area setting (motion mask): if set only motion in the highlighted areas trigger the set action(s).

8. Playback

When watching back earlier recordings, you get the interface like gure "C":

The 4 grey timelines at the bottom represent the 4 dierent channels. Dierently coloured areas indicate dierent types of

recording (scheduled, manual, alarm or triggered by motion detection).

Drag the timeline left or right to scroll in time, use the mouse’s scroll-wheel to zoom the timeline.

Double click on a specic time to play back the recording starting from the selected time.

9. Mobile Application

To access the DVR on your smartphone make sure the DVR is connected to the router and the network is congured correctly.

Download and open the App “N_EYE PRO”, login or register your account or use local login if you only need access from within

the local network. Add device using the plus sign and select Network Device. Scan the QR-tag shown at the DVR under P2P Cloud

or copy the requested network parameters. The App can automatically detect the number of cameras on this DVR. After saving you

will see all cameras added. On the top-right corner specic cameras can be switched on and o. Other options in the App include

playback and manual recording on smartphone.
