Sida 1/57
MANUAL (p. 2)
ANLEITUNG (S. 5)
MODE D’EMPLOI (p. 9)
GEBRUIKSAANWIJZING (p. 12)
MANUALE (p. 15)
MANUAL DE USO (p. 18)
MANUAL (p. 21)
HASZNÁLATI ÚTMUTATÓ (o. 24)
KÄYTTÖOHJE (s. 27)
BRUKSANVISNING (s. 30)
NÁVOD K POUŽITÍ (s. 33)
MANUAL DE UTILIZARE (p. 36)
ΕΓΧΕΙΡΙΔΙΟ XPHΣHΣ (σελ. 39)
BRUGERVEJLEDNING (s. 42)
VEILEDNING (s. 45)
INSTRUKCJA OBSŁUGI (str. 48)
ИНСТРУКЦИЯ (51 стр.)
KILAVUZ (s. 55)

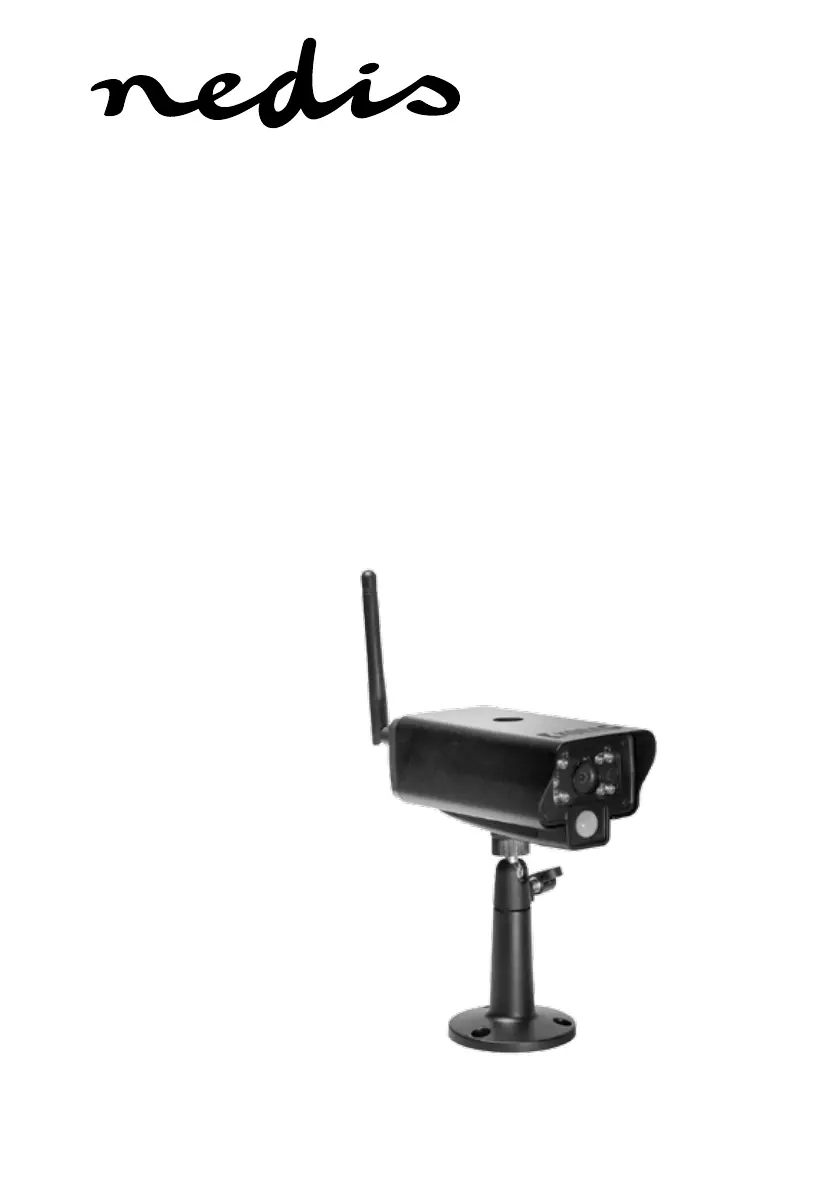

CSWL1C20CBK
Wireless Camera
Max. Transmit Power: 10 dBm
Antenna gain: 2 dBi
2
ENGLISH
Introduction:
Watch over your properties with this new 2.4 GHz digital wireless security camera
system. The 7” LCD monitor can support up to 4 cameras and has an integrated digital
video recorder. The camera oers a very sharp and stable image with night vision and
the technology used improves the image quality even further. The system uses digital
wireless technology and is equipped with advanced frequency signal encryption
capabilities, which reduce interference caused by other applications using the 2.4 GHz
frequency band. This digital technology ensures your privacy and allows you to use it
over an extra long distance. THE BEST THAT WIRELESS HAS TO OFFER.
The monitor and camera are paired by factory default already. When adding the
additional camera CSWL1C20CBK (4 cameras max.) to the system, please refer to the
section PAIRING for adding cameras.
• We recommend that you read this manual before installing/using the camera system.
• Keep this manual in a safe place for future reference.
Technical specications:
Transmitting frequency: 2.4-2.4835 GHz Digital
Modulation: 16QAM, QPSK, BPSK
Range: Indoor ±50 m, open area ±150 m (depending on local
conditions)
Image chip: 1/4” CMOS
Lens: 2.0mm
View angle: 73°
Infrared illumination (LED): 5 M
Protection: IP54
Microphone: mono
Working temperature: -10°C ~ 50°C
Voltage: 5 V DC/400 mA
Dimensions: 132x64x57mm (without bracket)
Weight: 287 g (included cable)
Safety precautions:
• Do not open the camera or monitor in the event of a malfunction. These products
should only be opened by a qualied engineer.
• Do not submerge the camera in liquid.
• Do not expose the monitor to water or humidity.
• Do not expose the monitor or camera to high temperatures (see technical
specications).
• Do not install the system close to strong magnetic elds, such as a speaker. This may
aect the quality.
3
ENGLISH
Product description:
1. Infrared LEDs
2. Lens
3. PIR infrared sensor
4. Microphone
5. Bracket
6. Antenna
7. Pair Button
8. Power Input
9. Antenna Socket
10. Link Indicator
11. Power Indicator
Installation instructions:
The camera can be mounted in dierent ways. For ceiling mounting use the screw thread
on top of the camera. After mounting the camera connect the AC/DC power supply to the
camera and a wall outlet.
When adding the additional camera CSWL1C20CBK (max. 4) the camera needs to be paired to
the system for the system to recognize the camera.
Press the right arrow button in the main menu to select the camera settings and press OK.
Pairing:
1. Press OK to enter the pairing menu.
2. Select the camera with the up and down arrow buttons.
3. Press OK, and the following screen will appear.
