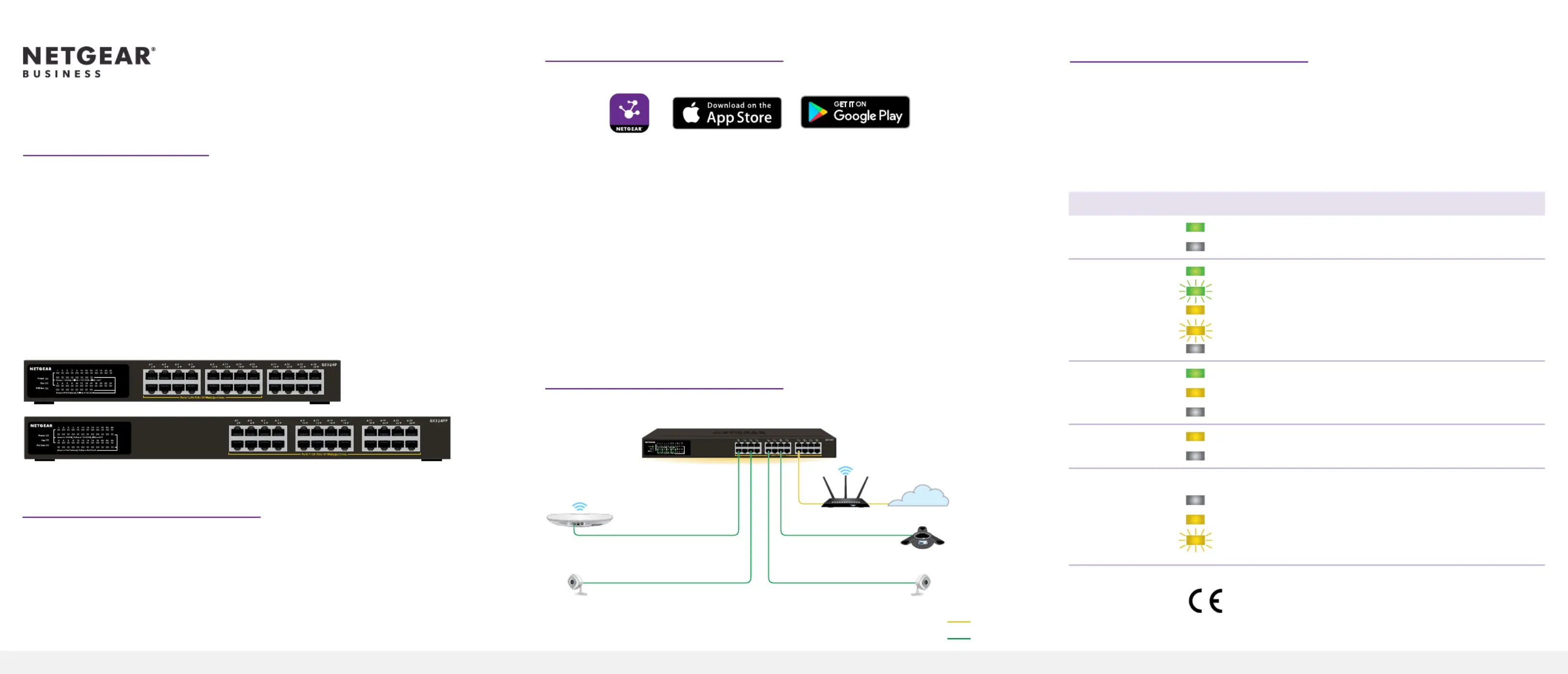

Installation Guide

24-Port Gigabit Ethernet Unmanaged

PoE+ Switch (190W)

Model GS324P

24-Port Gigabit Ethernet Unmanaged High-Power

PoE+ Switch (380W)

Model GS324PP

Package contents

• Switch model GS324P or GS324PP

• Power cord (varies by region)

• Rack-mount kit with four rubber feet

• Installation guide

Note: We recommend that you use Category 5e (Cat 5e) cable or higher for

Gigabit Ethernet connections.

1. Register with the NETGEAR Insight app

1. Search for NETGEAR Insight and download the latest app.

2. Set up a NETGEAR account if you do not have one.

3. Tap the menu in the upper-left corner.

4. Tap REGISTER ANY NETGEAR DEVICE.

5. Enter the serial number located on the bottom of the switch, or use the

camera on your mobile device to scan the serial number bar code.

6. Tap .GO

The switch is registered and added to your account. You can now view the

switch in the NETGEAR Insight app.

Note: Because this is an unmanaged switch, you cannot congure or manage it

in NETGEAR Insight.

2. Connect the switch

VoIP phone

Internet

GS324PP switch

Internet

PoE

Sample connections

Security cameras

Access point

Router

3. Check the LEDs

When you connect the power cord to the switch and plug it into an electrical

outlet, the LEDs indicate the status.

The GS324P provides PoE+ or PoE power on ports 1–16 up to 30W to each port,

with a PoE power budget of 190W across all active PoE ports. The GS324PP

provides PoE+ or PoE power on ports 1–24 up to 30W to each port, with a PoE

power budget of 380W across all active PoE ports.

LED

Description

Power . The switch is receiving power. On

Off The switch is not receiving power.

Ethernet 1–24 .1000 Mbps link on this port. On

Blinking. 1000 Mbps activity on this port.

. 100 Mbps or 10 Mbps link on this port.On

Blinking. 100 Mbps or 10 Mbps activity on this port.

Off. No link is detected on this port.

PoE

GS324P 1–16

GS324PP 1–24

On. PoE is in use.

. PoE halted. On

Off. PoE is not in use on this port.

Fan . There is a fan error. On

Off. The fan is working correctly.

PoE Max The PoE Max LED indicates the status of the switch’s PoE budget:

Off Sufcient. More than 7W of PoE power is available.

On. Less than 7W of PoE power is available.

Blinking. At least once during the previous two minutes, less

than 7W of PoE power was available.

GS324P

GS324PP

Produktspecifikationer

Varumärke:	Netgear
Kategori:	Växla
Modell:	GS324P
Vikt:	2440 g
Bredd:	330 mm
Djup:	206 mm
Höjd:	43 mm
LED-indikatorer:	Activity, Link, PoE, Power, Speed
Strömförbrukning (max):	210 W
Certifiering:	CB, CE LVD, UL
Rackmontering:	Ja
Medeltid mellan fel (MTBF):	1193574 h
Paketbuffertminne:	0.192 MB
Full duplex:	Ja
Produktens färg:	Svart
Formfaktor:	1U
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Total Power over Ethernet (PoE)-budget:	190 W
Power over Ethernet (PoE)-effekt per port:	30 W
Temperatur vid drift:	0 - 45 ° C
Temperaturintervall (förvaring):	-20 - 70 ° C
Intervall för relativ operativ luftfuktighet:	10 - 90 %
Fuktighet (förvaring):	10 - 95 %
AC-inspänning:	100 - 240 V
Material, hölje:	Metall
Växelström Frekvens:	50 - 60 hz
Kommunikationsstandarder:	IEEE 802.1p, IEEE 802.3at
Stöd för garanterad tjänstekvalitet (QoS):	Ja
Harmonized System (HS)-kod:	85176990
Ingående ström:	3 A
Adresstabellstorlek:	8000 poster
Jumboramar:	10000
Jumbo Frames stöd:	Ja
Switch kapacitet:	48 Gbit/s
10G stöd:	Nej
Antal grundläggande RJ-45 Ethernet-portar:	24
Typ av grundläggande RJ-45 Ethernet-portar:	Gigabit Ethernet (10/100/1000)
Värmeavgivning:	718.2 BTU/h
Antal Power over Ethernet plus (PoE +)-portar:	16
Antal fläktar:	1 fläkt/-ar
Switch typ:	Ohanterad
Autonegotiation:	Ja
Auto MDI / MDI-X:	Ja
Altitud vid drift:	0 - 3000 m
Elektromagnetisk kompatibilitet:	CE, FCC 15 A, IC A, RCM, VCCI, KC
Latens (1 Gbps):	4 ps
Paketförmedlingshastighet (1 Gbps):	1448000 pps
Algoritmer för schemaläggning av köer:	Weighted Round Robin (WRR)
