12129200. 12149200. Replacement with the new 1200W motor kit A-0.6.5.

ASSEMBLY INSTRUCTIONS GM 200 / 300 / 400 SERIES

Instruction No. 82129400/00-08

To be performed by a skilled

or instructed person only !

Disconnect the vacuum cleaner

from the power supply before

starting the work!

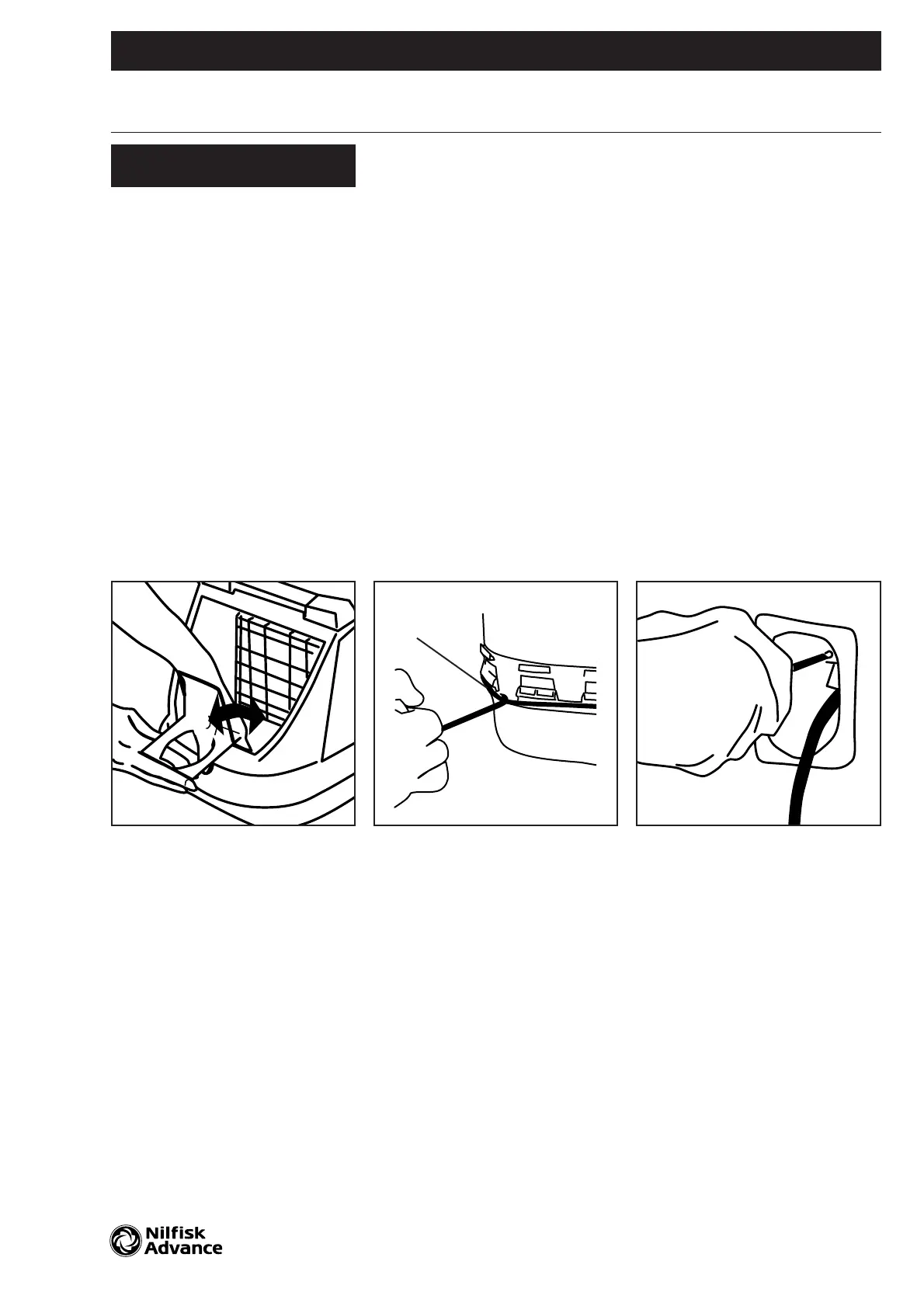

! Models with bag-full indicator:

Open the dust cover until it stops

and continue with a little pressure

by hand until it slides free of the

hinges.

Models with no bag-full indicator:

Open the dust cover and lift it out

of the hinges.

Remove filter with dust bag.

Remove the dust bag holder by

pressing bottom clip and ease the

holder out of the bottom. This

releases the hook at the container

wall.

@ To separate the top and bottom

housing and avoid scratches on

the parts, place tool no. 22361400

under the buffer.

Follow instruction 82361500

Remove the strap (12) by hand.

Lift up the buffer and remove the

top housing.

# Free the cord with plug from

the terminal box in the top housing

by using a Pozi screwdriver no. 2

or in old models press it out by

hand.

Remove the cord reel and lock the

cord to the reel. Remove internal

wires and release the on/off switch

by pressing a screwdriver under it.

Remove the motor housing with

four screws by a Pozi screwdriver

no. 2.

Replace the motor unit with the

new complete motor housing

included the thermal switch and

connect wires as described.

Refit in reverse order. Press the

buffer back in place by hand after

mounting the strap around the

housings.

W E

6 5 9 6 4 3

View with existing motor housing removed.

New motor

housing

to be

mounted

under exist-

ing motor

housing

Top view

New cord

reel shown

Capacitor

with foam

Flex

Existing

motor housing

Note 1

Note 1:

O-ring to be mounted only when

existing motor housing is for two

speed regulation with four grooves.

On/off switch

12129200. 12149200. Replacement with the new 1200W motor kit A-0.6.5.

ASSEMBLY INSTRUCTIONS GM 200 / 300 / 400 SERIES

Instruction No. 82129400/00-11

Diagram for GM 200/300/400

series with one speed

118408xx

11842200

N L

= RFI capacitor

= Thermo switch

= Resistor

Remove and scrap these when

your are installing a new motor

unit on a GM 200 / 300

81859300

81842700

81842800

81842900

81841900

22186000. Replacement with the new 1200W motor kit A-0.6.5.

and two speed PCB 3

ASSEMBLY INSTRUCTIONS GM 200 / 300 / 400 SERIES

Instruction No. 82187100/00-08

To be performed by a skilled

or instructed person only !

Disconnect the vacuum cleaner

from the power supply before

starting the work!

! Models with bag-full indicator:

Open the dust cover until it stops

and continue with a little pressure

by hand until it slides free of the

hinges.

Models with no bag-full indicator:

Open the dust cover and lift it out

of the hinges.

Remove filter with dust bag.

Remove the dust bag holder by

pressing bottom clip and ease the

holder out of the bottom. This

releases the hook at the container

wall.

@ To separate the top and bottom

housing and avoid scratches on

the parts, place tool no. 22361400

under the buffer.

Follow instruction 82361500

Remove the strap (12) by hand.

Lift up the buffer and remove the

top housing.

# Free the cord with plug from

the terminal box in the top hous-

ing by using a Pozi screwdriver

no. 2 or in old models press. it

out by hand.

Remove the cord reel and lock

the cord to the reel. Remove

internal wires and release the

on/off switch by pressing a

screwdriver under it.

Replace the motor unit with the

new complete motor housing

included the thermal switch and

connect wires as described.

Remove and replace the new

two-speed PCB and connect

wires.

Refit in reverse order. Press the

buffer back in place by hand

after mounting the strap around

the housings.

W E
