Dear customer,

Congratulations on choosing the Noctua NH-D15S. Tailored to

provide superior RAM and PCIe compatibility, the NH-D15S is

an asymmetrical single fan version of Noctua’s award-winning

flagship model NH-D15. I’m confident that you will be able to

sense some of the research, attention and care we’ve put into mak-

ing this cooler.

Enjoy your NH-D15S!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility list

on our website (www.noctua.at/compatibility) and verify that the

cooler is fully compatible with your motherboard. Please also make

sure that your PC case offers sufficient clearance for the cooler and

that there are no compatibility issues with any other components

(e.g. tall RAM modules). Double check that the heatsink and fan

clips do not make contact with the VGA card or other PCIe cards.

Noctua cannot be held responsible for any damage or losses caused

by compatibility issues.

Should you encounter any difficulties, please check the FAQs on our

website (www.noctua.at/faqs) and don’t hesitate to contact our sup-

port team at support@noctua.at.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

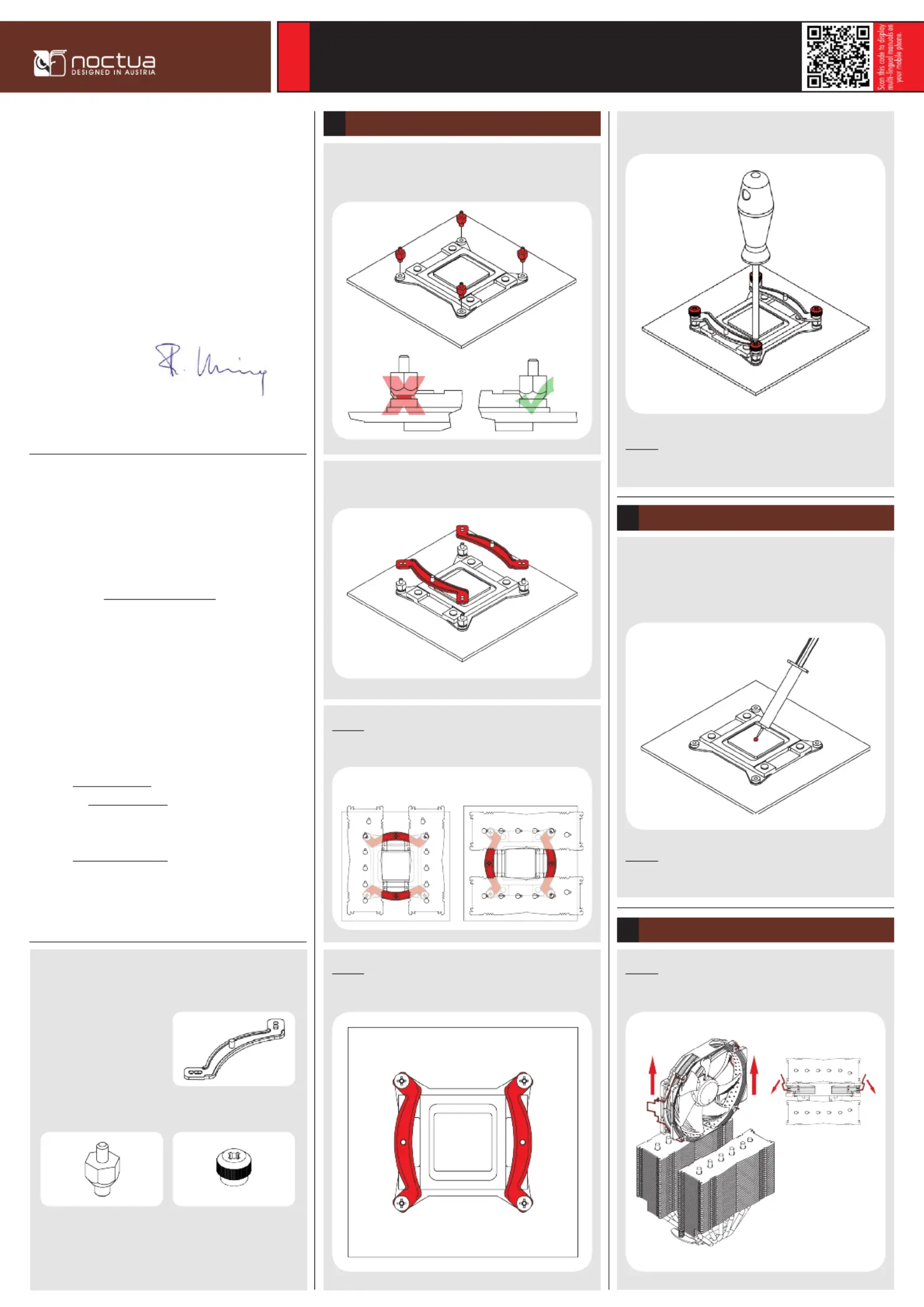

Required mounting parts:

2x NM-IMB2 mounting bars1x NM-IBP2 backplate

4x NM-ITS1s thumb screws4x NM-IPS1 spacers

Noctua NH-D15S |

Installation Manual | LGA115x

LGA115x

Caution: The supplied backplate will install over the motherboard’s

stock backplate, so the motherboard’s stock backplate must not

be taken off.

Attaching the backplate2

Place the backplate on the rear side of the motherboard so that the

bolts stick through the mounting holes.

Caution: Please make sure that the three cut-outs in the

supplied backplate align with the screws of the motherboard’s stock

backplate.

First put the NM-IPS1 plastic spacers onto the bolts of the back-

plate, then add the NM-IMB2 mounting bars.

Installing the mounting bars3

Caution: Choose the alignment of the mounting bars according to the

desired final orientation of the cooler:

Orientation A Orientation B

In case you want to use the cooler on an assembled system and

your case doesn’t have a cut-out at the rear side of the motherboard

tray, you first have to remove the motherboard from the case in

order to be able to install the supplied backplate.

Removing the motherboard1

Caution: Make sure that the curved sides of the mounting bars are

pointing outwards.

Fix the mounting bars using the 4 thumb screws.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force (max. torque 0.6 Nm).

If there are residual traces of thermal paste or thermal pads on your

CPU, please clean them off first. Then press a small drop (4-5mm

diameter) of NT-H1 onto the centre of the heatspreader.

Applying the thermal paste

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Noctua NH-D15S |

Installation Manual | LGA115x

LGA115x

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of reliability and

convenience by offering a warranty period of 6 years and direct, fast

and straightforward RMA service.

Should you encounter any problems with your NH-D15S, please

don’t hesitate to contact our support team (support@noctua.at).

Please also consult the FAQ section on our website:

www.noctua.at/faqs.

Warranty, Support and FAQs

As it is not possible to reliably calculate or control the forces

that act upon a system during transport (e.g. in shipping), we gen-

erally recommend, for safety reasons, taking the cooler off. Noctua

cannot be held responsible for any damage that may arise due to

excessive stress during transport if you keep the heatsink installed.

Transporting your system!

Connect the fan to the motherboard’s CPU fan header. Depending

on your CPU and the temperature inside the case, you may

interconnect the supplied NA-RC7 Low-Noise Adapter (L.N.A.)

in order to further reduce the fan’s operating noise.

Caution: Never use one adaptor for both fans by putting it before

the y-split cable.

Caution: When using the L.N.A.s, check the temperature of your

CPU using appropriate software (e.g. the respective applications

of your motherboard manufacturer), in order to evade automatic

throttling of the CPU due to the increased temperature. If the

cooling performance is insufficient, please increase case ventilation

or remove the L.N.A.s.

Motherboard Fans

Low-Noise Adaptor Y-Split Cable

Y-Split Cable Low-Noise Adaptors

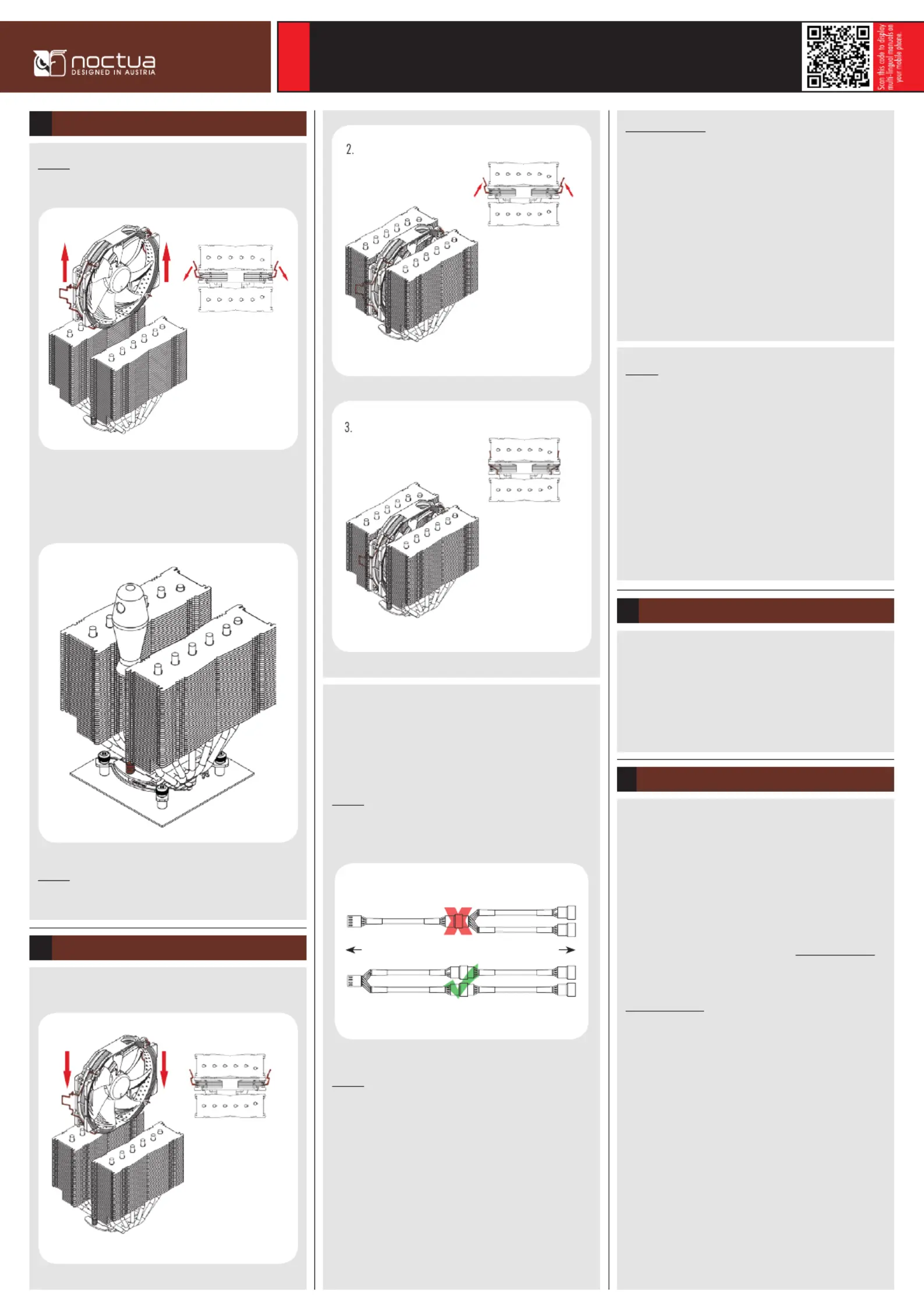

Reattach the fan using the supplied steel clips:

Fan Setup6

Caution: Please first take off the fan as well as the protection

cover at the bottom side of the heatsink.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force (max. torque 0.6 Nm).

Fastening the heatsink to the CPU5

Then put the heatsink onto the CPU and screw it to the screw

threads of the mounting bars. Perform 2-3 turns on each screw,

then repeat until both are fully tightened.

Adding a second fan

The NH-D15S includes an extra set of fan clips for installing a

second fan to the front fin stack in push/pull mode in order to

further improve cooling performance. The fan clips support:

• Round frame 140mm fans with 120mm mounting (105mm hole

spacing) such as the NF-A15 PWM or the NF-P14r redux models

• Standard 120mm fans (105mm hole spacing) such as the

NF-A12, NF-F12 or NF-P12 redux models

Caution:

• It is not possible to install 140mm fans with square frames

(124.5mm hole spacing) such as the NF-A14 or NF-P14s redux.

• If you add a second fan to the front fin stack, it will sit above

the RAM modules. Please verify that you have sufficient room

inside your case before adding a second fan. For example, if you

add a 140mm fan and use RAM modules that are 50mm high, you

will need 190mm of clearance, adding a 120mm fan while using

50mm RAM requires 170mm, etc.
