Single and Double Wall Spotlight
Art.no 36-4939-1, -2, -3 Model Vidar
36-4940-1, -2, -3 Vidar
Please read the entire instruction manual before use and save
it for future reference. We reserve the right for any errors in text
or images and for making any necessary technical changes to
this document. If you should have any questions concerning
technical problems please contact our CustomerServices.
Safety
• All light fittings must be installed in accordance with current
safety regulations to prevent life-threatening accidents.
• Installation must only be carried out by a qualified electrician.
• Follow the instructions carefully and keep them for future
reference.
• Turn off the power and let the bulb cool before changing it.
Avoid holding the light bulb with your bare hands when
fitting it.
• Only use a light bulb with a wattage of max 35 W.
• The light fitting is designed for permanent wall installation.
• The minimum distance between the bulb and
itsilluminated surface is 50 cm.
• The light must be connected to an electrical earth.
Installation
WARNING: Always turn off the power before beginning
theinstallation.
7. Fit a light bulb (GU10, max 35 W) by
pushing the bulb in and twisting it
clockwise until it is locked into the socket.
Product description
• Protection class: IP44
• 230 V
36-4939
• Downlight
• Bulb: GU10, max 35 W (sold separately)
• Height: 10.5 cm. Diam: 7.5 cm
36-4940
• Bi-directional light, upwards and downwards
• 2 bulbs: GU10, max 35 W (sold separately)
• Height: 19.5 cm. Diam: 7.5 cm
WARNING: Always turn
off the power before
beginning the installation.

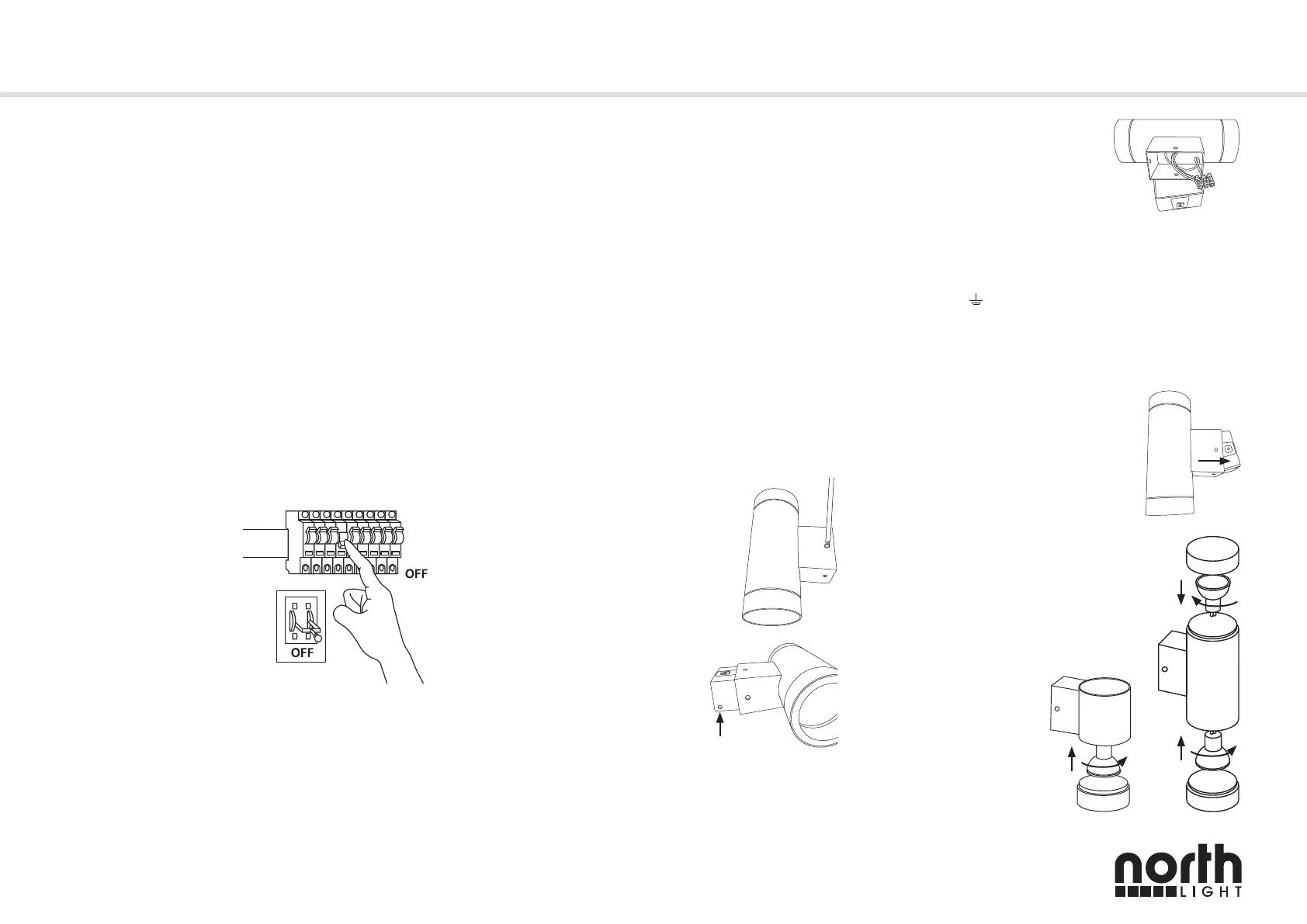

1. Undo the screws on the side
and remove the wall plate.
2. Thread the incoming cable
through the rubber grommet in
the wall plate and into thefitting.
Pull the terminal block off
thewall plate.
3. Screw the black wall plate onto
the wall (ventilation holes at
thebottom).
6. Screw the base of the light
back onto the wall plate
with theventilation holes at
thebottom.
4. Strip the insulation off the ends
of the wires and connect them
to the terminal block. Remember
that the yellow/green earth wire
needs to be a little longer than
the others.
-Connect the incoming neutral
wire to the terminal marked (N).
-Connect the incoming earth
wire to the Earth terminal
marked (
).
-Connect the incoming live wire
to the terminal marked (L).
5. Push the terminal block back
onto the wall plate.
