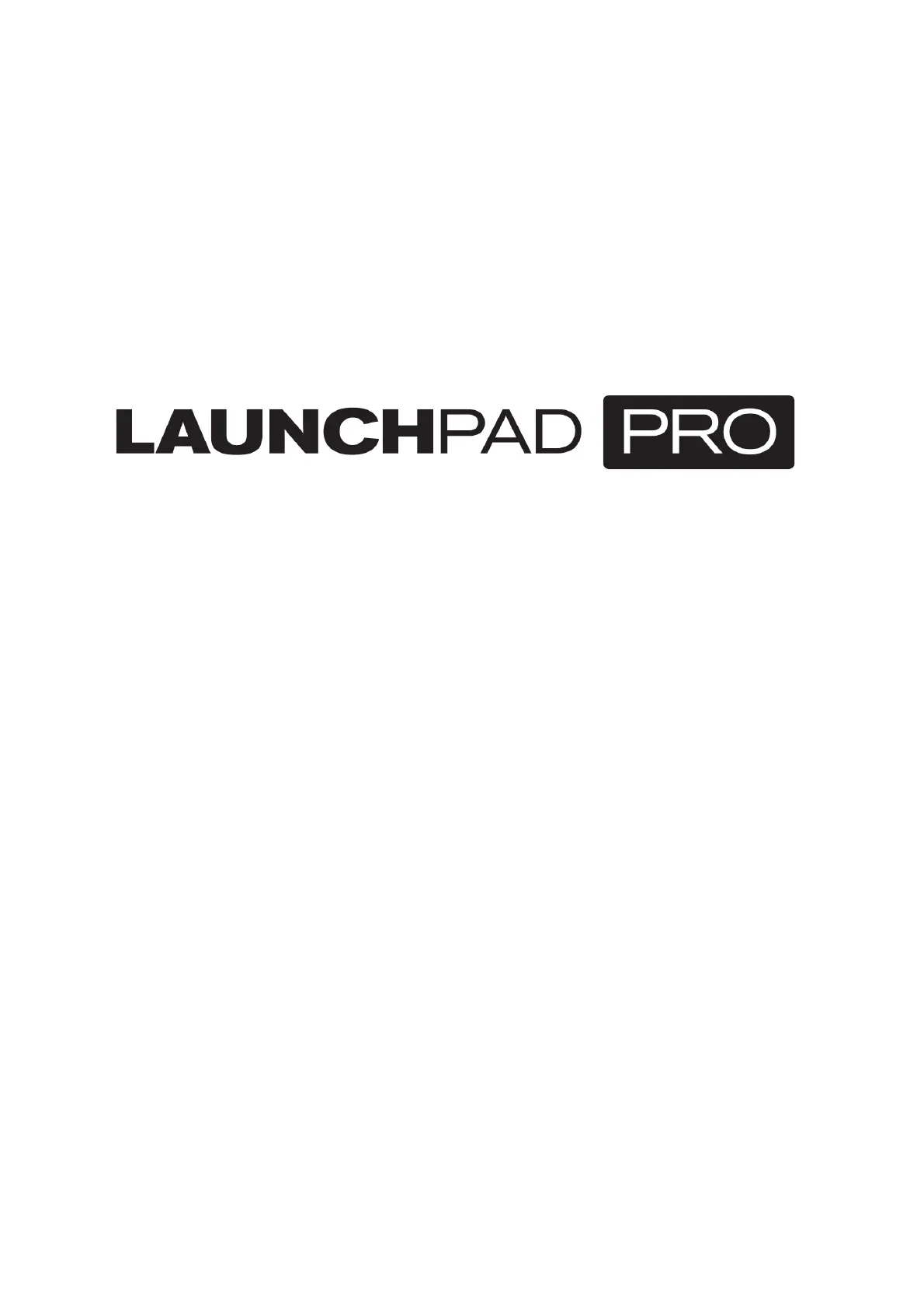

Programmer’s Reference Guide

Document number: FFFA001331-02

Version 1.01

Written by John Wilson and Lottie Thomas

Edited by Alex Godfrey & Ed Fry

Table of Contents

About this Guide 3

Number Systems and MIDI conventions 3

Bootloader 3

Basic Features 4

Basic Layouts 4

Basic 4Communication

Set- 5up Screen

Colours 6

Note Layout 6

Drum Layout 8

Fader Layout 9

Programmer Layout 16

Device Inquiry 18

Advanced Features 20

Lighting LEDs Using SysEx Messages 20

Flashing 21

Pulsing 21

RGB Mode 22

MIDI Clock 23

Text scrolling 23

System Exclusive Messages 25

Other SysEx Messages 28

About this Guide

Launchpad Pro communicates using MIDI over USB and MIDI jack, operating in both directions. This manual,

describing the MIDI communication format, is all the information you need to be able to write software that

is customised for Launchpad Pro.

This is not an exhaustive document. Certain extra System Exclusive messages are used for authentication,

and for remote firmware upgrade. These are beyond the scope of this document, however, it is worth

knowing that they exist in case you encounter them while you are playing with Launchpad Pro.

Number Systems and MIDI conventions

There are three ways of expressing MIDI data in this manual. The first, where appropriate, is a plain English

description of the message. When we describe a musical note, middle C is deemed to be ‘C3’ or note 60.

MIDI channel 1 is considered to be the lowest- - . numbered MIDI channel and channels range from 1 16

MIDI messages are also expressed in plain data, with decimal and hexadecimal equivalents. The hexadecimal

number will always be followed by an ‘h’ and the decimal equivalent given in brackets. For example a Note

O h n message on channel 1 is signified by the status byte 90 (144).

Bootloader

Launchpad Pro has a bootloader mode that allows the user to configure and save certain settings. The

bootloader is accessed by holding the button device n. Setup whilst switching the o

The top two rows of square buttons he device The device ID can be used to set t USB ID of Launchpad Pro.

ranges from 1 – 16 and the selected ID is represented by an orange button This also sets the USB . identity,

which h h.ranges from 51 to 60 The default ID from the factory is 1. If more than one Launchpad Pro is to be

used on USB, then each device must have a different USB ID selected.

Figure 1: Bootloader display
