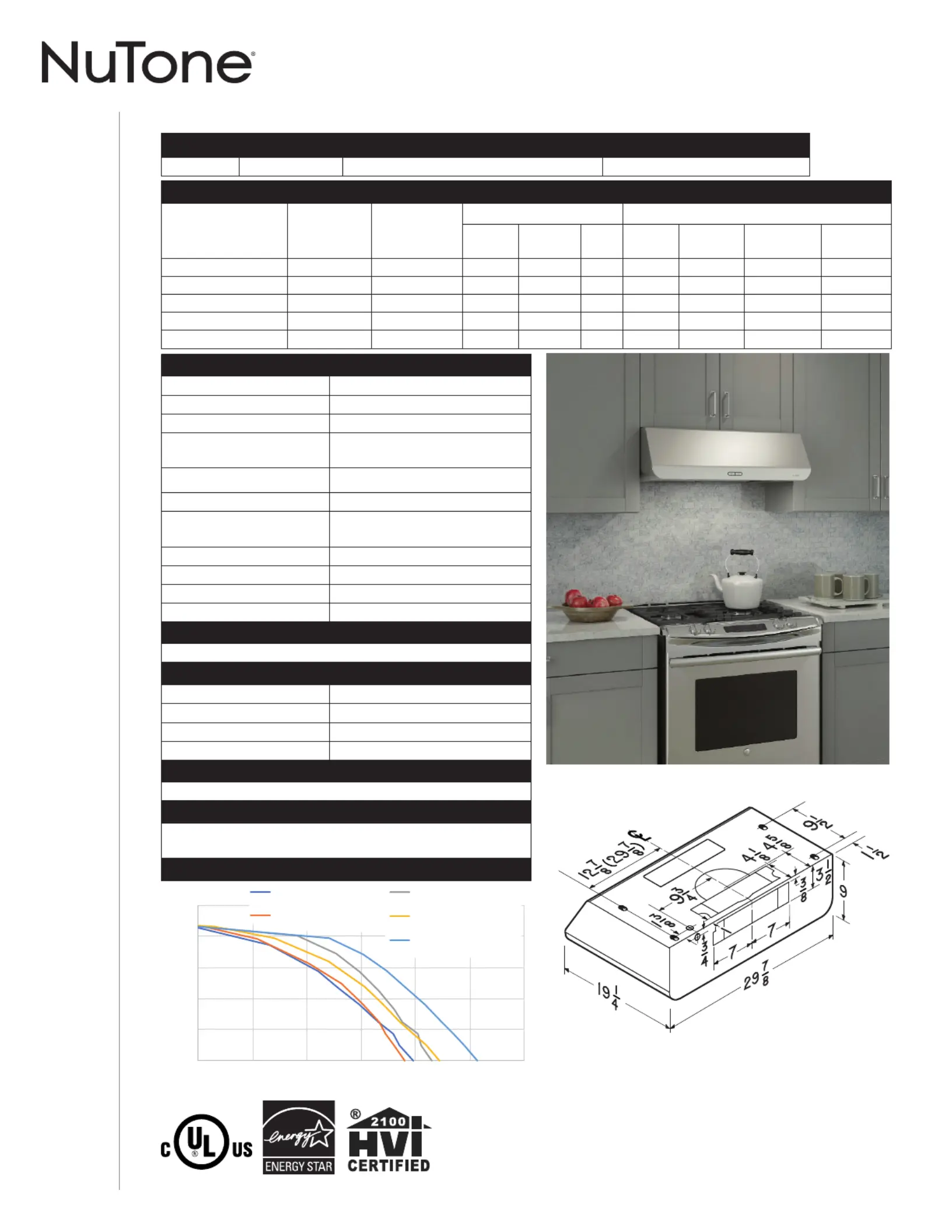

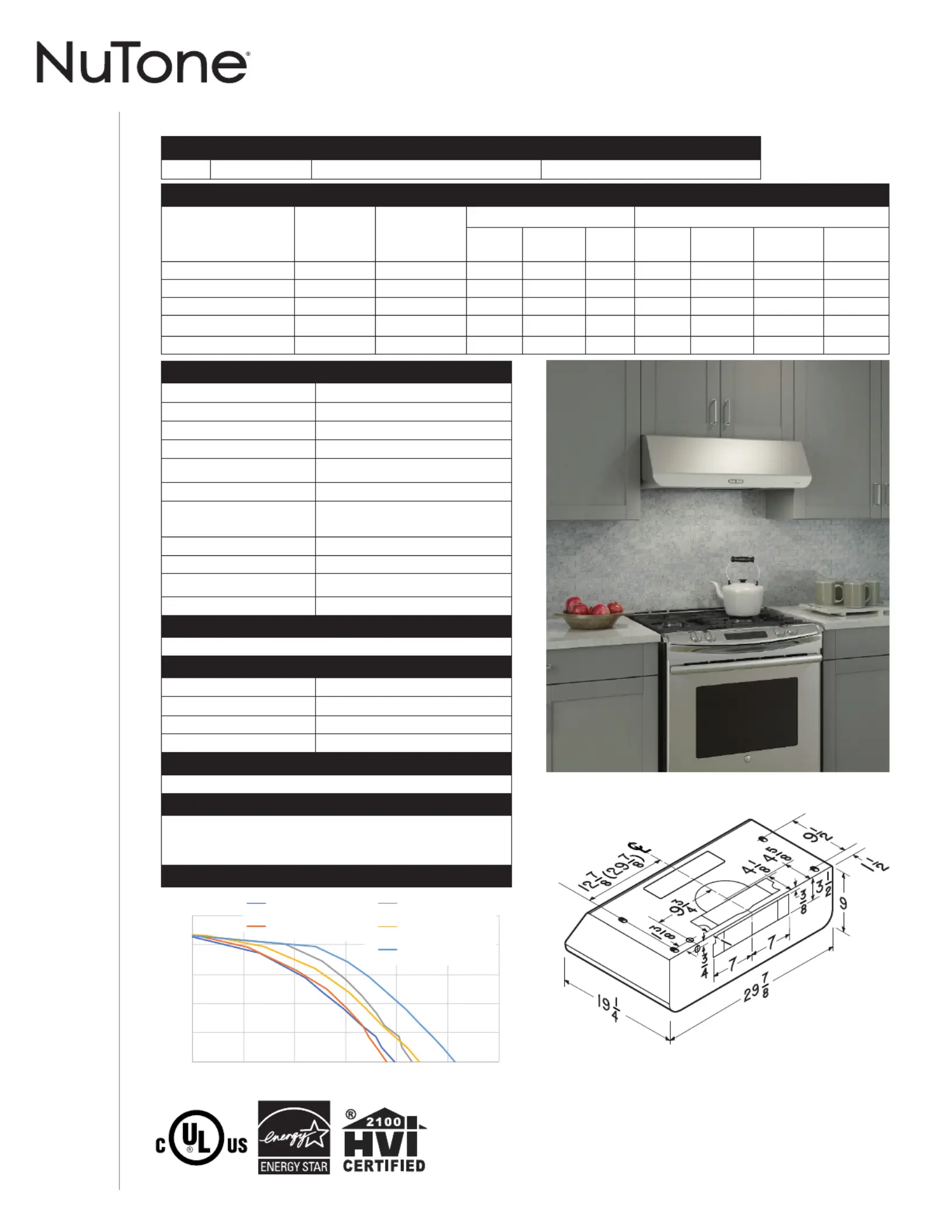

SPECIFICATION SHEET

ANANDA - NPLEC1 SERIES

Under-Cabinet

ANANDA

Venmar Ventilation ULC| 550 Lemire Blvd., Drummondville Québec Canada J2C 7W9 | 1 877-896-1119 | www.broan-nutone.ca

HVI-2100 CERTIFIED RATINGS comply with new testing technologies and procedures prescribed by the Home Ventilating Institute,

for off-the-shelf products, as they are available to consumers. Product performance is rated at 0.1 and 0.25 in. static pressure at

high speed based on tests conducted in an HVI-approved state-of-the-art test laboratory. Sones are a measure of humanly-perceived

loudness, based on laboratory measurements.

* Where noted performance rating is not HVI certified but was established in accordance with HVI Standardized test procedure.

** Max. blower CFM indicates the performance of the hood blower in open air.

NuTone brings you Ananda, an exciting new shape in a pro-style hood. It’s high efficiency ensures energy savings

while you enjoy LED lighting and pro-style performance.

SIZESTAINLESSGREASE FILTERS (replacement)NON-DUCTED FILTERS

30 in.NPLEC130SSHPFA424 (Type "B5")HPF24 (Type "Xb")

99045801D

Dimensions

shown in inches.

FEATURES

Max. Blower CFM**650

Control type3-speed Capacitive Touch

Delay offno

Filter Clean Reminderyes

Heat Sentry™no

ADA Capableyes

Lighting

2-level ENERGY STAR

®

LED

(included)

Grease FiltersHybrid Baffle (Qty. 2)

Installation HardwareEZ1 Brackets

ENERGY STAR

®

yes (no if installed non-ducted)

RecirculationNon-ducted filters sold separately

AC INPUT

120 V, 60 Hz - 1.9 AMPS

OPTIONAL ACCESSORIES

7-in. Round DamperBP87Q

7-in. Round Apapter PlateSR680508

ADA Wiring KitHAWRK3

Make-up Air DamperMD6TU / MD8TU / MD10TU

MOUNTING HEIGHT

24 in. to 30 in. from cooktop to bottom of hood

LIMITED WARRANTY

1-year

3-year (LED modules only)

(See installation manual for full warranty text.)

FOR INDOOR USE ONLY

0

0.2

0.4

0.6

0.8

1.0

100200300400500600700

Stac pressure (in. w.g.)

Airflow (cfm)

Vercal High Speed,

7-in. round

Vercal High Speed,

Horizontal High Speed,

with 3¼ in. x 10 in. damper

with 3¼ in. x 10 in. damper

Vercal High Speed,

Horizontal High Speed,

with 3¼ in. x 14 in. damper

with 3¼ in. x 14 in. damper

HVI PERFORMANCE

Duct OrientationSizeDamper

SonesCFM

NormalMedium*HighNormalMedium*

High

0.25 in. w.g.

High

0.1 in. w.g.

Vertical - Rectangular

3¼ in. x 10 in.

Included<0.33.08.0130270410460

Horizontal - Rectangular

3¼ in. x 10 in.

Included<0.33.07.5130290470510

Vertical - Rectangular

3¼ in. x 14 in.

Included<0.33.08.0140300470520

Horizontal - Rectangular

3¼ in. x 14 in.

Included<0.33.07.5130340545590

Round - Vertical7 in.Sold Separately<0.33.07.5140280415470
