Ethernet over Coax EoC Transceiver Complete Installation Guide
Model NV-EC1701
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus (including DVRs) that produce
heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and
a third grounding prong. The wider blade or the third prong are
provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete
outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufac-
turer.
12) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as a power supply cord or plug is damaged, liquid has been
spilled, or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally,
or has been dropped. This installation should be made by a quali-
fied service person and should conform to all local codes.
This installation should be made by a qualified service person
and should conform to all local codes.
WARNING - Do not install the unit in an environment
where the operating ambient temperature exceeds 120° F (50°
C). The ventilation should not be impeded by covering the unit
with items, such as newspapers, table-cloths, curtains, etc. No
naked flame sources, such as lighted candles should be placed
on the apparatus.
WARNING - Do not interconnect multiple power supply
outputs.
WARNING - The apparatus shall not be exposed to dripping
or splashing and no objects filled with liquids, such as vases,
shall be placed on the apparatus.
WARNING - Use only a Certified power cord and plug (coupler
/ mains) assemblies for location installed.
WARNING - Power cord is regarded as main disconnect.
WARNING - The appliance coupler (power cord/mains) shall
remain readily operable.
WARNING - For safety, never put NVT signals in the same
conduit as high-voltage wiring.
Network Video Technologies
4005 Bohannon Drive • Menlo Park, CA 94025 • USA
(+1) 650.462.8100 • FAX (+1) 650.326.1940
nvt.com • www.nvt.com/email
IMPORTANT SAFETY INSTRUCTIONS
!
Page 1 of 17
TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT
REMOVE COVER OR BACK. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF ELECTRICAL
SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE.
!
!
!
!
!
!
!
PRODUCT OVERVIEW
Page 2 of 17

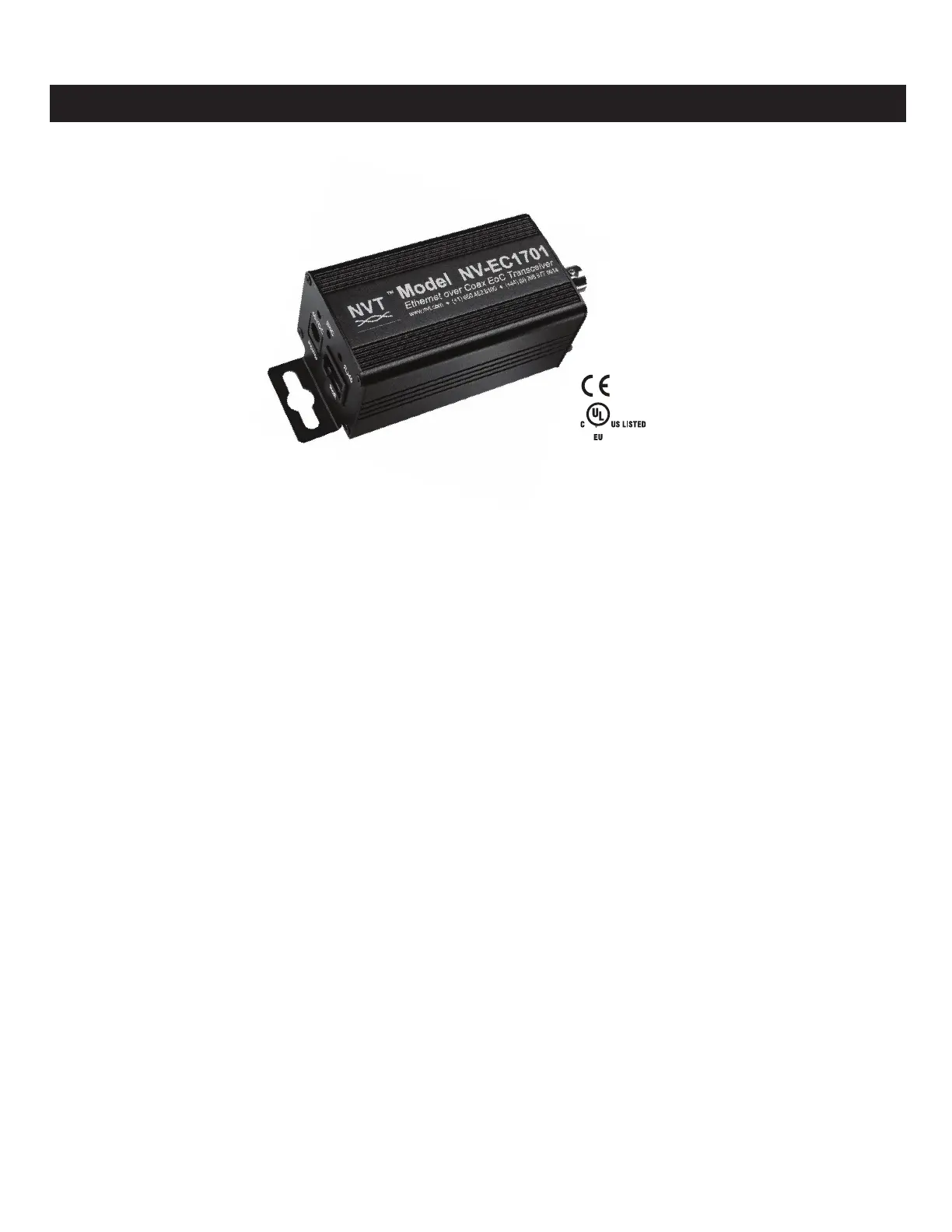

Model NV-EC1701
Ethernet over Coax EoC Transceiver
with PoE Power
Features:
• Transmit 10/100 BaseT Full Duplex Ethernet up to 2,500ft (750m)* over RG-59 (or similar)
• Powers PoE cameras (or other PoE devices), up to 45 watts
• One EoC transceiver at the network-end can support up to four remote transceivers/IP cameras
using an NVT BNC adaptor/splitter
• Up to four transceivers can be rack mounted on an NV-RMEC16 Rack Mount Tray Kit,
connecting up to 16 cameras
• 48VDC is distributed over the coax to all connected equipment
• Easy configuration, no PC required
• Transparently supports all networking protocols (UDP, TCP/IP, HTTP, etc.)
• Advanced 128-bit AES encrypted transmission and power technology with built-in transient
protection
• Available in 1-4 Camera System Kits
• Up to four EoC transceivers can be rackmounted on an NV-RMEC16 Rack Mouning Tray Kit,
connecting up to 16 cameras
• Limited lifetime warranty
The NVT Model NV-EC1701 Ethernet over Coax EoC Transceiver is a compact media converter that
allows
10/100 BaseT Ethernet and PoE power to be transmitted using coax cable. These EoC devices are typically
used in legacy installations where existing coax is re-deployed as part of an upgrade to IP cameras. 48 VDC
class 2 power is delivered to one transceiver, which distributes it to up to four remote transceivers, and their
PoE cameras.
These transceivers are extremely simple to use, with no IP or MAC addressing required. Status LEDs
indicate power and link connectivity/activity for RJ45 and BNC ports. The NV-EC1701 is backed by NVT’s
award winning customer support and limited lifetime warranty.
*
Distance and number of devices supported will often be lower due to power delivery voltage-drop on the wire. See Wire Distance Chart.
