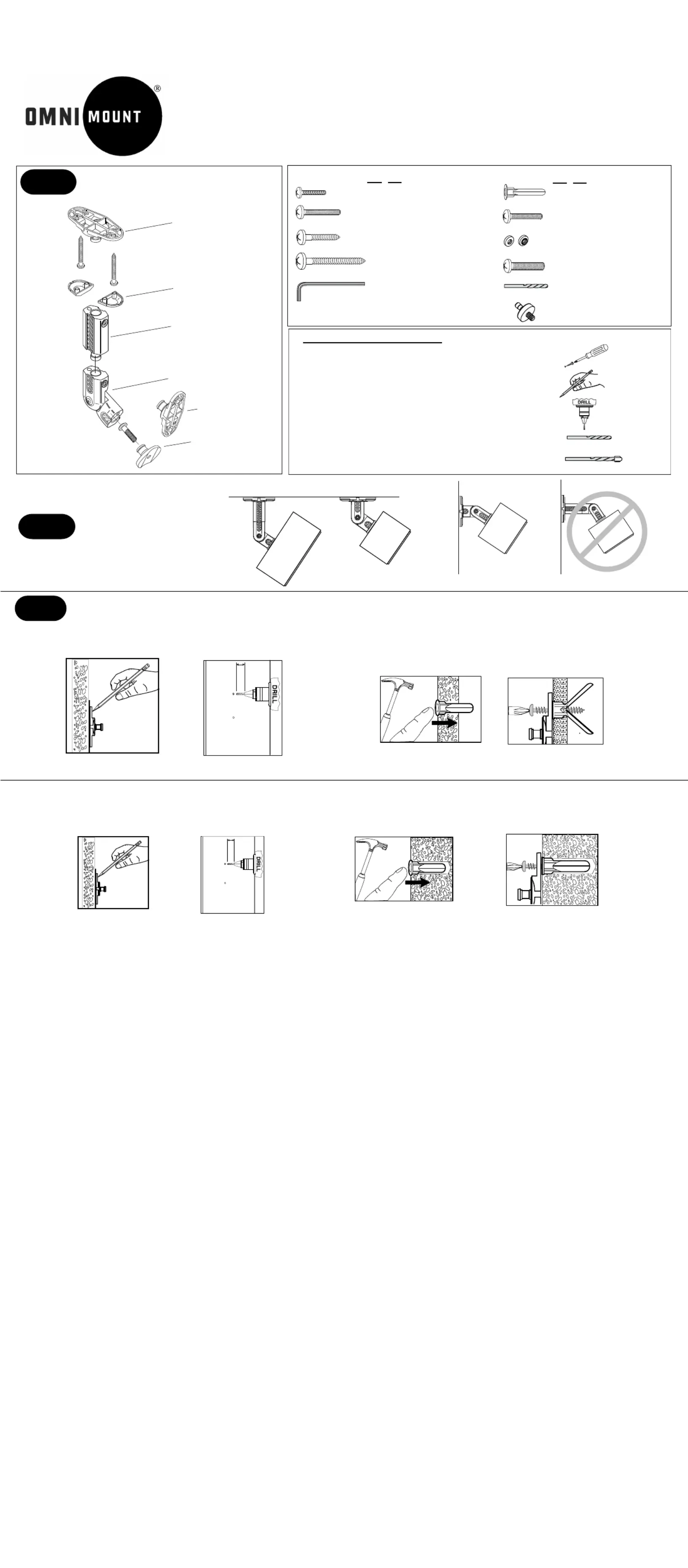

Step 1I Identify parts

Phillips Head Screw Driver

Pencil

Electric Drill

Drill Bits: 1/8'' drill bit for drywall

3/16'' masonry bit for cement wall applications

Step 3 Installation of wall plate

Mounting to drywall.

1. Use wall plate as a template and mark screw hole locations.

2. Drill into drywall with 1/4'' drill bit. Insert the anchors into hole, see fig. 3.

3. Secure with #8 x 1-3/4'' screws, see fig. 4.

Mounting to solid concrete or cinder block.

1. Drill into surface with 3/16'' masonry drill bit to 1-3/4" deep. Insert anchors into the holes, see fig. 3.

2. Secure wall plate with #8 x 1-3/4" screws, see fig. 4.

1/8''

3/16''mason bit

Knurled side

Provided fasteners and tools

3/32''

Step 2

D Decide on location

Extension

Adjusting knuckle

Speaker plate

Mounting plate (1)

Screw covers

Mounting plate (2)

fig. 3

fig. 3

fig. 4

(1) (5) M4 X 10mm Phillips

pan head machine screw

(1) (5) M5 X 12mm Phillips pan

head machine screw

(2) (10) #8 X 3/4" Phillips pan

head self-tapping screw

(2) (10) #8 X 1-3/4'' Phillips pan

head self-tapping screw

(1) (5) 5/64'' Hex key

(2) (10) plastic anchor

(1) (5) 8-32 X 1/2'' Phillips pan

head machine screw

(1) (5) Circular nut (PEM)

8-32 thread

(1) (5) 1/4-20 X 1" Phillips pan

head machine screw

(1) (2) 3/32'' Drill bit

(1) (5) 1/4-20 Threaded

Keyhole adapter plug

fig. 4

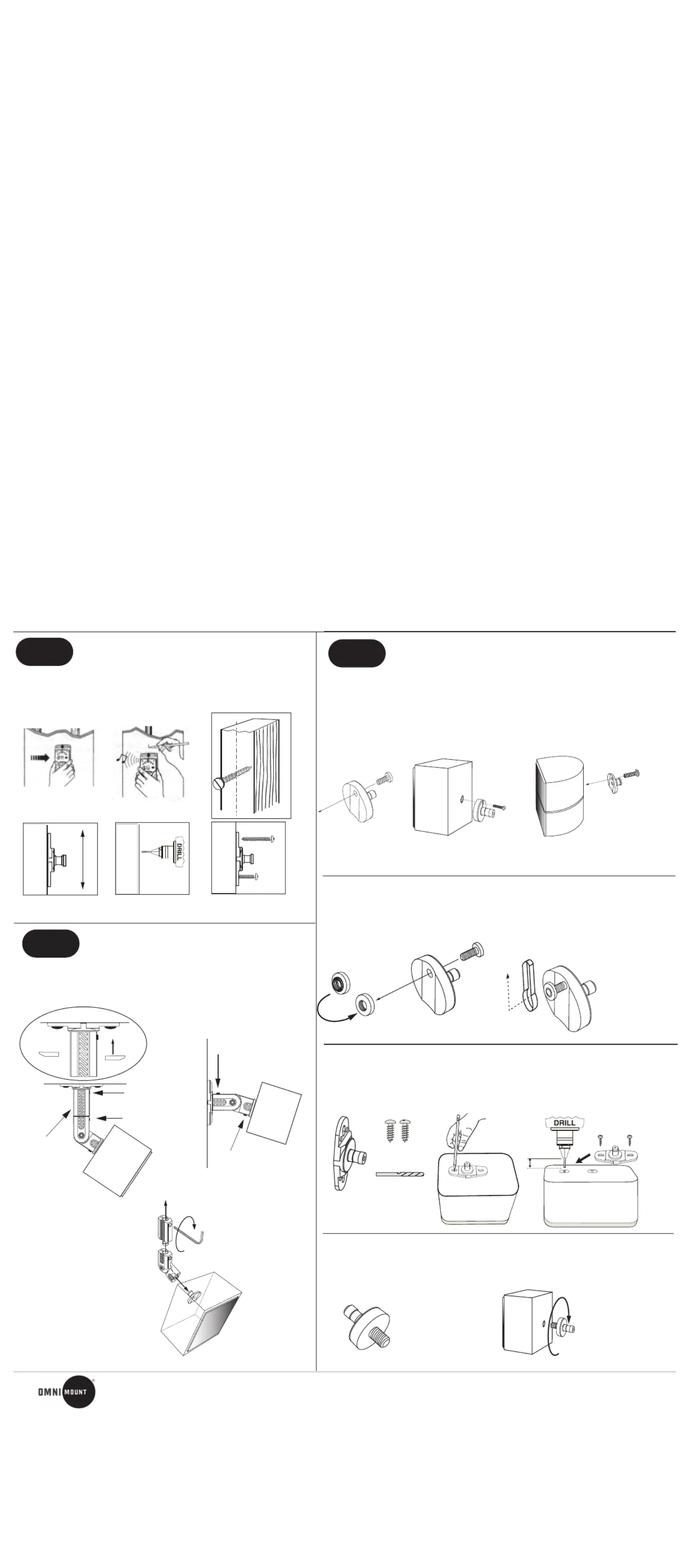

AB1/AB1 HTS INSTALLATION INSTRUCTIONS

1 3/4"

1 3/4"

AB1 HTS

AB1 HTS
