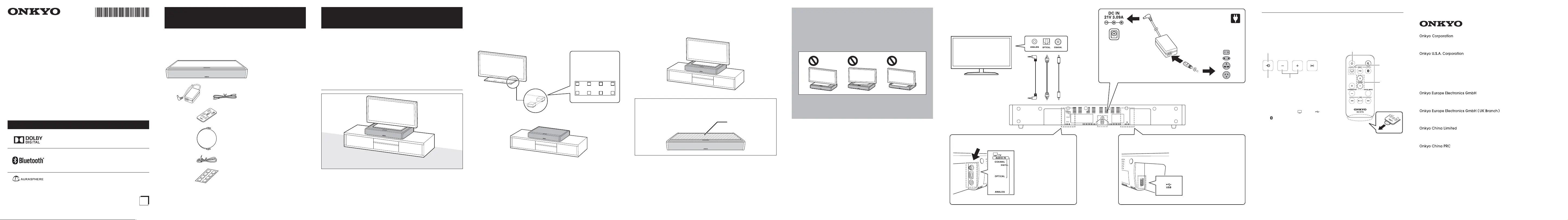

Sida 1/2

Kitahama Chuo Bldg, 2-2-22 Kitahama, Chuo-ku, OSAKA 541-0041, JAPAN

http://www.onkyo.com/

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.

For Dealer, Service, Order and all other Business Inquiries:

Tel: 201-785-2600 Fax: 201-785-2650

http://www.us.onkyo.com/

For Product Support Team Only:

1-800-229-1687

http://www.us.onkyo.com/

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY

Tel: +49-8142-4401-0 Fax: +49-8142-4208-213

http://www.eu.onkyo.com/

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.

Tel: 852-2429-3118 Fax: 852-2428-9039

http://www.hk.onkyo.com/

1301, 555 Tower, No.555 West NanJing Road, Jing’an District, Shanghai, China 200041,

Tel: 86-21-52131366 Fax: 86-21-52130396

http://www.cn.onkyo.com/

The Americas

China

Europe

Asia, Oceania, Middle East, Africa

Please contact an Onkyo distributor referring to Onkyo SUPPORT site.

http://www.intl.onkyo.com/support/

The above-mentioned information is subject to change without prior notice.

Visit the Onkyo web site for the latest update.

(Mainland)

(Hong Kong)

Meridien House, Ground floor, 69 - 71 Clarendon Road, Watford, Hertfordshire, WD17 1DS, United Kingdom

Tel: +44 (0)8712-00-19-96 Fax: +44 (0)8712-00-19-95

SN29401541

* 2 9 4 0 1 5 4 1 *

D1308-0

COAXIAL jack

Connect a separately sold cable to

input the sound.

OPTICAL jack

Connect the supplied optical

digital audio cable to input audio.

ANALOG jack

Connect the supplied stereo mini

plug cable to input audio.

USB port

Connect a USB flash drive.

2 3 4 5 6 7 8 9

PREPARATION

Placement

Select an appropriate placement for your environment.



To enjoy the best sound, do not place an object on both sides of the unit.

Furthermore, mount this unit carefully since the subwoofer unit is housed on

its bottom face.



Mount this unit on a firm surface such as a low board.

Mounting under TV

Accessories to be prepared: Cushion

To prevent vibration, mount this unit after attaching the supplied cushions to the

feet of the TV stand. Using the supplied cushions will allow you to limit the effect

of vibrations on the TV.

PACKAGE CONTENTS

Make sure you have the following items before use.



The number in parenthesis indicates the quantity.



In catalogs and on packaging, the letter at the end of the product name

indicates the color.

Main unit (1)

AC adapter (1)/

Power cord (1)

Remote controller (RC-877S) (1)

A lithium-ion battery (CR2025) is supplied in

the remote control at the time of purchase.

Optical digital

audio cable 5 ft. (1.5 m) (1)

ф3.5 mm stereo mini plug

cable (1)

Cushion (

LS-T10

TV Speaker System

Instruction Manual

1. Attach the supplied cushions to the feet of the TV stand.



Be very careful when attaching the cushions. Depending on the size and

weight of the TV in particular, be sure to have at least two people do the job to

prevent injury.



Wrap the TV with a blanket or soft cloth to not scratch it and work carefully.



When the supplied cushions and the feet of the TV do not match, cut and

shape the cushions for use as needed.

Reference for where to

attach the cushion on the

bottom face of the TV stand

(8 positions).

2. Mount the unit.

3. Connect all cables to the unit.

(o See 7 to 8 pages)

4. Mount the TV on the center of the top face of this unit.



Mount the unit correctly by referring to the figure below.

Mountable range of the TV Stand



Adjust the TV stand position within the shaded area.



Place the TV stand in such a way that its center matches that of this unit.

Shaded area: Mountable range

Precautions for mounting this unit under TV



TVs that can be placed on top of this unit are those having a mass of 77 lbs (35 kg)

or less, stand width of 26 1/2" (674 mm) or less, and depth of 10 3/8" (265 mm) or

less.



By referring to the figure on the left, mount the TV on the center of the mountable

range. If the TV protrudes from any of the mountable range, the TV may tip over and

cause injury.



For TV tip-over/fall prevention measures, see the TV owner’s manual.



Onkyo is not responsible for accidents or damage caused by improper installation,

improper cushion attachment, improper use or natural calamity, etc.

Connections



Connect the TV and this unit using one of the possible connection cables.

Listening to TV

Turn on the TV.



For details on operation, see the "BASIC OPERATION" (o P.11).



The unit can be operated with your existing TV remote controller. For details

on operation, see the “Using TV Remote Controller” (o P.17).

1. Turn the power on.

2. Switch the input to TV.

(On the buttons of the unit, switches

in the order of

TV o USB o

Bluetooth.)

3. Adjust the volume.

Thank you for purchasing an Onkyo product. Please read this manual thoroughly before

making connections and plugging in your new Onkyo product.

Following the instructions in this manual will enable you to obtain optimum performance and

listening enjoyment from your new product.

Please retain this manual for future reference.

Trademarks and Licensing

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

The Bluetooth® word mark and logos are registered

trademarks owned by Bluetooth SIG, Inc. and any use of such

marks by Onkyo is under license. Other trademarks and trade

names are those of their respective owners.

AuraSphere™ is a trademark of Onkyo Corporation.

AuraSphere is a listening experience technology developed by Onkyo

Corporation and Sonic Emotion ag.

Produktspecifikationer

Varumärke:	Onkyo
Kategori:	Högtalarsystem
Modell:	LS-T10
Färg på produkten:	Zwart
Årlig-energiförbrukning:	28 kWu
Energieffektivitetsklass (gammal):	A+
På / Av knapp:	Ja
Skärm diagonal:	24 "
Upplösning:	1920 x 1080 Pixels
Bluetooth-version:	2.1+EDR
Ethernet LAN:	Nee
Betraktningsvinkel, horisontell:	178 °
Betraktningsvinkel, vertikal:	178 °
Ljudsystem:	HD
Antal USB 2.0-portar:	1
VGA (D-Sub) port(ar):	1
Antal HDMI-portar:	1
Komponenter för video (YPbPr/YCbCr):	1
DVI-port:	Nee
Inbyggda högtalare:	Ja
Genomsnittlig effekt:	5 W
Strömförbrukning (i standby):	0.50 W
Antal högtalare:	2
Hörlursutgångar:	1
Analog signalformat:	NTSC, PAL, SECAM
HD typ:	Full HD
3D:	Nee
HDMI-version:	1.3
Respons tid:	8 ms
VESA montering:	Ja
Panelmonteringsgränssnitt:	75 x 75 mm
Djup (utan bas):	36 mm
Höjd (utan bas):	380 mm
Bredd (utan bas):	580 mm
Common Interface Plus (CI+):	Ja
Typ av tuner:	Analoog & digitaal
Digitalt signalformat:	DVB-T
Internet-TV:	Nee
Enhetsbredd (med stativ):	580 mm
Djupenhet (med stativ):	149 mm
Enhetshöjd (med stativ):	405 mm
Vikt (med stativ):	5200 g
Lokal nedbländning:	Nee
Text-TV:	Ja
Elektronisk TV-guide:	Ja
Gemensamt gränssnitt (CI):	Nee
Rekommenderad användning:	Hemmabio
LED backlight-type:	Edge-LED
Teletekst:	1000 pagina's
Antal SCART-portar:	1
Ljudutgångskanaler:	- kanaler
AV-ingång:	Ja
Digitalt ljud, koaxialutgång:	1
Fjärrkontroll ingår:	Ja
Wifi:	Nee
Strömförbrukning (typiskt):	19 W
Produktens färg:	Svart
bruksanvisning:	Ja
Vikt inkl. förpackning:	12400 g
Uteffekt (RMS):	- W
Strömförbrukning (vanlig):	21 W
AC-inspänning:	100-240 V
3D kompatibilitet:	Ja
Kabel inkluderad:	Ljud (3,5mm)
Subwooferns frekvensomfång:	20 - 150 hz
Frekvensområde:	150 - 20000 hz
Anslutningsteknologi:	Kabel & Trådlös
Likströmsingång:	Ja
Woofer diameter:	120 mm
Växelström Frekvens:	50 - 60 hz
AC-adapter inkluderad:	Ja
Subwoofer ingår:	Ja
Antal USB 2.0 anslutningar:	1
Bluetooth:	Ja
Förpackningsstorlek (B x D x H):	842 x 432 x 195 mm
Inbyggd ljuddekoder:	Dolby Digital
Antal woofer-drivenheter:	1
Antalet högtalarelement med full slaglängd:	6
Drivenhetens diameter i hela registret:	70 mm
Soundbar-vikt:	8700 g
Soundbarmått (BxDxH):	700 x 350 x 105 mm
