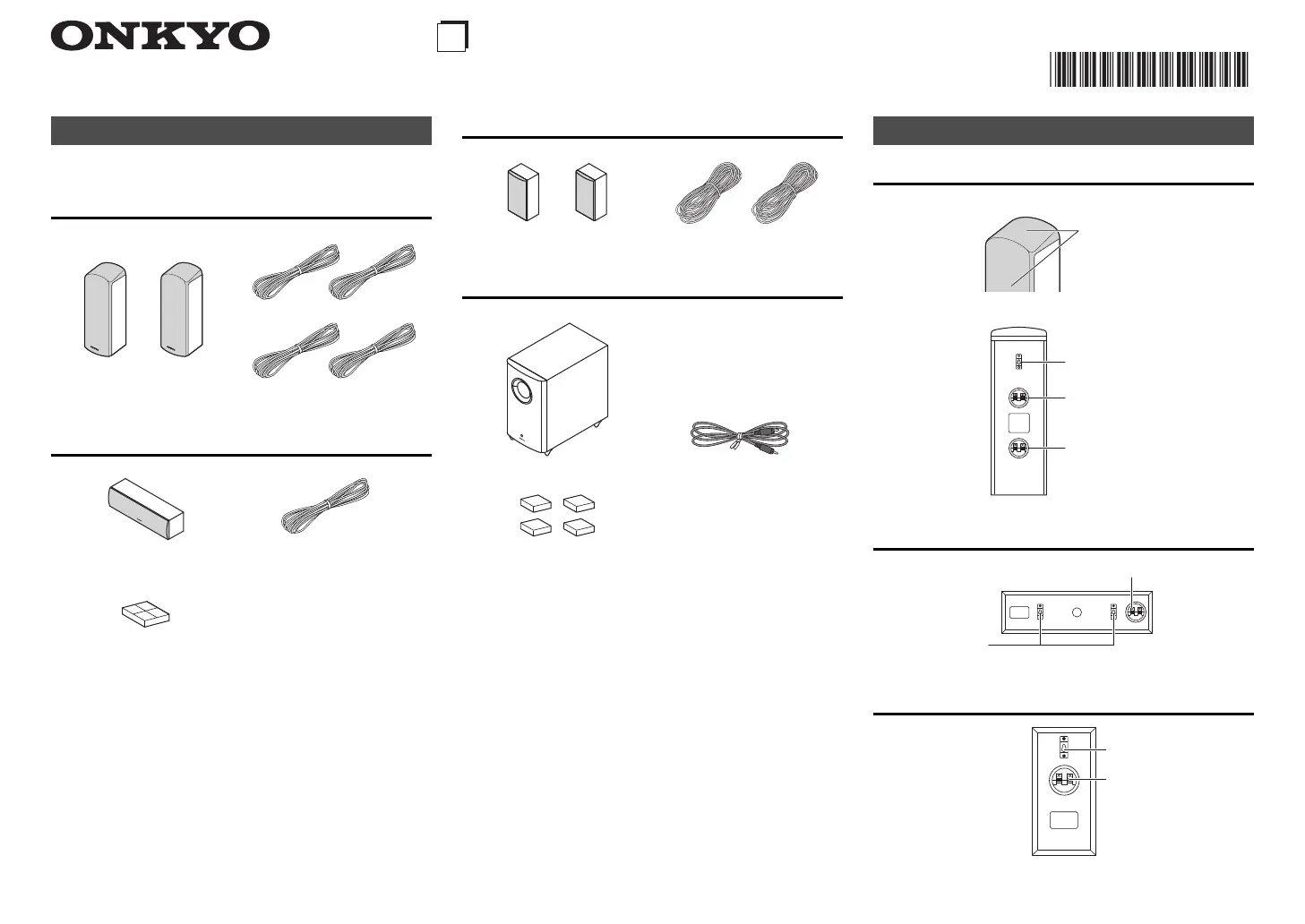

5.1.2ch Home Theater Speaker Package

Make sure you have the following accessories.

Front & Height Speakers (SKF-594)

Center Speaker (SKC-594)

*1 Configuration of the rubber stoppers may be different from the

figure, such as being 2 sheets instead of 1 sheet, but the total

number will be same.

Surround Speakers (SKR-594)

Powered Subwoofer (SKW-658)

Front & Height Speakers (SKF-594)

Center Speaker (SKC-594)

Surround Speakers (SKR-594)

Supplied Accessories

Front & Height speakers Speaker cables

10 ft. (3.0 m)

Center speaker Speaker cable

10 ft. (3.0 m)

4 rubber stoppers*1

(Left) (Right)

(White) (Red)

(Brown) (Tan)

(Green)

Subwoofer RCA cable

10 ft. (3.0 m)

4 floor pads

(Left) (Right)

(Blue) (Gray)

Part Names

Speaker terminals

(Height)

Keyhole slot

Speaker terminals

(Front)

Speaker units

Speaker terminals

Keyhole slots

Speaker terminals

Keyhole slot

HTP-588

Speaker cables 26 ft. (8.0 m) Surround speakers

En-2

Caution

• The front grilles are not designed to be removed so do not

attempt to remove them forcibly, as this will damage

them.

Powered Subwoofer (SKW-658)

Front

Rear

Note

• The Auto Standby function turns the subwoofer on when the

input signal exceeds a certain level. If the Auto Standby function

does not work reliably, try slightly increasing or decreasing the

subwoofer output level on your receiver.

Using the Rubber Stoppers for a More Stable

Platform

We recommend using the supplied rubber stoppers to

achieve the best possible sound from your speakers. The

rubber stoppers prevent the speakers from moving, then

provide a more stable platform. Use rubber stoppers for the

center speaker.

Using the Floor Pads for Subwoofer

If the subwoofer is placed on a hard floor (wood, vinyl,

tile, etc.) and playback is very loud, the subwoofer’s feet

may damage the flooring. To prevent this, place the

supplied pads underneath the subwoofer’s feet. The pads

also provide a stable base for the subwoofer.

Setting the Subwoofer Level

To set the level of the subwoofer, use the

OUTPUT LEVEL control. Set it so that bass

sounds are evenly balanced with the treble sounds

from the other speakers. Because our ears are less

sensitive to very low bass sounds, there’s a temptation to

set the level of the subwoofer too high. As a rule of thumb,

set the subwoofer level to what you think is the optimal

level, and then back it off slightly.

Wall Mounting

To mount the front/surround speakers vertically, use the

keyhole slot shown to hang each speaker on a screw that’s

securely screwed into the wall.

To mount the center speaker horizontally, use the two

keyhole slots shown to hang the speaker on two screws that

are securely screwed into the wall.

Status indicator

Off: Subwoofer in standby mode or

disconnected from power source

Blue:Subwoofer on

The status indicator lights blue when

low frequency sound is being passed

through the speaker.

The indicator does not light in the

normal dialog or high frequency

sound.

Note

• The indicator does not indicate that

power supply of the subwoofer has

turned on.

With the Auto Standby function, the

SKW-658 automatically turns on

when an input signal is detected in

standby mode. When there’s no input

signal for a while, the SKW-658

automatically enters standby mode.

To AC outlet

OUTPUT LEVEL control

This control is used to adjust the

volume of the subwoofer.

LINE INPUT

This RCA input should be

connected to the subwoofer pre

out on your AV receiver with

supplied RCA cable.

Before Using the Home Theater

Speaker Package

Rubber stoppers

Bottom of the

SKC-594

Floor pad

SKF-594 SKR-594

Keyhole slots for

wall mounting

Keyhole slots for wall mounting

7-7/8" (200 mm)

SKC-594
