Optex CleanSwitch LED Bruksanvisning
Optex
Deur-/ramsensor
CleanSwitch LED
Läs gratis den bruksanvisning för Optex CleanSwitch LED (2 sidor) i kategorin Deur-/ramsensor. Guiden har ansetts hjälpsam av 22 personer och har ett genomsnittsbetyg på 4.7 stjärnor baserat på 11.5 recensioner. Har du en fråga om Optex CleanSwitch LED eller vill du ställa frågor till andra användare av produkten? Ställ en fråga
Sida 1/2
1
88
3888
Ø 54
60
CleanSwitch LED
2 3
1
TOP TOP
2

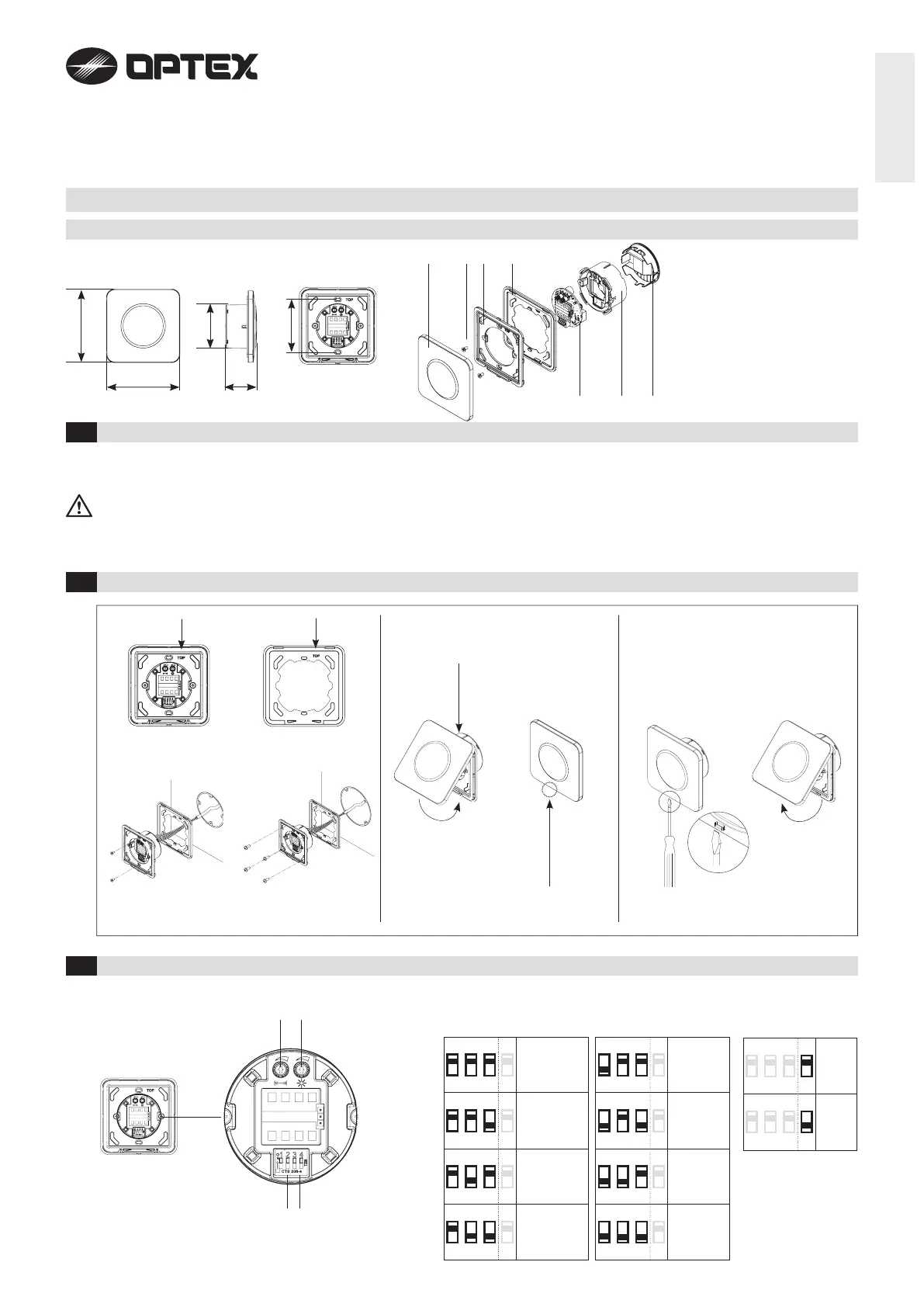

Assembly
1
Safety instructions
3
Conguration
Original instructions
General
Front cover
Screw
Mounting frame
Sealing
PCB module
Sensor housing
Housing cover
Touchless switch
ENGLISH
389094A
03/19
Detection range 0.1 – 0.5 m Colour brightness
4 Mode setting
1 – 3 Colour settings
The unit may only be installed and commissioned by trained and qualied personnel.
The unit may only be opened and repaired by the manufacturer.
This unit may only be operated from a protective low-voltage with safe electrical isolation.
Always consider the safety functions of your application as a whole, never just in relation to one individual component of the system.
The installer is responsible for carrying out a risk assessment and installing the detector and the system correctly.
Avoid touching any electronic components.
ON
1 2 3 4
Green / Red
ON
1 2 3 4
Red / Green
ON
1 2 3 4
Blue / Green
ON
1 2 3 4
Green / Green
ON
1 2 3 4
Red / Red
ON
1 2 3 4
Blue / Blue
ON
1 2 3 4
– / Green
ON
1 2 3 4
– / Blue
ON
1 2 3 4
ON
Toggle
Mode
ON
1 2 3 4
OFF
Pulse
Mode
4 ON Toggle Mode
4 OFF Pulse Mode
DIP switches
1 – 3 Optical feedback
Factory settings
Insert sealing as marked.
Mounting option
2 screws
Mounting option
4 screws
Disassembly
Push until it
clicks!
Hang in the cover from above.
