User Manual
VGDF-200
Doc No. : OC-V201222 / Rev1.3
VGA to 1-fiber DVI converter,
VGDF-200
www.opticis.com
Manual Contents
__________________________________________
Manual Contents 1-0
Welcome! Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
Self-EDID Programming Procedure 1-5
Troubleshooting, Maintenance, Technical Support 1-6
Product Specifications 1-7
Warranty Information 1-8
Certifications 1-9
Pictorials
Figure 1 – Connection Diagram of VGDF-200 1-4
1- 0 Manual Contents
Welcome!
Congratulations on your purchase of the VGA to 1-fiber DVI converter,
VGDF-200. This manual contains information that will assist you in installing
and operating the product.
Product Description

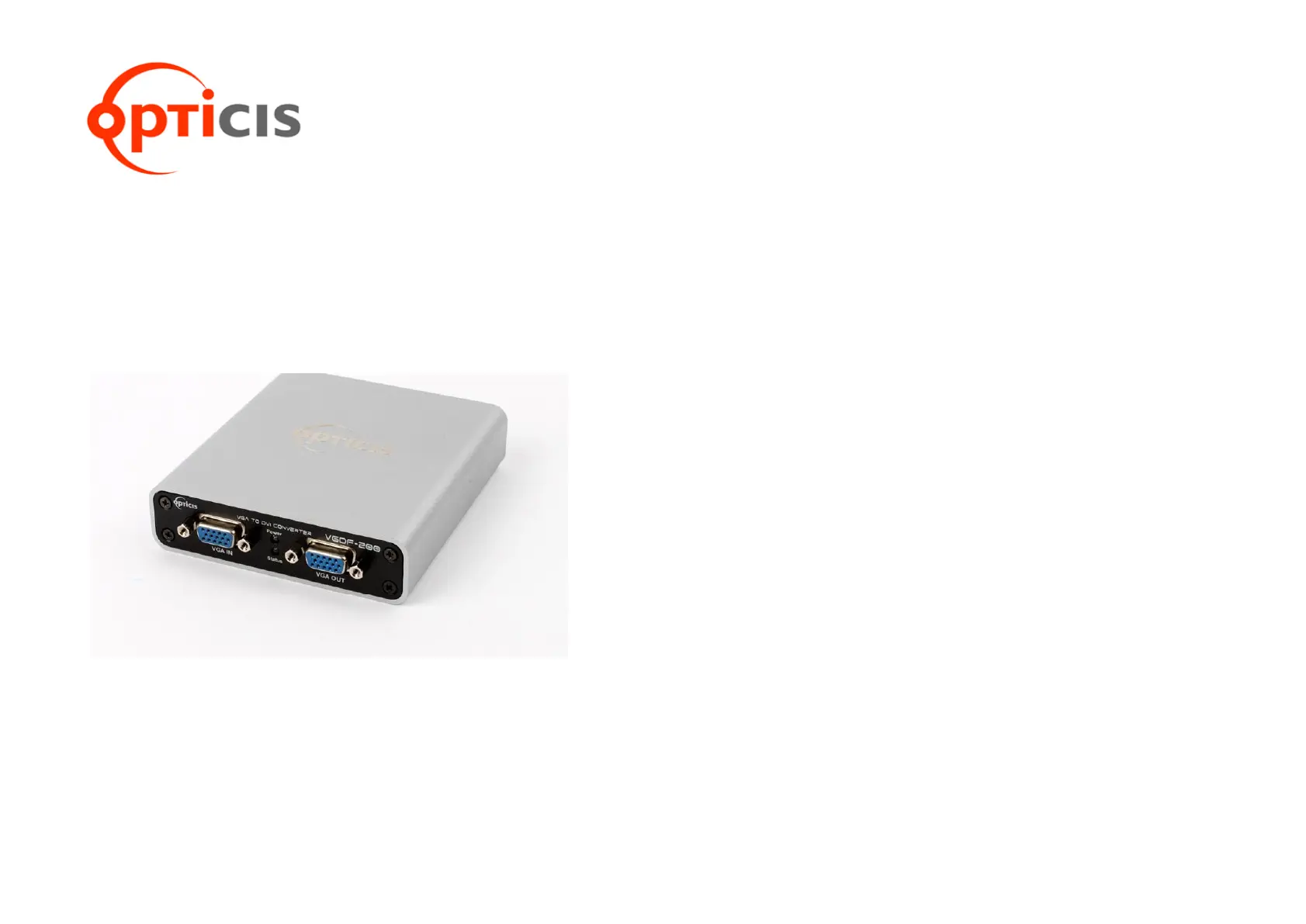

The VGDF-200, VGA to 1-fiber DVI converter receives VGA up to WUXGA
(1920x1200), 60Hz signal and converts to optical signal and transmits up to
transmits 500 meters (1,640feet) over one (1) SC multi-mode fibers. OPTICIS
1-fiber DVI receiver, DVFX-100-R is used as a pair to recover 1 fiber DVI to
electrical DVI. The EDID (Extended Display Identification Data) in a display
can be read and restored by just connecting once transmitter to the display.
This Self-EDID programming feature makes the installation of VGDF-200
more easy and flexile at any variable resolution display systems. For your
convenience, WUXGA EDID had been stored before shipment as a default.
Shipping Group
VGDF-200, VGA to 1-fiber DVI converter: One (1) unit
AC/DC power adapter: One (1) unit of +5V, 3A (Locking type)
User Manual
Option Product: Mounting bracket
1-1 Welcome, Product Description
System Requirements for Setup
Hardware requirements
You must have a VGA graphic controller or card having a VGA
port in your PC, SUN or Mac systems. It should support the
maximum graphic resolution feature of displays to be connected.
No special requirements for memory size, CPU speed and
chipsets, if you’ve already properly installed your VGA graphic
controllers or cards.
Software requirements
No special restrictions, if you’ve already properly installed your
VGA graphic controller in your OS.
1-2 System Requirements for Setup
