Sida 1/3
Nude Elliptical diamond
Rigid Aluminum cantilever
High performance rubber suspension
8.5 mV
E X C L U S I V E F E A T U R E S
Based on the legacy of the Ortofon Concorde MkII Series,
created with passion, high technology, and close attention
to detail, every feature of the Concorde Elite brings you a
limitless experience with the music you love.
The Concorde Elite features a new, special-molded stylus
body with real gold plating, which adds luxury to the
famous Concorde design. Encased by the gold is a Nude
Elliptical diamond mounted on a rigid Aluminum cantilever.
The nude diamond stylus, you normally will nd in HiFi
cartridges, delivers a sound so powerful and detailed, you
will experience a remarkable level of live performance. The
addition of a nude diamond allows a smaller moving mass
guaranteeing an improved and detailed sound quality, and
the slim prole of the advanced diamond makes it able
to follow the groove oscillations more accurately, extract
more intricate details and track even the highest frequency
information.
The cantilever needs to accommodate the perfect
compromise between lightweight and high strength,
which requires great ingenuity in the design as well as the
choice of the materials. The properties of the Rigid 750 µm
Aluminum-Magnesium Cantilever, exclusively developed
for the Concorde Elite, ensure that the stylus picks up
the groove vibrations with a stable and accurate trace
Ortofon A/S | Stavangervej 9 | DK-4900 Nakskov | Denmark | support@ortofon.dk | www.ortofon.com
CONCORDE ELITE 04-22

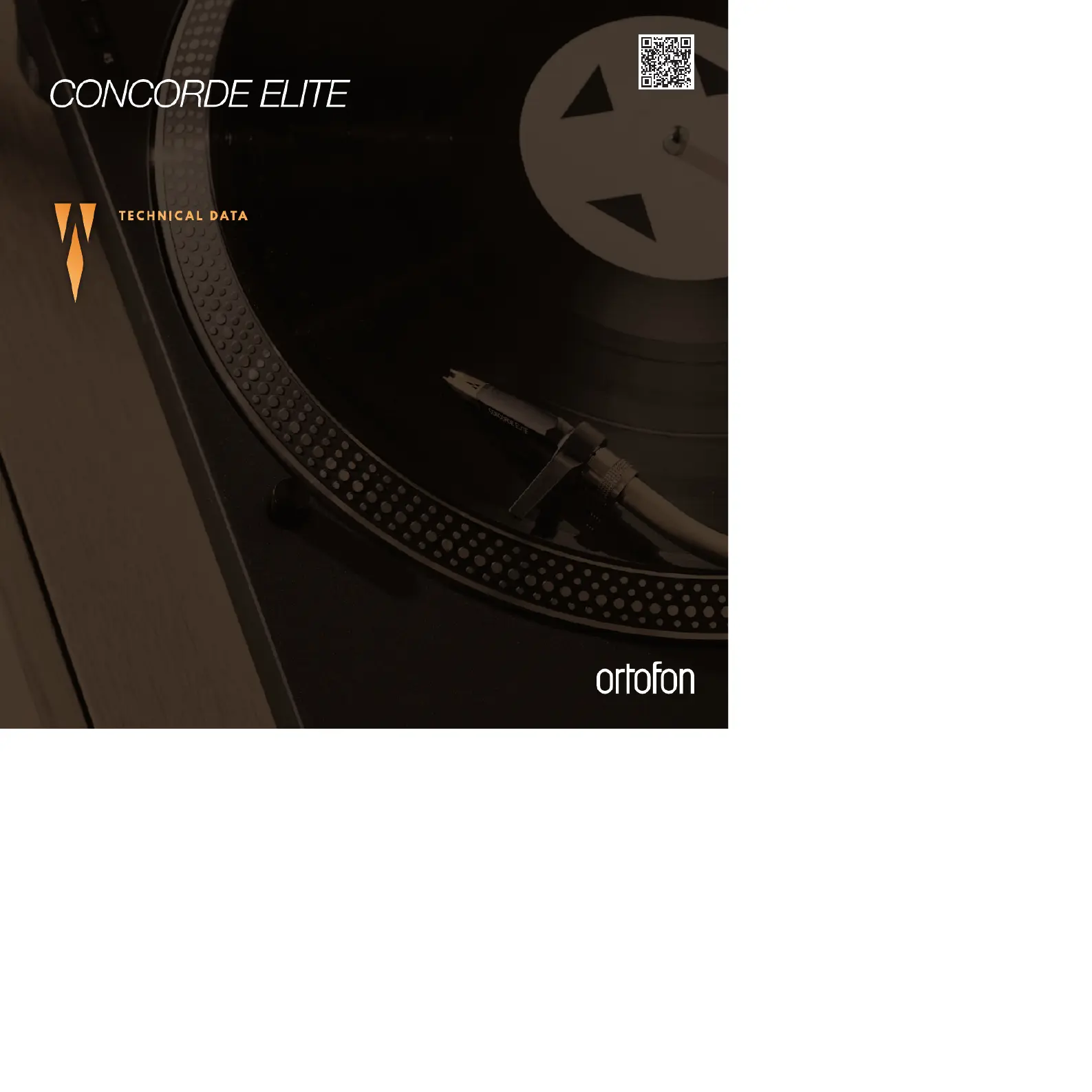

Output voltage at 1000 Hz, 5cm/sec.
Channel balance at 1 kHz
Channel separation at 1 kHz
Channel separation at 15 kHz
Frequency range at -3 dB
Tracking ability at 315Hz
Compliance, dynamic lateral
Stylus type
Stylus tip radius
Tracking force range
Tracking force recommended
Tracking angle
Internal impedance, DC resistance
Internal inductance
Recommended load resistance
Recommended load capacitance
Cartridge weight excluding screws
Cartridge colour (body/stylus)
8,5 mV
1 dB
25 dB
15 dB
20 – 20,000 Hz
100 µm
13 µm/mN
Nude Elliptical
r/R 8/18 µm
2.0-4.0 g
3.0 g
20°
1.2 kOhm
800 mH
47 kOhm
150-400 pF
18.5 g
Black / Gold
