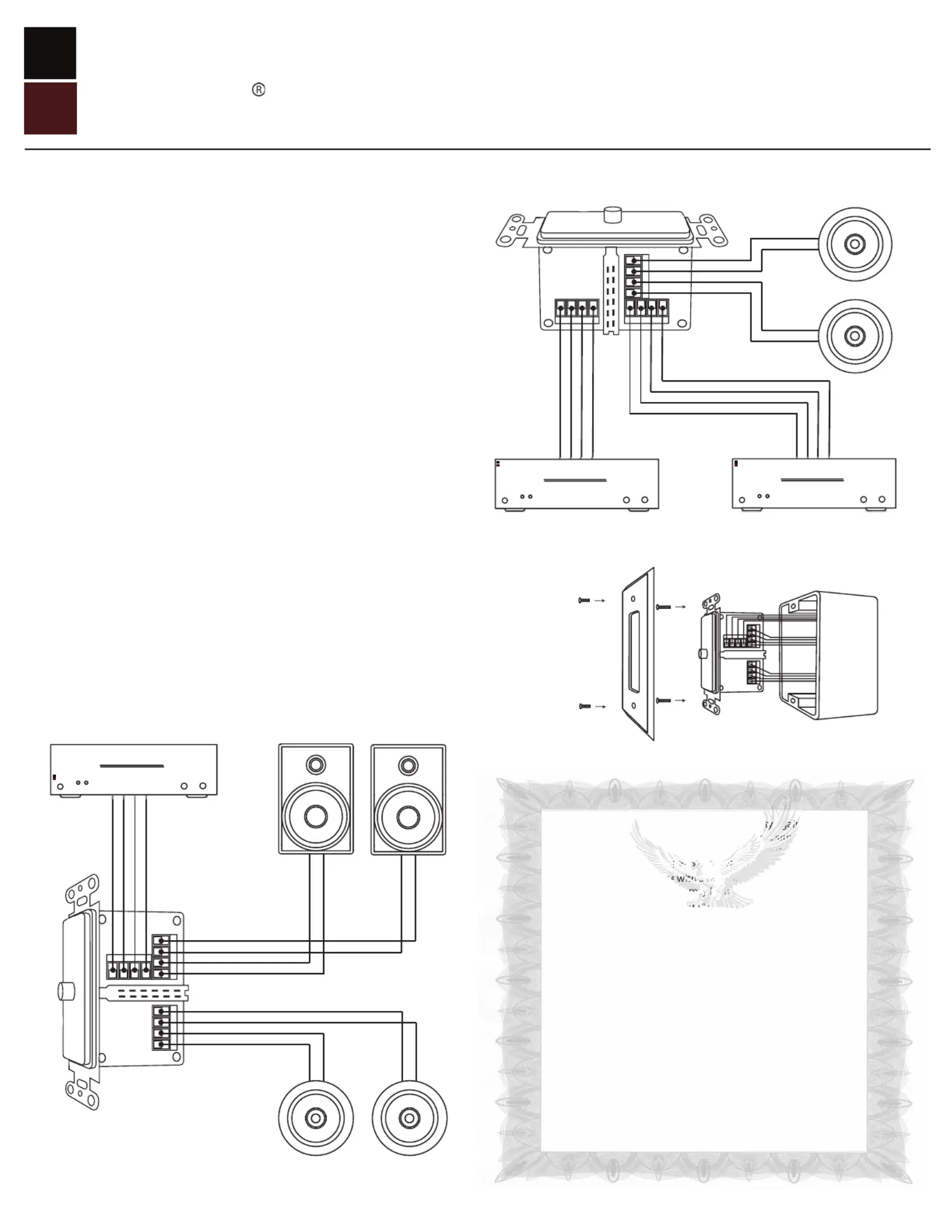

OSD AB-1-2
FIG A
AU DI O
OSD
®
Dual source selector switch
- - - - - - - - - - - -
L+ L- R+ R- L+ L- R+ R-
L+
L-
R+ R-
- - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - -
- - - - -
- - - - -
- - - - - - - - - - - - - - - - - - - - - - -
FIG. B
- - - - - -
- - - - - -
x
x
x
x
L+ L- R+ R- L+ L- R+ R-
L+
L-
R+ R-
AU DI O
OSD
®
- - - - - -
- - - - - -
x
x
x
x
L+
L-
R+
R-
L+
L-
R+
R-
L+ L R+ R-
SPEAKER
OUTPUT
AMP-A INPUT
AMP-B INPUT
SPEAKER
OUTPUT
AMP-A INPUT
AMP-B INPUT
®
Speakers B
Speakers A
Receiver/AMP
Speakers
Receiver/AMP-A Receiver/AMP-B
Installation Manual
A U D I O
OSD
AU DI O
OSD
®
The OSD AB-1-2 is a dual source selector switch that permits a single pair of
speakers to be driven by two input amplifiers or conversely all
ow a single
amplifier to drive two pair of speakers.
Instructions
To connect two amplifiers/receivers and one pair of speakers
(see FIG. A)
Connect the First Amp/Rec’s outputs to the AMP-A inputs. Make sure the polarity
and channels are consistent.
To connect one amplifier/receiver and two pairs of speakers:
(see FIG. B)
Take leads from the amplifier or receiver speaker output and connect to the speaker
output on the AB-1-2 switch.
Connect one pair of speakers to AMP-A inputs. Keep the polarity and channels
consistent. Connect the second pair of speakers to AMP-B inputs. Make sure bth
channels are consistent.
Technical Specifications
Frequency Response: 20Hz - 20KHz
Wiring requirement: 14 - 16 guage wire
Mounting: Fits most standard single-gang junction boxes
Dimensions: 1” W x 2
¾
H x 1
¾
” D
Warranty: 5 Years
