Sida 1/3
BLACK SERIES INSTALL GUIDE
Preparation:
Installation:
Tools For Installation Speaker Wire Guide
Considerations
Cut Out
Placement
- Pencil
- Drill
- Tape Measure
- Wire Cutter
- Phillips Screwdriver
- Utility Knife
- Safety Eye Wear
- Gloves
- Sandpaper
- Where is the best place to install the speakers?
- Where do the speakers sound the best?
- Separate the speakers 6 - 10 feet apart.
- (For Ceiling LCR models only) Place speakers with the 15°
angled woofer pointed towards the main listening area.
- If you intend to paint the grilles, do so before installation.
NOTE: This is the most important part of the entire installation.
If you are not certain whether any obstructions exist behind the
desired mounting area, you should start by cutting a small hole in
the center of your penciled mounting hole with a drywall saw.
Trace along the included template. Cut along the traced line using a
drywall saw or rotary drill. Use a piece of sandpaper to sand down the
cut out edge for a smoother contour. (See Diagram 2.)
There are many options for proper speaker placement depending
upon speaker type and application. It’s important to carefully plan the
placement of your speakers, as installation requires that you cut a
hole in your wall or ceiling.
(See Diagram 1.) Typical speaker placement for a 5.1 and 7.1
speaker system.
18AWG minimum - for distances up to …………………. 10 ft
16AWG - from …………………………………..…... 10 to 50 ft
14AWG - from …………………………………...… 50 to 100 ft
TV
Diagram 2
Diagram 1
BLACK SERIES INSTALL GUIDE
Mounting
Connection
Adjustment
Pivoting Tweeter
Tighten the mounting brackets by simply turning the screws on
the front of the speaker bafe slowly clockwise. The quick-turn
mounting system and frame will “sandwich” or clamp around the
dry-wall to hold the speaker securely in place once fully tightened
to the locked position.
(See Diagram 3.)
When connecting any speakers to the amplier or receiver, always
make sure the power is off. Locate the connection terminals on the
back of your receiver or amplier. Always make sure to connect au-
dio out from the back of your receiver or amplier to the speakers.
(See Diagram 4.)
NOTE: Not all Amplier/Receivers can safely play more than one
pair of speakers at once. Please refer to your owner’s manual for
impedance and wattage compatibility.
On select models ( *Performance, Reference ) of OSD Black
Series, a front mounted 3 position ±3dB treble contour switch can
be used to tailor high frequencies according to speaker placement
or the listeners preference.
(See Diagram 5.)
* Excludes Shallow Mount Series
Your Black series speaker comes from the factory with the
tweeter centered in the neutral position. This will provide the
smoothest response. However, select models come with a
pivoting tweeter so you can focus the sound directly towards the
listening area if needed. In order to do this, carefully press on the
edge of the tweeter bafe in the direction you wish to focus the
sound. (See Diagram 6.)
CAUTION: When adjusting the pivoting tweeter be sure not to
touch the dome as you may cause damage to the speaker.
SPECIFICATIONS
Left Out
Left Speaker
Rec/Amp
Right Out
Right Speaker
- -
+ +
--
++
Press Here to
Pivot Tweeter
Open PositionLocked Position

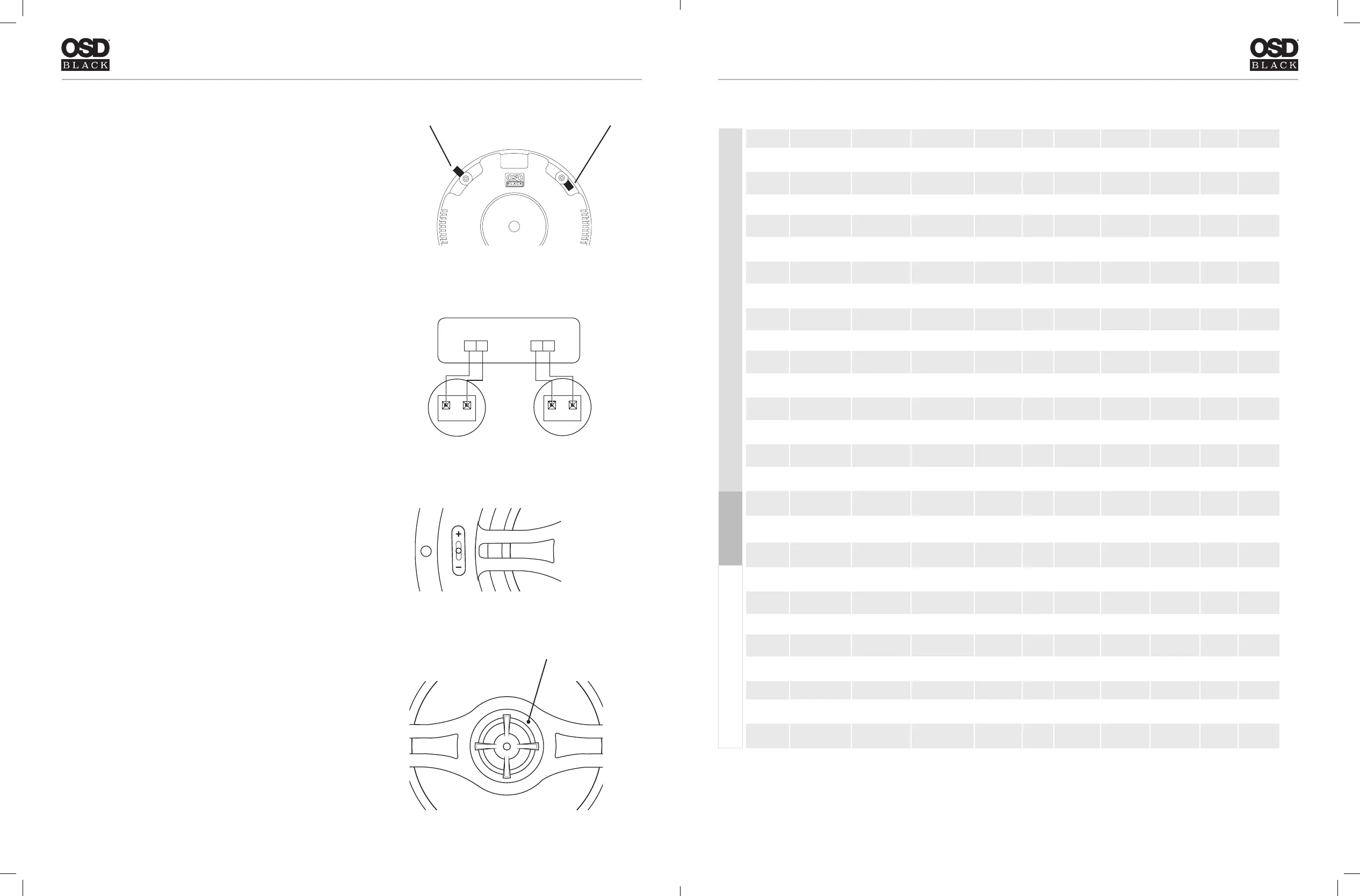

Diagram 3
Diagram 4
Diagram 5
Diagram 6
- IN +
Model Description Woofer Tweeter
Freq
Response
Power Sensitivity Impedance Dimension Depth Cut Out
R51
Ceiling Speaker
Acoustic
5.25” Poly W/
Rubber Surround
½” Pivoting
Silk Soft Dome
65-20K 75W 85dB 8 ohm 8.2” 3.81” 6.6”
R52
Ceiling Speaker
Performance
5.25” Graphite W/
Rubber Surround
¾” Pivoting
CatEye Parachute Silk
Soft Dome
55-20K 90W 85dB 8 ohm 8.2” 3.81” 6.6”
R53
Ceiling Speaker
Reference
5.25” Carbon Fiber
W/ TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
50-20K 100W 87dB 8 ohm 8.2” 3.81” 6.6”
R61
Ceiling Speaker
Acoustic
6.5” Poly W/ Rubber
Surround
½” Pivoting
Silk Soft Dome
45-20K 100W 86dB 8 ohm 9.3” 3.93” 7.8”
R62
Ceiling Speaker
Performance
6.5” Graphite W/
Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
40-20K 120W 87dB 8 ohm 9.3” 3.93” 7.8”
R63
Ceiling Speaker
Reference
6.5” Carbon Fiber W/
TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
38-20K 150W 89dB 8 ohm 9.3” 3.93” 7.8”
R62DT
Stereo Ceiling
Speaker
Performance
6.5” Graphite W/
Rubber Surround
Dual ¾” Pivoting
CatEye Parachute Silk
Soft Dome
40-20K 120W 86dB 8 ohm 9.3” 3.93” 7.8”
R62A
Angled Ceiling
Speaker
Performance
6.5” Graphite W/
Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
40-20K 120W 87dB 8 ohm 9.8” 4.72” 8.3”
R63A
Angled Ceiling
Speaker
Reference
6.5” Carbon Fiber W/
TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
38-20K 150W 89dB 8 ohm 9.8” 4.72” 8.3”
R81
Ceiling Speaker
Acoustic
8” Poly W/
Rubber Surround
½” Pivoting
Silk Soft Dome
50-20K 120W 89dB 8 ohm 11” 4.33” 9.5”
R82
Ceiling Speaker
Performance
8” Graphite W/
Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
45-20K 150W 88dB 8 ohm 11” 4.33” 9.5”
R83
Ceiling Speaker
Reference
8” Carbon Fiber W/
TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
28-22K 175W 91dB 8 ohm 11” 4.33” 9.5”
R83DT
Reference
Stereo Ceiling
Speaker
8” Carbon Fiber W/
TPR Surround
Dual 1” Pivoting
Ceramic Coated
Aluminum Dome
28-22K 175W 90dB 8 ohm 11” 4.33” 9.5”
R82DT
Performance
Stereo Ceiling
Speaker
8” Graphite W/
Rubber Surround
Dual 1” Pivoting
CatEye Parachute Silk
Soft Dome
40-20K 150W 86dB 8 ohm 11” 4.33” 9.5”
R82A
Performance
Angled Ceiling
Speaker
8” Graphite W/
Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
38-22K 150W 88dB 8 ohm 11” 5.4” 10”
R83A
Reference
Angled Ceiling
Speaker
8” Carbon Fiber W/
TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
28-22K 175W 91dB 8 ohm 11” 5.4” 10”
R62 SM
Performance Shallow
Mount Weather Resis-
tant Ceiling Speaker
6.5” PP Cone 1” PEI Dome 75-20K 60W 86 dB 8 ohm 9.3” 3.1” 7.7”
R82 SM
Performance Shallow
Mount Weather Resis-
tant Ceiling Speaker
8” PP Cone 1” PEI Dome 70-20K 100W 88 dB 8 ohm 11” 3.1” 9.4”
R62SS
Performance Super
Shallow Mount Ceiling
Speaker
6.5” Composite
Glass Fiber Cone
1” PEI Dome 55-20K 25-100W 88 dB 8 ohm 9.3” 2.12” 8.18”
T52LCR
Reference
In-Wall LCR
Dual 5.25” Graphite
W/ Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
55-20K 120W 88dB 8 ohm 15.9” x 8.2” 3.14” 14.4” x 6.7”
T53LCR
In-Wall LCR
Reference
Dual 5.25” Carbon
Fiber W/ TPR
Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
50-20K 150W 90dB 8 ohm 15.9” x 8.2” 3.14” 14.4” x 6.7”
T61
In-Wall Speaker
Acoustic
6.5” Poly W/ Rubber
Surround
½” Pivoting
Silk Soft Dome
45-20K 100W 86dB 8 ohm 12.4” x 9” 3.62” 108” x 7.4”
T62
In-Wall Speaker
Performance
6.5” Graphite W/
Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
40-20K 120W 87dB 8 ohm 12.4” x 9” 3.62” 10.8” x 7.4”
T63
In-Wall Speaker
Reference
6.5” Carbon Fiber W/
TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
38 -20K 150W 89dB 8 ohm 12.4” x 9” 3.62” 10.8” x 7.4”
T81
In-Wall Speaker
Acoustic
8” Poly W/ Rubber
Surround
½” Pivoting
Silk Soft Dome
50-20K 120W 89dB 8 ohm 14.4” x 10.4” 3.81” 12.9” × 8.8”
T82
In-Wall Speaker
Performance
8” Graphite W/
Rubber Surround
1” Pivoting
CatEye Parachute Silk
Soft Dome
38-22K 150W 88dB 8 ohm 14.4” x 10.4” 3.81” 12.9” × 8.8”
T83
In-Wall Speaker
Reference
8” Carbon Fiber W/
TPR Surround
1” Pivoting Ceramic
Coated Aluminum
Dome
28-22K 175W 91dB 8 ohm 14.4” x 10.4” 3.81” 12.9” × 8.8”
CEILING SPEAKERS
SHALLOW
MOUNT
IN-WALL SPEAKERS
NOTE: All specication and dimensions are subject to change without notice.
