Sida 1/2
MOV50-70V
Weather-Proof 50-Watt 70V MONO
Outdoor Volume Control/Attenuator
Basic Connections:
1) All 70V Speaker Connections are in Parallel. The
MOV50-70V has two options for connecting to the
70Volt Amplifier. Number one, Daisy Chain, features a
single connection from the Amplifier (like our PA270
AMP/MIXER) to the first Attenuator. The two-conductor
wire splits between connecting to the first Attenuator
and Second Attenuator. This step will be repeated,
depending on how many Attenuators are connecting.

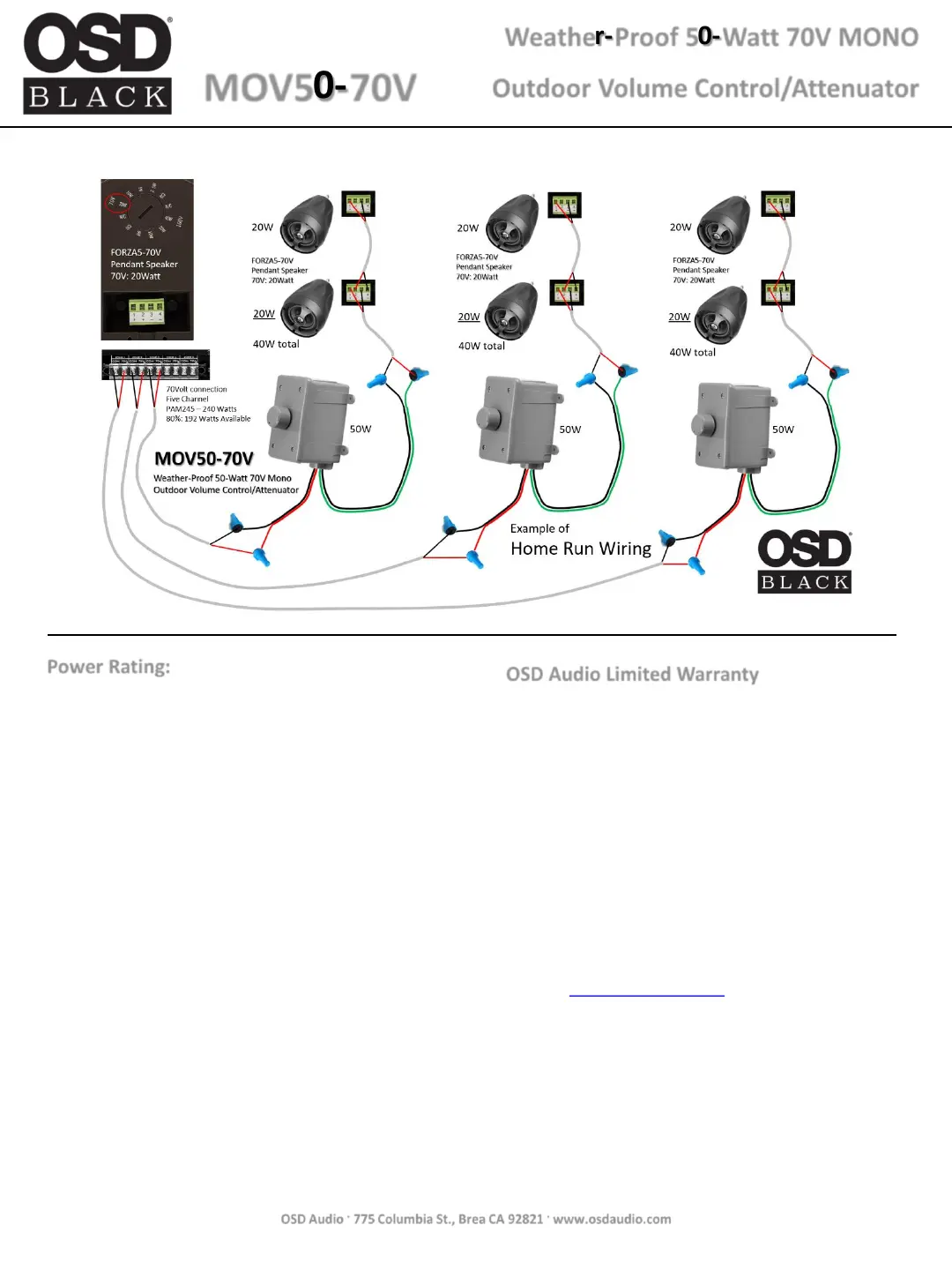

Number 2, the Home Run connection, has a two-
conductor wire coming from each Attenuator back to
the 70V Amplifier. Our PAM245 features 1 to 5 channel
connections where the cables will be home run from
each of the individual Attenuator back the respective
five-channel connections.
3) The Common and Output of each Attenuator
connects to the Common and desired color- coded
wattage wire on the Primary of the 70 Volt Transformer.
Or the Common and Output of each attenuator
connects to the negative (black) and Positive (red) for a
speaker with built in transformer. Then the wattage is
set with the selector the Home Run connection featured
on next page below)
Transformer
Waterproof
Housing
Input
from Amplifier
Output
to Speakers
Rotary
Knob

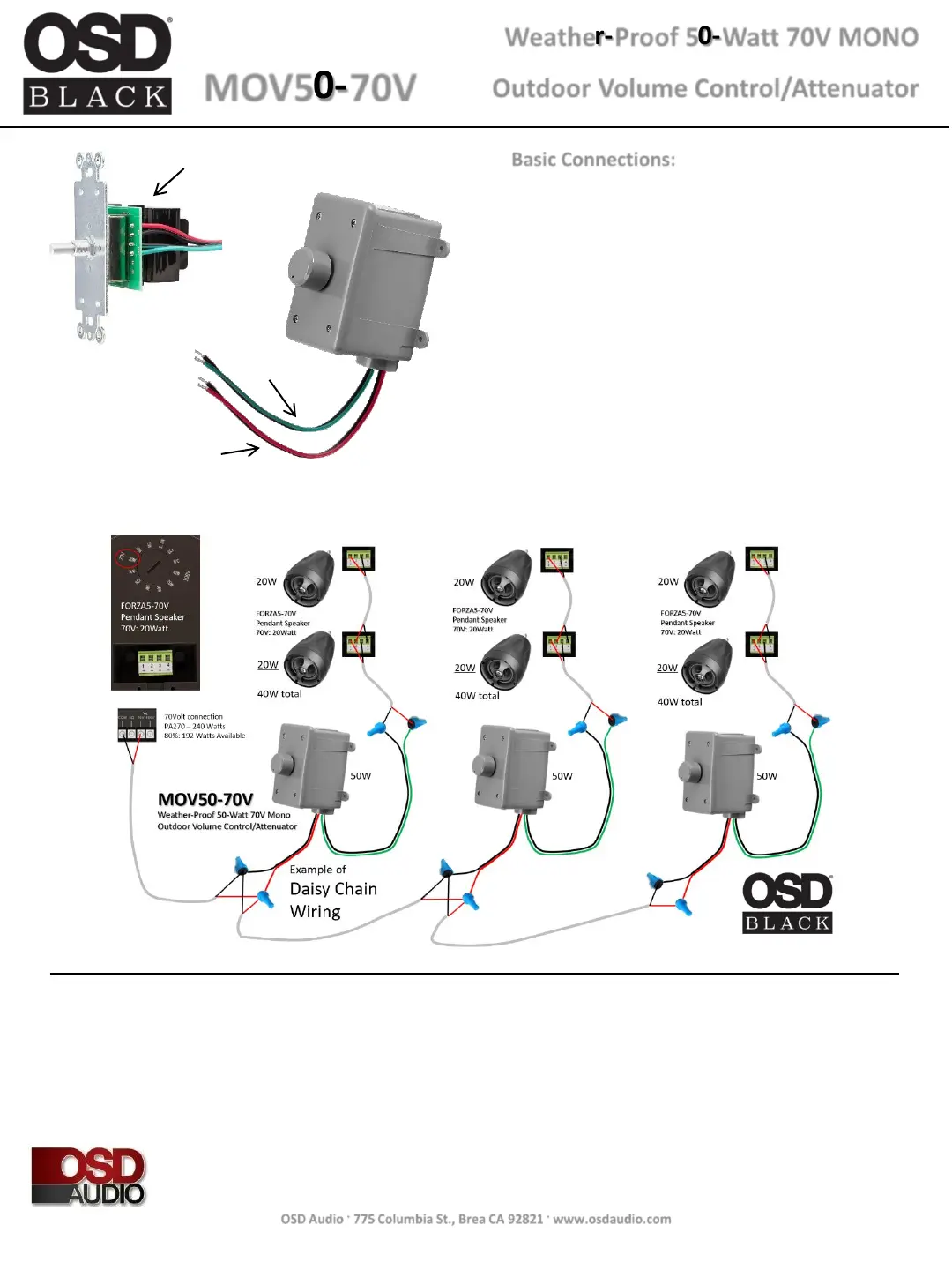

Option 1: Daisy Chain, single Amp connection
2) The Common and 70Volt outputs of the Amplifier
connect to the Common and Input of each Attenuator
whether all are coming directly from the Amplifier in
“Home Run” or from the Attenuator to the previous
Attenuator in the “Daisy Chain”
10 Step,
33dB Plus Full Off
OSD Audio · 775 Columbia St., Brea CA 92821 · www.osdaudio.com
