Sida 1/8

Closed

Loose

Closed

Loose

..... ......

dog ear

18AWG minimum - for distances up to ………………………. . 10 ft

16AWG - from ……………………………………………. 10 to 50 ft

14AWG - from …………………………………………… 50 to 100ft

- Where is the best place to install the speakers

- Where do the speakers sound the best

- Try to separate the speakers 6 - 10 feet apart.

- When placing the speakers in the ceiling, try to install them

so that the xed 15 angle woofer is pointed towards the main

listening area. (For LCR model only)

- If you intend to paint the grilles, try to do so before installation.

Q alla ouick inst ti n guide

- Pencil

- Drill

- Tape Measure

- Wire cutter

- Philips-head screwdriver

- Sandpaper

Tools needed for installation

STEP 4

Tighten the dog-ear brackets by simply turning the screws on the

slowly clockwise. The quick-turn mounting system and frame will

"sandwich" or clamp around the wall to hold the speaker securely in

place. (See Diagram 4)

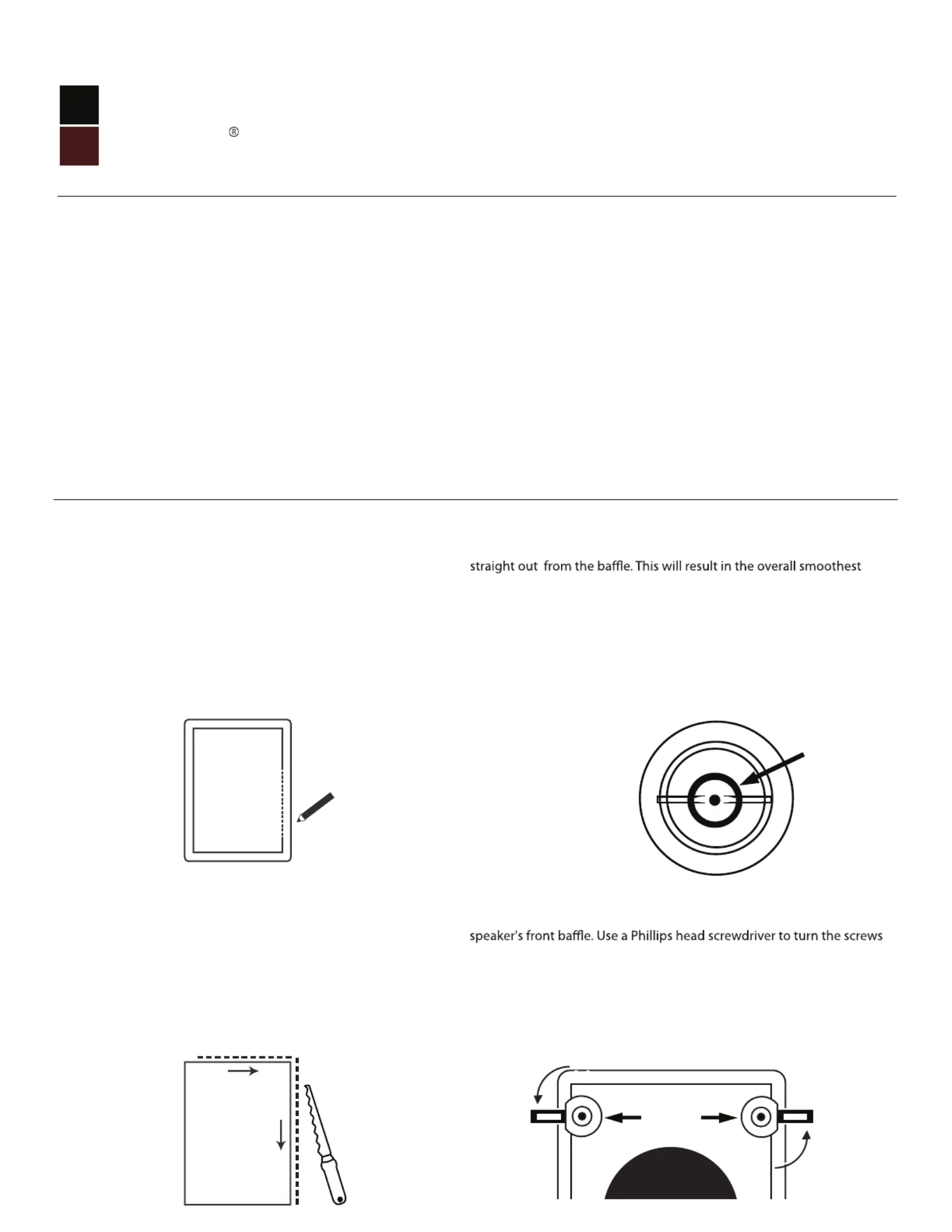

STEP 1

Trace along the inclusive template. Cut along the traced line using a

drywall saw or rotary drill. A simple, inexpensive drywall saw (about

$10 at your local hardware store) is the best choice for beginners.

Caution: This is the most important part of the entire installation.

If you are not certain whether any obstructions exist behind the

desired mounting area, you should start by cutting a small hole in

the center of your penciled mounting hole with a drywall saw. Use a

piece of sandpaper to sand down the cut out edge for a smoother

contour. (See Diagram 1 and Diagram 2)

STEP 2

Run the cable into the cut out location while leaving an extra two

feet to make the connection to the speaker easier. Strip back

approximately ½” inch of the speaker cable insulation and twist

the copper wires tightly for easy insertion.

On the back of the speaker, press down on the gold-plated

compression terminal to reveal the "eye" and insert the speaker

cable through the eye for secure connection. Release the compres-

sion terminal to lock each cable securely.

STEP 3

Your in- speakers come from the factory with the tweeter facing wall

response. However, you can adjust the tweeter to focus sound at the

your listening location. In order to do this, gently press on the grill (See

Dia am 3). gr Caution: Do not touch the tweeter dome while adjusting for

your hearing preferen . (ce See Diagram 3)

Diagram 1:

Cutout tracing

Diagram 2:

Cut Out

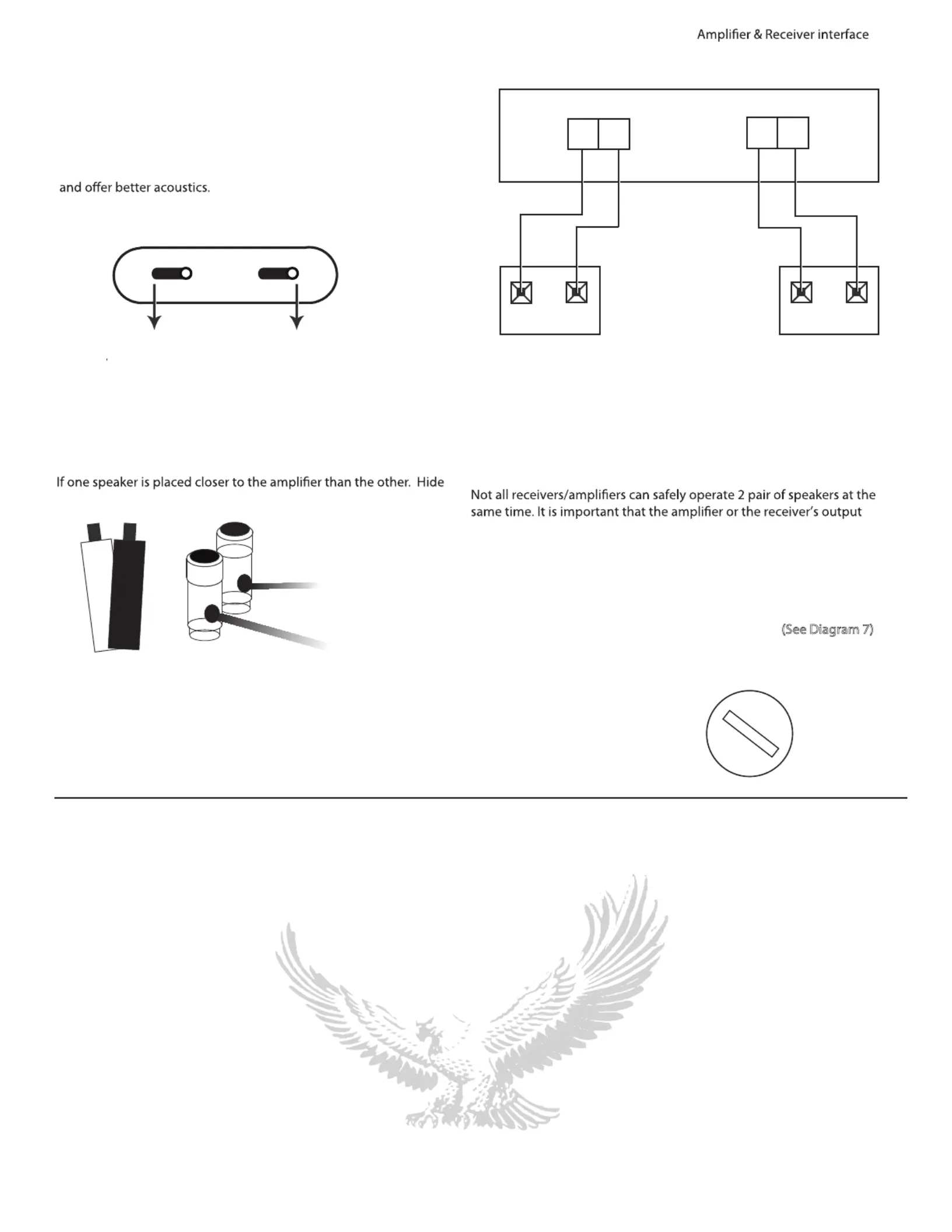

To determine the length and the gauge of speaker wire, you will need to

measure the distance between your receiver/amplifier and the speakers.

- Always buy more than you think you would need.

- Equal wire lengths should always be used to maintain an equal

balance in sound volume.

- Sound quality is lost when using thin wire gauge over a long

distance.

- Utility knife

- Safety eyewear

- Gloves

Diagram 3:

Adjust the tweeter here

--------

Tweeter

Diagram 4:

Mounting Dog Ear

Speaker wire

- - - - - - - - - - -

- - - - - - - - - - - - - - - - -

Owner’s Manual

In-Wall Speakers

- - - - - - - - - - - - - - -

A U D I O

OSD

- Measure the distance from the receiver/amplifier to the speakers.

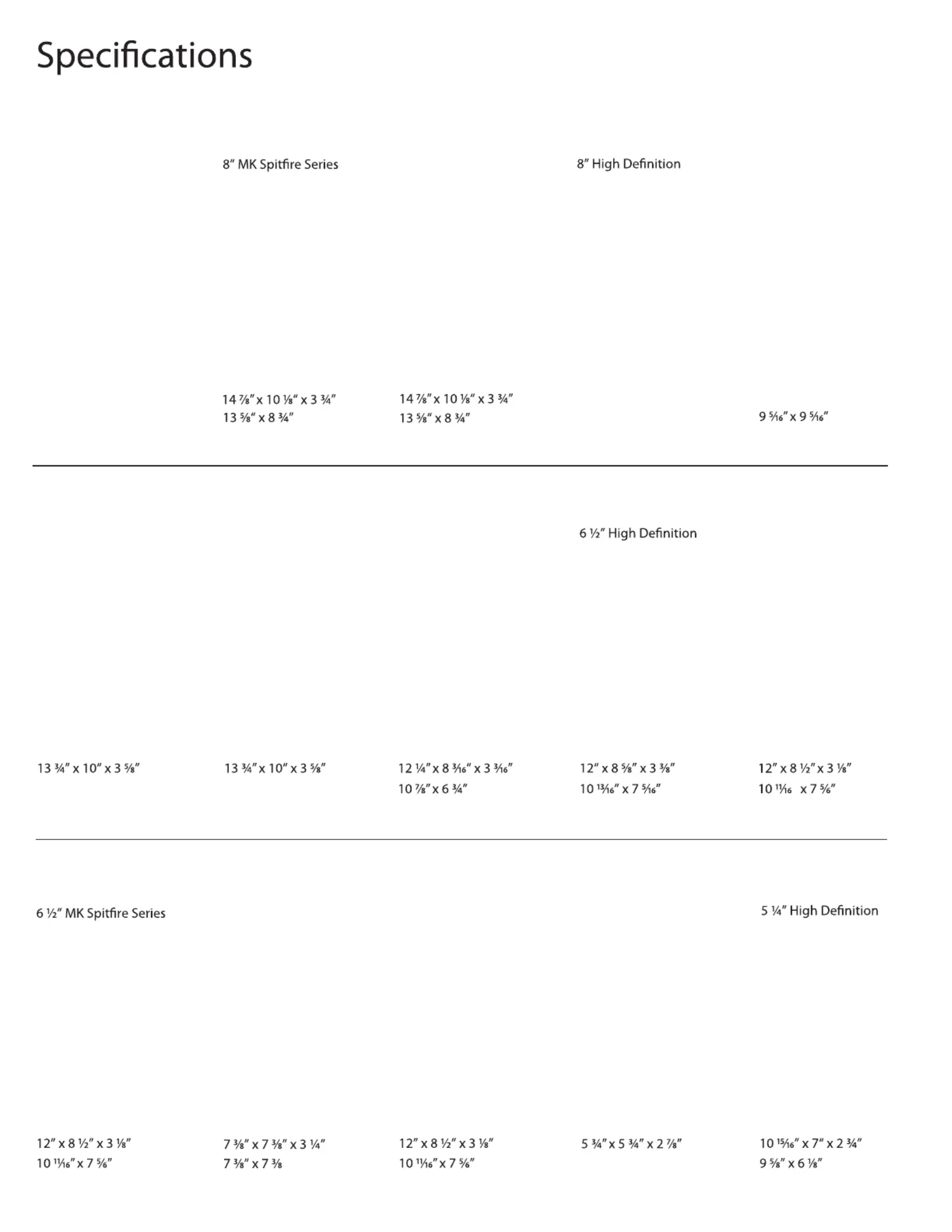

Produktspecifikationer

Varumärke:	OSD Audio
Kategori:	högtalare
Modell:	MK840
Vikt:	- g
Bredd:	- mm
Djup:	- mm
Höjd:	- mm
Diameter:	273.05 mm
Snabbstartsguide:	Ja
Rekommenderad användning:	Universal
Ljudutgångskanaler:	1.0 kanaler
Högtalarplacering:	Ceiling-mountable, In-wall/in-ceiling
Antal förare:	1
Bashögtalare:	Ja
Förstärkare:	Nej
AirPlay:	Nej
Produktens färg:	Vit
bruksanvisning:	Ja
Uteffekt (RMS):	175 W
diskanthögtalare:	Ja
Anslutningsteknologi:	Kabel
Woofer diameter:	203.2 mm
Woofer diameter (imperial):	8 "
Stöd för flerrumsstreaming (MRS):	Nej
Antal woofer-drivenheter:	1
Disktanthögtalare diameter:	1 "
Antal tweeter förare:	1
